Cascading Dropdown List in Kendo UI Using WEB API and Entity Framework

This article explains how to crete a cascading dropdownlist in the Kendo UI using the Web API and Entity Framework with the Database First approach.

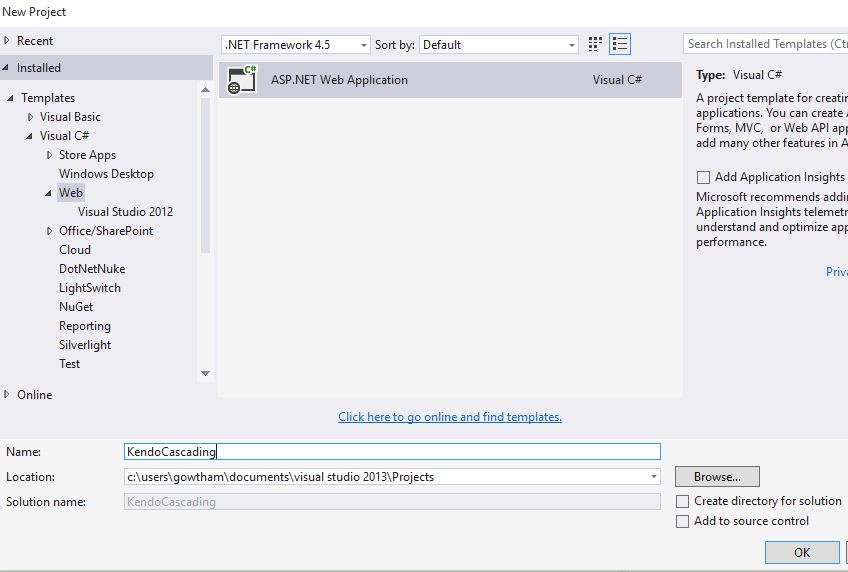

  • Open Visual Studio 2012, create a new project.
  • Select File, New and then Project.

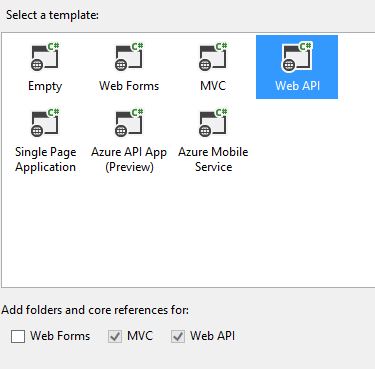

  • Select Web in the installed template and select ASP.NET Web Application.
  • Provide the name for the project and click OK, as in the following figures.

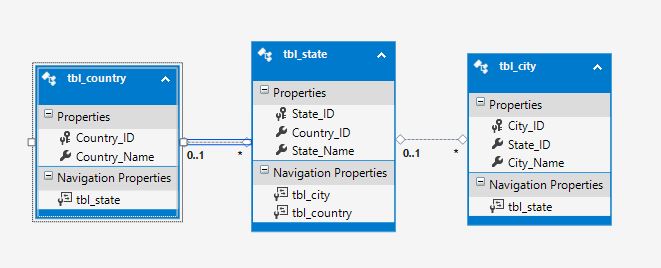

My database schema is as in the following figure:

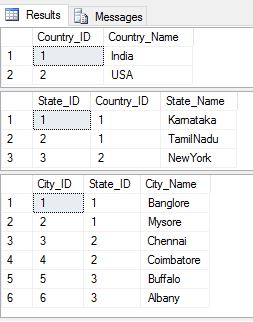

My table structure is as in the following figure:



I am using the Entity Framework with Database First approach, so the Entity Framework builds default model classes and context classes.

Create a data transfer object model class.

Write the following code in the new model class:
  1. public class Country
  2. {
  3.     public int CountryId
  4.     {
  5.         get;
  6.         set;
  7.     }
  8.     public string CountryName
  9.     {
  10.         get;
  11.         set;
  12.     }
  13. }
  14. public class State
  15. {
  16.     public int StateId
  17.     {
  18.         get;
  19.         set;
  20.     }
  21.     public int CountryId
  22.     {
  23.         get;
  24.         set;
  25.     }
  26.     public string StateName
  27.     {
  28.         get;
  29.         set;
  30.     }
  31. }
  32. public class City
  33. {
  34.     public int StateId
  35.     {
  36.         get;
  37.         set;
  38.     }
  39.     public int CityId
  40.     {
  41.         get;
  42.         set;
  43.     }
  44.     public string CityName
  45.     {
  46.         get;
  47.         set;
  48.     }

Now add one more class to do the conversion and write the following code in the class.
  1. public static List < Country > CountriesToCountry(List < tbl_country > e)
  2. {
  3.     List < Country > lstCountry = e.Select(country = > new Country()
  4.     {
  5.         CountryId = country.Country_ID, CountryName = country.Country_Name
  6.     }).ToList();
  7.     return lstCountry;
  8. }
  9. public static List < State > FCountrytoState(List < tbl_state > e)
  10. {
  11.     List < State > lstState = e.Select(state = > new State()
  12.     {
  13.         StateId = state.State_ID, StateName = state.State_Name
  14.     }).ToList();
  15.     return lstState;
  16. }
  17. public static List < City > FStatetoCity(List < tbl_city > e)
  18. {
  19.     List < City > lstCity = e.Select(city = > new City()
  20.     {
  21.         CityId = city.City_ID, CityName = city.City_Name
  22.     }).ToList();
  23.     return lstCity;

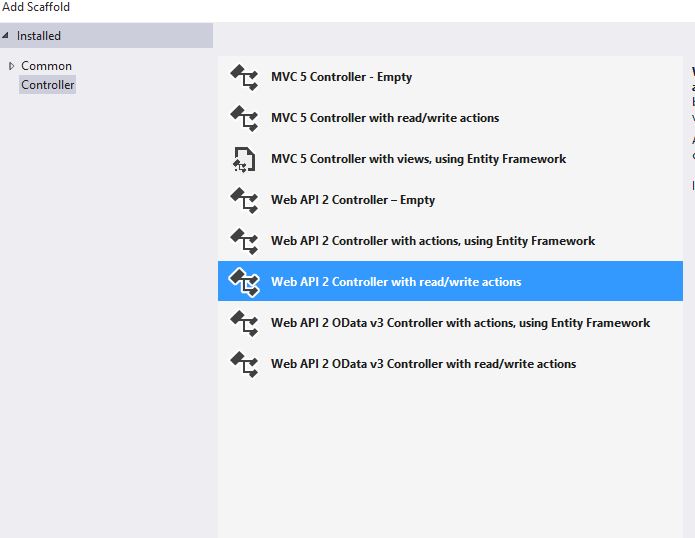

Now create a Web API controller class as in the following figure:


Write the following code in the new controller class.
  1. public class CascadingController: ApiController
  2. {
  3.     testEntities dbcontext1 = new testEntities();
  4.     public IEnumerable < Country > GetCountries()
  5.     {
  6.         var lstCountries = from r in dbcontext1.tbl_country select r;
  7.         List < Country > lst = new List < Country > ();
  8.         lst = Converter.CountriesToCountry(lstCountries.ToList());
  9.         return lst;
  10.     }
  11.     [ActionName("GetStates")]
  12.     public IEnumerable < State > GetStates(int id)
  13.     {
  14.         var lstStates = dbcontext1.tbl_state.Where(b = > b.Country_ID == id).ToList();
  15.         List < State > list = new List < State > ();
  16.         list = Converter.FCountrytoState(lstStates.ToList());
  17.         return list;
  18.     }
  19.     [ActionName("GetCities")]
  20.     public IEnumerable < City > GetCities(int id)
  21.     {
  22.         var lstCities = dbcontext1.tbl_city.Where(b = > b.State_ID == id).ToList();
  23.         List < City > list = new List < City > ();
  24.         list = Converter.FStatetoCity(lstCities.ToList());
  25.         return list;
  26.     }

To avoid the conflict between GetStates and GetCities methods add the following routing configuration in the WebApiConfig class:
  1. config.Routes.MapHttpRoute(
  2.
  3.    name: "DefaultApiWithAction",
  4.    routeTemplate: "api/{controller}/{action}/{id}",
  5.    defaults: new { id = RouteParameter.Optional }
  6.
  7. );

Check the API services using the POSTMAN/Fiddler as in the following figures.

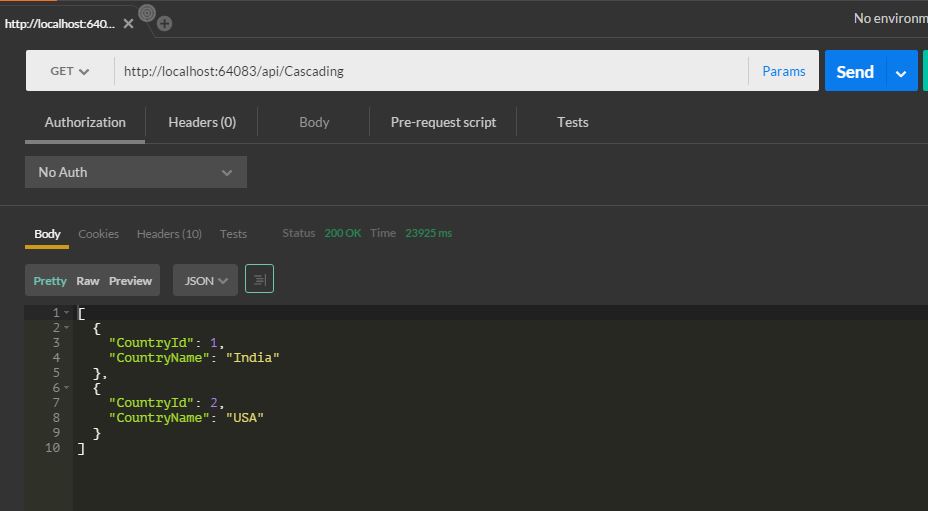

Case 1: /api/Cascading/

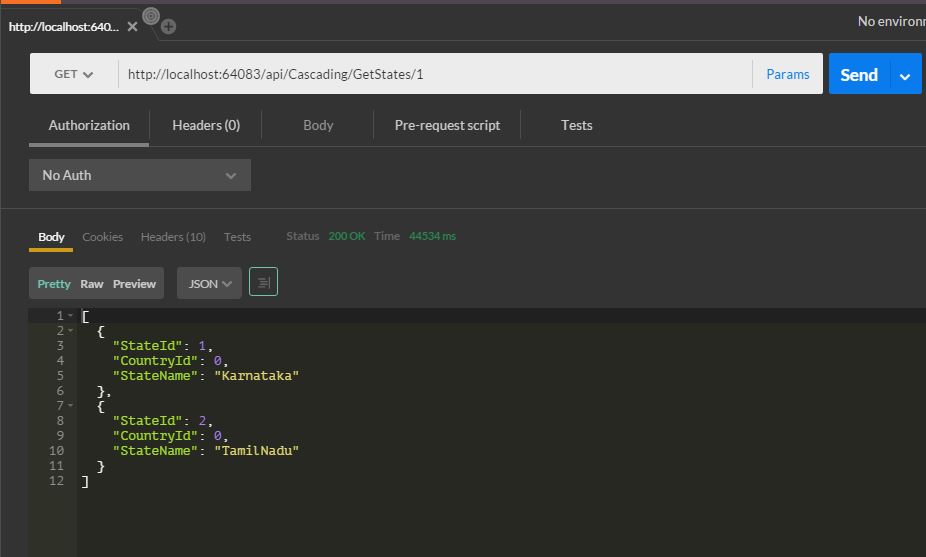

Case 2: /api/Cascading/GetStates/2

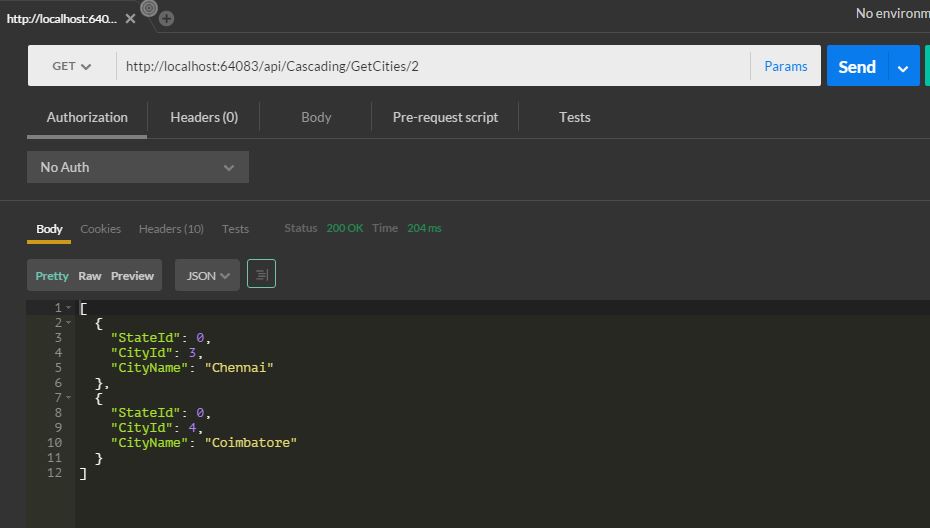

Case 3: /api/Cascading/GetCities/2



Now it's time for creating a design to consume the service.

Create an HTML page, here's the design:

  1. <head>
  2.     <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.common.min.css" />
  3.     <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.default.min.css" />
  4.     <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.dataviz.min.css" />
  5.     <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.dataviz.default.min.css" />
  6.     <script src="http://cdn.kendostatic.com/2014.3.1316/js/jquery.min.js"></script>
  7.     <script src="http://cdn.kendostatic.com/2014.3.1316/js/kendo.all.min.js"></script>
  8.     <title></title>
  9. </head>
  10. <body>
  11.     <div id="example">
  12.         <div class="demo-section k-header">
  13.             <h4>Products</h4>
  14.             <input id="products" style="width: 50%" />
  15.             <br />
  16.             <br />
  17.             <input id="State" disabled="disabled" style="width: 50%" />
  18.             <br />
  19.             <br />
  20.             <input id="City" disabled="disabled" style="width: 50%" />
  21.         </div>
  22.     </div>
  23. </body>
JavaScript

  1. $(document).ready(function() {
  2.     $("#State").data("kendoDropDownList")
  3.
  4.     function onChange(e) {
  5.         e.preventDefault();
  6.         $("#State").kendoDropDownList({
  7.             enable: true,
  8.             dataTextField: "StateName",
  9.             dataValueField: "StateId",
  10.             optionLabel: "Select State",
  11.             change: onChangeState,
  12.             dataSource: {
  13.                 transport: {
  14.                     read: {
  15.                         dataType: "json",
  16.                         url: "/api/Cascading/GetStates/" + $("#products").val(),
  17.                     }
  18.                 }
  19.             }
  20.         });
  21.         var dropdownlist = $("#State").data("kendoDropDownList")
  22.         dropdownlist.enable();
  23.     };
  24.
  25.     function onChangeState(e) {
  26.         e.preventDefault();
  27.         $("#City").kendoDropDownList({
  28.             dataTextField: "CityName",
  29.             dataValueField: "CityId",
  30.             optionLabel: "Select City",
  31.             dataSource: {
  32.                 transport: {
  33.                     read: {
  34.                         dataType: "json",
  35.                         url: "/api/Cascading/GetCities/" + $("#State").val(),
  36.                     }
  37.                 }
  38.             }
  39.         });
  40.         var dropdownlist = $("#City").data("kendoDropDownList")
  41.         dropdownlist.enable();
  42.     };
  43.     $("#products").kendoDropDownList({
  44.         dataTextField: "CountryName",
  45.         dataValueField: "CountryId",
  46.         optionLabel: "Select Country",
  47.         change: onChange,
  48.         dataSource: {
  49.             transport: {
  50.                 read: {
  51.                     dataType: "json",
  52.                     url: "/api/Cascading",
  53.                 }
  54.             }
  55.         }
  56.     });
  57. });

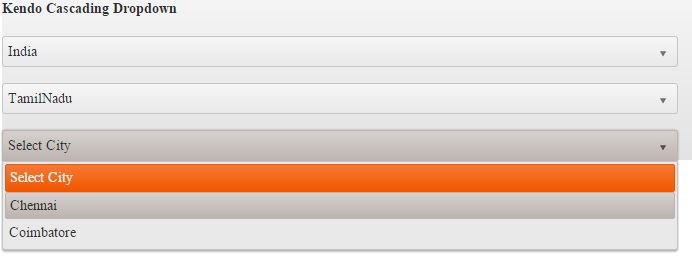

The result in browser:
