Events In Kendo Scheduler

Introduction:

In my previous article, I discussed about Remote binding in Kendo Scheduler. In this article let us start playing with Kendo Scheduler Event.

I will use the following REST service to explain how to perform event handling in the Kendo Scheduler.

REST service end point: Api/Events created in my previous article.

The Api/Events service response in POSTMAN as in the following figure:



Views in Kendo Scheduler

The kendo Scheduler have different views like Day view, week view, month view, agenda view and timeline view which can be implement using data-view property as in the following code:

  1. <div data-role="scheduler"
  2.     data-views="['day','week','month','agenda','timeline']"
  3.     data-bind="source: tasks,
  4.     visible: isVisible,
  5.     style="height: 600px" data-selectable="true">
  6.
  7. </div>

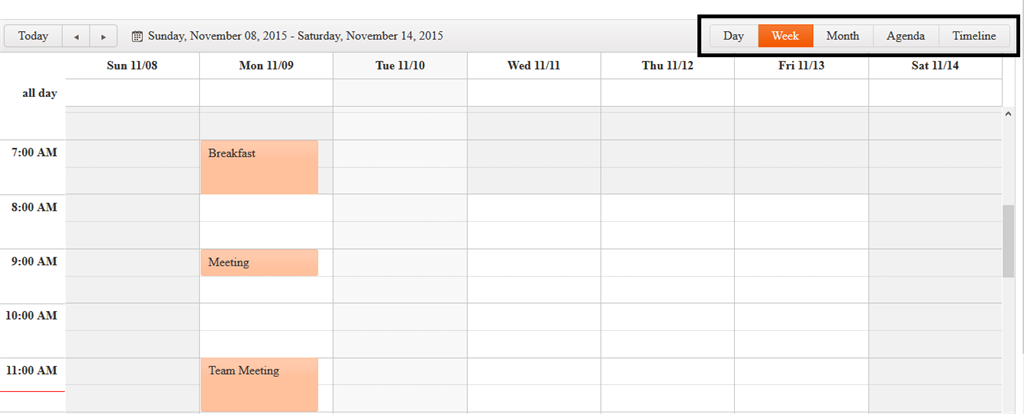

Result in Browser:


Events In Kendo Scheduler

DataBinding:

This event is fired when the widget binds to its data source

  1. <div id="example">
  2. <div data-role="scheduler"
  3.              data-bind="source: tasks,
  4.              visible: isVisible,
  5.              events:{ dataBinding: scheduler_dataBinding }"
  6.
  7.              style="height: 600px" data-selectable="true">
  8.
  9.   </div>
  10. </div>
 JavaScript:
  1. var viewModel = kendo.observable(
  2.   {
  3.     isVisible: true,
  4.     scheduler_dataBound: function(e)
  5.   {
  6.         e.preventDefault();
  7.         alert("dataBound");
  8.     },
  9.     tasks: new kendo.data.SchedulerDataSource(
  10.       {
  11.         batch: true,
  12.         transport:
  13.       {
  14.             read:
  15.           {
  16.                 url: "api/Events",
  17.                 dataType: "json"
  18.             },
  19.
  20.             parameterMap: function(options, operation)
  21.           {
  22.                 if (operation !== "read" && options.models)
  23.                 {
  24.                     return
  25.                     {
  26.                         models: kendo.stringify(options.models)
  27.                     };
  28.                 }
  29.
  30.             },
  31.         },
  32.
  33.         schema:
  34.         {
  35.             model:
  36.           {
  37.                 id: "taskId",
  38.                 fields:
  39.             {
  40.                     taskId:
  41.               {
  42.                         from: "TaskID",
  43.                         type: "number"
  44.                     },
  45.                     title:
  46.               {
  47.                         from: "Title",
  48.                         defaultValue: "No title",
  49.                         validation:
  50.                 {
  51.                             required: true
  52.                         }
  53.                     },
  54.                     start:
  55.               {
  56.                         type: "date",
  57.                         from: "Start"
  58.                     },
  59.                     end:
  60.               {
  61.                         type: "date",
  62.                         from: "EndDate"
  63.                     },
  64.                     startTimezone:
  65.               {
  66.                         from: "StartTimezone"
  67.                     },
  68.                     endTimezone:
  69.               {
  70.                         from: "EndTimezone"
  71.                     },
  72.                     description:
  73.               {
  74.                         from: "Description"
  75.                     },
  76.                     recurrenceId:
  77.               {
  78.                         from: "RecurrenceID"
  79.                     },
  80.                     recurrenceRule:
  81.               {
  82.                         from: "RecurrenceRule"
  83.                     },
  84.                     recurrenceException:
  85.               {
  86.                         from: "RecurrenceException"
  87.                     },
  88.                     isAllDay:
  89.               {
  90.                         type: "boolean",
  91.                         from: "IsAllDay"
  92.                     }
  93.                 }
  94.             }
  95.         }
  96.     })
  97. });
  98. kendo.bind($("#example"), viewModel);

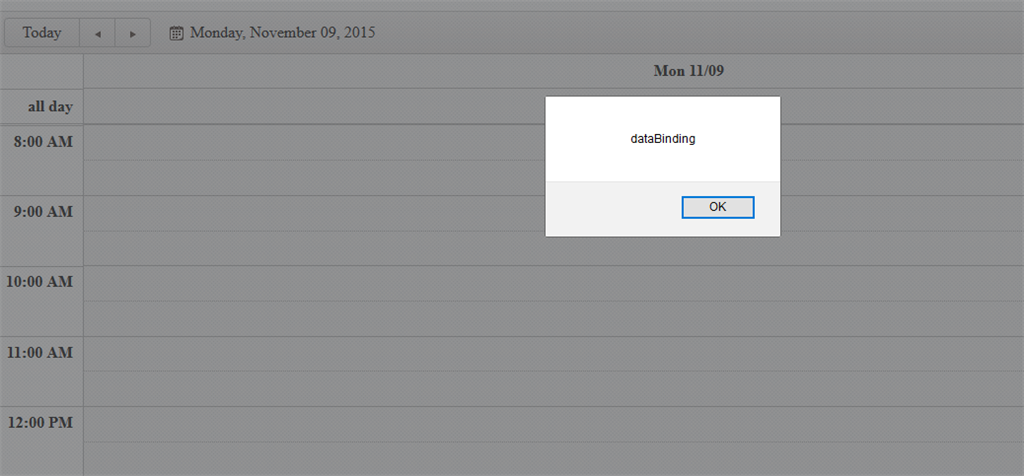

Result in Browser:

DataBound:

This event is fired when the kendo scheduler is bound to data from its dataSource

  1. <div id="example">
  2. <div data-role="scheduler"
  3.                data-bind="source: tasks,
  4.                visible: isVisible,
  5.                events:{ dataBound: scheduler_dataBound}"
  6.
  7.                 style="height: 600px" data-selectable="true">
  8.                </div>
  9. </div>
 JavaScript:
  1. var viewModel = kendo.observable({
  2.         isVisible: true,
  3.         scheduler_dataBound:function(e)
  4.         {
  5.             e.preventDefault();
  6.             alert("dataBound");
  7.         },
  8.         tasks: new kendo.data.SchedulerDataSource({
  9.             batch: true,
  10.             transport:
  11.               {
  12.                 read:
  13.                  {
  14.                     url: "api/Events",
  15.                     dataType: "json"
  16.                 },
  17.
  18.              parameterMap: function (options, operation)
  19.                   {
  20.                  if (operation !== "read" && options.models) {
  21.                      return
  22.                      {
  23.                          models: kendo.stringify(options.models)
  24.                      };
  25.                  }
  26.
  27.          },
  28.             },
  29.
  30.             schema: {
  31.                 model: {
  32.                     id: "taskId",
  33.                     fields: {
  34.                         taskId: { from: "TaskID", type: "number" },
  35.                         title: { from: "Title", defaultValue: "No title", validation: { required: true } },
  36.                         start: { type: "date", from: "Start" },
  37.                         end: { type: "date", from: "EndDate" },
  38.                         startTimezone: { from: "StartTimezone" },
  39.                         endTimezone: { from: "EndTimezone" },
  40.                         description: { from: "Description" },
  41.                         recurrenceId: { from: "RecurrenceID" },
  42.                         recurrenceRule: { from: "RecurrenceRule" },
  43.                         recurrenceException: { from: "RecurrenceException" },
  44.                         isAllDay: { type: "boolean", from: "IsAllDay" }
  45.                     }
  46.                 }
  47.             }
  48.         })
  49.     });
  50.     kendo.bind($("#example"), viewModel);

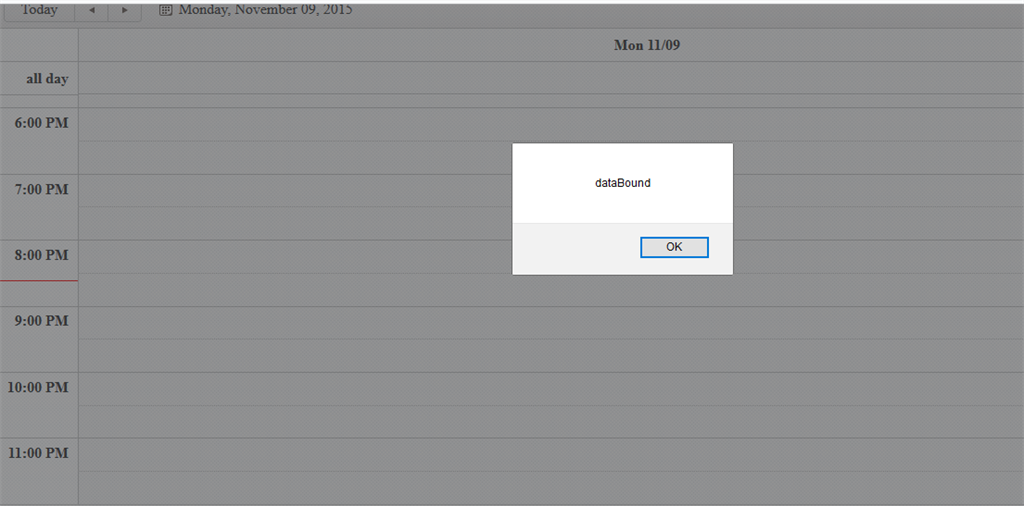

Result in Browser



Resize Event:

This Event in kendo Scheduler is fired when the user is resizing an event.

 HTML Design:

  1. <div id="example">
  2. <div data-role="scheduler"
  3.         data-bind="source: tasks,
  4.         visible: isVisible,
  5.         events:{ resize: scheduler_resize}"
  6.
  7.         style="height: 600px" data-selectable="true">
  8.         </div>
  9.
  10.   </div>
 JavaScript:
  1. var viewModel = kendo.observable({
  2.         isVisible: true,
  3.         scheduler_resize:function(e)
  4.         {
  5.             e.preventDefault();
  6.             alert("Resize events")
  7.         },
  8.         tasks: new kendo.data.SchedulerDataSource({
  9.             batch: true,
  10.             transport: {
  11.                 read: {
  12.                     url: "api/Events",
  13.                     dataType: "json"
  14.                 },
  15.
  16.              parameterMap: function (options, operation) {
  17.                  if (operation !== "read" && options.models) {
  18.                      return {
  19.                          models: kendo.stringify(options.models)
  20.                      };
  21.                  }
  22.
  23.          },
  24.             },
  25.
  26.             schema: {
  27.                 model: {
  28.                     id: "taskId",
  29.                     fields: {
  30.                         taskId: { from: "TaskID", type: "number" },
  31.                         title: { from: "Title", defaultValue: "No title", validation: { required: true } },
  32.                         start: { type: "date", from: "Start" },
  33.                         end: { type: "date", from: "EndDate" },
  34.                         startTimezone: { from: "StartTimezone" },
  35.                         endTimezone: { from: "EndTimezone" },
  36.                         description: { from: "Description" },
  37.                         recurrenceId: { from: "RecurrenceID" },
  38.                         recurrenceRule: { from: "RecurrenceRule" },
  39.                         recurrenceException: { from: "RecurrenceException" },
  40.                         isAllDay: { type: "boolean", from: "IsAllDay" }
  41.                     }
  42.                 }
  43.             }
  44.         })
  45.     });
  46.     kendo.bind($("#example"), viewModel);

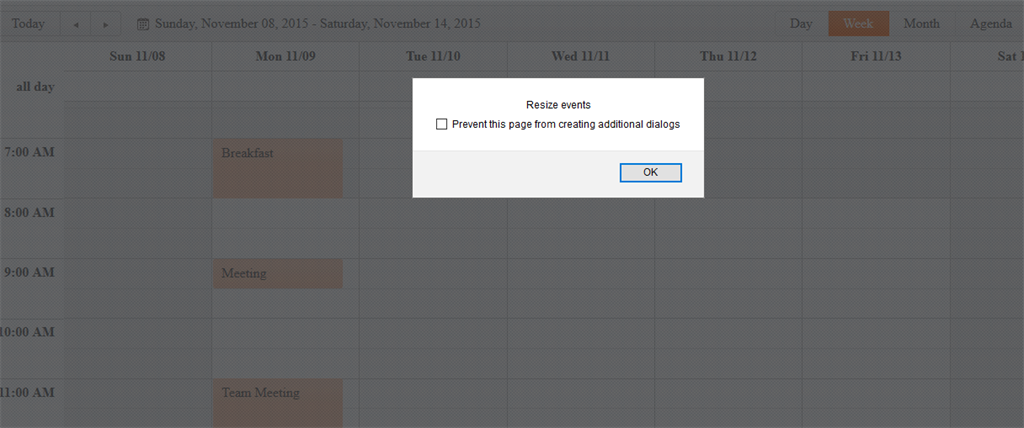

 Result in Browser:



Change Event:

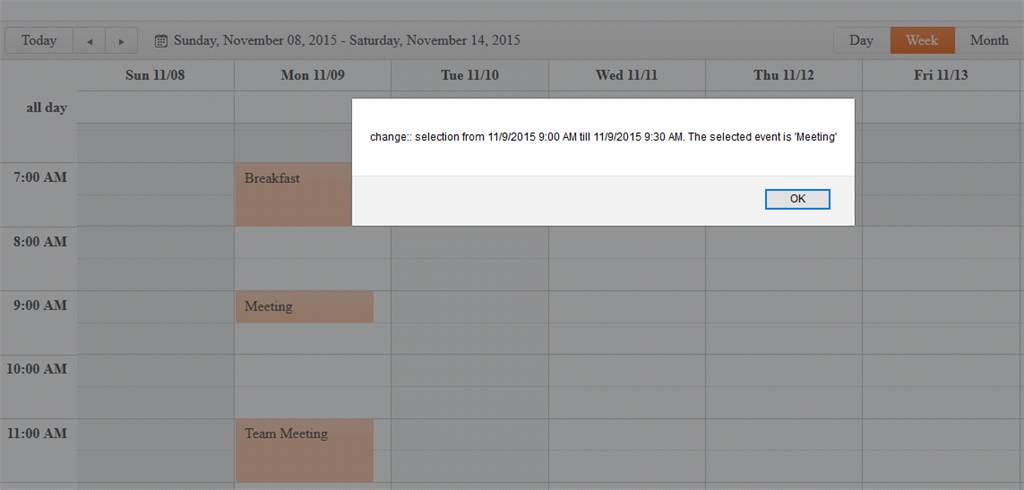

This event in Kendo scheduler is fired when the user selects a cell or event in the scheduler

Note: The data-selectable property should be true to enable this event.

 HTML Design:

  1. <div id="example">
  2. <div data-role="scheduler"
  3.                    data-bind="source: tasks,
  4.                           visible: isVisible,
  5.                    events:{ change: scheduler_change,}"
  6.
  7.                    style="height: 600px" data-selectable="true">
  8.                  </div>
  9.
  10.               </div>
 JavaScript:
  1. var viewModel = kendo.observable({
  2.         isVisible: true,
  3.         scheduler_change:function(e)
  4.         {
  5.             var start = e.start;
  6.             var end = e.end;
  7.             var slots = e.slots;
  8.             var events = e.events;
  9.
  10.             var message = "change:: selection from {0:g} till {1:g}";
  11.
  12.             if (events.length) {
  13.                 message += ". The selected event is '" + events[events.length - 1].title + "'";
  14.             }
  15.
  16.             alert(kendo.format(message, start, end));
  17.         },
  18.         tasks: new kendo.data.SchedulerDataSource({
  19.             batch: true,
  20.             transport: {
  21.                 read: {
  22.                     url: "api/Events",
  23.                     dataType: "json"
  24.                 },
  25.
  26.              parameterMap: function (options, operation) {
  27.                  if (operation !== "read" && options.models) {
  28.                      return {
  29.                          models: kendo.stringify(options.models)
  30.                      };
  31.                  }
  32.
  33.          },
  34.             },
  35.
  36.             schema: {
  37.                 model: {
  38.                     id: "taskId",
  39.                     fields: {
  40.                         taskId: { from: "TaskID", type: "number" },
  41.                         title: { from: "Title", defaultValue: "No title", validation: { required: true } },
  42.                         start: { type: "date", from: "Start" },
  43.                         end: { type: "date", from: "EndDate" },
  44.                         startTimezone: { from: "StartTimezone" },
  45.                         endTimezone: { from: "EndTimezone" },
  46.                         description: { from: "Description" },
  47.                         recurrenceId: { from: "RecurrenceID" },
  48.                         recurrenceRule: { from: "RecurrenceRule" },
  49.                         recurrenceException: { from: "RecurrenceException" },
  50.                         isAllDay: { type: "boolean", from: "IsAllDay" }
  51.                     }
  52.                 }
  53.             }
  54.         })
  55.     });
  56.     kendo.bind($("#example"), viewModel);
 Result in Browser:




Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
