ASP.NET

Kendo Scheduler With Remote Binding Using ASP.NET WEP API And Entity Framework

Introduction

In my previous article working with scheduler widget in Kendo UI I explained how to implement the Kendo Scheduler in a web application. From this article we will learn how to remote bind the Kendo Scheduler using ASP.NET WEB PI and Entity Framework.

Remote Binding the Kendo Scheduler

  • Open Visual Studio and create a new project.
  • Select File, New and then Project.
  • Select Web in the installed template and select ASP.NET Web Application.

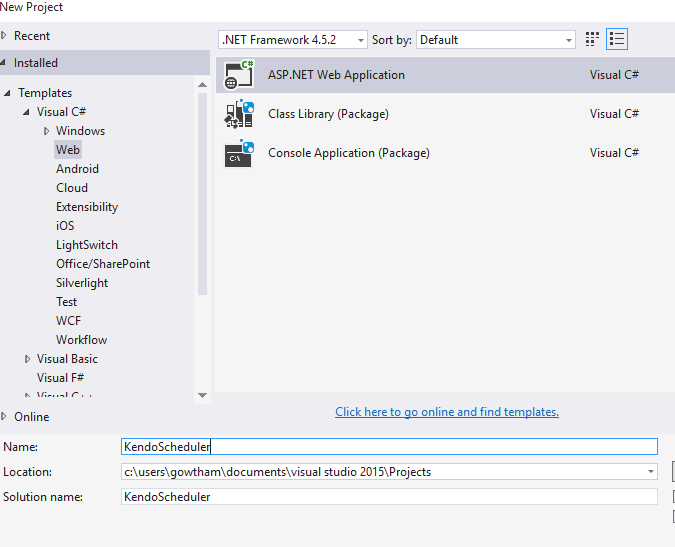

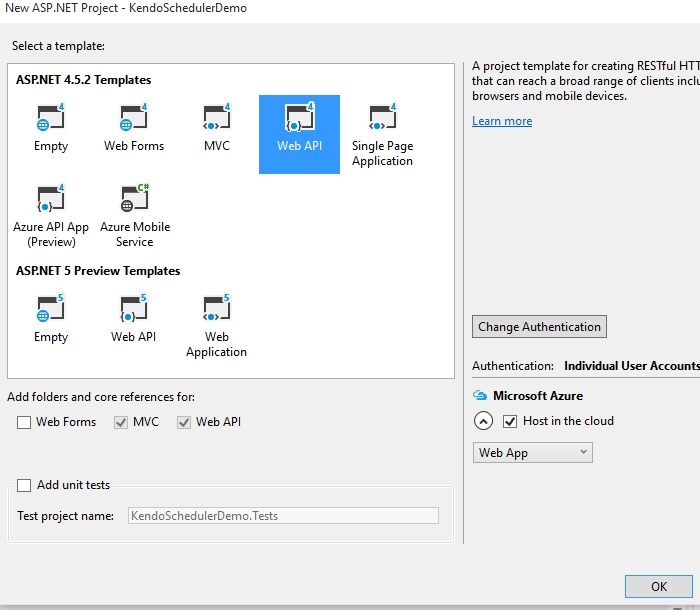

  • Provide the name for the project and click OK, as in the following figures.

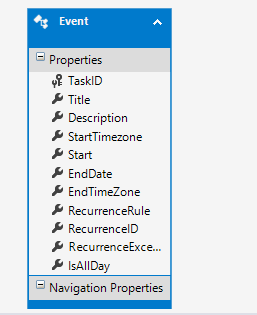

My database schema is as in the following figure:

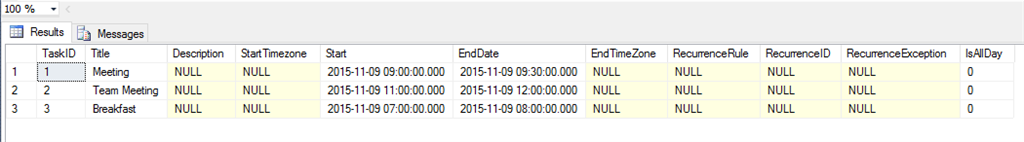

My table structure is as in the following figure:


I am using the Entity Framework with Database First approach, so the Entity Framework builds default model classes and context classes.

Here is my code in EventController Class:
  1. public class EventsController : ApiController
  2. {
  3.     private EventEntities db = new EventEntities();
  4.
  5.     // GET: api/Events
  6.     public IQueryable<Event> GetEvents()
  7.     {
  8.         return db.Events;
  9.     }
  10.
  11.     // GET: api/Events/5
  12.     [ResponseType(typeof(Event))]
  13.     public IHttpActionResult GetEvent(int id)
  14.     {
  15.         Event @event = db.Events.Find(id);
  16.         if (@event == null)
  17.         {
  18.             return NotFound();
  19.         }
  20.
  21.         return Ok(@event);
  22.     }
  23.
  24.     // PUT: api/Events/5
  25.     [ResponseType(typeof(void))]
  26.     public IHttpActionResult PutEvent(int id, Event @event)
  27.     {
  28.         if (!ModelState.IsValid)
  29.         {
  30.             return BadRequest(ModelState);
  31.         }
  32.
  33.         if (id != @event.TaskID)
  34.         {
  35.             return BadRequest();
  36.         }
  37.
  38.         db.Entry(@event).State = EntityState.Modified;
  39.
  40.         try
  41.         {
  42.             db.SaveChanges();
  43.         }
  44.         catch (DbUpdateConcurrencyException)
  45.         {
  46.             if (!EventExists(id))
  47.             {
  48.                 return NotFound();
  49.             }
  50.             else
  51.             {
  52.                 throw;
  53.             }
  54.         }
  55.
  56.         return StatusCode(HttpStatusCode.NoContent);
  57.     }
  58.
  59.     // POST: api/Events
  60.     [ResponseType(typeof(Event))]
  61.     public IHttpActionResult PostEvent(Event @event)
  62.     {
  63.         if (!ModelState.IsValid)
  64.         {
  65.             return BadRequest(ModelState);
  66.         }
  67.
  68.         db.Events.Add(@event);
  69.         db.SaveChanges();
  70.
  71.         return CreatedAtRoute("DefaultApi", new { id = @event.TaskID }, @event);
  72.     }
  73.
  74.     // DELETE: api/Events/5
  75.     [ResponseType(typeof(Event))]
  76.     public IHttpActionResult DeleteEvent(int id)
  77.     {
  78.         Event @event = db.Events.Find(id);
  79.         if (@event == null)
  80.         {
  81.             return NotFound();
  82.         }
  83.
  84.         db.Events.Remove(@event);
  85.         db.SaveChanges();
  86.
  87.         return Ok(@event);
  88.     }
  89.
  90.     protected override void Dispose(bool disposing)
  91.     {
  92.         if (disposing)
  93.         {
  94.             db.Dispose();
  95.         }
  96.         base.Dispose(disposing);
  97.     }
  98.
  99.     private bool EventExists(int id)
  100.     {
  101.         return db.Events.Count(e => e.TaskID == id) > 0;
  102.     }
  103. }

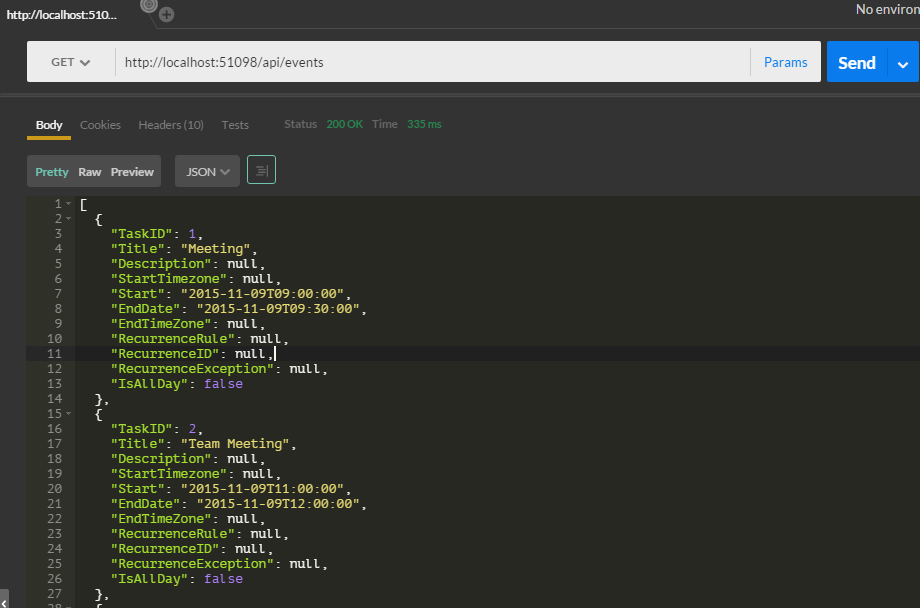

Check the API services using the POSTMAN/Fiddler as in the following figures.



Now it's time for creating a design to consume the service.

Create an HTML page, here is the design,

  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.     <title></title>
  5.     <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2015.3.930/styles/kendo.common.min.css">
  6.     <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2015.3.930/styles/kendo.rtl.min.css">
  7.     <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2015.3.930/styles/kendo.default.min.css">
  8.     <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2015.3.930/styles/kendo.mobile.all.min.css">
  9.
  10.     <script src="http://code.jquery.com/jquery-1.9.1.min.js"></script>
  11.     <script src="http://kendo.cdn.telerik.com/2015.3.930/js/angular.min.js"></script>
  12.     <script src="http://kendo.cdn.telerik.com/2015.3.930/js/jszip.min.js"></script>
  13.     <script src="http://kendo.cdn.telerik.com/2015.3.930/js/kendo.all.min.js"></script>
  14.     <meta charset="utf-8" />
  15. </head>
  16. <body>
  17.     <div id="example">
  18.         <div class="demo-section k-content wide">
  19.             <div>
  20.                 <h4>Add an event</h4>
  21.                 <div data-role="scheduler"
  22.                      data-views="['day']"
  23.                      data-bind="source: tasks,
  24.                             visible: isVisible,
  25.
  26.                      style="height: 600px"></div>
  27.             </div>
  28.             <div style="padding-top: 1em;">
  29.                 <h4>Console</h4>
  30.                 <div class="console"></div>
  31.             </div>
  32.         </div>
  33.        </body>
  34. </html>
JavaScript
  1. var viewModel = kendo.observable({
  2.         isVisible: true,
  3.
  4.         tasks: new kendo.data.SchedulerDataSource({
  5.             batch: true,
  6.             transport: {
  7.                 read: {
  8.                     url: "api/Events",
  9.                     dataType: "json"
  10.                 },
  11.
  12.                 parameterMap: function(options, operation) {
  13.                     if (operation !== "read" && options.models) {
  14.                         return {models: kendo.stringify(options.models)};
  15.                     }
  16.                 }
  17.             },
  18.             schema: {
  19.                 model: {
  20.                     id: "taskId",
  21.                     fields: {
  22.                         taskId: { from: "TaskID", type: "number" },
  23.                         title: { from: "Title", defaultValue: "No title", validation: { required: true } },
  24.                         start: { type: "date", from: "Start" },
  25.                         end: { type: "date", from: "EndDate" },
  26.                         startTimezone: { from: "StartTimezone" },
  27.                         endTimezone: { from: "EndTimezone" },
  28.                         description: { from: "Description" },
  29.                         recurrenceId: { from: "RecurrenceID" },
  30.                         recurrenceRule: { from: "RecurrenceRule" },
  31.                         recurrenceException: { from: "RecurrenceException" },
  32.                         isAllDay: { type: "boolean", from: "IsAllDay" }
  33.                     }
  34.                 }
  35.             }
  36.         })
  37.     });
  38.     kendo.bind($("#example"), viewModel);
The result in browser

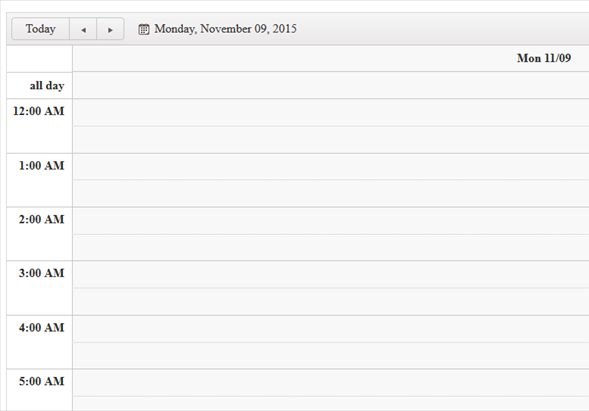

Calander

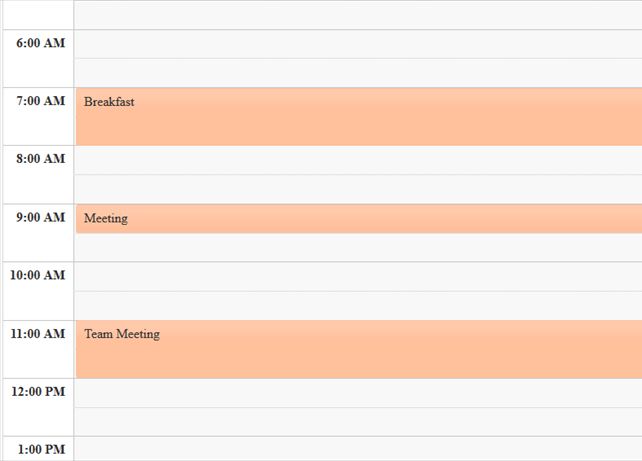

Table

References

Conclusion:

From this article we learned how to remote bind the Kendo Scheduler using ASP.NET WEB PI and Entity Framework. In my upcoming article I am going to discuss about how to perform the CRUD operation in Kendo Scheduler and their events.
