Simple Registration Form With Kendo UI Panel Bar Using WEB API 2 and Entity Framework 5

This article explains how to create a simple registration form with Kendo Panel Bar using WEB API 2 and Entity Framework 5.

Just create a Web API project as shown in Figures 1 & 2.


                                                                              Figure 1



                                                                           Figure 2


I am using the Entity Framework Code First technique to connect with the database.

Create a model class and name it Registration.

Use the following code in that class:

  1. public class Registration
  2. {
  3.
  4.    [Key]
  5.
  6.    [DatabaseGenerated(DatabaseGeneratedOption.Identity)]
  7.
  8.    public int UserID { get; set; }
  9.
  10.    [Required]
  11.
  12.    public string FirstName { get; set; }
  13.
  14.    public string MiddleName { get; set; }
  15.
  16.    [Required]
  17.
  18.    public string LastName { get; set; }
  19.
  20.    [Required]
  21.
  22.    public string UserName { get; set; }

Create one more model class and name it RegistrationContext.

Use the following code in that class:

  1. public class RegistrationContext:DbContext
  2. {
  3.    public RegistrationContext() : base("name=TestConnection") { }
  4.
  5.    public DbSet<Registration> RegisterUser { get; set; }
  6.

Modify your connection string in the web config file.
  1.  <connectionStrings>
  2.
  3.    <add name="TestConnection" connectionString="Data Source=your SQL server Name;Initial Catalog=Your Database Name;Integrated Security=True" providerName="System.Data.SqlClient" />
  4.
  5. </connectionStrings>

Build your project once to start scaffolding.

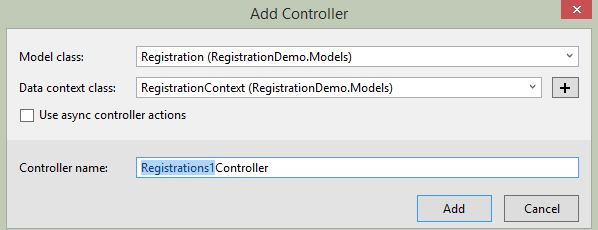

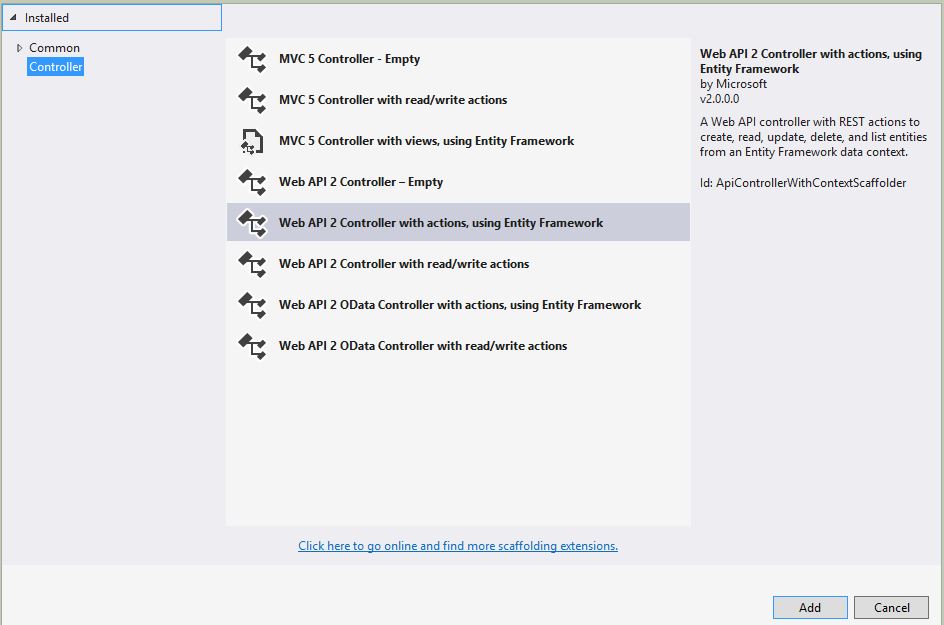

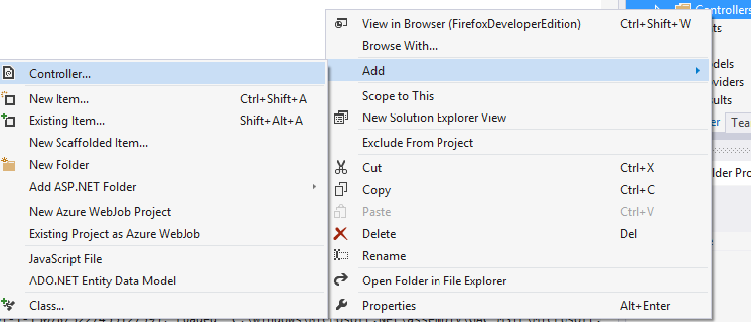

Add a controller as shown in Figures 3, 4 & 5.


                                                                              Figure 3



                                                                           Figure 4



                                                                     Figure 5


The following step will scaffold the REST full service in the Registration controller.

You will get some pre-defined HTTP GET, POST, PUT and DELETE request/responses in Registrations Controller. Modify the code based on your application requirements. For this example I did not change the code.

To insert a record into the registration table we should use HTTP POST request/response.

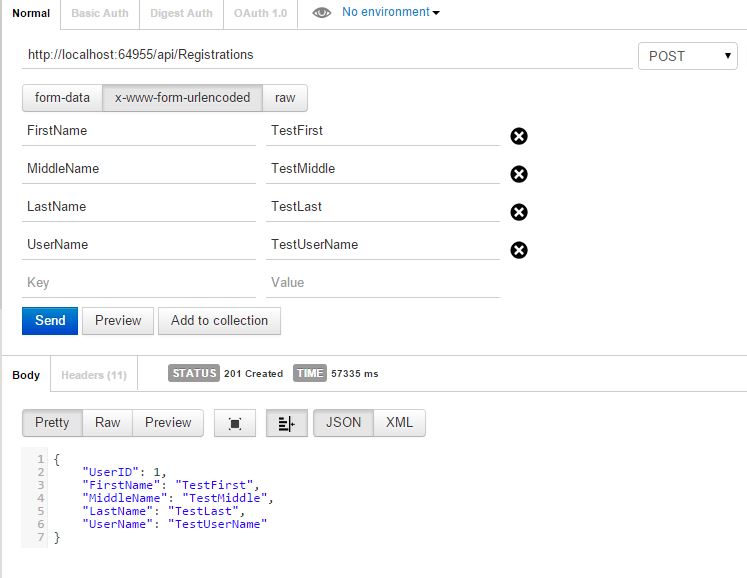

 Before implementing it in the UI we will check it in POST MAN as shown in Figure 6.


                                                                              Figure 6


Design the UI to consume the REST HTTP POST service.

I have used the Kendo UI to Desgin with MVVM Pattern.

Here is my design:

  1. <!DOCTYPE html>
  2. <html
  3.     xmlns="http://www.w3.org/1999/xhtml">
  4.     <head>
  5.         <title></title>
  6.         <script type='text/javascript' src='http://ajax.googleapis.com/ajax/libs/jquery/1.10.2/jquery.min.js'></script>
  7.         <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.common.min.css" />
  8.         <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.default.min.css" />
  9.         <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.dataviz.min.css" />
  10.         <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.dataviz.default.min.css" />
  11.         <script src="http://cdn.kendostatic.com/2014.3.1316/js/jquery.min.js"></script>
  12.         <script src="http://cdn.kendostatic.com/2014.3.1316/js/kendo.all.min.js"></script>
  13.         <script src="Js/RegisterViewModel.js"></script>
  14.     </head>
  15.     <body>
  16.         <div id="example">
  17.             <div id="RegistrationForm" class="demo-section k-header">
  18.                 <div class="container">
  19.                     <h4>Simple Registration Page Using Kendo Panel Bar</h4>
  20.                     <ul data-role="panelbar"
  21.
  22. style="width: 1130px">
  23.                         <li>
  24.                             <span>Personal Details</span>
  25.                             <div class="row">
  26.                                 <div class="col-lg-3">
  27.                                     <label for="fname">First Name:</label>
  28.                                 </div>
  29.                                 <div class="col-lg-3">
  30.                                     <input id="fname" data-bind="value: firstName" class="k-textbox" required />
  31.                                 </div>
  32.                                 <div class="col-lg-3">
  33.                                     <span class="k-invalid-msg" data-for="fname"></span>
  34.                                 </div>
  35.                             </div>
  36.                             <div class="row">
  37.                                 <div class="col-lg-3">
  38.                                     <label for="mname">Middle Name:</label>
  39.                                 </div>
  40.                                 <div class="col-lg-3">
  41.                                     <input id="mname" data-bind="value: MiddleName" class="k-textbox" />
  42.                                 </div>
  43.                             </div>
  44.                             <div class="row">
  45.                                 <div class="col-lg-3">
  46.                                     <label for="lname">Last Name:</label>
  47.                                 </div>
  48.                                 <div class="col-lg-3">
  49.                                     <input id="lname" data-bind="value: lastName" class="k-textbox" required />
  50.                                 </div>
  51.                             </div>
  52.                         </li>
  53.                         <!--Second Pane Login Infomation-->
  54.                         <li>
  55.                             <span>Login Information</span>
  56.                             <div class="row">
  57.                                 <div class="col-lg-3">
  58.                                     <label for="UserName">User Name*:</label>
  59.                                 </div>
  60.                                 <div class="col-lg-3">
  61.                                     <input id="UserName" data-bind="value: UserName" class="k-textbox" required />
  62.                                 </div>
  63.                             </div>
  64.                             <div class="row">
  65.                                 <div class="col-lg-3">
  66.                                     <label for="password">Password*:</label>
  67.                                 </div>
  68.                                 <div class="col-lg-3">
  69.                                     <input required type="password" id="Password" data-bind="value: Passsword" class="k-textbox" />
  70.                                 </div>
  71.                             </div>
  72.                             <div class="row">
  73.                                 <div class="col-lg-3">
  74.                                     <label for="ConfirmPwd">Confirm Password*:</label>
  75.                                 </div>
  76.                                 <div class="col-lg-3">
  77.                                     <input required type="password" id="ConfirmPwd" data-bind="value: ConfirmPwd" class="k-textbox" />
  78.                                 </div>
  79.                             </div>
  80.                         </li>
  81.                     </ul>
  82.                     <input type="submit" id="btn_Submit1" value="Submit" class="k-button" onclick="RegisterUser()" />
  83.                 </div>
  84.             </div>
  85.         </div>
  86.     </body>
  87. </html>

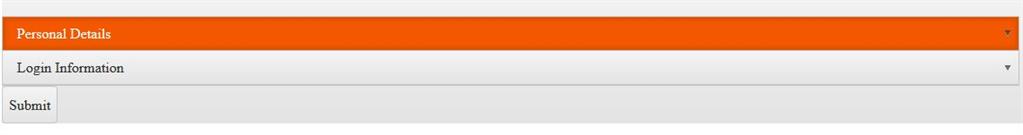

In browser as show in Figure 7,


                                                                           Figure 7

MVVM Model script
  1. $(document).ready(function() {
  2.
  3.     var viewModel = kendo.observable({
  4.
  5.         firstName: null,
  6.
  7.         MiddleName: null,
  8.
  9.         lastName: null,
  10.
  11.         UserName: null,
  12.
  13.         isVisible: true,
  14.
  15.     })
  16.
  17.     kendo.bind($("#example"), viewModel);
  18.
  19. });
  20.
  21. function RegisterUser() {
  22.
  23.     $.ajax({
  24.
  25.         cache: false,
  26.
  27.         async: false,
  28.
  29.         type: "POST",
  30.
  31.         url: "http://localhost:64955/api/Registrations",
  32.
  33.         data: {
  34.
  35.             FirstName: $("#fname").val(),
  36.
  37.             MiddleName: $("#mname").val(),
  38.
  39.             LastName: $("#lname").val(),
  40.
  41.             UserName: $("#UserName").val()
  42.
  43.         },
  44.
  45.         success: function(data) {
  46.
  47.             //alert(data);
  48.
  49.             if (data == 'True') {
  50.
  51.                 ret = false;
  52.
  53.                 uploadWindow.close();
  54.
  55.                 window.location = SubmitURL;
  56.
  57.             } else ret = true;
  58.
  59.         },
  60.
  61.         error: function(jqXHR, exception) {
  62.
  63.             alert(errorHandling(jqXHR, exception));
  64.
  65.         }
  66.
  67.     });
  68.

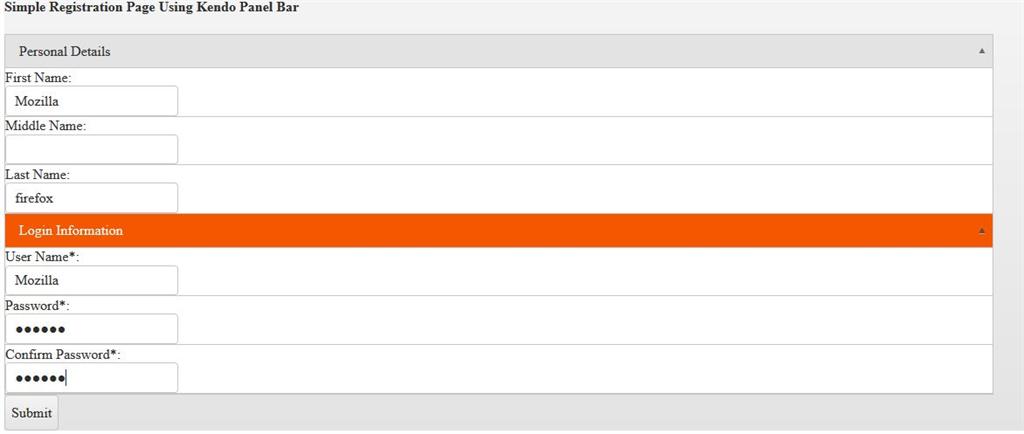

Insert a record using the Kendo UI Panel bar as shown in Figure 8.


                                                                           Figure 8

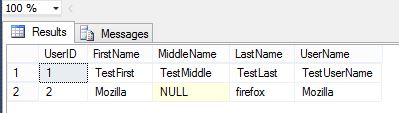

Check your database table.



Hooray! The records are inserted.

That's it, enjoy coding.
