Configure One-To-Many Relationships In Entity Framework Using Code First Approach

Introduction

The relationship between tables is defined by using foreign keys in relational databases. The foreign key is a column or combination of columns which enforces a  relation between the data of two tables. The following three types of relationships are supported:

  1. One to One
  2. One to Many or Many to one
  3. Many to Many

All three type of relationships are supported by entity framework in code first approach. In this article we will cover one-to-many relationships between entities.

A one-to-many relationship happens when the primary key of one table becomes foreign keys in another table and also this primary key should participate in primary key of second table. In this relationship only zero, one and more than one recordsare present on either side of tables.

Understand One to Many relationship

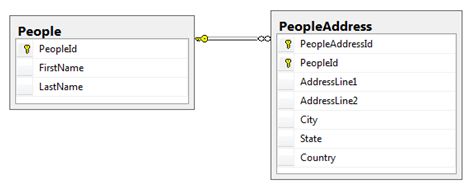

To understand one-to-many relationships, I have created two entities: People and PeopleAddress. One people record has one or more Address records. Here PeopleId is primary key for People table and it also participate in primary key and foreign key of PeopleAddress table.

One to Many relationship

Through association an entity can be related to the other entities in the entity framework. The relation between the entities contains two ends which describe type of the entity and multiplicity of the type. The two ends of relation can be referred as principal role and dependent role.

There are two ways to configure one-to-one relations between two entities in Entity Framework

Using DataAnnotation

Entity Framework Code First provides a set of data annotation attributes that can be applied on domain classes or the properties of domain classes. ForeignKey Attribute specifies the foreign key for the Navigation property in Entity Framework. As discussed earlier, a relationship in the entity framework always has two ends, a navigation property on each side and an Entity Framework that maps them together automatically by convention. If there are multiple relationships between the two entities, Entity Framework cannot handle the relationships. This is because Entity Framework doesn't know which navigation property map with which properties on other side. InverseProperty attribute can help us to resolve this issue.

Example:

People POCO class:

  1. [Table("People")]
  2. public partial class People
  3. {
  4.     public People()
  5.         {
  6.             this.PeopleAddress = newHashSet < PeopleAddress > ();
  7.         }
  8.         [DatabaseGenerated(DatabaseGeneratedOption.None)]
  9.         [Key]
  10.     public int PeopleId
  11.     {
  12.         get;
  13.         set;
  14.     }
  15.     [Required]
  16.     [StringLength(50)]
  17.     public string FirstName
  18.     {
  19.         get;
  20.         set;
  21.     }
  22.     [Required]
  23.     [StringLength(50)]
  24.     public string LastName
  25.     {
  26.         get;
  27.         set;
  28.     }
  29.     public virtual ICollection < PeopleAddress > PeopleAddress
  30.     {
  31.         get;
  32.         set;
  33.     }
  34. }
PeopleAddressPOCO class
  1. [Table("PeopleAddress")]
  2. public partial class PeopleAddress
  3. {
  4.     [Key]
  5.     [Column(Order = 1)]
  6.     [DatabaseGenerated(DatabaseGeneratedOption.None)]
  7.     public int PeopleAddressId
  8.     {
  9.         get;
  10.         set;
  11.     }
  12.     [Column(Order = 2)]
  13.     [Key, ForeignKey("People")]
  14.     public int PeopleId
  15.     {
  16.         get;
  17.         set;
  18.     }
  19.     [Required]
  20.     [StringLength(100)]
  21.     public string AddressLine1
  22.     {
  23.         get;
  24.         set;
  25.     }
  26.     [Required]
  27.     [StringLength(100)]
  28.     public string AddressLine2
  29.     {
  30.         get;
  31.         set;
  32.     }
  33.     [StringLength(50)]
  34.     public string City
  35.     {
  36.         get;
  37.         set;
  38.     }
  39.     [StringLength(50)]
  40.     public string State
  41.     {
  42.         get;
  43.         set;
  44.     }
  45.     [StringLength(50)]
  46.     public string Country
  47.     {
  48.         get;
  49.         set;
  50.     }
  51.     public virtual PeoplePeople
  52.     {
  53.         get;
  54.         set;
  55.     }
  56. }
Entity Context class
  1. public partial class EFTestModel: DbContext
  2. {
  3.     public EFTestModel(): base("name=entities")
  4.     {}
  5.     public virtual DbSet < People > People
  6.     {
  7.         get;
  8.         set;
  9.     }
  10.     public virtual DbSet < PeopleAddress > PeopleAddress
  11.     {
  12.         get;
  13.         set;
  14.     }
  15.     protected override void OnModelCreating(DbModelBuildermodelBuilder)
  16.     {}
  17. }
In the above example, People and PeopleAddress class have a one-to-many relationship. Here, PeopleId will become the primary key of the People table and we have used key and ForeignKey attributes for PeopleId property in PeopleAddress class in order to make primary key and foreign key. In highlighted text in above code, we have to pass People entity in ForeignKey attribute of PeopleAddress class. Thus, the code first creates a one-to-many relation between Employee and EmployeeDetail class using DataAnnotations attributes.

To test the above model, I have created a console application that first gets people entity data and then prints its all addresses data on screen.
  1. static void Main(string[] args)
  2. {
  3.     //Configure One to Many Relationship in Entity Framework Using Code First Approach
  4.     People people;
  5.     using(var context = newEntityModel.EFTestModel())
  6.     {
  7.         people = context.People.FirstOrDefault();
  8.         int index = 1;
  9.         Console.WriteLine("People Details");
  10.         Console.WriteLine("Name:" + string.Join(" ", newobject[]
  11.         {
  12.             people.FirstName, people.LastName
  13.         }));
  14.         Console.WriteLine("Addresses");
  15.         Console.WriteLine("---------");
  16.         for each(var address inpeople.PeopleAddress)
  17.         {
  18.             Console.WriteLine(index + string.Join(", ", newobject[]
  19.             {
  20.                 address.AddressLine1, address.AddressLine2, address.City, address.State, address.Country
  21.             }));
  22.             index += 1;
  23.         }
  24.     }
  25.     Console.ReadLine();
  26. }

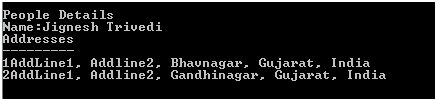

Output

run

Using Fluent API

For conventions of primary key and foreign key in code first, we can use "Fluent API". Using "HasKey" method, we can define the primary key. Using “HasForeignKey” method we can define ForeignKey. "HasRequired" or “WithRequired” method is used to make property non-nullable. Using these two methods of fluent API, we can define foreign key in code first. “HasMany” and “WithMany” method is used to define one-to-many or many-to-many relation in entity framework.

We can configure one-to-many relationships between People and PeopleAddress using Fluent API by the following code in model class:
  1. protected override void OnModelCreating(DbModelBuildermodelBuilder)
  2. {
  3.    modelBuilder.Entity<StudentAddress>()
  4.    .HasRequired<Student>(s =>s.Student)
  5.    .WithMany(s =>s.StudentAddress)
  6.    .HasForeignKey(s =>s.StudentId);
  7.
  8.
  9.    // Alternate possible way
  10.    //modelBuilder.Entity<Student>()
  11.    // .HasMany<StudentAddress>(s =>s.StudentAddress)
  12.    // .WithRequired(s =>s.Student)
  13.    // .HasForeignKey(s =>s.StudentId);
  14.
  15. }
The following are the class definitions for Student and StudentAddress.
  1. [Table("Student")]
  2. public partial class Student
  3. {
  4.     public Student()
  5.         {
  6.             this.StudentAddress = newHashSet < StudentAddress > ();
  7.         }
  8.         [DatabaseGenerated(DatabaseGeneratedOption.None)]
  9.     public int StudentId
  10.     {
  11.         get;
  12.         set;
  13.     }
  14.     [Required]
  15.     [StringLength(50)]
  16.     public string FirstName
  17.     {
  18.         get;
  19.         set;
  20.     }
  21.     [Required]
  22.     [StringLength(50)]
  23.     public string LastName
  24.     {
  25.         get;
  26.         set;
  27.     }
  28.     public virtual ICollection < StudentAddress > StudentAddress
  29.     {
  30.         get;
  31.         set;
  32.     }
  33. }
  34. [Table("StudentAddress")]
  35. public partial class StudentAddress
  36. {
  37.     [DatabaseGenerated(DatabaseGeneratedOption.None)]
  38.     public int StudentAddressId
  39.     {
  40.         get;
  41.         set;
  42.     }
  43.     public int StudentId
  44.     {
  45.         get;
  46.         set;
  47.     }
  48.     [Required]
  49.     [StringLength(100)]
  50.     public string AddressLine1
  51.     {
  52.         get;
  53.         set;
  54.     }
  55.     [Required]
  56.     [StringLength(100)]
  57.     public string AddressLine2
  58.     {
  59.         get;
  60.         set;
  61.     }
  62.     [StringLength(50)]
  63.     public string City
  64.     {
  65.         get;
  66.         set;
  67.     }
  68.     [StringLength(50)]
  69.     public string State
  70.     {
  71.         get;
  72.         set;
  73.     }
  74.     [StringLength(50)]
  75.     public string Country
  76.     {
  77.         get;
  78.         set;
  79.     }
  80.     public virtual StudentStudent
  81.     {
  82.         get;
  83.         set;
  84.     }
  85. }
To test the above model, I have created a console application and get first student and printed its all address on screen.
  1. static void Main(string[] args)
  2. {
  3.     //Configure One to Many Relationship in Entity Framework Using Code First Approach
  4.     Student student;
  5.     using(var context = new EntityModel.EFTestModel())
  6.     {
  7.         student = context.Student.FirstOrDefault();
  8.         int index1 = 1;
  9.         Console.WriteLine("Student Details");
  10.         Console.WriteLine("Name:" + string.Join(" ", newobject[]
  11.         {
  12.             student.FirstName, student.LastName
  13.         }));
  14.         Console.WriteLine("Addresses");
  15.         Console.WriteLine("---------");
  16.         for each(var address instudent.StudentAddress)
  17.         {
  18.             Console.WriteLine(index1 + " " + string.Join(", ", newobject[]
  19.             {
  20.                 address.AddressLine1, address.AddressLine2, address.City, address.State, address.Country
  21.             }));
  22.             index1 += 1;
  23.         }
  24.     }
  25.     Console.ReadLine();
  26. }
Output

Output

Summary

This article helps us to learn how to configure one-to-many relationships between entities in a code first approach using data annotation or fluent API. In the next article we will learn how to configure many-to-many relations in entity framework in code first approach.
