Add Reminders In Windows Phone 7

In this article we will be discuss how to add Birthday and Anniversary reminders in Windows Phone 7 and how to store the Birthday and Anniversary Date and Time in the Local database. For this use the following procedure.

Steps

Step 1

First we write the following code in "AddOccasion.xaml":

<Grid x:Name="ContentPanel" Margin="12,1,12,-1" Grid.Row="1">

            <Grid.Background>

                <ImageBrush ImageSource="/AddReminder;component/Image/wooden-background.jpg" />

            </Grid.Background>

            <TextBlock FontFamily="Portable User Interface" FontSize="22" Height="30" HorizontalAlignment="Left" Margin="12,83,0,0" Name="txtBlkBirthDay" Text="Birth Day" VerticalAlignment="Top" FontWeight="Bold" />

            <TextBlock FontFamily="Portable User Interface" FontSize="22" Height="30" HorizontalAlignment="Left" Margin="9,158,0,0" Name="txtBlkAnniversary" Text="Anniversary" VerticalAlignment="Top" FontWeight="Bold" />



            <toolkit:DatePicker HorizontalAlignment="Left" Margin="169,62,0,0" Name="BirthDaydatePicker" VerticalAlignment="Top" Width="248" />

            <toolkit:DatePicker HorizontalAlignment="Left" Margin="169,139,0,0" Name="AnniversarydatePicker" VerticalAlignment="Top" Width="248" />

            <Button Content="Add BirthDay Reminder" Height="72" HorizontalAlignment="Left" Margin="6,344,0,0" Name="btnAddBirthDayReminder" VerticalAlignment="Top" Width="208" FontSize="14" Click="btnAddBirthDayReminder_Click" FontWeight="Normal">

                <Button.Background>

                    <ImageBrush ImageSource="/AddReminder;component/Image/Dark%20Wooden%20Background.jpg" />

                </Button.Background>

            </Button>

            <Button Content="Add Occasions" FontSize="18" Height="72" HorizontalAlignment="Left" Margin="18,252,0,0" Name="btnAddOccasions" VerticalAlignment="Top" Width="184" Click="btnAddOccasions_Click" FontWeight="Normal">

                <Button.Background>

                    <ImageBrush ImageSource="/AddReminder;component/Image/Dark%20Wooden%20Background.jpg" />

                </Button.Background>

            </Button>

            <ListBox Height="35" HorizontalAlignment="Right" Margin="0,439,17,0" Name="lstBirthday" VerticalAlignment="Top" Width="309" Tap="lstBirthday_Tap">

                <ListBox.Background>

                    <ImageBrush ImageSource="/AddReminder;component/Image/Dark%20Wooden%20Background.jpg" />

                </ListBox.Background>

                <ListBox.BorderBrush>

                    <ImageBrush ImageSource="/Contact;component/Image/Dark%20Wooden%20Background.jpg" />

                </ListBox.BorderBrush>

                <ListBox.ItemTemplate>



                    <DataTemplate>



                        <StackPanel Orientation="Horizontal">

                            <StackPanel.Background>

                                <ImageBrush ImageSource="/Contact;component/Image/Dark%20Wooden%20Background.jpg" />

                            </StackPanel.Background>

                            <TextBlock Text="{Binding Path=BOccasion}"></TextBlock>

                            <TextBlock  Width="30" Height="30"  />

                            <TextBlock Text="{Binding Path=BirthDayBeginDate}"></TextBlock>

                            <TextBlock  Width="30" Height="30"  />

                            <TextBlock Text="{Binding Path=BirthDayBeginTime}"></TextBlock>



                        </StackPanel>



                    </DataTemplate>



                </ListBox.ItemTemplate>

            </ListBox>

            <Button Content="Add Anniversary Reminder" FontSize="14" Height="72" HorizontalAlignment="Left" Margin="220,344,0,0" Name="btnAddAnniversaryReminder" VerticalAlignment="Top" Width="230" Click="btnAddAnniversaryReminder_Click" FontWeight="Normal">

                <Button.Background>

                    <ImageBrush ImageSource="/AddReminder;component/Image/Dark%20Wooden%20Background.jpg" />

                </Button.Background>

            </Button>

            <ListBox Height="35" HorizontalAlignment="Left" Margin="130,480,0,0" Name="lstAnniversary" VerticalAlignment="Top" Width="308" Tap="lstAnniversary_Tap" Foreground="White">

                <ListBox.BorderBrush>

                    <ImageBrush ImageSource="/Contact;component/Image/Dark%20Wooden%20Background.jpg" />

                </ListBox.BorderBrush>

                <ListBox.Background>

                    <ImageBrush ImageSource="/AddReminder;component/Image/Dark%20Wooden%20Background.jpg" />

                </ListBox.Background>

                <ListBox.ItemTemplate>

                    <DataTemplate>

                        <StackPanel Orientation="Horizontal">

                            <StackPanel.Background>

                                <ImageBrush ImageSource="/Contact;component/Image/Dark%20Wooden%20Background.jpg" />

                            </StackPanel.Background>

                            <TextBlock Text="{Binding Path=AOccasion}" />

                            <TextBlock  Width="20" Height="20"  />

                            <TextBlock Text="{Binding Path=AnniversaryBeginDate}" />

                            <TextBlock  Width="20" Height="20"  />

                            <TextBlock Text="{Binding Path=AnniversaryBeginTime}" />

                        </StackPanel>

                    </DataTemplate>

                </ListBox.ItemTemplate>

            </ListBox>

            <TextBlock FontFamily="Portable User Interface" FontSize="22" FontWeight="Bold" Height="30" HorizontalAlignment="Left" Margin="6,439,0,0" Name="txblkbday" Text="Birth Day" VerticalAlignment="Top" Visibility="Collapsed" />

            <TextBlock FontFamily="Portable User Interface" FontSize="22" FontWeight="Bold" Height="30" HorizontalAlignment="Left" Margin="0,485,0,0" Name="txblkAni" Text="Anniversary" VerticalAlignment="Top" Visibility="Collapsed" />

            <TextBlock FontFamily="Portable User Interface" FontSize="22" FontWeight="Bold" Height="30" HorizontalAlignment="Left" Margin="10,20,0,0" Name="textBlock1" Text="Name" VerticalAlignment="Top" />

            <TextBox Height="72" HorizontalAlignment="Left" Margin="169,6,0,0" Name="txtName" Text="" VerticalAlignment="Top" Width="248" />

        </Grid>

</Grid>

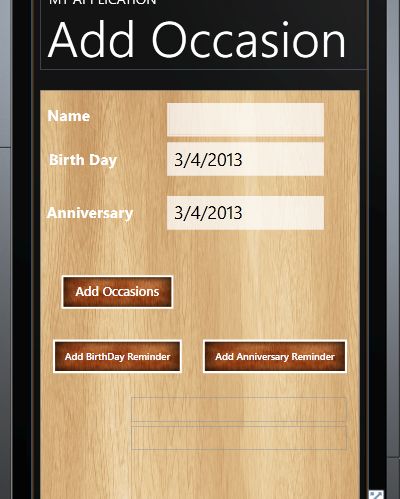

The output will be:


Here we use the DatePicker Control to get the date.

Step 2

Now we will write the code for storing the date in the database. For that we first create the class ("ContactInfo.cs") in which we create a table like this:


[Table]

    public class ContactInfo

    {



         [Column(Storage = "Id", AutoSync = AutoSync.OnInsert, DbType = "Int NOT NULL IDENTITY", IsPrimaryKey = true, IsDbGenerated = true)]

         public string Id

         {

             get;

             set;

         }

         [Column(CanBeNull = true)]

         public string Name

         {

             get;

             set;

         }

            [Column(CanBeNull = true)]

            public string BirthyDay

            {

                get;

                set;

            }



            [Column(CanBeNull = true)]

            public string Anniversary

            {

                get;

                set;

            }



         [Column(CanBeNull = true)]

            public string BirthDayTime

            {

                get;

                set;

            }

          [Column(CanBeNull = true)]

             public string AnniversaryTime

            {

                get;

                set;

            }

          [Column(CanBeNull = true)]

          public string BirthDayBeginDate

          {

              get;

              set;

          }

          [Column(CanBeNull = true)]

          public string BirthDayBeginTime

          {

              get;

              set;

          }

          [Column(CanBeNull = true)]

          public string BirthDayExpirationDate

          {

              get;

              set;

          }

          [Column(CanBeNull = true)]

          public string BOccasion

          {

              get;

              set;

          }

          [Column(CanBeNull = true)]

          public string AOccasion

          {

              get;

              set;

          }

          [Column(CanBeNull = true)]

          public string BirthDayExpirationTime

          {

              get;

              set;

          }

          [Column(CanBeNull = true)]

          public string BirthDayContent

          {

              get;

              set;

          }

          [Column(CanBeNull = true)]

          public string AnniversaryContent

          {

              get;

              set;

          }



          [Column(CanBeNull = true)]

          public string AnniversaryBeginDate

          {

              get;

              set;

          }

          [Column(CanBeNull = true)]

          public string AnniversaryBeginTime

          {

              get;

              set;

          }

          [Column(CanBeNull = true)]

          public string AnniversaryExpirationDate

          {

              get;

              set;

          }



          [Column(CanBeNull = true)]

          public string AnniversaryExpirationTime

          {

              get;

              set;

          }



        }

    }


Then we create another class ("ContactDataContext.cs") like this:


public class ContactdataContext:DataContext

{

    public ContactdataContext(string connectionString)

        : base(connectionString)

    {

    }

    public Table<ContactInfo> Contacts

    {

        get

        {

            return this.GetTable<ContactInfo>();

        }

    }

}

Step 3

Now we will write the code for the "Add Occasion" button.

First we create a database like this:


private const string strConnectionString = @"isostore:/ContactDB.sdf";

        public string parameterValue="0";



public AddOccasion()

{

    InitializeComponent();

    using (ContactdataContext context = new ContactdataContext(strConnectionString))

    {

        if (!context.DatabaseExists())

        {

            context.CreateDatabase();

        }

    }

}



private void btnAddOccasions_Click(object sender, RoutedEventArgs e)

{

    using (ContactdataContext ContactDB = new ContactdataContext(strConnectionString))

    {

        ContactInfo newContact = new ContactInfo

        {

            Name=txtName.Text.ToString(),

            BirthyDay = Convert.ToString(BirthDaydatePicker.Value.Value.Date),

            Anniversary=Convert.ToString(AnniversarydatePicker.Value.Value.Date)

        };

        ContactDB.Contacts.InsertOnSubmit(newContact);

        ContactDB.SubmitChanges();

     }

    MessageBox.Show("Saved");

}

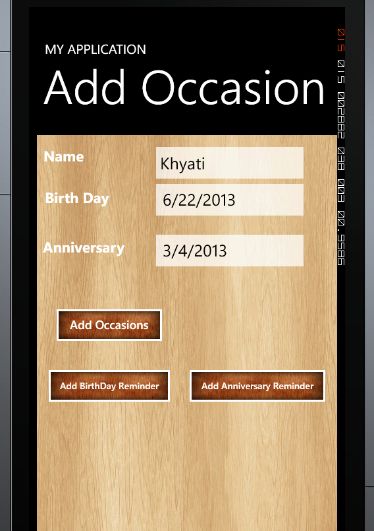

The output will be:


Step 4

Now we will write the code for the "Add BirthDay Reminder" button:

First we create another page ("NewPageForOccasionsReminder.xaml"):


using (ContactdataContext ContactDB = new ContactdataContext(strConnectionString))

{

    var a = from b in ContactDB.GetTable<ContactInfo>() select b;

    foreach (var x in a)

    {

        parameterValue = x.Id;

    }

}

if (Action == "EditData")

{

    NavigationService.Navigate(new Uri(string.Format("/NewPageForOccasionsReminder.xaml?parameter={0}&action={1}&Occasion={2}", parameterValue.ToString(), "Edit", "BirthDay"), UriKind.Relative));

}

else

{

    NavigationService.Navigate(new Uri(string.Format("/NewPageForOccasionsReminder.xaml?parameter={0}&action={1}&Occasion={2}", parameterValue.ToString(), "EditData", "BirthDay"), UriKind.Relative));

}


Now we send the Id of that specific person in the QueryString to the next page that will help store the data for the specified person.

Step 5

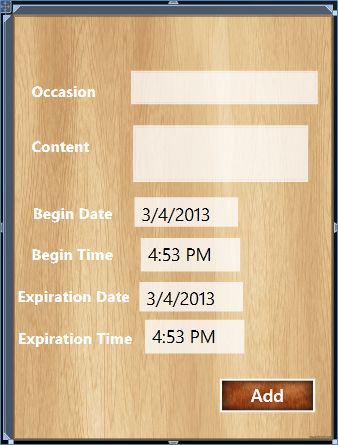

Now we will write the code for "NewPageForOccasionsReminder.xaml":


<Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">

            <Grid.Background>

                <ImageBrush ImageSource="/AddReminder;component/Image/wooden-background.jpg" />

            </Grid.Background>

            <TextBlock Height="30" HorizontalAlignment="Left" Margin="26,94,0,0" Name="ttName" Text="Occasion" VerticalAlignment="Top" FontWeight="Bold" FontFamily="Portable User Interface" FontSize="22" />

            <TextBox Height="72" HorizontalAlignment="Left" Margin="156,68,0,0" Name="txtOccasion" Text="" VerticalAlignment="Top" Width="291" />

            <TextBlock Height="30" HorizontalAlignment="Left" Margin="26,172,0,0" Name="ttContent" Text="Content" VerticalAlignment="Top" FontWeight="Bold" FontFamily="Portable User Interface" FontSize="22" />

            <TextBox Height="105" HorizontalAlignment="Left" Margin="159,146,0,0" Name="txtContent" Text="" VerticalAlignment="Top" Width="274" />

            <TextBlock Height="30" HorizontalAlignment="Left" Margin="26,327,0,0" Name="ttBegintime" Text="Begin Time" VerticalAlignment="Top" FontWeight="Bold" FontFamily="Portable User Interface" FontSize="22" />



            <Button Content="Add" Height="72" HorizontalAlignment="Right" Margin="0,508,13,0" Name="btnAdd" VerticalAlignment="Top" Width="160" Click="btnAdd_Click">

                <Button.Background>

                    <ImageBrush ImageSource="/AddReminder;component/Image/Dark%20Wooden%20Background.jpg" />

                </Button.Background>

            </Button>

            <toolkit:TimePicker HorizontalAlignment="Left" Margin="170,307,0,0" Name="timePicker1" VerticalAlignment="Top" Width="166" />

            <TextBlock Height="30" HorizontalAlignment="Left" Margin="7,446,0,0" Name="textBlock1" Text="Expiration Time" VerticalAlignment="Top" FontWeight="Bold" FontFamily="Portable User Interface" FontSize="22" />



            <toolkit:TimePicker HorizontalAlignment="Left" Margin="176,0,0,111" Name="timePicker2" VerticalAlignment="Bottom" Width="166" />

            <toolkit:DatePicker HorizontalAlignment="Left" Margin="161,249,0,0" Name="datePicker1" VerticalAlignment="Top" FontSize="18" Height="54" Width="172" />

            <TextBlock Height="30" HorizontalAlignment="Left" Margin="28,268,0,0" Name="textBlock2" Text="Begin Date" VerticalAlignment="Top" FontWeight="Bold" FontFamily="Portable User Interface" FontSize="22" />

            <toolkit:DatePicker FontSize="18" Height="54" HorizontalAlignment="Left" Margin="168,370,0,0" Name="datePicker2" VerticalAlignment="Top" Width="172" />

            <TextBlock Height="30" HorizontalAlignment="Left" Margin="6,387,0,0" Name="textBlock3" Text="Expiration Date" VerticalAlignment="Top" FontWeight="Bold" FontFamily="Portable User Interface" FontSize="22" />

        </Grid>


Step 6

Now we fetch the QueryString data Like this:


protected override void OnNavigatedTo(System.Windows.Navigation.NavigationEventArgs e)

{

    base.OnNavigatedTo(e);

    parameterValue = NavigationContext.QueryString["parameter"];

    Action = NavigationContext.QueryString["action"];

    occasion = NavigationContext.QueryString["Occasion"];

    txtOccasion.Text = occasion.ToString();

}


Step 7

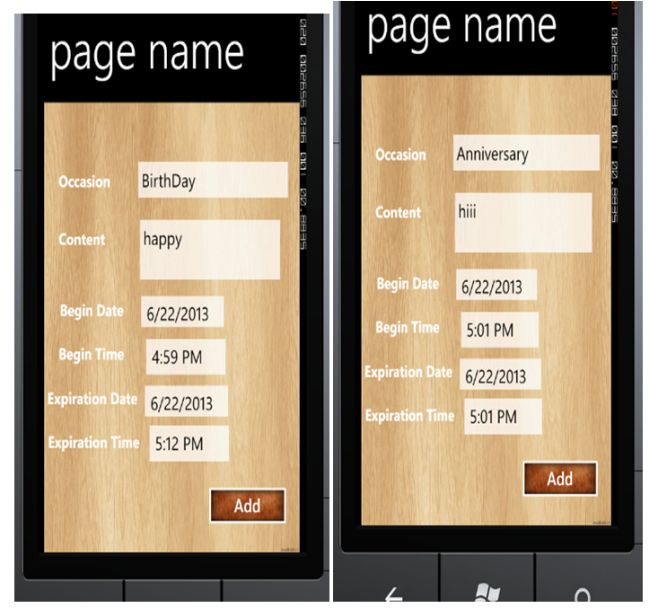

Now we will write the code for "Add the Reminder Data" like this:


private void btnAdd_Click(object sender, RoutedEventArgs e)

{

    if (occasion == "BirthDay")

    {

        string alarmName = Guid.NewGuid().ToString();

        // use guid for alarm name, since alarm names must be unique

        Alarm alarm = new Alarm("first");

        alarm.Content = txtContent.Text.ToString();

        DateTime date = (DateTime)datePicker1.Value;

        DateTime time = (DateTime)timePicker1.Value;

        DateTime beginTime = date + time.TimeOfDay;

        alarm.BeginTime = beginTime;

        DateTime date1 = (DateTime)datePicker2.Value;

        DateTime time1 = (DateTime)timePicker2.Value;

        DateTime exptime = date1 + time1.TimeOfDay;

        alarm.ExpirationTime = exptime;

        alarm.RecurrenceType = RecurrenceInterval.None;

        ScheduledActionService.Add(alarm);



        using (ContactdataContext ContactDB = new ContactdataContext(strConnectionString))

        {

            var contact = (from i in ContactDB.GetTable<ContactInfo>()

                           where i.Id== parameterValue.ToString()

                           select i).Single();

            contact.BOccasion = txtOccasion.Text.ToString();

            DateTime bd1 = Convert.ToDateTime(datePicker1.Value);

            DateTime bd2 = Convert.ToDateTime(datePicker1.Value);

            DateTime bt1 = Convert.ToDateTime(timePicker1.Value);

            DateTime bt2 = Convert.ToDateTime(timePicker1.Value);

            contact.BirthDayContent = txtContent.Text.ToString();

            contact.BirthDayBeginDate = Convert.ToString(bd1.ToShortDateString());

            contact.BirthDayBeginTime = Convert.ToString(bt1.ToShortTimeString());

            contact.BirthDayExpirationDate = Convert.ToString(bd2.ToShortDateString());

            contact.BirthDayExpirationTime = Convert.ToString(bt1.ToShortTimeString());

                ContactDB.SubmitChanges();

        }

    }

    else

    {

        string alarmName = Guid.NewGuid().ToString();

        // use guid for alarm name, since alarm names must be unique

        Alarm alarm = new Alarm("second");

        alarm.Content = txtContent.Text.ToString();

        DateTime date = (DateTime)datePicker1.Value;

        DateTime time = (DateTime)timePicker1.Value;

        DateTime beginTime = date + time.TimeOfDay;

        alarm.BeginTime = beginTime;

        DateTime date1 = (DateTime)datePicker2.Value;

        DateTime time1 = (DateTime)timePicker2.Value;

        DateTime exptime = date1 + time1.TimeOfDay;

        alarm.ExpirationTime = exptime;

        alarm.RecurrenceType = RecurrenceInterval.None;

        ScheduledActionService.Add(alarm);



        using (ContactdataContext ContactDB = new ContactdataContext(strConnectionString))

        {

            var contact = (from i in ContactDB.GetTable<ContactInfo>()

                           where i.Id == parameterValue.ToString()

                           select i).Single();

            contact.AOccasion = txtOccasion.Text.ToString();

            DateTime bd1 = Convert.ToDateTime(datePicker1.Value);

            DateTime bd2 = Convert.ToDateTime(datePicker1.Value);

            DateTime bt1 = Convert.ToDateTime(timePicker1.Value);

            DateTime bt2 = Convert.ToDateTime(timePicker1.Value);

            contact.AnniversaryContent = txtContent.Text.ToString();

            contact.AnniversaryBeginDate = Convert.ToString(bd1.ToShortDateString());

            contact.AnniversaryBeginTime = Convert.ToString(bt1.ToShortTimeString());

            contact.AnniversaryExpirationDate = Convert.ToString(bd2.ToShortDateString());

            contact.AnniversaryExpirationTime = Convert.ToString(bt1.ToShortTimeString());



            ContactDB.SubmitChanges();
        }

    }

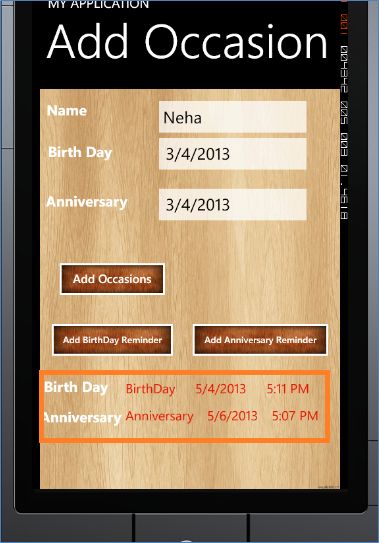

    NavigationService.Navigate(new Uri(string.Format("/AddOccasion.xaml?parameter={0}&action={1}", parameterValue.ToString(), "Edit"), UriKind.Relative));

}


When we click on the "Add Anniversary Reminder" button in the AddOccasions Page the same page and the code will be executed. Like this:


Now we pass the Occasions (BirthDay and Anniversary) in the Querystring that we will fetch in the Occasion TextBox.

Step 8

Now we will write the code to show the reminders in the ListBox in the AddOccasion Page:


protected override void OnNavigatedTo(System.Windows.Navigation.NavigationEventArgs e)

{

    base.OnNavigatedTo(e);

    parameterValue = NavigationContext.QueryString["parameter"];

    Action = NavigationContext.QueryString["action"];

    if (Action == "Edit")

    {

        //btnAddBirthDayReminder.Visibility = Visibility.Collapsed;

        //btnAddAnniversaryReminder.Visibility = Visibility.Collapsed;

        using (ContactdataContext ContactDB = new ContactdataContext(strConnectionString))

        {

            var a = from b in ContactDB.GetTable<ContactInfo>() where b.Id == parameterValue.ToString() select b;

            foreach (var x in a)

            {

                if (x.BOccasion!= null)

                {

                    lstBirthday.Visibility = Visibility.Visible;

                    txblkbday.Visibility = Visibility.Visible;

                    lstBirthday.ItemsSource = a;

                }

                else

                {

                    lstBirthday.Visibility = Visibility.Collapsed;

                    txblkbday.Visibility = Visibility.Collapsed;

                }

                if (x.AOccasion != null)

                {

                    lstAnniversary.Visibility = Visibility.Visible;

                    txblkAni.Visibility = Visibility.Visible;

                    lstAnniversary.ItemsSource = a;

                }

                else

                {

                    lstAnniversary.Visibility = Visibility.Collapsed;

                    txblkAni.Visibility = Visibility.Collapsed;

                }

            }

        }



        using (ContactdataContext ContactDB = new ContactdataContext(strConnectionString))

        {

            var a = from b in ContactDB.GetTable<ContactInfo>() where b.Id == parameterValue.ToString() select b;

            foreach (var x in a)

            {

                txtName.Text = x.Name;

                if (x.BirthyDay == null)

                {

                    BirthDaydatePicker.Value = Convert.ToDateTime(DateTime.Now.ToShortDateString());

                }

                else

                {

                    BirthDaydatePicker.Value = Convert.ToDateTime(x.BirthyDay);

                }

                if (x.Anniversary == null)

                {

                    AnniversarydatePicker.Value = Convert.ToDateTime(DateTime.Now.ToShortDateString());

                }

                else

                {

                    AnniversarydatePicker.Value = Convert.ToDateTime(x.Anniversary);

                }

            }

        }

    }

    if (Action == "Edit")

    {

        using (ContactdataContext ContactDB = new ContactdataContext(strConnectionString))

        {

            var a = from b in ContactDB.GetTable<ContactInfo>() where b.Id== parameterValue.ToString() select b;

            foreach (var x in a)

            {

                txtName.Text = x.Name;

                if (x.BirthyDay == null)

                {

                    BirthDaydatePicker.Value = Convert.ToDateTime(DateTime.Now.ToShortDateString());

                }

                else

                {

                    BirthDaydatePicker.Value = Convert.ToDateTime(x.BirthyDay);

                }

                if (x.Anniversary == null)

                {

                    AnniversarydatePicker.Value= Convert.ToDateTime(DateTime.Now.ToShortDateString());

                }

                else

                {

                    AnniversarydatePicker.Value = Convert.ToDateTime(x.Anniversary);

                }

                 }

        }

    }

}


The output will be:



Up Next
    Ebook Download
    View all
    Learn
    View all
