Content Alignment in WPF

The HorizontalContentAlignment and VerticalContentAlignment. These properties are defined in the System.Windows.Controls.Control class that is parent class of all controls in WPF.

Similar to the HorizontalAlignment and VerticalAlignment, both properties are of type HorizontalAlignment and VerticalAlignment enumerations respectively.

If you create a UI with a Button and a TextBox control, the UI looks like Figure 1 where the default vertical and horizontal alignment of content of a Button is center. The default vertical and horizontal alignment of content of a TextBox is left and top.


Figure 1

Now what if you want to place contents of a Button and TextBox on different positions? Let's say, you want to set the contents of the Button and TextBox to bottom and right. This comes handy when the size of elements is larger than the size of contents.

The code listed in Listing 1 sets VerticalContentAlignment and HorizontalContentAlignment properties to bottom and right.

<Grid Name="StackPanel1" Background="LightGray" >

    <Button Name="Button1" Background="LightBlue" Height="45"

                Content="Click Me!" Margin="23,12,159,0" VerticalAlignment="Top"

                FontSize="16" FontWeight="Bold"

            VerticalContentAlignment="Bottom" HorizontalContentAlignment="Right" />

    <TextBox Height="50" Margin="26,72,74,0" Name="textBox1" VerticalAlignment="Top"

             Text="I am a TextBox" FontSize="16"

             VerticalContentAlignment="Bottom" HorizontalContentAlignment="Right"  />

</Grid>

Listing 1

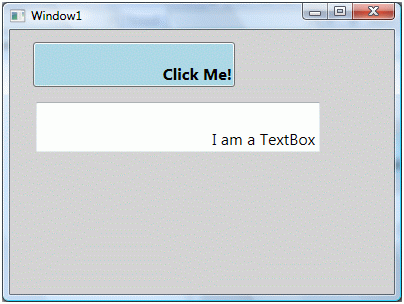

Listing 2 generates output looks like Figure 2. As you can see from in Figure 2, the contents of the Button and TextBox are aligned bottom and right.


Figure 2


Using these two properties, you can align the content of WPF elements/controls the way you like.

Cheers!
