Loading a text file in a WPF FlowDocumentReader

The attached project is a WPF application written in C# and XAML. It uses OpenFileDialog to browse text files and once text file is selected, it is loaded in a FlowDocumentReader that allows you to view, paging, and find options.

First, let's create a UI with a TextBox, a Button, and a FlowDocumentViewer control.

The UI looks like Figure 1.



Figure 1



The XAML code for the UI looks like this.



<Window x:Class="LoadTextFileInFlowDocumentViewerSample.Window1"

        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

        Title="Window1" Height="290" Width="600">

    <Canvas>

        <TextBox Height="32" HorizontalAlignment="Left" Margin="6,10,0,0" Name="FileNameTextBox"

                 VerticalAlignment="Top" Width="393" />

        <Button Content="Browse" Height="32" HorizontalAlignment="Left" Margin="405,10,0,0"

                Name="button1" VerticalAlignment="Top" Width="88" Click="button1_Click" />



            <FlowDocumentReader Name="FlowDocReader" Background="LightBlue"

                                Canvas.Top="50" Canvas.Left="5" Width="560"

                                Height="210">

        </FlowDocumentReader>

    </Canvas>

</Window>


On Button control, we will browse a text file and set TextBox.Text property to the selected file. As you can see from code below, we create a Paragraph and add the selected text file using Paragraph.Inlines.Add method. After that, we create a FlowDocument by passing this Paragraph and in the end; we set FlowDocumentReader.Document property to the FlowDocument.



Code sample in C#:



private void button1_Click(object sender, RoutedEventArgs e)

{

    // Create OpenFileDialog

    Microsoft.Win32.OpenFileDialog dlg = new Microsoft.Win32.OpenFileDialog();



    // Set filter for file extension and default file extension

    dlg.DefaultExt = ".txt";

    dlg.Filter = "Text documents (.txt)|*.txt";



    // Display OpenFileDialog by calling ShowDialog method

    Nullable<bool> result = dlg.ShowDialog();



    // Get the selected file name and display in a TextBox

    if (result == true)

    {

        // Open document

        string filename = dlg.FileName;

        FileNameTextBox.Text = filename;



        Paragraph paragraph = new Paragraph();

        paragraph.Inlines.Add(System.IO.File.ReadAllText(filename));

        FlowDocument document = new FlowDocument(paragraph);

        FlowDocReader.Document = document;

    }

}



Code sample in VB.NET:



Private Sub button1_Click(ByVal sender As System.Object, ByVal e As System.Windows.RoutedEventArgs)

        'Create OpenFileDialog

        Dim dlg As Microsoft.Win32.OpenFileDialog = New Microsoft.Win32.OpenFileDialog()



        ' Set filter for file extension and default file extension

        dlg.DefaultExt = ".txt"

        dlg.Filter = "Text documents (.txt)|*.txt"



        ' Display OpenFileDialog by calling ShowDialog method

        If (dlg.ShowDialog() = True) Then



            '; Open document

            Dim filename As String = dlg.FileName

            FileNameTextBox.Text = filename



            Dim paragraph As Paragraph = New Paragraph()

            paragraph.Inlines.Add(System.IO.File.ReadAllText(filename))

            Dim document As FlowDocument = New FlowDocument(paragraph)

            FlowDocReader.Document = document

        End If



    End Sub

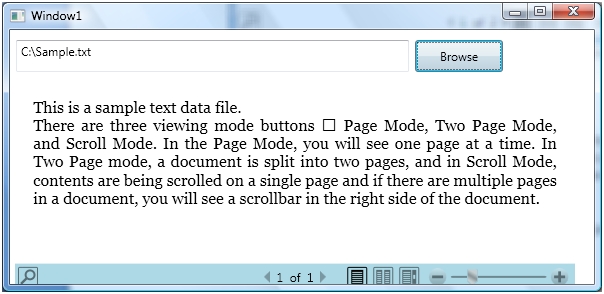

Now if you run the application and browse a text file, the output looks like Figure 2.



Figure 2
