Create a Report Using Crystal Report in Visual Studio 2010

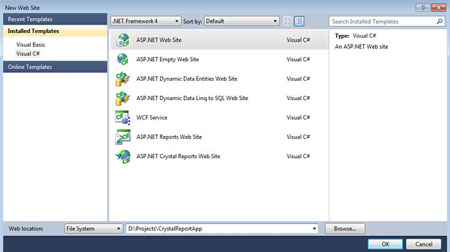

Create a web site in VS 2010 as in the following:

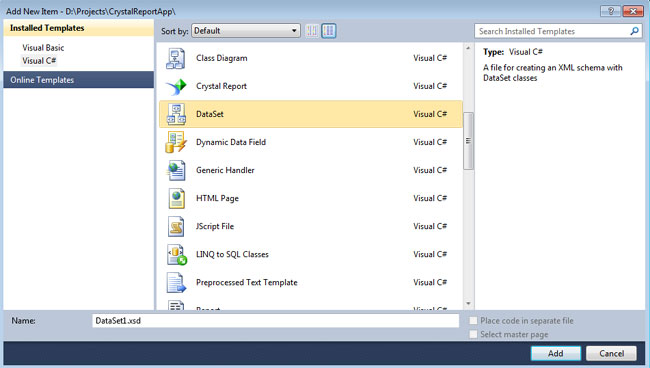

Then we will create a DataSet. For this, right click on the project name in Solution Explorer and click Add New Item. The Add New Item Dialog will open. Select DataSet from the list of items. Give it's name as per your choice  and click Add.

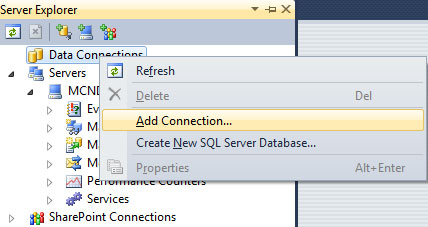

Now we will add the table to the DataSet. On the Server Explorer right click Data Connections and then click Add Connection.

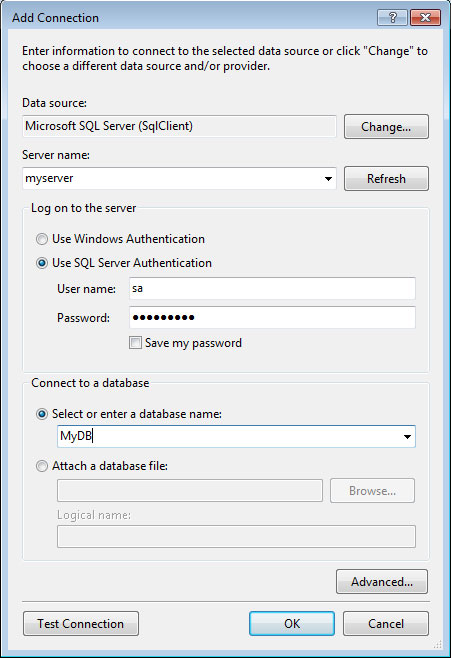

Enter your server name and select the Database.

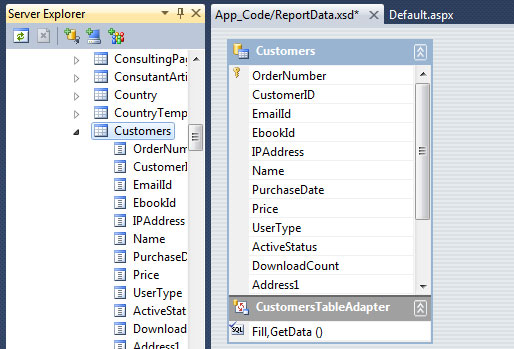

After that drag a table to the DataSet designer and save it.

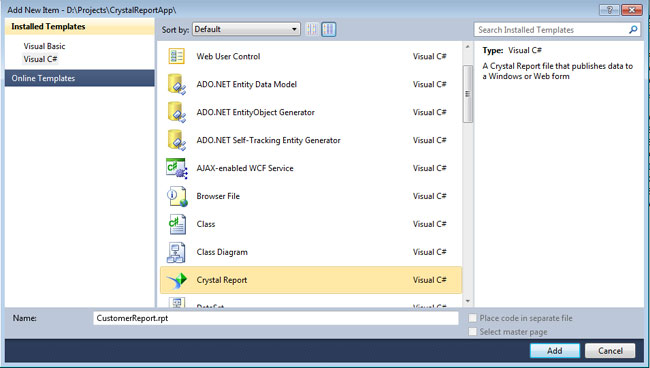

Now right click on the project in Solution Explorer and select Add New Item. Select Crystal Report from the list and add it as CustomerReport.

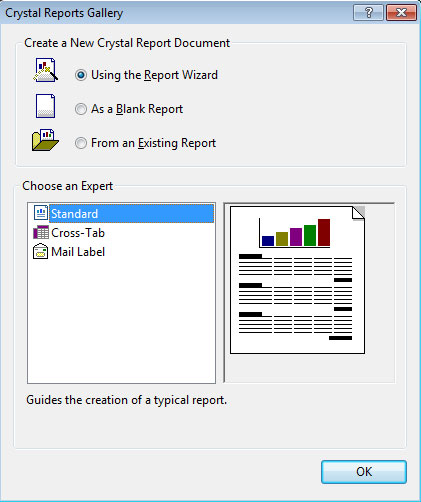

The Crystal Report Gallery will open. Select Blank Report and click OK.

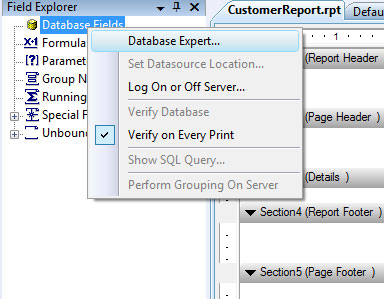

Now in the field explorer window right click on Database Fields and click Database Expert.

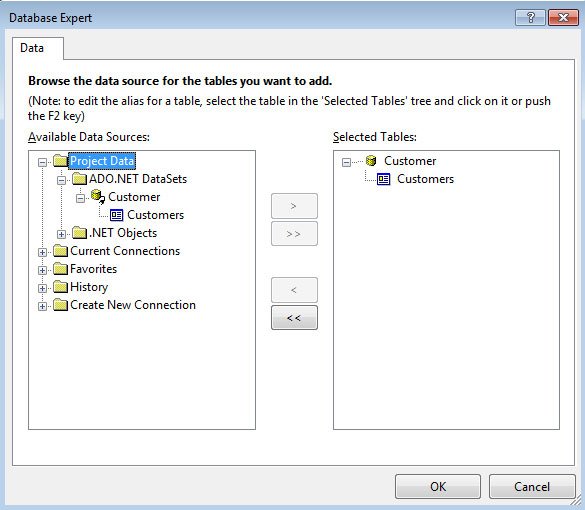

Click the plus sign of Project Data, then ADO.NET DataSets. Select Customers under Customer. Click the add (>) button to add the table to our report and click OK.

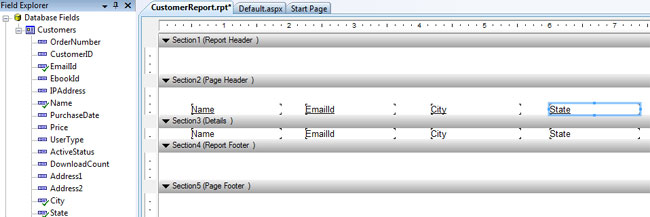

You will get all the fields of the Customers table under the Customers option under Database Fields in Field Explorer. Drag and drop the required fields in the Section 3 (Details) part of the report and save it.



Finally drag CrystalReportViewer control from the Reporting section of the Toolbox to our webpage.


Now go to the code behind page and write the following code in the Page_Load event.



using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

using System.Data;

using System.Data.SqlClient;

using CrystalDecisions.CrystalReports.Engine;



public partial class _Default : System.Web.UI.Page

{

    protected void Page_Load(object sender, EventArgs e)

    {

        SqlConnection connection = new SqlConnection("Server=myserver;uid=sa;pwd=nothing;Database=MyDB;");

        SqlCommand command = new SqlCommand("Select top 10 * From Customers", connection);

        SqlDataAdapter adapter = new SqlDataAdapter(command);

        //Customer _Customer = new Customer();

        DataSet dataset = new DataSet();

        adapter.Fill(dataset, "Customer");

        ReportDocument CustomerReport = new ReportDocument();

        CustomerReport.Load(Server.MapPath("CustomerReport.rpt"));

        CustomerReport.SetDataSource(dataset.Tables["Customer"]);

        CrystalReportViewer1.ReportSource = CustomerReport;

        CrystalReportViewer1.DataBind();

    }

}

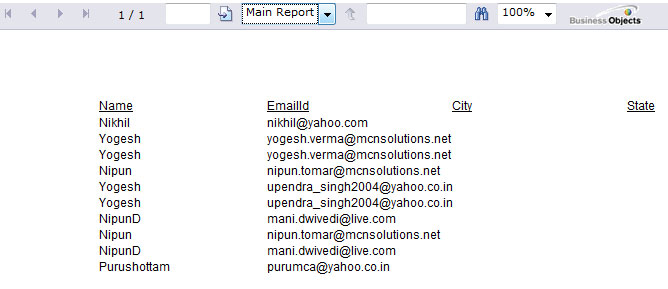

Now it's done. Press F5; you will get the report.
