MathML With HTML5

The Mathematical Markup Language (MathML) is a markup language to show mathematical and scientific content on the Web. HTML5 allows us to use MathML elements inside a document using <math>...</math> tags. A mathematical expression must be inserted into the element <math> with a specified namespace as in the following:

  1. <math xmlns="http://www.w3.org/1998/Math/MathML">  </math>
In HTML5 we can simply write <math></math>. The basic elements of the <math> tag are as follows:



We will now try to print  a2= b2.
  1. <!DOCTYPE html>
  2. <html>
  3. <head
  4.  <title>Experiments with MathML in HTML5</title>
  5. </head>
  6. <body>
  7.   <h3>Experiments with MathML in HTML5</h3>
  8. <math>
  9.       <mrow>
  10.         <msup><mi>a</mi><mn>2</mn></msup>
  11.         <mo>=</mo>
  12.         <msup><mi>b</mi><mn>2</mn></msup>
  13.       </mrow>
  14.     </math>
  15. </body>
  16. </html>

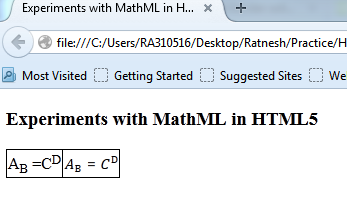

To display the preceding superscript expression we used <msup>. We can also use <msub> to show subscripts. We can also achieve these results with <sup></sup> and <sub></sub>. But there are visual differences if we do not use any style sheet in the latter case.
  1. <!DOCTYPE html>
  2. <html>
  3. <head><style>
  4. table {
  5.     border-collapse: collapse;
  6. }
  7.
  8. table, td {
  9.     border: 1px solid black;
  10. }</style>
  11.  <title>Experiments with MathML in HTML5</title>
  12. </head>
  13. <body>
  14.
  15.   <h3>Experiments with MathML in HTML5</h3>
  16.
  17. <table><tr><td>
  18.
  19.     A<sub>B</sub> =C<sup>D</sup>
  20.
  21. </td><td>
  22. <math>
  23.  <msub>
  24.      <mi>A</mi>
  25.      <mn>B</mn>
  26.    </msub>
  27.    <mo>=</mo>
  28.    <msup>
  29.      <mi>C</mi>
  30.      <mn>D</mn>
  31.    </msup>
  32. </math></td></tr></table>
  33. </body>
  34. </html>

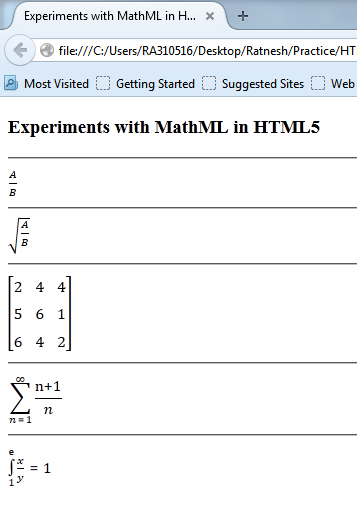

A fraction is generated by the element <mfrac>. For example, A/B is generated by:
  1. <math>
  2.   <mfrac>
  3.      <mi>A</mi>
  4.      <mi>B</mi>
  5.   </mfrac>
  6. </math>
We can generate the root symbol with <msqrt> as in the following:
  1. <math>
  2.  <msqrt>
  3.      <mfrac>
  4.       <mi>A</mi>
  5.       <mi>B</mi>
  6.    </mfrac>
  7.    </msqrt>
  8. </math>
We can display the matrix in a webpage as:
  1. <mfenced open="[" close="]">
  2.     <mtable>
  3.         <mtr>
  4.             <mtd>
  5.                 <mi>2</mi>
  6.             </mtd>
  7.             <mtd>
  8.                 <mi>4</mi>
  9.             </mtd>
  10.             <mtd>
  11.                 <mi>4</mi>
  12.             </mtd>
  13.         </mtr>
  14.         <mtr>
  15.             <mtd>
  16.                 <mi>5</mi>
  17.             </mtd>
  18.             <mtd>
  19.                 <mi>6</mi>
  20.             </mtd>
  21.             <mtd>
  22.                 <mi>1</mi>
  23.             </mtd>
  24.         </mtr>
  25.         <mtr>
  26.             <mtd>
  27.                 <mi>6</mi>
  28.             </mtd>
  29.             <mtd>
  30.                 <mi>4</mi>
  31.             </mtd>
  32.             <mtd>
  33.                 <mi>2</mi>
  34.             </mtd>
  35.         </mtr>
  36.     </mtable>
  37. </mfenced>
<mtable> behaves as an HTML table. “open” and “close” attributes in <mfenced> are used to display brackets (here we have used square, it can be curly brackets).

MathML also enables us to show mathematical symbols like ∑, ≠, and π. These symbols have their definitions in MathML. A complete list of all possible symbols is given at http://www.w3.org/TR/xml-entity-names/. For the following expression:


  1. <math displaystyle="true">
  2.     <munderover >
  3.         <mo></mo>
  4.         <mrow>
  5.             <mi>n</mi>
  6.             <mo>=</mo>
  7.             <mn>1</mn>
  8.         </mrow>
  9.         <mi></mi>
  10.     </munderover>
  11.     <mfrac>
  12.         <mn>
  13.             <mi>n</mi>
  14.             <mo>+</mo>1
  15.         </mn>
  16.         <mi>n</mi>
  17.     </mfrac>
  18. </math>

  1. <munderover>
  2.     <mo></mo>
  3.     <mn>1</mn>
  4.     <mn>e</mn>
  5. </munderover>
  6. <mfrac>
  7.     <mrow>
  8.         <mo>d</mo>
  9.         <mi>x</mi>
  10.     </mrow>
  11.     <mi>x</mi>
  12. </mfrac>
  13. <mo>=</mo>
  14. <mn>1</mn>
