Develop and Install a Windows Service in C#

What a Windows Service is

  • Enables you to create long-running executable applications that run in their own windows session.
  • Can be automatically started when the computer boots, can be paused and restarted without any user interaction.
  • Easily installable by running the command line utility InstallUtil.exe and passing the path to the service's executable file.

Why a Windows Service?

One of the most common requirements of some businesses is long-running scheduled jobs based on some time interval. For example: sending a newsletter everyday afternoon or send an email alert to the customer for every one hour.

So building a Windows Service could be one of the reliable solutions to do the goal that can do the required job in the behind the scenes without interfering others users on the same computer.

Introduction

This article explains a step-by-step process of developing and installing a Windows Service to do a scheduled job based on a time interval.

Open Visual Studio and from the menus select "File" -> "New" -> "Project...".

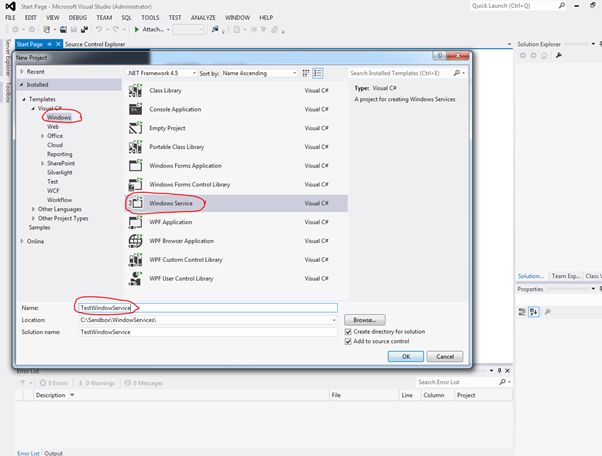

A New Project window will open. Choose "Visual C#" >> "Windows" project type and select "Windows Service" from the right hand side and name the project "TestWindowsService" as shown in the following screenshot.

new project window

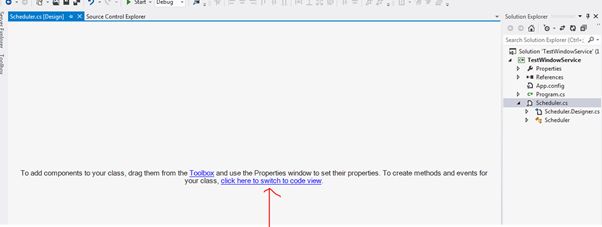

After you click "OK", the project will be created and you will see the design view of the service as shown in the following screen. Right-click the "Service1.cs" file in Solution Explorer and rename it "to" Scheduler or any other name that you want to give it. Then click “click here to switch to code view”.

code view

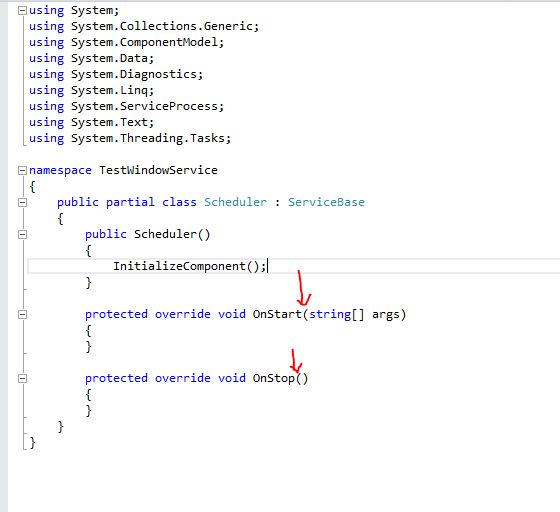

In the code view, you can see two methods called OnStart() and OnStop(). The OnStart() triggers when the Windows Service starts and the OnStop() triggers when the service stops.

OnStop triggers

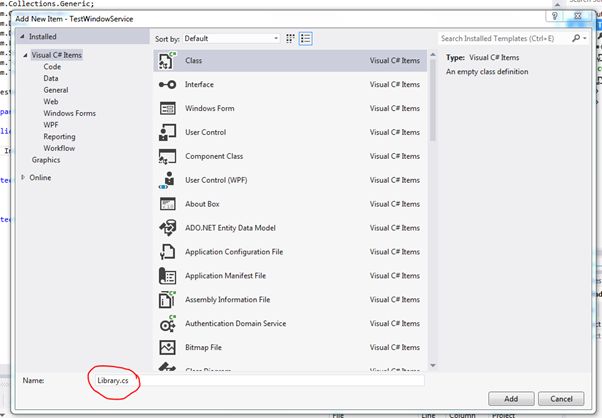

Right-click the TestWindowService project, add a new class and name it "Library.cs". This class will be useful to create the methods that we require in the project. If your TestWindowService is a big project, you can create a ClassLibrary project and reference it to your TestWindowService.

new class

Library.cs

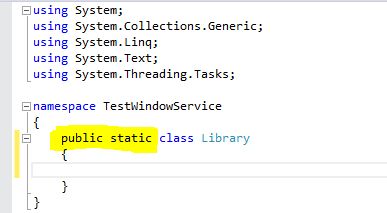

Make the class public and declare it as a Static class.

Static class

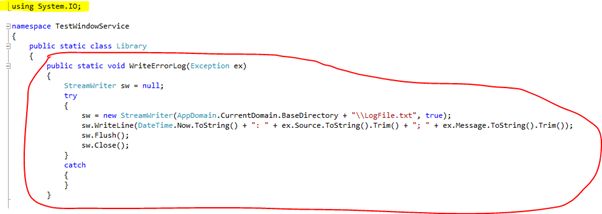

Create a log method (WriteErrorLog) to log the exceptions.

log method

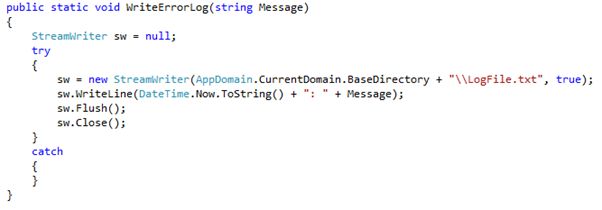

Create one more log method (WriteErrorLog) to log the custom messages.

log method to log

Scheduler.cs

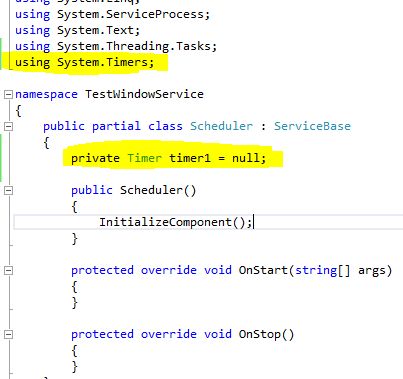

Now return to our Scheduler.cs file and declare a Timer.

Timer

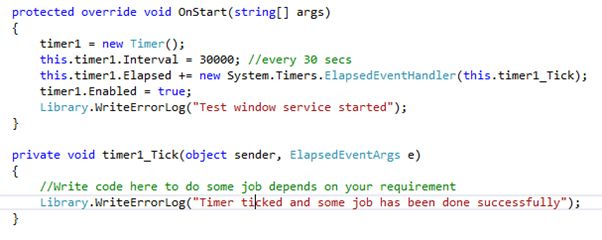

Write the following code in the OnStart() method and timer1_Tick():

timer1_Tick

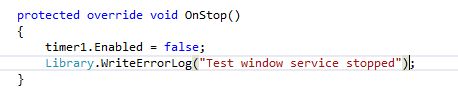

Write the following code in the OnStop() method:

OnStop method
Scheduler.cs [Design]

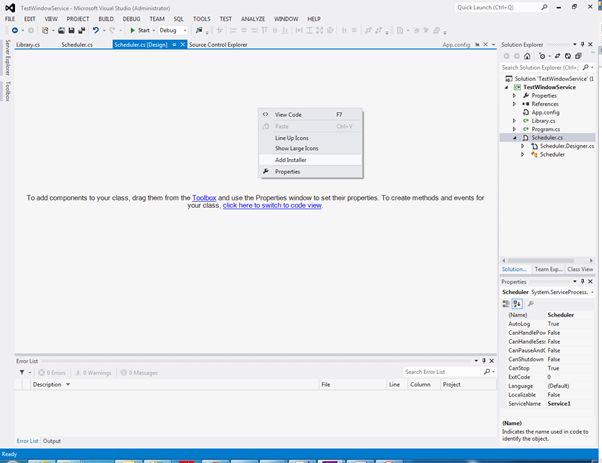

Now return to the Scheduler.cs [Design] and right-click on the editor window then click "Add Installer".

Add Installer

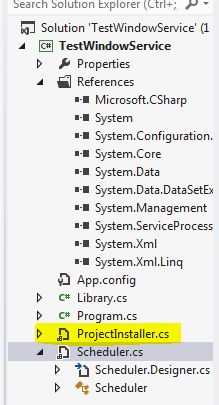

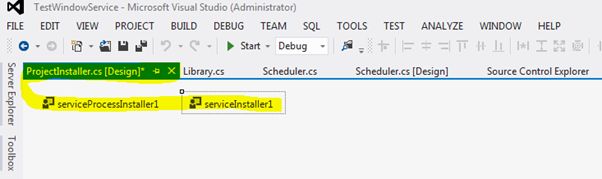

Then you can see that there will be a new file called "ProjectInstaller.cs" as shown in the following.

new file called ProjectInstaller

Installer

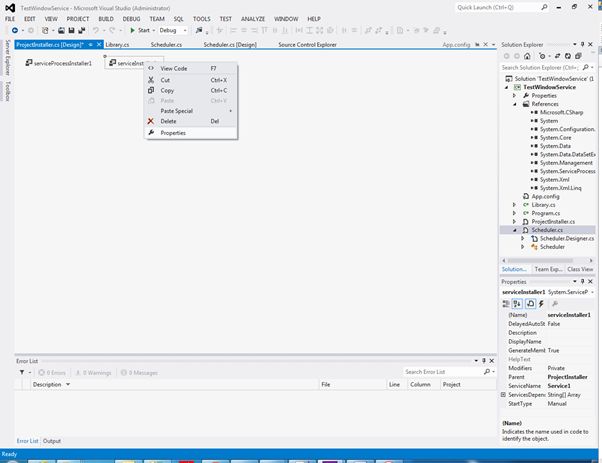

Right-click on the "serviceInstaller1" and click "Properties".

Properties

Change the ServiceName to "Test Windows Service" (or your own name) and StartType to "Manual" (or you can choose "Automatic" if you need this service to be automatic).

Test Windows Service

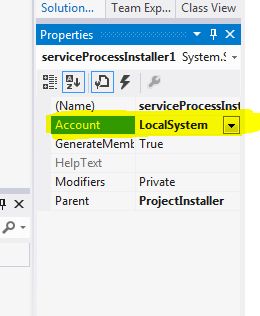

Right-click the serviceProcessInstaller1, go to the properties window and change "Account" to "LocalSystem".

change Account property

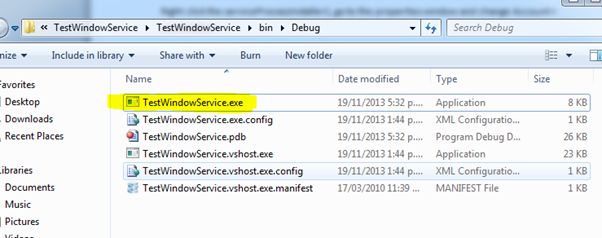

Build the project to see the .exe file at the location where you created the solution.

Build the project

That's all. Your Windows Service is all ready to install in your machine.

Installing the Windows Service

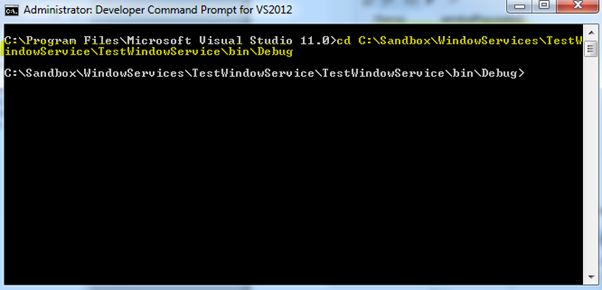

Go to "Start" >> "All Programs" >> "Microsoft Visual Studio 2012" >> "Visual Studio Tools" then click "Developer Command Prompt for VS2012".

Type the following command:

cd <physical location of your TestWindowService.exe file>

in my case it is :

cd C:\Sandbox\WindowServices\TestWindowService\TestWindowService\bin\Debug

Installing the Window Service

Next type the following command:

InstallUtil.exe “TestWindowService.exe”

and press Enter.

TestWindowService

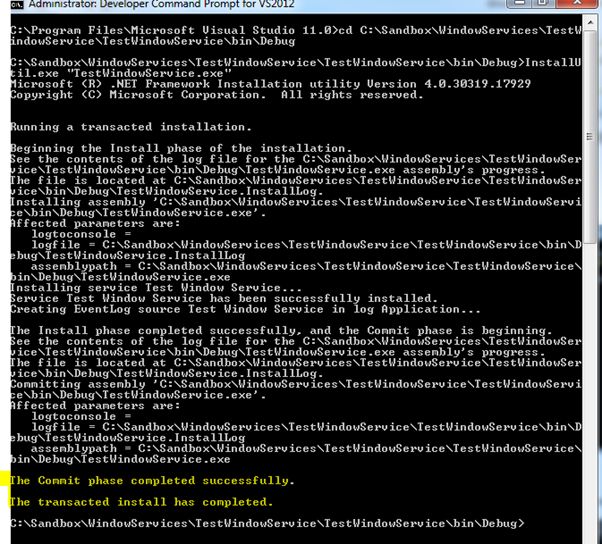

Here you go, the TestWindowService is installed successfully.

installed successfully

How to start the Windows Service

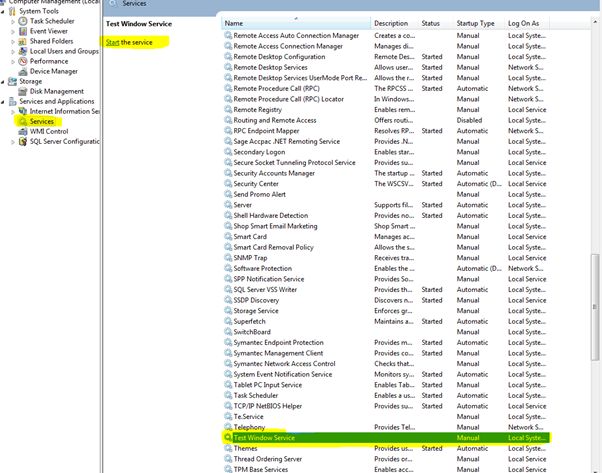

Since we chose StartType = Manual, we must start the Windows Service manually by visiting the "Services and Applications" window in the computer.

StartType

Select the Test Windows Service and click "Start" to start the service. Go to the "TestWindowService.exe" location to see the logs.

LogFile.txt

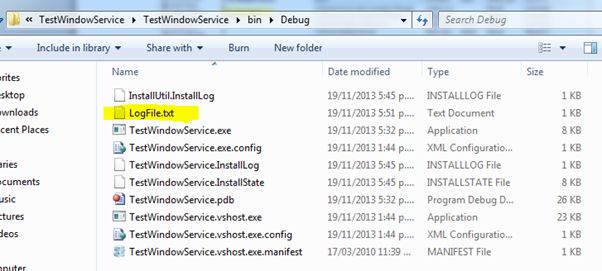

Since we are tracking our Windows Service by writing some logs to a .txt file called LogFile.txt, we can test the working condition of our Windows Service by looking at this log file.

LogFile

As you can see in the preceding screen, you can find the LogFile.txt file at the physical location that your TestWindowService solution exists.

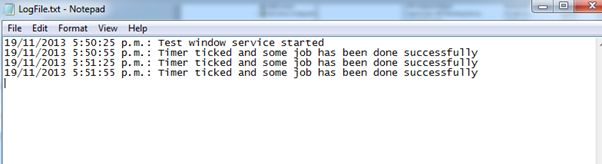

Click the LogFile.txt to see the logs, whether our service is doing the job that we set it to do for every 30 seconds.

logs

If you look at the preceding log file, we can prove that our Windows Service is running and doing the job that we wanted on a 30 seconds interval.

Stop the Windows Service

To stop the Windows Service, just click "Stop" link in the Services window by selecting our TestWindowService.

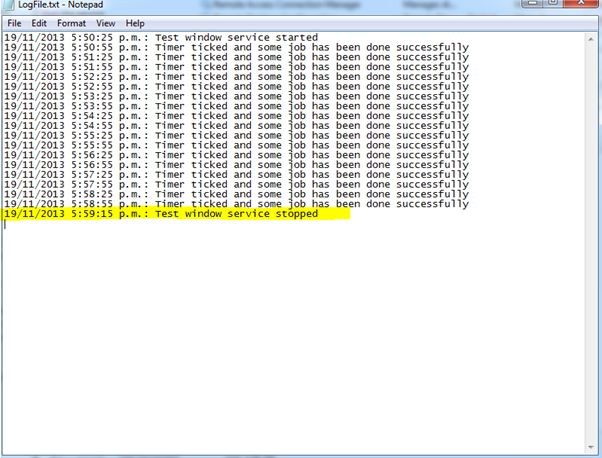

Logfile after stopping our service:

Stop the window service

Type the following two commands in the "Developer Command Prompt for VS2012" to uninstall the TestWindowService.exe.

  1. cd <physical location of your TestWindowService.exe file>
    and press Enter. In my case it is:
    cd C:\Sandbox\WindowServices\TestWindowService\TestWindowService\bin\Debug
  2. InstallUtil.exe /u “TestWindowService.exe”
    And press enter.
    After executing the preceding commands, the TestWindowService will be uninstalled from your computer.

Summary

In this article, I explained how to develop a Windows Service and install it using InstallUtil.exe from a command prompt.

I believe that I have explained each step clearly that can be easily understandable for a beginner to develop and install a Windows Service.
