Customizing Listview Display in Xamarin

The usual behavior of a ListView is to display items as a list in a single column. The ItemSource property of Listview accepts the list of data to be displayed and rendered on the screen.

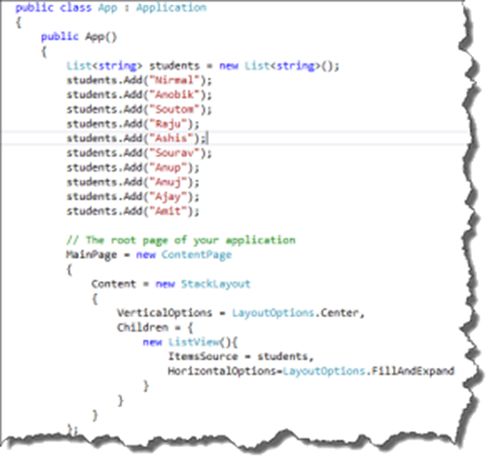

The code for a simple list to display the Students of a class would be as in the following image.

code

Now let's customize this ListView in a way to display the Student Name along with the Class and School they belong to.


As in the image above, the data contains a single record. So to accommodate the data in a single record, let's create a Student model class.

  1. public class Student
  2. {
  3.    public string StudentName { getset; }
  4.    public string Class { getset; }
  5.    public string School { getset; }
  6. }
In order to customize the ListView display, we need to override the ViewCell class.
  1. public class StudentCell : ViewCell
  2. {
  3.    public StudentCell()
  4.    {
  5.       Label nameCell = new Label
  6.       {
  7.          TextColor = Color.Blue,
  8.          FontSize = 30
  9.       };
  10.       nameCell.SetBinding(Label.TextProperty, "StudentName");
  11.       Label classCell = new Label
  12.       {
  13.          TextColor = Color.Gray,
  14.          FontSize = 20
  15.       };
  16.       classCell.SetBinding(Label.TextProperty, "Class");
  17.       Label schoolCell = new Label
  18.       {
  19.          TextColor = Color.Gray,
  20.          FontSize = 20
  21.       };
  22.       schoolCell.SetBinding(Label.TextProperty, "School");
  23.       View = new StackLayout()
  24.       {
  25.          Children = { nameCell, classCell, schoolCell}
  26.       };
  27.    }
  28. }
We are done with the Model and the inherited ViewCell class, StudentCell. We will use the ItemTemplate attribute of ListView to assign the StudentCell class.
  1. List<Student> students = new List<Student>();
  2. students.Add(new Student() { StudentName = "Nirmal Hota", Class = "10th", School = "Bhagabati High School" });
  3. students.Add(new Student() { StudentName = "Tadit Dash", Class = "6th", School = "Student High School" });
  4. students.Add(new Student() { StudentName = "Suraj Sahoo", Class = "5th", School = "Khannagar High School" });
  5. students.Add(new Student() { StudentName = "Suvendu Giri", Class = "9th", School = "Baleswar High School" });
  6. students.Add(new Student() { StudentName = "Subhasish Pattanaik", Class = "8th", School = "Rourkela High School" });
  7. // The root page of your application
  8. MainPage = new ContentPage
  9. {
  10.    Content = new StackLayout
  11.    {
  12.       VerticalOptions = LayoutOptions.Center,
  13.       Children = {
  14.          new ListView(){
  15.             ItemsSource = students,
  16.             ItemTemplate = new DataTemplate(typeof(StudentCell)),
  17.             HorizontalOptions=LayoutOptions.FillAndExpand
  18.          }
  19.       }
  20.    }
  21. };

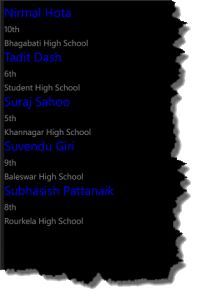

Let's run the app to see the new ListView.

Happy coding.
