JSON stands for JavaScript Object Notation. JSON is a light weight data interchange format in a text format so it can be easily parsed and read by machines and humans.

Parsing JSON data is important in Android. Create a new project in Android by using the following steps:

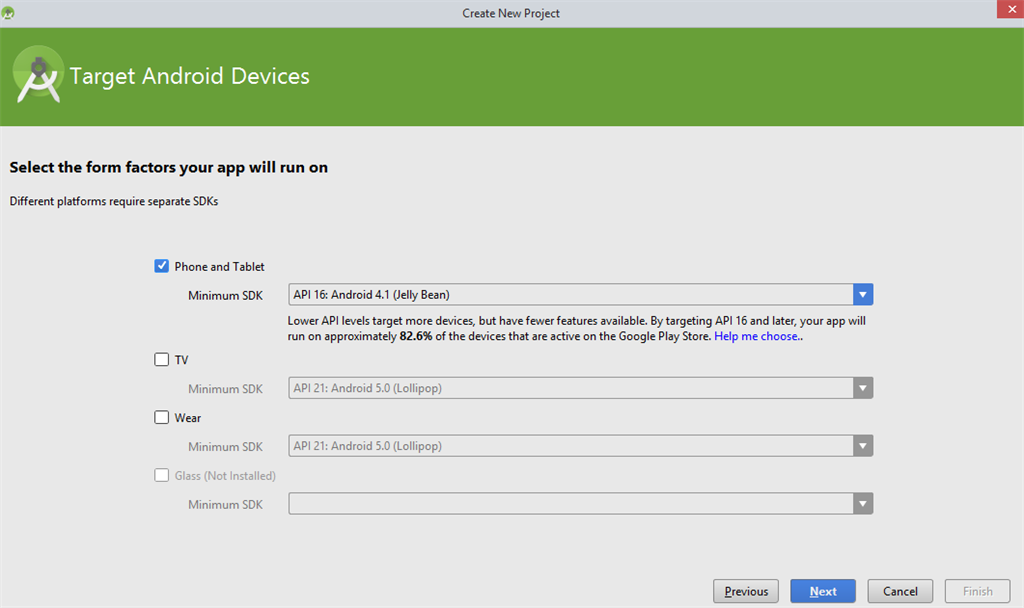

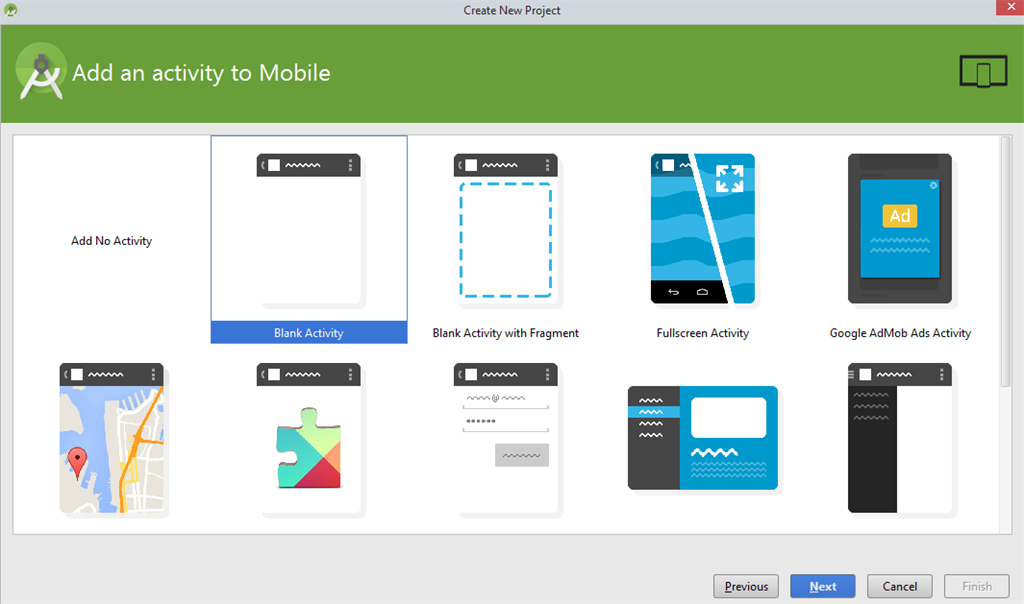

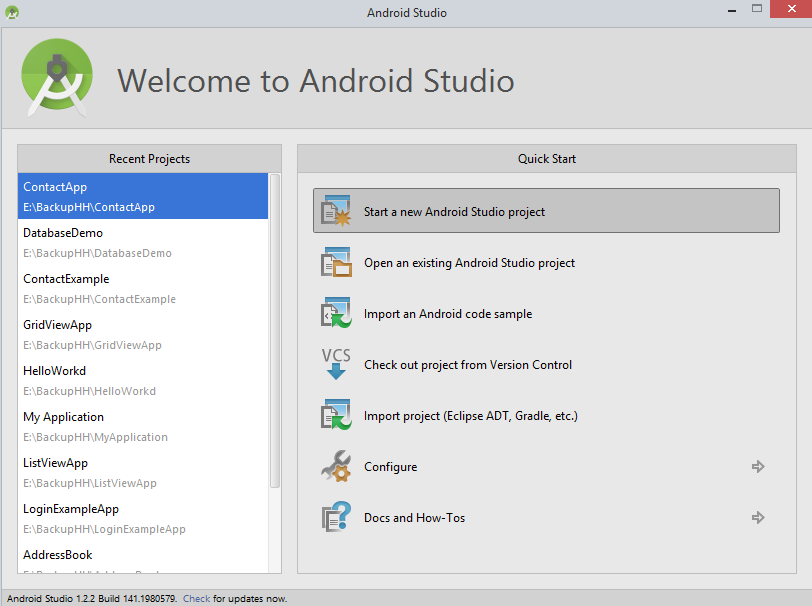

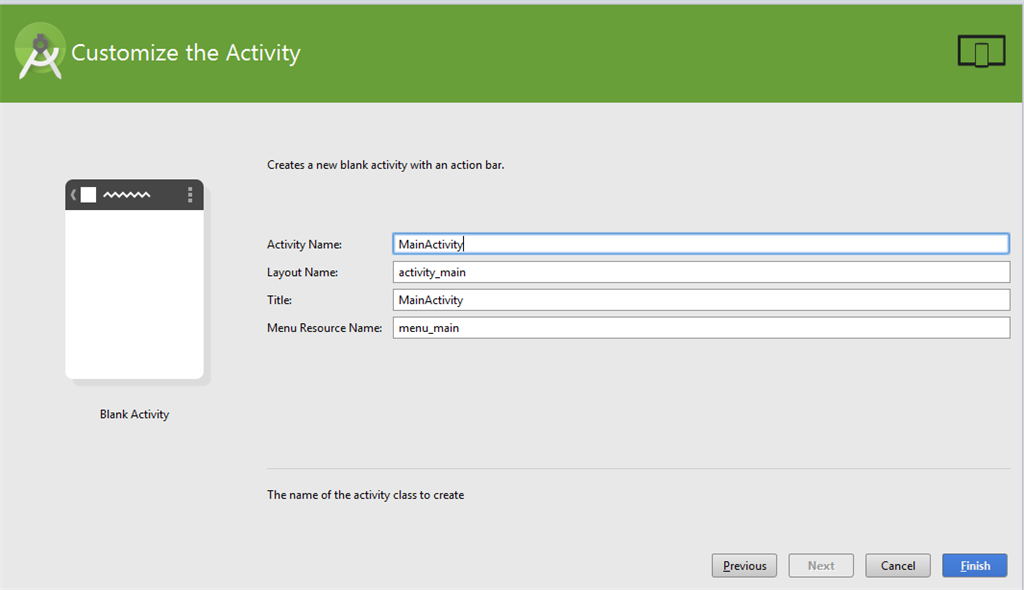

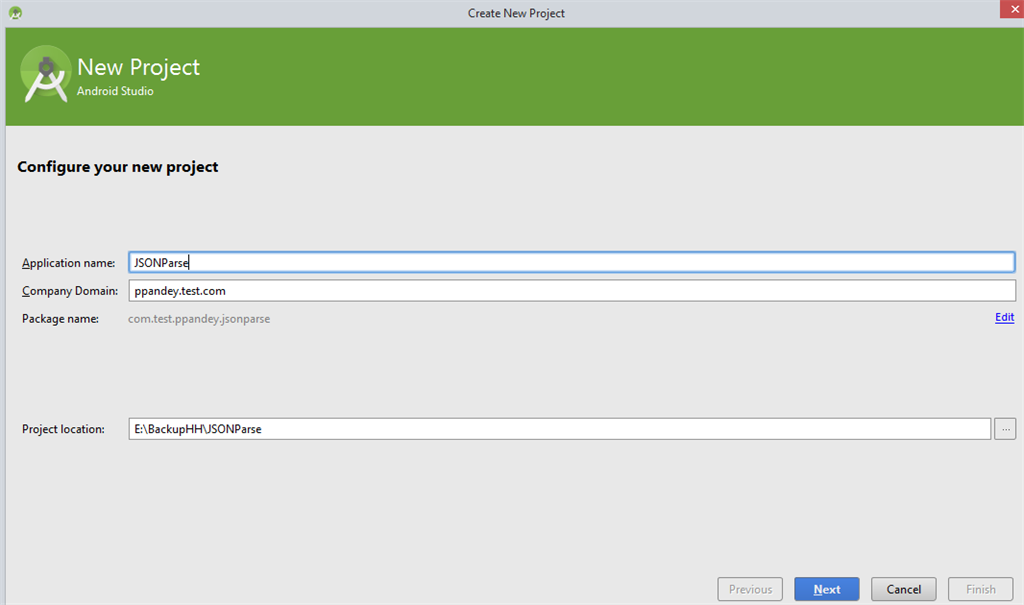

Step 1:



Step 2:

Step 3:


Step 4:


Step 5:


JSON uses the following two types of different structures:
  1. Collection of name/value pair
  2. Array

Example of collection of name/value pair: The { (curly brace) represents the JSON object.

  1. {"Employee" :{
  2.
  3.    "id":"1",
  4.    "name":"David",
  5.
  6.    "address":"Delhi",
  7.
  8.    "zip":"110002"}
  9.
  10. }

Example of collection of array: The [ (square bracket ) represents the JSON array.

  1. {
  2.     "Employee": [
  3.     {
  4.         "id""1",
  5.         "name""David",
  6.         "address""Delhi",
  7.         "zip""110002"
  8.     },
  9.     {
  10.         "id""2",
  11.         "name""John",
  12.         "address""Mumbai",
  13.         "zip""400001"
  14.     },
  15.     {
  16.         "id""3",
  17.         "name""Mathew",
  18.         "address""Delhi",
  19.         "zip""110003"
  20.     },
  21.     {
  22.         "id""4",
  23.         "name""Mary",
  24.         "address""Delhi",
  25.         "zip""110010"
  26.     }]
  27. }

Complete Java class to parse JSON data.

  1. {
  2.     "Employee": [
  3.     {
  4.         "id""1",
  5.         "name""David",
  6.         "address""Delhi",
  7.         "zip""110002"
  8.     },
  9.     {
  10.         "id""2",
  11.         "name""John",
  12.         "address""Mumbai",
  13.         "zip""400001"
  14.     },
  15.     {
  16.         "id""3",
  17.         "name""Mathew",
  18.         "address""Delhi",
  19.         "zip""110003"
  20.     },
  21.     {
  22.         "id""4",
  23.         "name""Mary",
  24.         "address""Delhi",
  25.         "zip""110010"
  26.     }]
  27. }
  28. package com.test.ppandey.jsonparse;
  29. import android.support.v7.app.ActionBarActivity;
  30. import android.os.Bundle;
  31. import android.view.Menu;
  32. import android.view.MenuItem;
  33. import android.widget.TextView;
  34. import org.json.JSONArray;
  35. import org.json.JSONException;
  36. import org.json.JSONObject;
  37. public class MainActivity extends ActionBarActivity
  38. {
  39.     @Override
  40.     protected void onCreate(Bundle savedInstanceState)
  41.     {
  42.         super.onCreate(savedInstanceState);
  43.         setContentView(R.layout.activity_main);
  44.         TextView output = (TextView) findViewById(R.id.textView1);
  45.         String strJson = "{\"Employee\" :[ {" + " \"id\":\"1\",\n" + "\"name\":\"David\",\n" + "\"address\":\"Delhi\", \n" + "\"zip\":\"110002\"}, {\n" + "\"id\":\"2\",\n" + "\"name\":\"John\",\n" + "\"address\":\"Mumbai\",\n" + "\"zip\":\"400001\"}, {\n" + "\"id\":\"3\",\n" + "\"name\":\"Mathew\",\n" + "\"address\":\"Delhi\",\n" + "\"zip\":\"110003\"}, {\n" + "\"id\":\"4\",\n" + "\"name\":\"Mary\",\n" + "\"address\":\"Delhi\",\n" + "\"zip\":\"110010\"} \n" + "]}";
  46.         String data = "";
  47.         try
  48.         {
  49.             JSONObject jsonRootObject = new JSONObject(strJson);
  50.             //Instance of JSONArray that contains JSONObjects
  51.             JSONArray jsonArray = jsonRootObject.optJSONArray("Employee");
  52.             //Iterate the jsonArray and print the information of the JSONObjects
  53.             for (int i = 0; i < jsonArray.length(); i++)
  54.             {
  55.                 JSONObject jsonObject = jsonArray.getJSONObject(i);
  56.                 int id = Integer.parseInt(jsonObject.optString("id").toString());
  57.                 String name = jsonObject.optString("name").toString();
  58.                 String address = jsonObject.optString("address").toString();
  59.                 String zip = jsonObject.optString("zip").toString();
  60.                 data += "Employee " + i + " : \n id= " + id + " \n Name= " + name + " \n Address= " + address + " \n zip=" + zip + "\n ";
  61.             }
  62.             output.setText(data);
  63.         }
  64.         catch (JSONException e)
  65.         {
  66.             e.printStackTrace();
  67.         }
  68.     }
  69.     @Override
  70.     public boolean onCreateOptionsMenu(Menu menu)
  71.     {
  72.         // Inflate the menu; this adds items to the action bar if it is present.
  73.         getMenuInflater().inflate(R.menu.menu_main, menu);
  74.         return true;
  75.     }
  76.     @Override
  77.     public boolean onOptionsItemSelected(MenuItem item)
  78.     {
  79.         // Handle action bar item clicks here. The action bar will
  80.         // automatically handle clicks on the Home/Up button, so long
  81.         // as you specify a parent activity in AndroidManifest.xml.
  82.         int id = item.getItemId();
  83.         //noinspection SimplifiableIfStatement
  84.         if (id == R.id.action_settings)
  85.         {
  86.             return true;
  87.         }
  88.         return super.onOptionsItemSelected(item);
  89.     }
  90. }

In above code, we created string containing JSON data and object of class JSONObject.

  1. JSONObject jsonRootObject = new JSONObject(strJson);

And pass string containing JSON data to it.

Second step is to parse the JSON.

  1. JSONArray jsonArray = jsonRootObject.optJSONArray("Employee");
  2. int id = Integer.parseInt(jsonObject.optString("id").toString());
  3. String name = jsonObject.optString("name").toString();
  4. String address = jsonObject.optString("address").toString();
  5. String zip = jsonObject.optString("zip").toString();

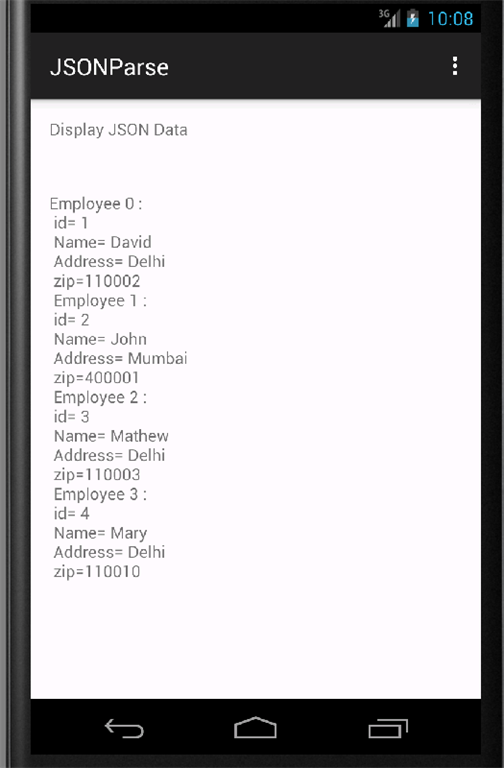

Run the application and we get the JSON data as in the following.
