Here I am making a dependency of a child window on a parent and a parent window on a child. In other words when I open a child window (Modal window) then I will read some values from the parent window and will pass it on a modal window. And after performing operations on the child window, in ther words modal window, I will refresh the parent window with an updated database.

The following is my scenario.

I have an Employee Table and I am showing and adding a new employee from a screen. When adding a new employee I need to select a Manager (Project Leader) and project. And suppose I want to add a new project under the selected manager then I am opening a modal window and adding a new manager.

The following are my 2 tables:

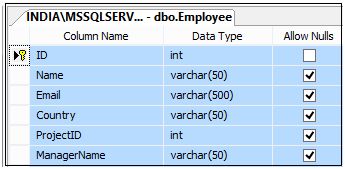

1. Employee Table

table
Figure 1.

The following is the script of the Employee table:

CREATETABLE [dbo].[Employee](
[ID] [int] IDENTITY(1,1)NOTNULL,
[Name] [varchar](50)NULL,
[Email] [varchar](500)NULL,
[Country] [varchar](50)NULL,
[ProjectID] [int] NULL,
[ManagerName] [varchar](50)NULL,
CONSTRAINT [PK_Employee] PRIMARYKEYCLUSTERED
(
[ID] ASC
)WITH (PAD_INDEX=OFF,STATISTICS_NORECOMPUTE=OFF,IGNORE_DUP_KEY=OFF,ALLOW_ROW_LOCKS=ON,ALLOW_PAGE_LOCKS=ON)ON [PRIMARY]
)ON [PRIMARY]
GO

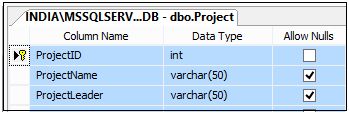

2. Project Table

Figure 2.

The following is the script of the Project table:

CREATETABLE [dbo].[Project](
[ProjectID] [int] IDENTITY(1,1)NOTNULL,
[ProjectName] [varchar](50)NULL,
[ProjectLeader] [varchar](50)NULL,
CONSTRAINT [PK_Project] PRIMARYKEYCLUSTERED
(
[ProjectID] ASC
)WITH (PAD_INDEX=OFF,STATISTICS_NORECOMPUTE=OFF,IGNORE_DUP_KEY=OFF,ALLOW_ROW_LOCKS=ON,ALLOW_PAGE_LOCKS=ON)ON [PRIMARY]
)ON [PRIMARY]
GO

Now create a new Visual Studio project and add a page to the Add New Employee and show all the Emoloyees.

Here add a jQuery reference with the following aspx code:

<%@PageLanguage="C#"AutoEventWireup="true"CodeBehind="ManageEmployee.aspx.cs"Inherits="jQueryPopUp.ManageEmployee"EnableEventValidation="false"%>
<!DOCTYPEhtml>
<html
xmlns="http://www.w3.org/1999/xhtml">
<headrunat="server">
<title>jQuery Modal PopUp</title>
<scriptsrc="Scripts/jquery-2.1.4.min.js">
</script>
<linkhref="R-ModalPopUp.css"rel="stylesheet"/>
<scriptsrc="Scripts/jquery-ui.min.js">
</script>
<styletype="text/css">
.auto-style1 {
width: auto;
position: relative;
left: 20px;
width: 100%;
}
</style>
<scripttype="text/javascript">
$(document).ready(function () {
$("#ddlProject").append($("
<option></option>").val('0').html("--Select Project--"));
//Filling Manager Drop Down List
$.ajax({
type: "POST",
contentType: "application/json; charset=utf-8",
url: "ManageEmployee.aspx/BindManager",
data: "{}",
dataType: "json",
success: function (data) {
$("#ddlManager").append($("
<option></option>").val('0').html("--Select Manager--"));
$.each(data.d, function (key, value) {
$("#ddlManager").append($("
<option></option>").val(value.ManagerName).html(value.ManagerName));
});
},
error: function (result) {
alert("Error");
}
});
$('#ddlManager').change(function () {
varSelectedText = $(this).find(":selected").text();
varSelectedValue = $(this).val();
varJSONObject = { "ManagerID": SelectedText };
varjsonData = JSON.stringify(JSONObject);
$.ajax({
type: "POST",
contentType: "application/json; charset=utf-8",
url: "ManageEmployee.aspx/BindManagerProject",
data: jsonData,
dataType: "json",
success: function (data) {
$('#ddlProject').empty();
$("#ddlProject").append($("
<option></option>").val('0').html("--Select Project--"));
$.each(data.d, function (key, value) {
$("#ddlProject").append($("
<option></option>").val(value.ProjectID).html(value.ProjectName));
});
},
error: function (result) {
alert("Error");
}
});
});
$('#gvData').empty();
$.ajax({
type: "POST",
contentType: "application/json; charset=utf-8",
url: "ManageEmployee.aspx/BindEmployees",
data: "{}",
dataType: "json",
success: function (result) {
$("#gvData").append("
<tr style='background-color:red; color:white; font-weight:bold;'>
<td style='text-align:left;'>ID</td>
<td style='text-align:left;'>Name</td>
<td style='text-align:left;'>Email</td>
<td style='text-align:left;'>Country</td>
<td style='text-align:left;'>Project name</td>
<td style='text-align:left;'>Manager Name</td>
</tr>");
for (var i = 0; i
<result.d.length; i++) {
if (i % 2 == 0) {
$("#gvData").append("
<tr style='background-color:#F5FBEF; font-family:Verdana; font-size:10pt ;'>
<td style='text-align:left;'>" + result.d[i].ID + "</td>
<td style='text-align:left;'>" + result.d[i].Name + "</td>
<td style='text-align:left;'>" + result.d[i].Email + "</td>
<td style='text-align:left;'>" + result.d[i].Country + "</td>
<td style='text-align:left;'>" + result.d[i].ProjectID + "</td>
<td style='text-align:left;'>" + result.d[i].ManagerName + "</td>
</tr>");
}
else {
$("#gvData").append("
<tr style='background-color:skyblue; font-family:Verdana; font-size:10pt ;'>
<td style='text-align:left;'>" + result.d[i].ID + "</td>
<td style='text-align:left;'>" + result.d[i].Name + "</td>
<td style='text-align:left;'>" + result.d[i].Email + "</td>
<td style='text-align:left;'>" + result.d[i].Country + "</td>
<td style='text-align:left;'>" + result.d[i].ProjectID + "</td>
<td style='text-align:left;'>" + result.d[i].ManagerName + "</td>
</tr>");
}
}
},
error: function (result) {
alert("Error");
}
});
$('#btnAddProject').click(function () {
var id = '#dialog';
varManagerName = $('#ddlManager').val();
varManagerText = $('#ddlManager :selected').text();
$("#lblManagerName").text(ManagerName);
varmaskHeight = $(document).height();
varmaskWidth = $(document).width();
$('#mask').css({ 'width': maskWidth, 'height': maskHeight });
//transition effect
$('#mask').fadeIn(1000);
$('#mask').fadeTo("slow", 0.8);
//Get the window height and width
varwinH = $(window).height();
varwinW = $(window).width();
//Set the popup window to center
$(id).css('top', winH / 2 - $(id).height() / 2);
$(id).css('left', winW / 2 - $(id).width() / 2);
//transition effect
$(id).fadeIn(2000);
returnfalse;
//if close button is clicked
});
$('.window .close').click(function (e) {
e.preventDefault();
$('#mask').hide();
$('.window').hide();
});
$('#btnUpdate').click(function (e) {
var Manager = $('#lblManagerName').text();
var Project = $('#txtProjectName').val();
varJSONObject = { "Manager": Manager, "Project": Project };
varjsonData = JSON.stringify(JSONObject);
$.ajax({
type: "POST",
contentType: "application/json; charset=utf-8",
url: "ManageEmployee.aspx/AddProjectWithManager",
data: jsonData,
dataType: "json",
success: function (data) {
},
error: function (result) {
alert("Error");
}
});
varJSONObject = { "ManagerID": $("#lblManagerName").text() };
varjsonData = JSON.stringify(JSONObject);
$.ajax({
type: "POST",
contentType: "application/json; charset=utf-8",
url: "ManageEmployee.aspx/BindManagerProject",
data: jsonData,
dataType: "json",
success: function (data) {
$('#ddlProject').empty();
$("#ddlProject").append($("
<option></option>").val('0').html("--Select Project--"));
$.each(data.d, function (key, value) {
$("#ddlProject").append($("
<option></option>").val(value.ProjectID).html(value.ProjectName));
});
},
error: function (result) {
alert("Error");
}
});
e.preventDefault();
$('#mask').hide();
$('.window').hide();
});
//Add Employee
$('#btnAddEmployee').click(function (e) {
debugger;
varempName = $('#txtName').val();
var email = $('#txtEmail').val();
var country = $('#ddlCountry').val();
var project = $('#ddlProject').val();
var manager = $('#ddlManager').val();
varJSONObject = { "Name": empName, "Email": email, "Country": country, "Project": project, "Manager": manager };
varjsonData = JSON.stringify(JSONObject);
$.ajax({
type: "POST",
contentType: "application/json; charset=utf-8",
url: "ManageEmployee.aspx/AddNewEmployee",
data: jsonData,
dataType: "json",
success: function (data) {
},
error: function (result) {
alert("Error");
}
});
$('#gvData').empty();
$.ajax({
type: "POST",
contentType: "application/json; charset=utf-8",
url: "ManageEmployee.aspx/BindEmployees",
data: "{}",
dataType: "json",
success: function (result) {
for (var i = 0; i
<result.d.length; i++) {
$("#gvData").append("
<tr>
<td>" + result.d[i].ID + "</td>
<td>" + result.d[i].Name + "</td>
<td>" + result.d[i].Email + "</td>
<td>" + result.d[i].Country + "</td>
<td>" + result.d[i].ProjectID + "</td>
<td>" + result.d[i].ManagerName + "</td>
</tr>");
}
},
error: function (result) {
alert("Error");
}
});
});
});
</script>
</head>
<body>
<formid="form1"runat="server">
<div>
<tablestyle="width: 100%; text-align: center; border: solid5pxred; background-color: yellow; vertical-align: top;">
<tr>
<td>
<div>
<fieldsetstyle="width: 99%;">
<legendstyle="font-size: 20pt; color: red; font-family: Verdana">jQuery Modal Popup Show with (Parent - Child window) Value dependency
</legend>
<tablestyle="width: 100%;">
<tr>
<tdstyle="vertical-align: top; width: 20%;">
<tablestyle="background-color: skyblue; width: 100%; text-align: left;">
<tr>
<tdcolspan="2"style="background-color: #DF0101; color: white; border: 1pxsolidred; font-weight:bold; padding-left: 5px;">Add New Employee
</td>
</tr>
<tr>
<tdstyle="text-align: left; padding-left: 5px;">
<asp:LabelID="lblName"runat="server"Text="Name:"Width="80px">
</asp:Label>
</td>
<tdstyle="text-align: left;">
<asp:TextBoxID="txtName"runat="server">
</asp:TextBox>
</td>
</tr>
<tr>
<tdstyle="text-align: left; padding-left: 5px;">
<asp:LabelID="Label1"runat="server"Text="Email:"Width="80px">
</asp:Label>
</td>
<tdstyle="text-align: left;">
<asp:TextBoxID="txtEmail"runat="server">
</asp:TextBox>
</td>
</tr>
<tr>
<tdstyle="text-align: left; padding-left: 5px;">
<asp:LabelID="Label2"runat="server"Text="Country:"Width="80px">
</asp:Label>
</td>
<tdstyle="text-align: left;">
<asp:DropDownListID="ddlCountry"runat="server">
<asp:ListItemText="India"Value="India">
</asp:ListItem>
<asp:ListItemText="USA"Value="USA">
</asp:ListItem>
<asp:ListItemText="South Africa"Value="South Africa">
</asp:ListItem>
<asp:ListItemText="Singapore"Value="Singapore">
</asp:ListItem>
</asp:DropDownList>
</td>
</tr>
<tr>
<tdstyle="text-align: left; padding-left: 5px;">
<asp:LabelID="Label3"runat="server"Text="Manager:"Width="80px">
</asp:Label>
</td>
<tdstyle="text-align: left;">
<asp:DropDownListID="ddlManager"runat="server">
</asp:DropDownList>
</td>
</tr>
<tr>
<tdstyle="text-align: left; padding-left: 5px;">
<asp:LabelID="Label4"runat="server"Text="Project:"Width="80px">
</asp:Label>
</td>
<tdstyle="text-align: left;">
<asp:DropDownListID="ddlProject"runat="server">
</asp:DropDownList>
<br/>
<inputid="btnAddProject"type="submit"value="Add Project"style="width: 100px;"class="btnbtn-info"/>
</td>
</tr>
<tr>
<td></td>
<td>
<inputid="btnAddEmployee"type="submit"value="Add Employee"style="width: 140px;"class="btnbtn-info"/>
</td>
</tr>
</table>
</td>
<tdstyle="vertical-align: top; background-color: green; text-align: center;">
<asp:GridViewID="gvData"runat="server"CellPadding="4"ShowHeaderWhenEmpty="True"BackColor="White"BorderColor="#CC9966"BorderStyle="None"Width="100%"BorderWidth="1px">
<FooterStyleBackColor="#FFFFCC"ForeColor="#330099"/>
<HeaderStyleBackColor="#990000"Font-Bold="True"ForeColor="#FFFFCC"/>
<PagerStyleBackColor="#FFFFCC"ForeColor="#330099"HorizontalAlign="Center"/>
<RowStyleBackColor="White"ForeColor="#330099"/>
<SelectedRowStyleBackColor="#FFCC66"Font-Bold="True"ForeColor="#663399"/>
<SortedAscendingCellStyleBackColor="#FEFCEB"/>
<SortedAscendingHeaderStyleBackColor="#AF0101"/>
<SortedDescendingCellStyleBackColor="#F6F0C0"/>
<SortedDescendingHeaderStyleBackColor="#7E0000"/>
</asp:GridView>
</td>
</tr>
</table>
</fieldset>
</div>
</td>
</tr>
</table>
</div>
<divid="boxes">
<divid="mask">
<divid="dialog"class="window">
<divid="headerBorder">
Add New Project #
<divid="close"class="close">[X]
</div>
</div>
<tableclass="auto-style1">
<tr>
<tdstyle="text-align: left;">Manager Name:
</td>
<td>
<asp:LabelID="lblManagerName"runat="server">
</asp:Label>
</td>
</tr>
<tr>
<tdstyle="text-align: left;">Project Name:
</td>
<td>
<inputtype="text"style="width: 300px;"id="txtProjectName"/>
</td>
</tr>
<tr>
<td></td>
</tr>
<tr>
<td></td>
<td>
<buttonid="btnUpdate">Submit
</button>
<inputtype="reset"/>
</td>
</tr>
</table>
</div>
</div>
</div>
</form>
</body>
</html>

The following is the aspx.cs code:

using System;
usingSystem.Collections.Generic;
usingSystem.Data;
usingSystem.Data.SqlClient;
usingSystem.Linq;
usingSystem.Web;
usingSystem.Web.Services;
usingSystem.Web.UI;
usingSystem.Web.UI.WebControls;
namespacejQueryPopUp {
publicpartialclassManageEmployee: System.Web.UI.Page {
protectedvoidPage_Load(object sender, EventArgs e) {
if (!Page.IsPostBack) {
BindGridWithDummyRow();
}
}
publicvoidBindGridWithDummyRow() {
DataTabledt = newDataTable();
dt.Columns.Add("ID");
dt.Columns.Add("Name");
dt.Columns.Add("Email");
dt.Columns.Add("Country");
dt.Columns.Add("ProjectID");
dt.Columns.Add("ManagerName");
gvData.DataSource = dt;
gvData.DataBind();
}
[WebMethod]
publicstaticEmployee[] BindEmployees() {
stringconnectionString = @
"Data Source=INDIA\MSSQLServer2k8; Initial Catalog= TestDB; Integrated Security=true;";
DataTabledt = newDataTable();
List < Employee > employeeList = newList < Employee > ();
using(SqlConnection con = newSqlConnection(connectionString)) {
using(SqlCommand command = newSqlCommand("select e.ID, e.Name,e.Email,e.Country,p.ProjectName,e.ManagerName from Employee as e Inner join project as p on e.ProjectID=p.ProjectID", con)) {
con.Open();
SqlDataAdapter da = newSqlDataAdapter(command);
da.Fill(dt);
foreach(DataRowdtrowindt.Rows) {
Employeeemployee = newEmployee();
employee.ID = Convert.ToInt32(dtrow["ID"].ToString());
employee.Name = dtrow["Name"].ToString();
employee.Email = dtrow["Email"].ToString();
employee.Country = dtrow["Country"].ToString();
employee.ProjectID = dtrow["ProjectName"].ToString();
employee.ManagerName = dtrow["ManagerName"].ToString();
employeeList.Add(employee);
}
}
}
returnemployeeList.ToArray();
}
[WebMethod]
publicstaticEmployee[] BindManager() {
stringconnectionString = @
"Data Source=INDIA\MSSQLServer2k8; Initial Catalog= TestDB; Integrated Security=true;";
DataTabledt = newDataTable();
List < Employee > employeeList = newList < Employee > ();
using(SqlConnection con = newSqlConnection(connectionString)) {
using(SqlCommand command = newSqlCommand("SELECT DISTINCT ProjectLeader from Project", con)) {
con.Open();
SqlDataAdapter da = newSqlDataAdapter(command);
da.Fill(dt);
foreach(DataRowdtrowindt.Rows) {
Employeeemployee = newEmployee();
employee.ManagerName = dtrow["ProjectLeader"].ToString();
employeeList.Add(employee);
}
}
}
returnemployeeList.ToArray();
}
[WebMethod]
publicstaticEmployee[] BindManagerProject(stringManagerID) {
stringconnectionString = @
"Data Source=INDIA\MSSQLServer2k8; Initial Catalog= TestDB; Integrated Security=true;";
DataTabledt = newDataTable();
List < Employee > employeeList = newList < Employee > ();
using(SqlConnection con = newSqlConnection(connectionString)) {
using(SqlCommand command = newSqlCommand("SELECT ProjectID, ProjectName from Project WHERE ProjectLeader='" + ManagerID + "'", con)) {
con.Open();
SqlDataAdapter da = newSqlDataAdapter(command);
da.Fill(dt);
foreach(DataRowdtrowindt.Rows) {
Employeeemployee = newEmployee();
employee.ProjectID = dtrow["ProjectID"].ToString();
employee.ProjectName = dtrow["ProjectName"].ToString();
employeeList.Add(employee);
}
}
}
returnemployeeList.ToArray();
}
[WebMethod]
publicstaticvoidAddProjectWithManager(string Manager, string Project) {
stringconnectionString = @
"Data Source=INDIA\MSSQLServer2k8; Initial Catalog= TestDB; Integrated Security=true;";
DataTabledt = newDataTable();
List < Employee > employeeList = newList < Employee > ();
using(SqlConnection con = newSqlConnection(connectionString)) {
using(SqlCommand command = newSqlCommand("INSERT INTO Project (ProjectName, ProjectLeader) VALUES ('" + Project + "' , '" + Manager + "')", con)) {
con.Open();
SqlDataAdapter da = newSqlDataAdapter(command);
da.Fill(dt);
}
}
}
[WebMethod]
publicstaticvoidAddNewEmployee(string Name, string Email, string Country, string Project, string Manager) {
stringconnectionString = @
"Data Source=INDIA\MSSQLServer2k8; Initial Catalog= TestDB; Integrated Security=true;";
DataTabledt = newDataTable();
List < Employee > employeeList = newList < Employee > ();
using(SqlConnection con = newSqlConnection(connectionString)) {
using(SqlCommand command = newSqlCommand("INSERT INTO Employee (Name, Email, Country, ProjectID, ManagerName) VALUES ('" + Name + "' , '" + Email + "' , '" + Country + "' , '" + Project + "' , '" + Manager + "')", con)) {
con.Open();
SqlDataAdapter da = newSqlDataAdapter(command);
da.Fill(dt);
}
}
}
}
}

The following is the Employee class:

using System;
usingSystem.Collections.Generic;
usingSystem.Linq;
usingSystem.Web;
namespacejQueryPopUp {
publicclassEmployee {
publicint ID {
get;
set;
}
publicstring Name {
get;
set;
}
publicstring Email {
get;
set;
}
publicstring Country {
get;
set;
}
publicstringProjectID {
get;
set;
}
publicstringProjectName {
get;
set;
}
publicstringManagerName {
get;
set;
}
}
}

Now run your application.

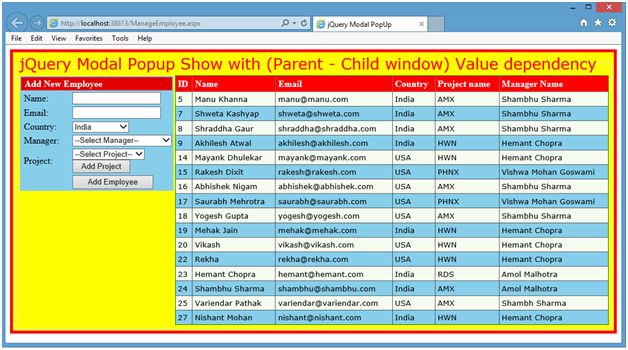

Here this screen will show the entire employee list and you can add a new employee from here:

Figure 3.

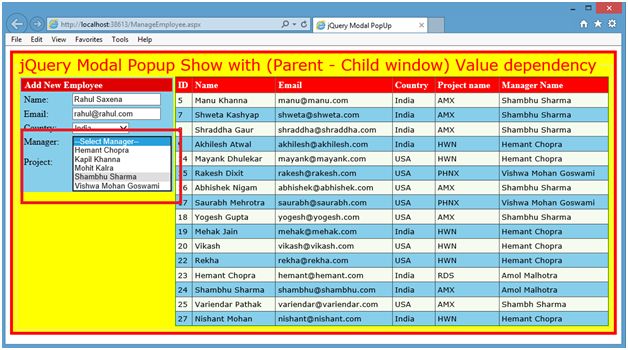

Now when adding a new employee we need to select a manager as in the following:

adding new employee

Figure 4.

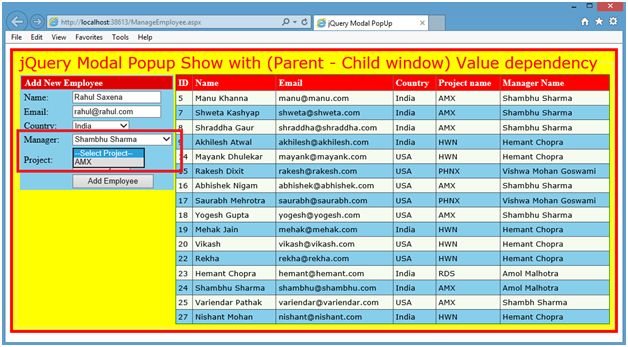

On selecting a manager a Project drop down will fill:

manager

Figure 5.

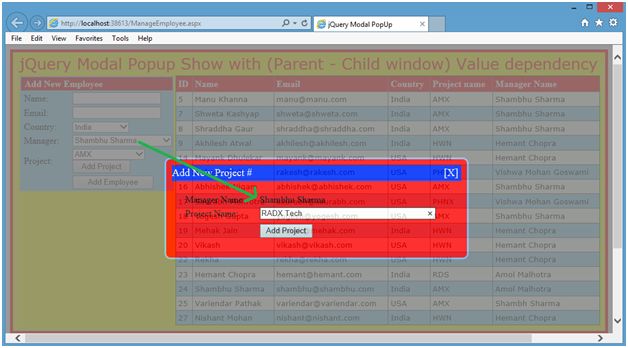

If you want to add a new project under the selected manager then click on the Add Project button. You will see a child window showing the value from the parent window, Manager Name.

add new project

Figure 6.

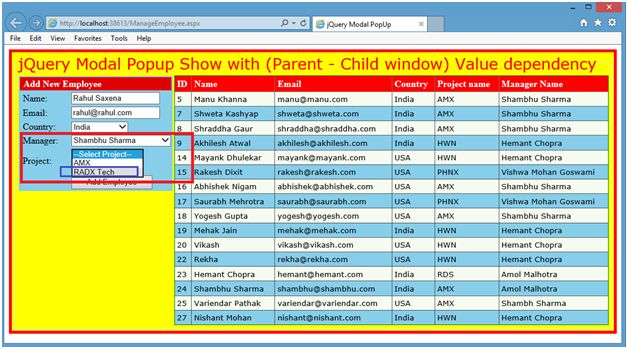

Now add a new project and you will see this new project is showing in the project drop down. In other words after adding a project I am refresing the parent window with the current values in the database as in the following:

select project

Figure 7.

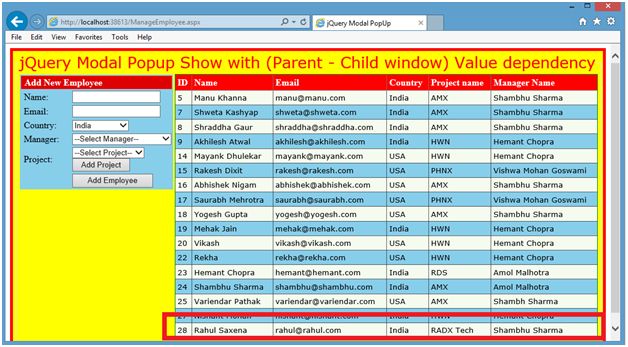

Now add an employee and it will show in the grid:

output

Figure 8.

Up Next

Ebook Download

View all

Hands on with ASP.Net MVC - Covering MVC 6

Read by 23.2k people

Download Now!

Learn

View all
