Creating a Cascading Dropdown List in MVC 4 Using AngularJS

Procedure

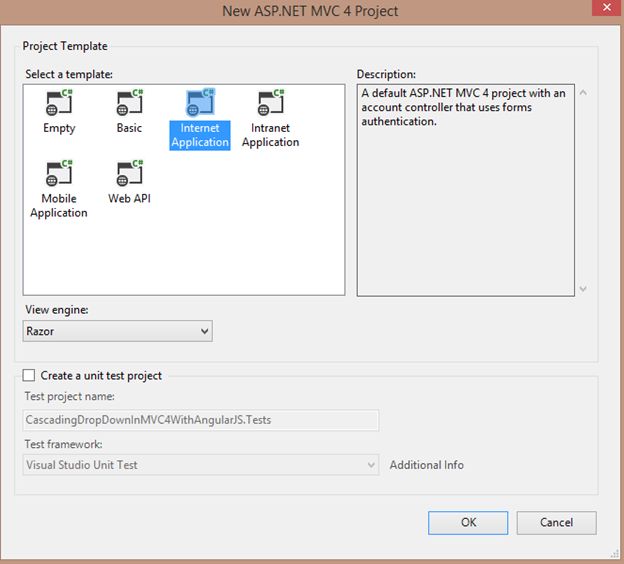

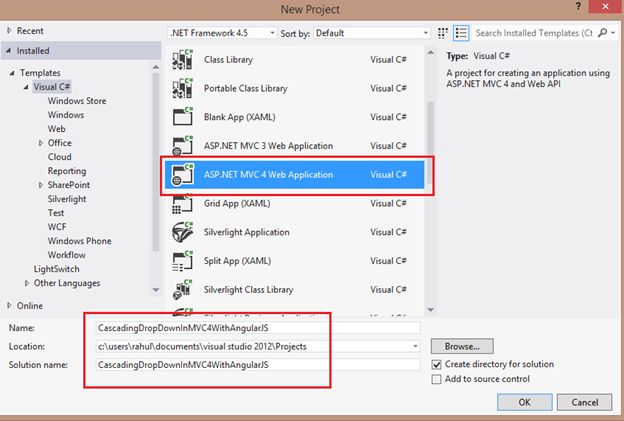

Open Visual Studio 2012 and select "File" -> "New" -> "Project...".

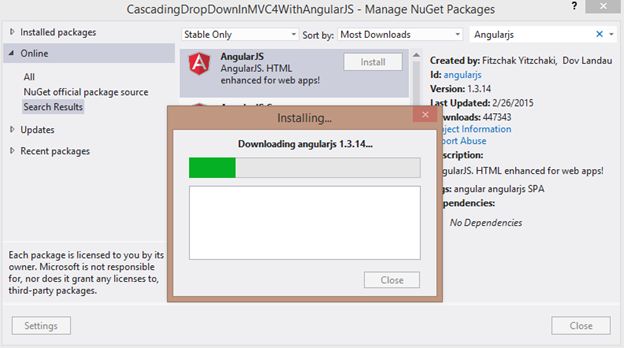

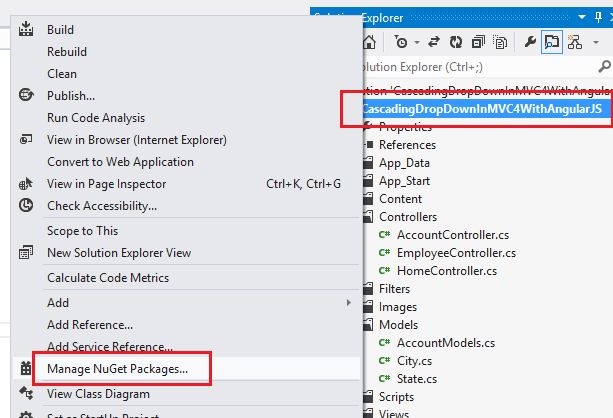

Now add a AngularJS reference. Right-click on the project in the Solution Explorer and select Manage NuGet Packages.

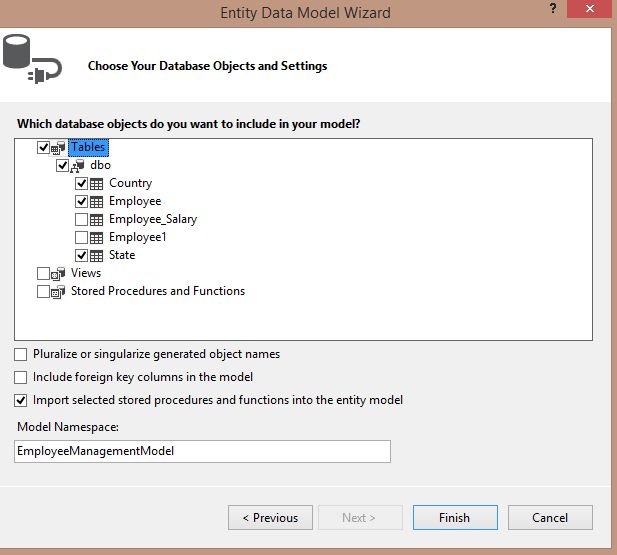

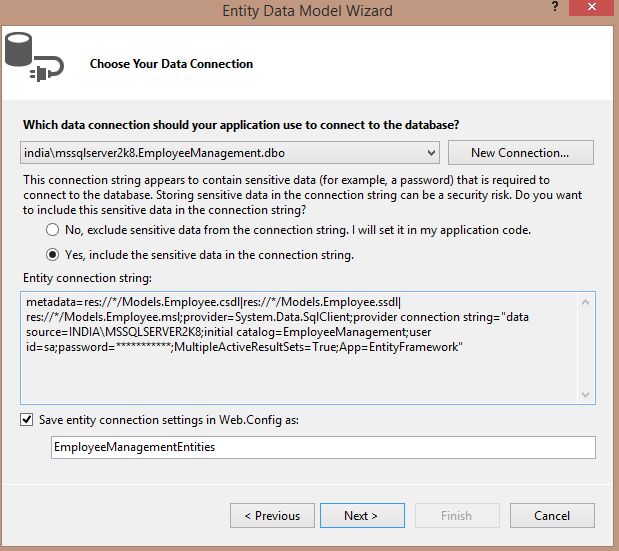

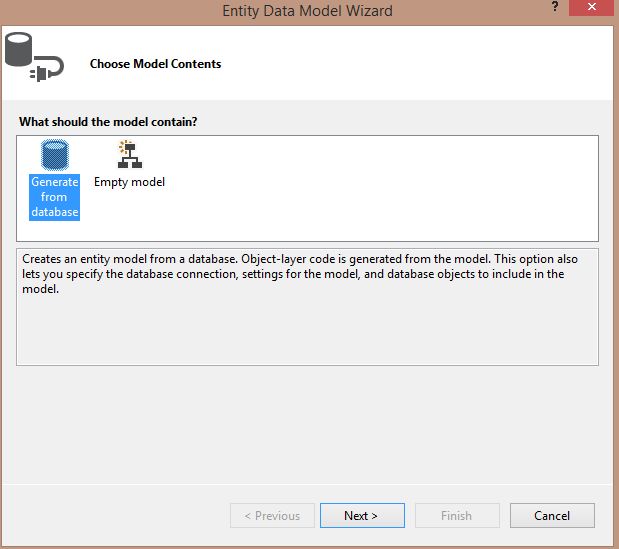

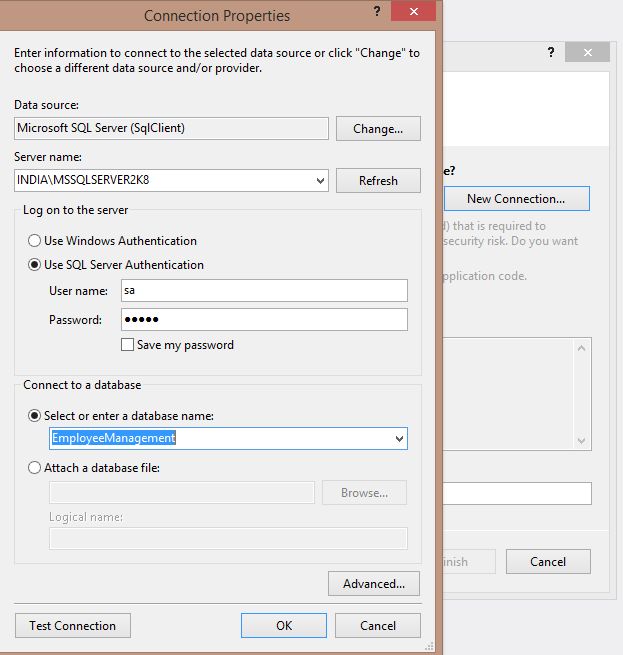

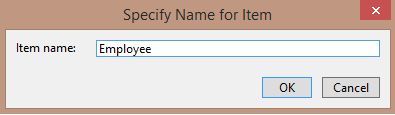

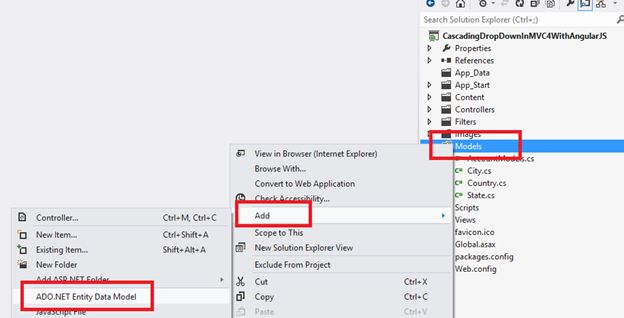

Now add an ADO.NET Entity Data Model.













Now add a new Controller Employee and enter the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using CascadingDropDownInMVC4WithAngularJS.Models;
  7.
  8. namespace CascadingDropDownInMVC4WithAngularJS.Controllers
  9. {
  10.     public class EmployeeController : Controller
  11.     {
  12.       EmployeeManagementEntities db=new EmployeeManagementEntities();
  13.
  14.         public ActionResult Index()
  15.         {
  16.             return View();
  17.         }
  18.
  19.         public JsonResult GetCountry()
  20.         {
  21.             var CountryList = db.Country.ToList();
  22.             return this.Json(CountryList, JsonRequestBehavior.AllowGet);
  23.         }
  24.
  25.         [HttpPost]
  26.         public JsonResult GetStates(int CountryID)
  27.         {
  28.             var StateList = db.State.Where(m => m.CountryID == CountryID).ToList();
  29.
  30.             return this.Json(StateList);
  31.         }
  32.     }
  33. }

Now add a View on the Index Action method:



  1. @Scripts.Render("~/Scripts/angular.min.js")
  2.
  3. <script type="text/javascript">
  4.     //Module
  5.     var myApp = angular.module('myApp', []);
  6.
  7.     //Controller
  8.     myApp.controller('MainCtrl', ['$scope', '$http',
  9.         function ($scope, $http) {
  10.             //$http service for Getting the Country
  11.             $http({
  12.                 method: 'GET',
  13.                 url: '/Employee/GetCountry'
  14.             }).
  15.             success(function (data) {
  16.                 $scope.country = data;
  17.             });
  18.
  19.             //$http service for getting States
  20.             $scope.GetStates = function () {
  21.                 if ($scope.countr) {
  22.                     $http({
  23.                         method: 'POST',
  24.                         url: '/Employee/GetStates/',
  25.                         data: JSON.stringify({ CountryID: $scope.countr })
  26.                     }).
  27.                     success(function (data) {
  28.                         $scope.states = data;
  29.                     });
  30.                 }
  31.                 else {
  32.                     $scope.cities = null;
  33.                 }
  34.             }
  35.         }]);
  36. </script>
  37.
  38. <div data-ng-app="myApp">
  39.     <div data-ng-controller="MainCtrl">
  40.         <div class="editor-label">
  41.             <label>Name</label>
  42.         </div>
  43.         <div class="editor-field">
  44.             @Html.TextBox("Name")
  45.         </div>
  46.         <div class="editor-label">
  47.             <label>Country</label><br />
  48.         </div>
  49.         <div class="editor-field">
  50.             <select data-ng-model="countr"
  51.                 data-ng-options="c.CountryID as c.CountryName for c in country"
  52.                 data-ng-change="GetStates()">
  53.                 <option value="">--Select Country--</option>
  54.             </select><br />
  55.         </div>
  56.         <div class="editor-label"><br />
  57.             <label>State</label><br />
  58.         </div>
  59.         <div class="editor-field">
  60.             <select data-ng-model="state" data-ng-disabled="!states"
  61.                 data-ng-options="s.StateID as s.StateName for s in states">
  62.                 <option value="">--Select State--</option>
  63.             </select>
  64.         </div>
  65.
  66.
  67.     </div>
  68. </div>

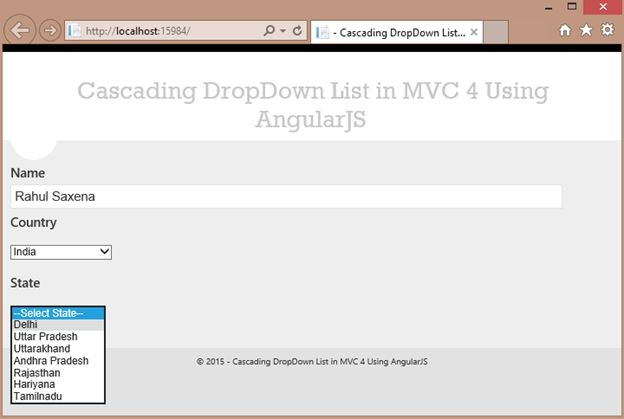

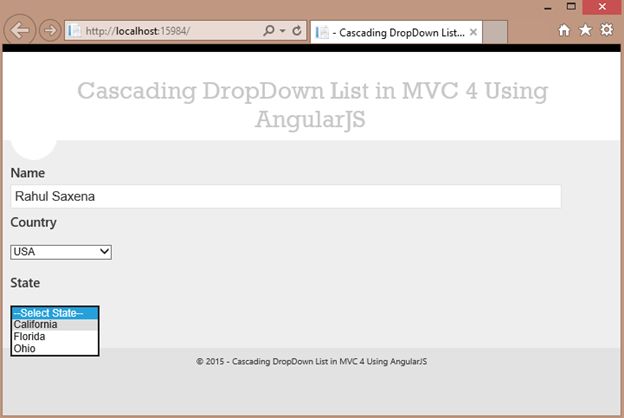

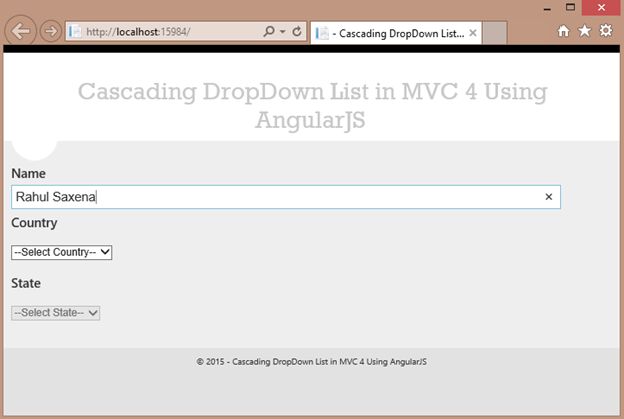

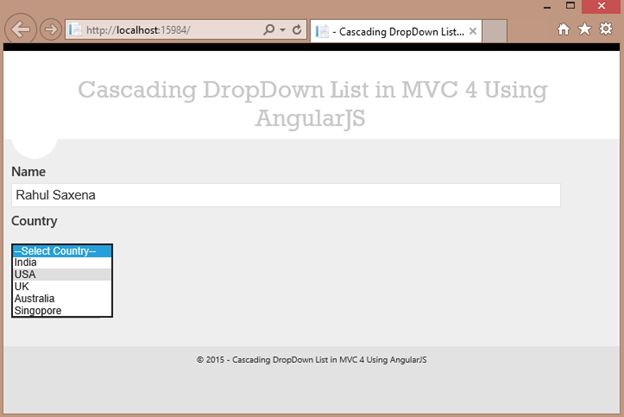

Now run you application:
