Draw Route Between Current Location and Destination On Google Maps in ASP.Net

The following is my aspx:

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2.
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4. <html xmlns="http://www.w3.org/1999/xhtml">
  5. <head runat="server">
  6.     <title>Search Route Direction</title>
  7.
  8.     <script type="text/javascript" src="http://maps.googleapis.com/maps/api/js?sensor=false"></script>
  9.
  10.     <script type="text/javascript" src="https://maps.googleapis.com/maps/api/js?key=AIzaSyC6v5-2uaq_wusHDktM9ILcqIrlPtnZgEk&sensor=false">
  11.     </script>
  12.
  13.     <%--Getting User Current Location--%>
  14.
  15.     <script type="text/javascript">
  16.         if (navigator.geolocation) {
  17.             navigator.geolocation.getCurrentPosition(success);
  18.         } else {
  19.             alert("There is Some Problem on your current browser to get Geo Location!");
  20.         }
  21.
  22.         function success(position) {
  23.             var lat = position.coords.latitude;
  24.             var long = position.coords.longitude;
  25.             var city = position.coords.locality;
  26.             var LatLng = new google.maps.LatLng(lat, long);
  27.             var mapOptions = {
  28.                 center: LatLng,
  29.                 zoom: 12,
  30.                 mapTypeId: google.maps.MapTypeId.ROADMAP
  31.             };
  32.
  33.             var map = new google.maps.Map(document.getElementById("MyMapLOC"), mapOptions);
  34.             var marker = new google.maps.Marker({
  35.                 position: LatLng,
  36.                 title: "<div style = 'height:60px;width:200px'><b>Your location:</b><br />Latitude: "
  37.                             + lat + +"<br />Longitude: " + long
  38.             });
  39.
  40.             marker.setMap(map);
  41.             var getInfoWindow = new google.maps.InfoWindow({ content: "<b>Your Current Location</b><br/> Latitude:" +
  42.                                     lat + "<br /> Longitude:" + long + ""
  43.             });
  44.             getInfoWindow.open(map, marker);
  45.         }
  46.     </script>
  47.
  48.     <%--Getting Route Direction From User Current Location to Destination--%>
  49.
  50.     <script type="text/javascript">
  51.         function SearchRoute() {
  52.             document.getElementById("MyMapLOC").style.display = 'none';
  53.
  54.             var markers = new Array();
  55.             var myLatLng;
  56.
  57.             //Find the current location of the user.
  58.             if (navigator.geolocation) {
  59.                 navigator.geolocation.getCurrentPosition(function(p) {
  60.                     var myLatLng = new google.maps.LatLng(p.coords.latitude, p.coords.longitude);
  61.                     var m = {};
  62.                     m.title = "Your Current Location";
  63.                     m.lat = p.coords.latitude;
  64.                     m.lng = p.coords.longitude;
  65.                     markers.push(m);
  66.
  67.                     //Find Destination address location.
  68.                     var address = document.getElementById("txtDestination").value;
  69.                     var geocoder = new google.maps.Geocoder();
  70.                     geocoder.geocode({ 'address': address }, function(results, status) {
  71.                         if (status == google.maps.GeocoderStatus.OK) {
  72.                             m = {};
  73.                             m.title = address;
  74.                             m.lat = results[0].geometry.location.lat();
  75.                             m.lng = results[0].geometry.location.lng();
  76.                             markers.push(m);
  77.                             var mapOptions = {
  78.                                 center: myLatLng,
  79.                                 zoom: 4,
  80.                                 mapTypeId: google.maps.MapTypeId.ROADMAP
  81.                             };
  82.                             var map = new google.maps.Map(document.getElementById("MapRoute"), mapOptions);
  83.                             var infoWindow = new google.maps.InfoWindow();
  84.                             var lat_lng = new Array();
  85.                             var latlngbounds = new google.maps.LatLngBounds();
  86.
  87.                             for (i = 0; i < markers.length; i++) {
  88.                                 var data = markers[i];
  89.                                 var myLatlng = new google.maps.LatLng(data.lat, data.lng);
  90.                                 lat_lng.push(myLatlng);
  91.                                 var marker = new google.maps.Marker({
  92.                                     position: myLatlng,
  93.                                     map: map,
  94.                                     title: data.title
  95.                                 });
  96.                                 latlngbounds.extend(marker.position);
  97.                                 (function(marker, data) {
  98.                                     google.maps.event.addListener(marker, "click", function(e) {
  99.                                         infoWindow.setContent(data.title);
  100.                                         infoWindow.open(map, marker);
  101.                                     });
  102.                                 })(marker, data);
  103.                             }
  104.                             map.setCenter(latlngbounds.getCenter());
  105.                             map.fitBounds(latlngbounds);
  106.
  107.                             //***********ROUTING****************//
  108.
  109.                             //Initialize the Path Array.
  110.                             var path = new google.maps.MVCArray();
  111.
  112.                             //Getting the Direction Service.
  113.                             var service = new google.maps.DirectionsService();
  114.
  115.                             //Set the Path Stroke Color.
  116.                             var poly = new google.maps.Polyline({ map: map, strokeColor: '#4986E7' });
  117.
  118.                             //Loop and Draw Path Route between the Points on MAP.
  119.                             for (var i = 0; i < lat_lng.length; i++) {
  120.                                 if ((i + 1) < lat_lng.length) {
  121.                                     var src = lat_lng[i];
  122.                                     var des = lat_lng[i + 1];
  123.                                     path.push(src);
  124.                                     poly.setPath(path);
  125.                                     service.route({
  126.                                         origin: src,
  127.                                         destination: des,
  128.                                         travelMode: google.maps.DirectionsTravelMode.DRIVING
  129.                                     }, function(result, status) {
  130.                                         if (status == google.maps.DirectionsStatus.OK) {
  131.                                             for (var i = 0, len = result.routes[0].overview_path.length; i < len; i++) {
  132.                                                 path.push(result.routes[0].overview_path[i]);
  133.                                             }
  134.                                         } else {
  135.                                             alert("Invalid location.");
  136.                                             window.location.href = window.location.href;
  137.                                         }
  138.                                     });
  139.                                 }
  140.                             }
  141.                         } else {
  142.                             alert("Request failed.")
  143.                         }
  144.                     });
  145.
  146.                 });
  147.             }
  148.             else {
  149.                 alert('Some Problem in getting Geo Location.');
  150.                 return;
  151.             }
  152.         }
  153.     </script>
  154.
  155. </head>
  156. <body>
  157.     <form id="form1" runat="server">
  158.     <table style="border: solid 15px blue; width: 100%; vertical-align: central;">
  159.         <tr>
  160.             <td style="padding-left: 20px; padding-top: 20px; padding-bottom: 20px; background-color: skyblue;
  161.                 text-align: center; font-family: Verdana; font-size: 20pt; color: Green;">
  162.                 Draw Route Between User's Current Location & Destination On Google Map
  163.             </td>
  164.         </tr>
  165.         <tr>
  166.             <td style="background-color: skyblue; text-align: center; font-family: Verdana; font-size: 14pt;
  167.                 color: red;">
  168.                 <b>Enter Destination:</b>
  169.                 <input type="text" id="txtDestination" value="" style="width: 200px" />
  170.                 <input type="button" value="Search Route" onclick="SearchRoute()" />
  171.             </td>
  172.         </tr>
  173.         <tr>
  174.             <td>
  175.                 <div id="MyMapLOC" style="width: 550px; height: 470px">
  176.                 </div>
  177.                 <div id="MapRoute" style="width: 500px; height: 500px">
  178.                 </div>
  179.             </td>
  180.         </tr>
  181.     </form>
  182. </body>
  183. </html>

Now run the application.

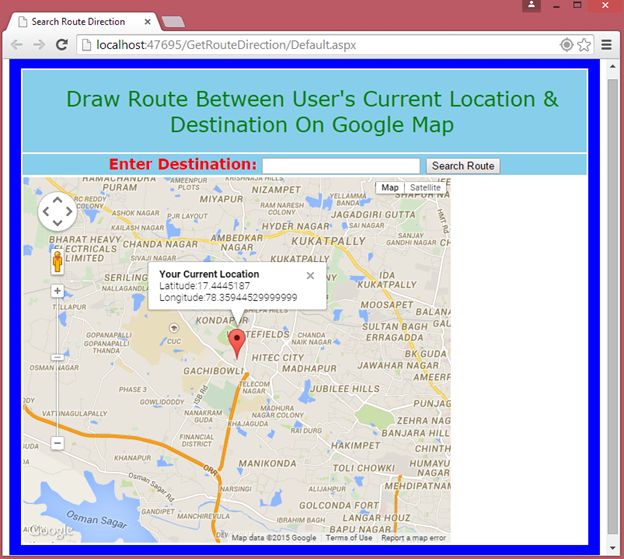

current location

Enter your destination to draw a route.

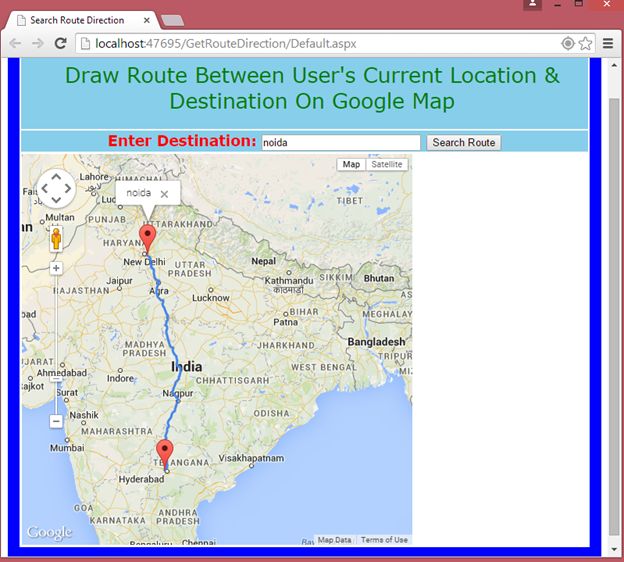

 enter destination

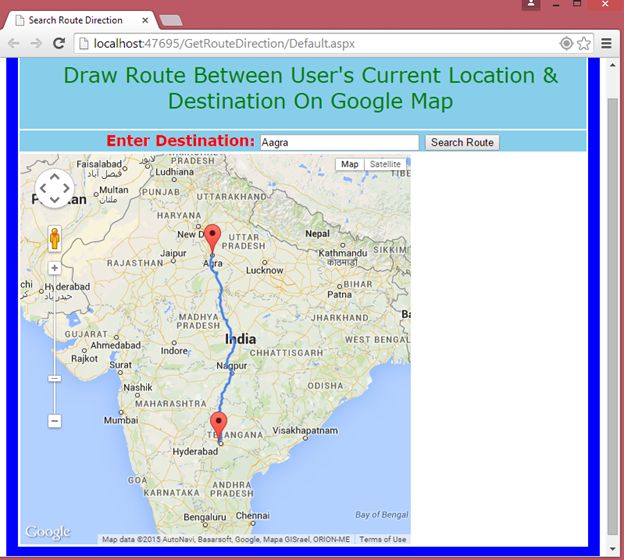

agra destination

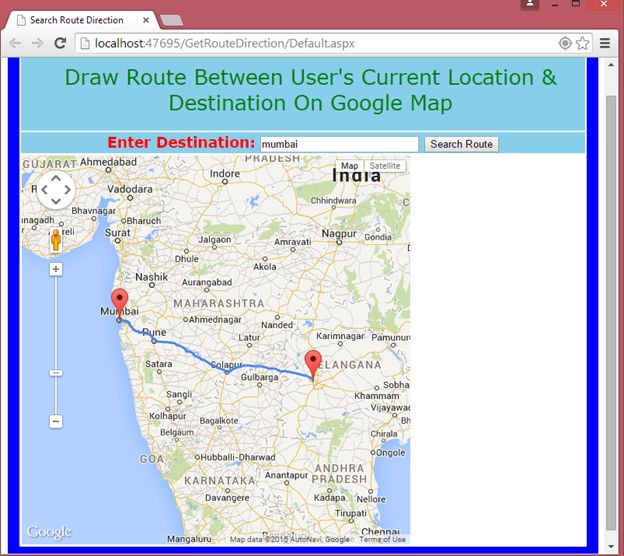

mumbai destination
