Export Data Table To Excel in ASP.Net MVC 4

This article shows how to export a Data Table to Excel in ASP.NET MVC.

The following is my Data Table in design mode.


Image 1 Design Mode

Script Of Employee Table

  1. CREATE TABLE [dbo].[Employee](
  2. [ID] [int] IDENTITY(1,1) NOT NULL,
  3. [Name] [varchar](50) NULL,
  4. [Email] [varchar](500) NULL,
  5. [Country] [varchar](50) NULL
  6. ON [PRIMARY]
  7. GO

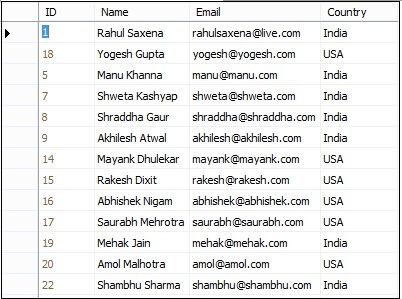

Data in Employee Table


Image 2 Employee Table

Now open Visual Studio 2012 then select New -> Project:

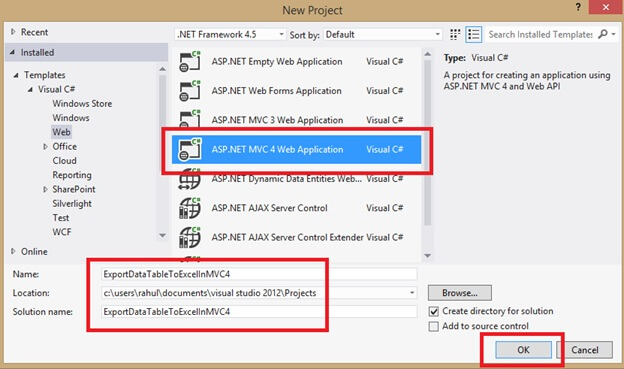

Image 3 New Project

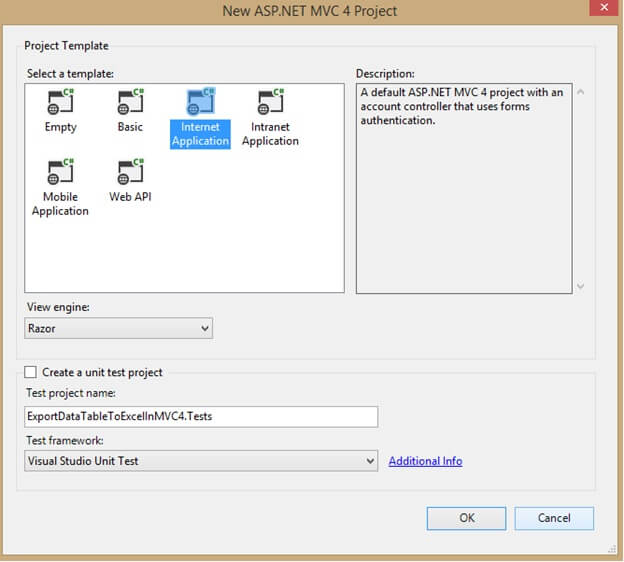

Image 4 New ASP.Net MVC

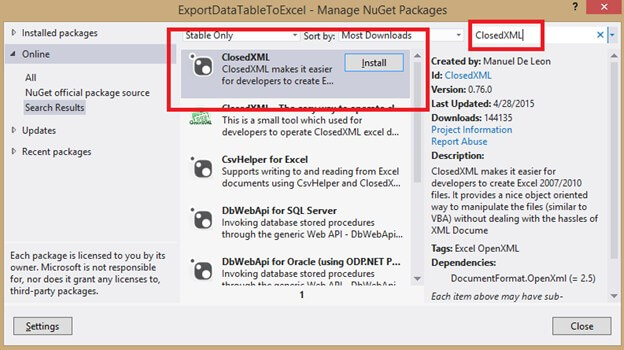

Now add a ClosedXML reference:


Image 5 Export Data Table

Now right-click on the Model folder then select Add New Class. ExportDataTableToExcelModel.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5.
  6. namespace ExportDataTableToExcelInMVC4.Models {
  7.     public class ExportDataTableToExcelModel {
  8.         public int Id {
  9.             get;
  10.             set;
  11.         }
  12.         public string Name {
  13.             get;
  14.             set;
  15.         }
  16.         public string Email {
  17.             get;
  18.             set;
  19.         }
  20.         public string Country {
  21.             get;
  22.             set;
  23.         }
  24.     }
  25. }
Now right-click on the Controller Folder then select Add -> Controller.

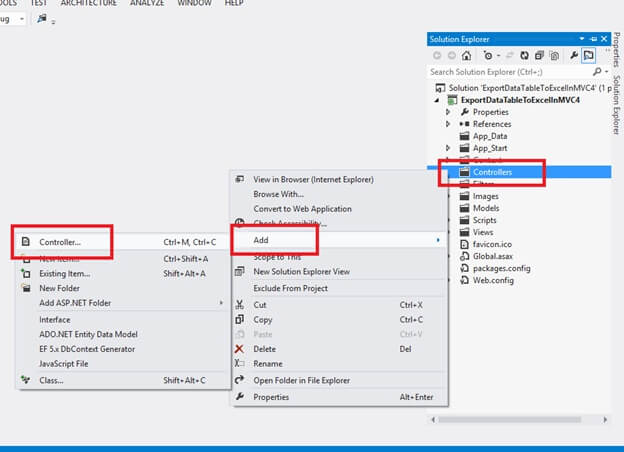

Image 6 Controller

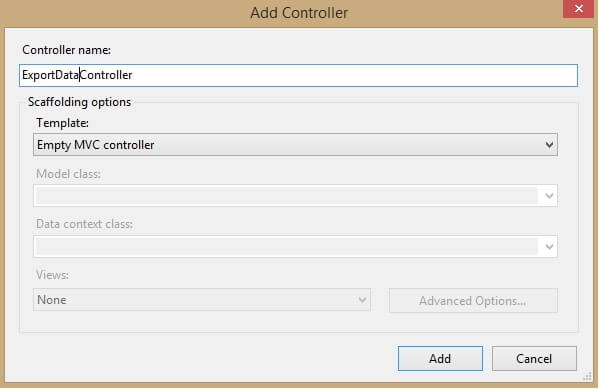

Image 7 Add Controller

Now here in ExportDataController add the following code.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Configuration;
  4. using System.Data;
  5. using System.Data.SqlClient;
  6. using System.Linq;
  7. using System.Web;
  8. using System.Web.Mvc;
  9. using ExportDataTableToExcelInMVC4.Models;
  10. using ClosedXML;
  11. using ClosedXML.Excel;
  12. using System.IO;
  13.
  14. namespace ExportDataTableToExcelInMVC4.Controllers {
  15.     public class ExportDataController: Controller {
  16.         public ActionResult Index() {
  17.             String constring = ConfigurationManager.ConnectionStrings["RConnection"].ConnectionString;
  18.             SqlConnection con = new SqlConnection(constring);
  19.             string query = "select * From Employee";
  20.             DataTable dt = new DataTable();
  21.             con.Open();
  22.             SqlDataAdapter da = new SqlDataAdapter(query, con);
  23.             da.Fill(dt);
  24.             con.Close();
  25.             IList < ExportDataTableToExcelModel > model = new List < ExportDataTableToExcelModel > ();
  26.             for (int i = 0; i < dt.Rows.Count; i++) {
  27.                 model.Add(new ExportDataTableToExcelModel() {
  28.                     Id = Convert.ToInt32(dt.Rows[i]["Id"]),
  29.                     Name = dt.Rows[i]["Name"].ToString(),
  30.                     Email = dt.Rows[i]["Email"].ToString(),
  31.                     Country = dt.Rows[i]["Country"].ToString(),
  32.                 });
  33.             }
  34.             return View(model);
  35.         }
  36.
  37.         public ActionResult ExportData() {
  38.             String constring = ConfigurationManager.ConnectionStrings["RConnection"].ConnectionString;
  39.             SqlConnection con = new SqlConnection(constring);
  40.             string query = "select * From Employee";
  41.             DataTable dt = new DataTable();
  42.             dt.TableName = "Employee";
  43.             con.Open();
  44.             SqlDataAdapter da = new SqlDataAdapter(query, con);
  45.             da.Fill(dt);
  46.             con.Close();
  47.
  48.             using(XLWorkbook wb = new XLWorkbook()) {
  49.                 wb.Worksheets.Add(dt);
  50.                 wb.Style.Alignment.Horizontal = XLAlignmentHorizontalValues.Center;
  51.                 wb.Style.Font.Bold = true;
  52.
  53.                 Response.Clear();
  54.                 Response.Buffer = true;
  55.                 Response.Charset = "";
  56.                 Response.ContentType = "application/vnd.openxmlformats-officedocument.spreadsheetml.sheet";
  57.                 Response.AddHeader("content-disposition""attachment;filename= EmployeeReport.xlsx");
  58.
  59.                 using(MemoryStream MyMemoryStream = new MemoryStream()) {
  60.                     wb.SaveAs(MyMemoryStream);
  61.                     MyMemoryStream.WriteTo(Response.OutputStream);
  62.                     Response.Flush();
  63.                     Response.End();
  64.                 }
  65.             }
  66.             return RedirectToAction("Index""ExportData");
  67.         }
  68.
  69.         private void releaseObject(object obj) {
  70.             try {
  71.                 System.Runtime.InteropServices.Marshal.ReleaseComObject(obj);
  72.                 obj = null;
  73.             } catch {
  74.                 obj = null;
  75.             } finally {
  76.                 GC.Collect();
  77.             }
  78.         }
  79.     }
  80. }
Now right-click on the Index Folder then select Add View.

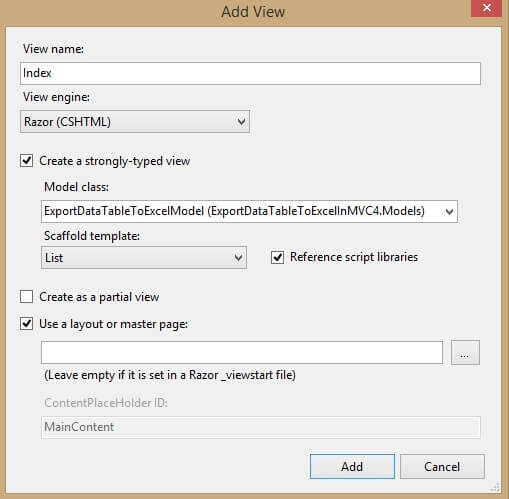

Image 8 Add View

View.cshtml
  1. @model IEnumerable
  2. <ExportDataTableToExcelInMVC4.Models.ExportDataTableToExcelModel>
  3.
  4. @{
  5. ViewBag.Title = "Index";
  6. }
  7. @using (Html.BeginForm("ExportData", "ExportData", FormMethod.Post))
  8. {
  9.
  10.     <p style="background-color: red; color: white; font-size: 20pt; font-weight: bold; padding: 10px; text-align: center;">
  11. Export DataTable To Excel In MVC 4
  12. </p>
  13.     <table style="background-color: white; width: 100%;">
  14.         <tr>
  15.             <th style="border: 2px solid black; text-align: left; width: 20%; padding-left: 20px;">
  16. @Html.DisplayNameFor(model => model.Name)
  17. </th>
  18.             <th style="border: 2px solid black; text-align: center; width: 20%">
  19. @Html.DisplayNameFor(model => model.Email)
  20. </th>
  21.             <th style="border: 2px solid black; text-align: center; width: 20%">
  22. @Html.DisplayNameFor(model => model.Country)
  23. </th>
  24.             <th></th>
  25.         </tr>
  26. @foreach (var item in Model)
  27. {
  28.
  29.         <tr>
  30.             <td style="padding-left: 20px;">
  31. @Html.DisplayFor(modelItem => item.Name)
  32. </td>
  33.             <td style="padding-left: 20px;">
  34. @Html.DisplayFor(modelItem => item.Email)
  35. </td>
  36.             <td style="padding-left: 50px;">
  37. @Html.DisplayFor(modelItem => item.Country)
  38. </td>
  39.         </tr>
  40. }
  41.
  42.         <tr>
  43.             <td></td>
  44.             <td></td>
  45.             <td>
  46.                 <input type="submit" name="btnExportLicensing" style="width: 140px;"
  47. value="Export" id="exportLicensing" class="button" />
  48.             </td>
  49.         </tr>
  50.     </table>
  51. }
The following is my connection string in Web.config:
  1. <connectionStrings>
  2. <add name="RConnection" connectionString="Server=INDIA\MSSQLServer2k8;database=TestDB;UID=sa; pwd=india;" />
  3. </connectionStrings>
Now run your application.

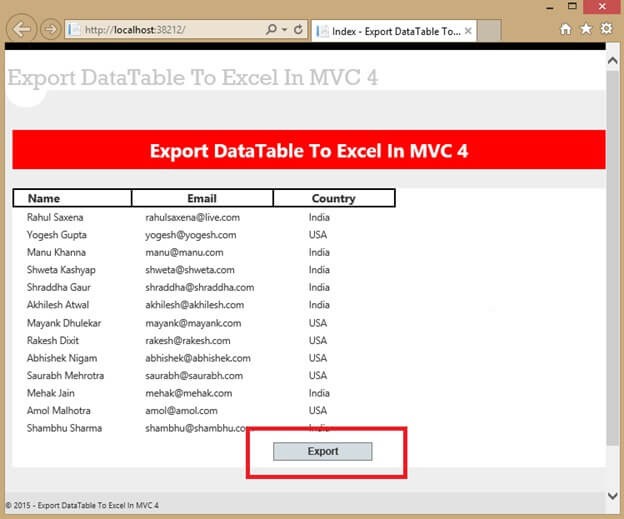

Image 9 Excel In MVC4


Image 10 Export DataTable to Excel

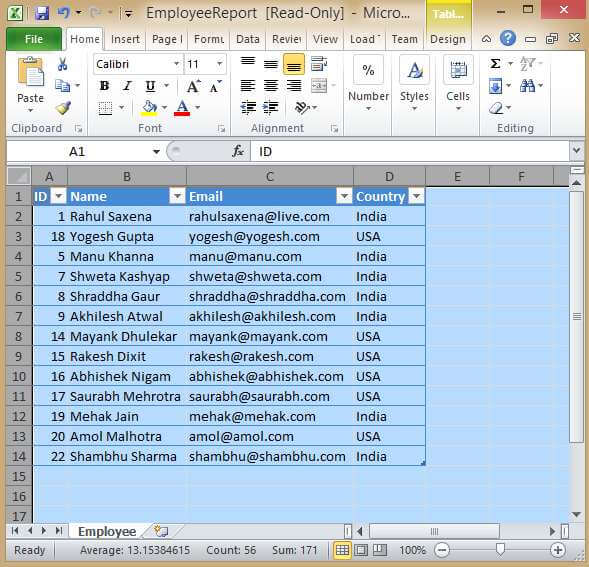

Image 11
Employee Report
