ASP.NET

Export GridView Template Column To PDF

We can have any type of column in a Grid View by using a Template column like Link, Drop Down, Radio button and check box list. So how to export all those into a PDF file? We will learn how to do that here.

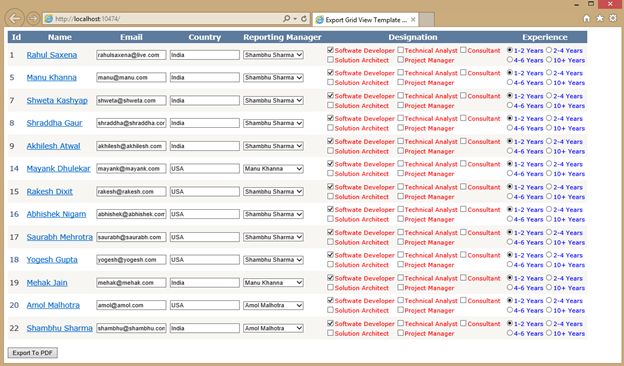

I got a business requirement to design a form as in the following and export this into a PDF.

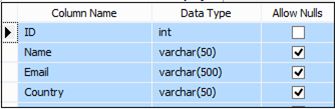

The following is my SQL Server Table in Design mode:



Script of my table

  1. CREATE TABLE [dbo].[Employee]
  2. (
  3. [ID] [int] IDENTITY(1, 1) NOT NULL,
  4. [Name] [varchar](50) NULL,
  5. [Email] [varchar](500) NULL,
  6. [Country] [varchar](50) NULL
  7. ) ON [PRIMARY] GO

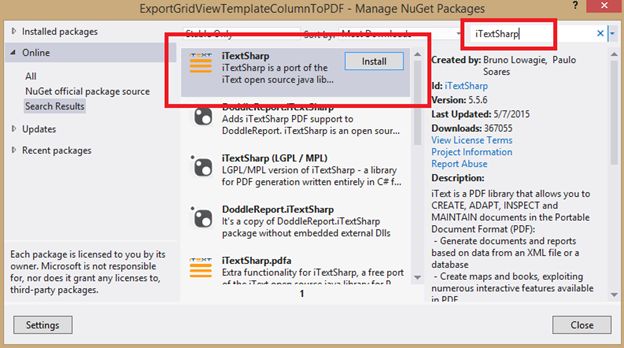

Here, to export the Grid View Data to a PDF we need to add a reference of iTextSharp as in the following:



aspx code

Now the following is my aspx code:

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="ExportGridViewTemplateColumnToPDF.Default" %>
  2. <!DOCTYPE html>
  3. <html
  4.     xmlns="http://www.w3.org/1999/xhtml">
  5.     <head runat="server">
  6.         <title>Export Grid View Template Column (Link, Drop Down List, Radio Button, Check Box List) To PDF</title>
  7.     </head>
  8.     <body>
  9.         <form id="form1" runat="server">
  10.             <div>
  11.                 <asp:GridView ID="GridView1" HeaderStyle-BackColor="#666666" HeaderStyle-ForeColor="White" Font-Names="Verdana"
  12. RowStyle-BackColor="#E4E4E4" runat="server" AutoGenerateColumns="False" CellPadding="4" ForeColor="#333333" GridLines="None">
  13.                     <AlternatingRowStyle BackColor="White" ForeColor="#284775" Font-Names="Verdana" />
  14.                     <Columns>
  15.                         <asp:BoundField DataField="Id" HeaderText="Id" ItemStyle-Width="30px">
  16.                             <ItemStyle Width="30px"></ItemStyle>
  17.                         </asp:BoundField>
  18.                         <asp:TemplateField HeaderText="Name">
  19.                             <ItemTemplate>
  20.                                 <asp:HyperLink ID="lnkName" runat="server" NavigateUrl="#" Text='<%# Eval("Name") %>'>
  21.                                 </asp:HyperLink>
  22.                             </ItemTemplate>
  23.                         </asp:TemplateField>
  24.                         <asp:TemplateField HeaderText="Email">
  25.                             <ItemTemplate>
  26.                                 <asp:TextBox ID="txtEmail" runat="server" Text='<%# Eval("Email") %>'>
  27.                                 </asp:TextBox>
  28.                             </ItemTemplate>
  29.                         </asp:TemplateField>
  30.                         <asp:TemplateField HeaderText="Country">
  31.                             <ItemTemplate>
  32.                                 <asp:TextBox ID="txtCountry" runat="server" Text='<%# Eval("Country") %>'>
  33.                                 </asp:TextBox>
  34.                             </ItemTemplate>
  35.                         </asp:TemplateField>
  36.                         <asp:TemplateField HeaderText="Reporting Manager">
  37.                             <ItemTemplate>
  38.                                 <asp:DropDownList ID="ddlManager" runat="server">
  39.                                     <asp:ListItem Text="Shambhu Sharma" Value="Shambhu Sharma" />
  40.                                     <asp:ListItem Text="Amol Malhotra" Value="Amol Malhotra" />
  41.                                     <asp:ListItem Text="Manu Khanna" Value="Manu Khanna" />
  42.                                 </asp:DropDownList>
  43.                             </ItemTemplate>
  44.                         </asp:TemplateField>
  45.                         <asp:TemplateField HeaderText="Designation" ItemStyle-ForeColor="Red" ItemStyle-Font-Size="10pt">
  46.                             <ItemTemplate>
  47.                                 <asp:CheckBoxList ID="chkDesignation" runat="server" RepeatColumns="3" RepeatDirection="Horizontal">
  48.                                     <asp:ListItem Text="Softwate Developer" Value="Softwate Developer" Selected="True" />
  49.                                     <asp:ListItem Text="Technical Analyst" Value="Technical Analyst" />
  50.                                     <asp:ListItem Text="Consultant" Value="Consultant" />
  51.                                     <asp:ListItem Text="Solution Architect" Value="Solution Architect" />
  52.                                     <asp:ListItem Text="Project Manager" Value="Project Manager" />
  53.                                 </asp:CheckBoxList>
  54.                             </ItemTemplate>
  55.                         </asp:TemplateField>
  56.                         <asp:TemplateField HeaderText="Experience" ItemStyle-ForeColor="Blue" ItemStyle-Font-Size="10pt">
  57.                             <ItemTemplate>
  58.                                 <asp:RadioButtonList ID="rblExperience" runat="server" RepeatColumns="2" RepeatDirection="Horizontal">
  59.                                     <asp:ListItem Text="1-2 Years" Value="1-2 Years" Selected="True" />
  60.                                     <asp:ListItem Text="2-4 Years" Value="2-4 Years" />
  61.                                     <asp:ListItem Text="4-6 Years" Value="4-6 Years" />
  62.                                     <asp:ListItem Text="10+ Years" Value="10+ Years" />
  63.                                 </asp:RadioButtonList>
  64.                             </ItemTemplate>
  65.                         </asp:TemplateField>
  66.                     </Columns>
  67.                     <EditRowStyle BackColor="#999999" />
  68.                     <FooterStyle BackColor="#5D7B9D" Font-Bold="True" ForeColor="White" />
  69.                     <HeaderStyle BackColor="#5D7B9D" ForeColor="White" Font-Bold="True"></HeaderStyle>
  70.                     <PagerStyle BackColor="#284775" ForeColor="White" HorizontalAlign="Center" />
  71.                     <RowStyle BackColor="#F7F6F3" ForeColor="#333333"></RowStyle>
  72.                     <SelectedRowStyle BackColor="#E2DED6" Font-Bold="True" ForeColor="#333333" />
  73.                     <SortedAscendingCellStyle BackColor="#E9E7E2" />
  74.                     <SortedAscendingHeaderStyle BackColor="#506C8C" />
  75.                     <SortedDescendingCellStyle BackColor="#FFFDF8" />
  76.                     <SortedDescendingHeaderStyle BackColor="#6F8DAE" />
  77.                 </asp:GridView>
  78.                 <br />
  79.                 <asp:Button ID="btnGridViewExport" runat="server" Text="Export To PDF" OnClick="btnGridViewExport_ExportToPDF" />
  80.             </div>
  81.         </form>
  82.     </body>
  83. </html>

aspx.cs code

Now my aspx.cs code is:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.IO;
  8. using System.Data;
  9. using iTextSharp.text.pdf;
  10. using iTextSharp.text.html.simpleparser;
  11. using System.Configuration;
  12. using System.Data.SqlClient;
  13. namespace ExportGridViewTemplateColumnToPDF {
  14.     public partial class Default: System.Web.UI.Page {
  15.         protected void Page_Load(object sender, EventArgs e) {
  16.             if (!this.IsPostBack) {
  17.                 BindEmployees();
  18.             }
  19.         }
  20.         private void BindEmployees() {
  21.             string constr = ConfigurationManager.ConnectionStrings["RConnection"].ConnectionString;
  22.             using(SqlConnection con = new SqlConnection(constr)) {
  23.                 using(SqlCommand cmd = new SqlCommand("SELECT * FROM Employee ORDER BY ID")) {
  24.                     using(SqlDataAdapter da = new SqlDataAdapter()) {
  25.                         DataTable dt = new DataTable();
  26.                         cmd.CommandType = CommandType.Text;
  27.                         cmd.Connection = con;
  28.                         da.SelectCommand = cmd;
  29.                         da.Fill(dt);
  30.                         GridView1.DataSource = dt;
  31.                         GridView1.DataBind();
  32.                     }
  33.                 }
  34.             }
  35.         }
  36.         protected void btnGridViewExport_ExportToPDF(object sender, EventArgs e) {
  37.             using(StringWriter sw = new StringWriter()) {
  38.                 HtmlTextWriter hw = new HtmlTextWriter(sw);
  39.                 foreach(TableCell cell in GridView1.HeaderRow.Cells) {
  40.                     cell.BackColor = GridView1.HeaderStyle.BackColor;
  41.                 }
  42.                 foreach(GridViewRow row in GridView1.Rows) {
  43.                     foreach(TableCell cell in row.Cells) {
  44.                         cell.BackColor = GridView1.RowStyle.BackColor;
  45.                         List < Control > controls = new List < Control > ();
  46.
  47.                         //Add controls to be removed to Generic List
  48.                         foreach(Control control in cell.Controls) {
  49.                             controls.Add(control);
  50.                         }
  51.                         //Loop through the controls to be removed and replace then with Literal
  52.                         foreach(Control control in controls) {
  53.                             switch (control.GetType().Name) {
  54.                                 case "HyperLink":
  55.                                     cell.Controls.Add(new Literal {
  56.                                         Text = (control as HyperLink).Text
  57.                                     });
  58.                                     break;
  59.                                 case "TextBox":
  60.                                     cell.Controls.Add(new Literal {
  61.                                         Text = (control as TextBox).Text
  62.                                     });
  63.                                     break;
  64.                                 case "LinkButton":
  65.                                     cell.Controls.Add(new Literal {
  66.                                         Text = (control as LinkButton).Text
  67.                                     });
  68.                                     break;
  69.                                 case "DropDownList":
  70.                                     cell.Controls.Add(new Literal {
  71.                                         Text = (control as DropDownList).SelectedItem.Text
  72.                                     });
  73.                                     break;
  74.                                 case "CheckBoxList":
  75.                                     foreach(ListItem item in (control as CheckBoxList).Items) {
  76.                                         if (item.Selected) {
  77.                                             cell.Controls.Add(new Literal {
  78.                                                 Text = item.Text + " "
  79.                                             });
  80.                                         }
  81.                                     }
  82.                                     break;
  83.                                 case "RadioButtonList":
  84.                                     cell.Controls.Add(new Literal {
  85.                                         Text = (control as RadioButtonList).SelectedItem.Text
  86.                                     });
  87.                                     break;
  88.                             }
  89.                             cell.Controls.Remove(control);
  90.                         }
  91.                     }
  92.                 }
  93.                 GridView1.RenderControl(hw);
  94.                 StringReader sr = new StringReader(sw.ToString());
  95.                 iTextSharp.text.Document pdfDoc = new iTextSharp.text.Document(iTextSharp.text.PageSize.A4, 10f, 10f, 10f, 0f);
  96.                 HTMLWorker htmlparser = new HTMLWorker(pdfDoc);
  97.                 PdfWriter.GetInstance(pdfDoc, Response.OutputStream);
  98.                 pdfDoc.Open();
  99.                 htmlparser.Parse(sr);
  100.                 pdfDoc.Close();
  101.                 Response.ContentType = "application/pdf";
  102.                 Response.AddHeader("content-disposition", "attachment;filename=GridViewExport.pdf");
  103.                 Response.Cache.SetCacheability(HttpCacheability.NoCache);
  104.                 Response.Write(pdfDoc);
  105.                 Response.End();
  106.             }
  107.         }
  108.         public override void VerifyRenderingInServerForm(Control control) {
  109.             /* Verifies that the control is rendered */
  110.         }
  111.     }
  112. }

web.config file

The following is my web.config file where I define my connection string:

  1. <?xml version="1.0"?>
  2. <!--
  3. For more information on how to configure your ASP.NET application, please visit
  4. http://go.microsoft.com/fwlink/?LinkId=169433
  5. -->
  6. <configuration>
  7.     <system.web>
  8.         <compilation debug="true" targetFramework="4.5" />
  9.         <httpRuntime targetFramework="4.5" />
  10.     </system.web>
  11.     <connectionStrings>
  12.         <add name="RConnection" connectionString="Server=INDIA\MSSQLServer2k8;database=TestDB;UID=sa; pwd=india;"/>
  13.     </connectionStrings>
  14. </configuration>

Test

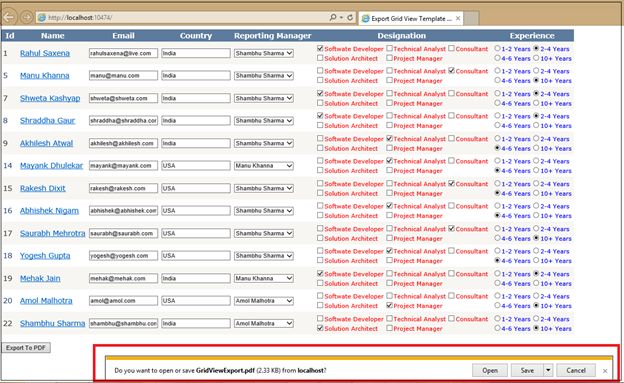

Now run the application.

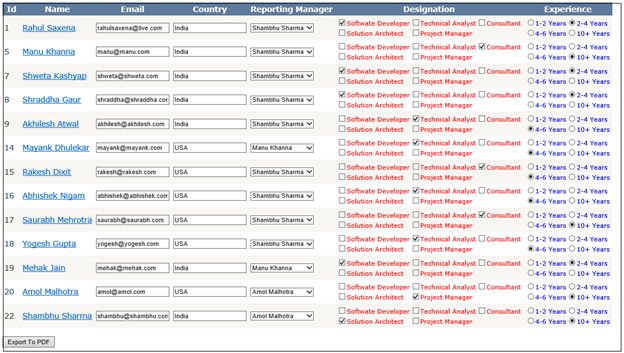

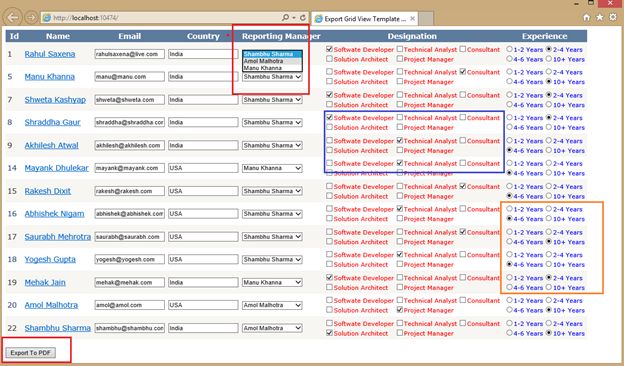

Now you can change the value from Drop Down List, Radio Button or Check Box List as in the following:

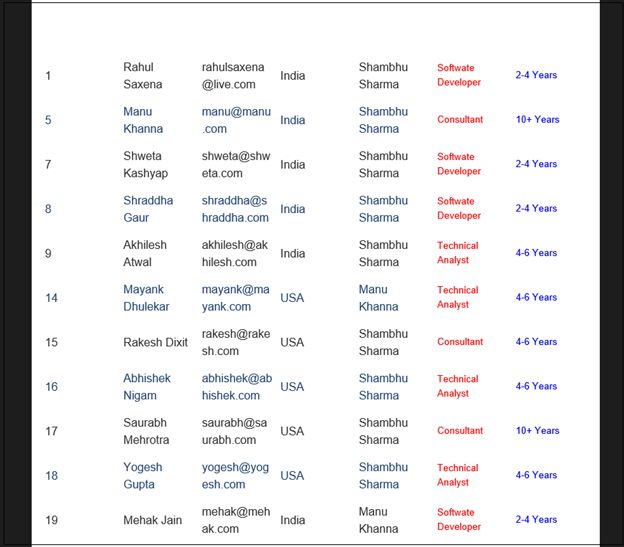

You can make change in your from and do the export again as in the following:

Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
