Export Our GridView Selected Record to a PDF

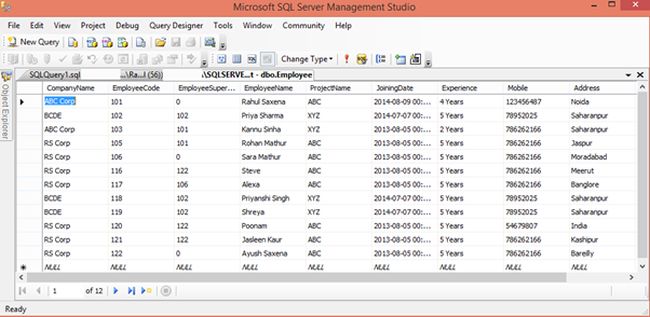

The following is my data table:

data table
                                                                              Image 1

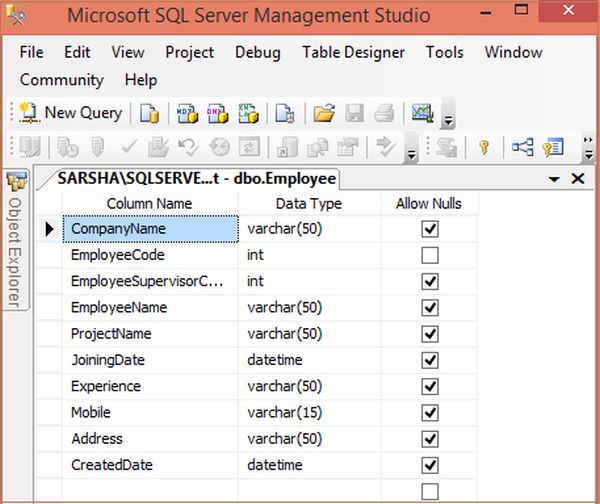

  • My table in design mode:

    design mode
                                                                                  Image 2

  • Now my aspx code:
    1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
    2.
    3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
    4. <html xmlns="http://www.w3.org/1999/xhtml">
    5. <head runat="server">
    6.     <title>Export Record To PDF using iTextSharp</title>
    7. </head>
    8. <body>
    9.     <form id="form1" runat="server">
    10.     <div>
    11.         <table cellpadding="10" cellspacing="10" style="border: solid 10px red; background-color: Skyblue;"
    12.             width="90%" align="center">
    13.             <tr>
    14.                 <td style="height: 35px; background-color: Yellow; font-weight: bold; font-size: 16pt;
    15.                     font-family: Times New Roman; color: Red" align="center">
    16.                     Export Record To PDF
    17.                 </td>
    18.             </tr>
    19.             <tr>
    20.                 <td>
    21.                     <asp:GridView ID="GridViewRecord" HeaderStyle-BackColor="#3AC0F2" HeaderStyle-ForeColor="White"
    22.                         RowStyle-BackColor="#A1DCF2" runat="server" AutoGenerateColumns="False"
    23.                         BackColor="White" BorderColor="#CC9966" BorderStyle="None" BorderWidth="1px"
    24.                         CellPadding="4">
    25. <RowStyle BackColor="White" ForeColor="#330099"></RowStyle>
    26.                         <Columns>
    27.                             <asp:TemplateField>
    28.                                 <ItemTemplate>
    29.                                     <asp:CheckBox ID="chkSelect" runat="server" />
    30.                                 </ItemTemplate>
    31.                             </asp:TemplateField>
    32.                             <asp:BoundField DataField="EmployeeName" HeaderText="Employee Name" ItemStyle-Width="150px" />
    33.                             <asp:BoundField DataField="CompanyName" HeaderText="Company Name" ItemStyle-Width="120px" />
    34.                             <asp:BoundField DataField="ProjectName" HeaderText="Project Name" ItemStyle-Width="100px" />
    35.                             <asp:BoundField DataField="JoiningDate" HeaderText="Joining Date" ItemStyle-Width="150px" />
    36.                             <asp:BoundField DataField="Address" HeaderText="Address" ItemStyle-Width="100px" />
    37.                         </Columns>
    38.                         <FooterStyle BackColor="#FFFFCC" ForeColor="#330099" />
    39.                         <PagerStyle BackColor="#FFFFCC" ForeColor="#330099" HorizontalAlign="Center" />
    40.                         <SelectedRowStyle BackColor="#FFCC66" Font-Bold="True" ForeColor="#663399" />
    41.
    42. <HeaderStyle BackColor="#990000" ForeColor="#FFFFCC" Font-Bold="True"></HeaderStyle>
    43.                     </asp:GridView>
    44.                 </td>
    45.             </tr>
    46.             <tr>
    47.                 <td>
    48.                     <asp:Button ID="btnExportGridRecord" runat="server" Text="Export To PDF" OnClick="btnExportGridRecord_Click" />
    49.                 </td>
    50.             </tr>
    51.     </div>
    52.     </form>
    53. </body>
    54. </html>
  • Now my aspx.cs code:
    1. using System;
    2. using System.Configuration;
    3. using System.Data;
    4. using System.Linq;
    5. using System.Web;
    6. using System.Web.Security;
    7. using System.Web.UI;
    8. using System.Web.UI.HtmlControls;
    9. using System.Web.UI.WebControls;
    10. using System.Web.UI.WebControls.WebParts;
    11. using System.Xml.Linq;
    12. using System.IO;
    13. using System.Data.SqlClient;
    14. using iTextSharp.text;
    15. using iTextSharp.text.html.simpleparser;
    16. using iTextSharp.text.pdf;
    17.
    18. public partial class _Default : System.Web.UI.Page
    19. {
    20.     protected void Page_Load(object sender, EventArgs e)
    21.     {
    22.         if (!IsPostBack)
    23.         {
    24.             this.BindGridData();
    25.         }
    26.     }
    27.
    28.     private void BindGridData()
    29.     {
    30.         SqlConnection con = new SqlConnection(@"Server=MyPC\SqlServer2k8;database=Test;Integrated Security=true;");
    31.         SqlCommand cmd = new SqlCommand("SELECT TOP 15 * FROM Employee");
    32.         SqlDataAdapter da = new SqlDataAdapter(cmd);
    33.         cmd.Connection = con;
    34.         DataTable dt = new DataTable();
    35.         da.Fill(dt);
    36.         GridViewRecord.DataSource = dt;
    37.         GridViewRecord.DataBind();
    38.     }
    39.
    40.     protected void btnExportGridRecord_Click(object sender, EventArgs e)
    41.     {
    42.         using (StringWriter sw = new StringWriter())
    43.         {
    44.             using (HtmlTextWriter hw = new HtmlTextWriter(sw))
    45.             {
    46.                 GridViewRecord.Columns[0].Visible = false;
    47.                 foreach (GridViewRow row in GridViewRecord.Rows)
    48.                 {
    49.                     if (row.RowType == DataControlRowType.DataRow)
    50.                     {
    51.                         row.Visible = (row.FindControl("chkSelect") as CheckBox).Checked;
    52.                     }
    53.                 }
    54.
    55.                 GridViewRecord.RenderControl(hw);
    56.                 StringReader sr = new StringReader(sw.ToString());
    57.                 Document pdfDoc = new Document(PageSize.A4, 10f, 10f, 10f, 0f);
    58.                 HTMLWorker htmlparser = new HTMLWorker(pdfDoc);
    59.                 PdfWriter.GetInstance(pdfDoc, Response.OutputStream);
    60.                 pdfDoc.Open();
    61.                 htmlparser.Parse(sr);
    62.                 pdfDoc.Close();
    63.
    64.                 Response.ContentType = "application/pdf";
    65.                 Response.AddHeader("content-disposition", "attachment;filename=Records.pdf");
    66.                 Response.Cache.SetCacheability(HttpCacheability.NoCache);
    67.                 Response.Write(pdfDoc);
    68.                 Response.End();
    69.             }
    70.         }
    71.     }
    72.     public override void VerifyRenderingInServerForm(Control control)
    73.     {
    74.         /* Verifies that the control is rendered */
    75.     }
    76. }

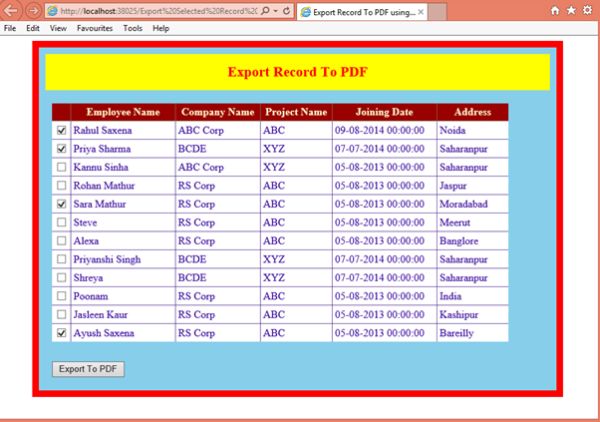

  • Now run the application:

    Export to PDF
                                                                                  Image 3

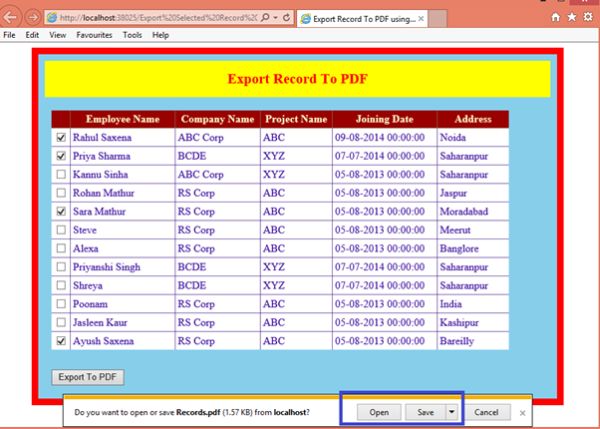

  • Select records here and click on the Export to PDF button:

    click on Export to PDF button
                                                                             Image 4

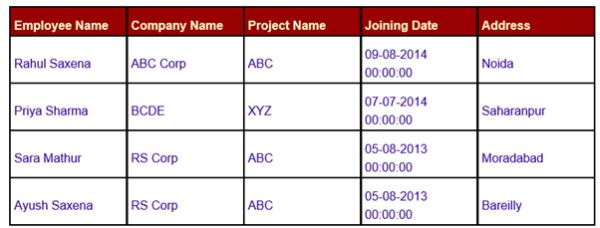

  • From here you can open or save the PDF file. Now view your PDF file:

    save pdf file
                                                                               Image 5
