How to Export Multiple Data Tables to Multiple Worksheets Inside a Single Excel File

This article shows how to export multiple data tables to multiple worksheets inside a single excel file in ASP.Net C#.

The following are the two data tables that I will export.

Employee



Script of Employee Table

  1. CREATE TABLE [dbo].[Employee]
  2. (
  3. [ID] [int] IDENTITY(1, 1) NOT NULL,
  4. [Name] [varchar](50) NULL,
  5. [Email] [varchar](500) NULL,
  6. [Country] [varchar](50) NULL
  7. ON [PRIMARY] GO

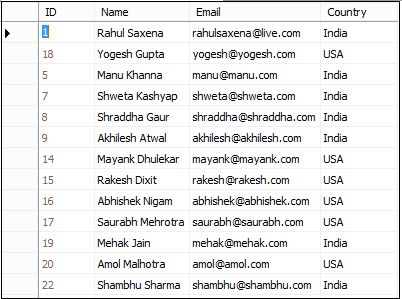

Data in Employee Table



OrderDetails



Script of OrderDetails Table
  1. CREATE TABLE [dbo].[OrderDetails](
  2. [Order_ID] [int] IDENTITY(1,1) NOT NULL,
  3. [Customer_Name] [varchar](50) NULL,
  4. [Unit] [intNULL,
  5. [Month] [varchar](50) NULL,
  6. CONSTRAINT [PK_OrderDetails] PRIMARY KEY CLUSTERED
  7. (
  8. [Order_ID] ASC
  9. )WITH (PAD_INDEX = OFF,
  10. STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF,
  11. ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ONON [PRIMARY]
  12. ON [PRIMARY]
  13.
  14. GO

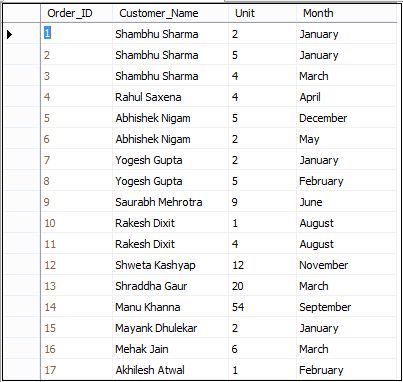

Data in OrderDetails table

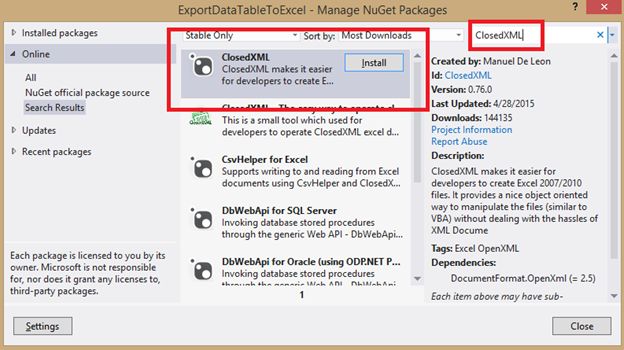

Now, I will add a closedXML reference to my application.



.aspx code
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="ExportDataTableToExcel.Default" %>
  2. <!DOCTYPE html>
  3. <html
  4.     xmlns="http://www.w3.org/1999/xhtml">
  5.     <head runat="server">
  6.         <title>Export Multiple Data Tables to Multiple worksheets inside a single Excel File</title>
  7.     </head>
  8.     <body>
  9.         <form id="form1" runat="server">
  10.             <div>
  11.                 <table border="0" cellpadding="5" cellspacing="5" style="border: solid 2px Red; background-color: skyblue; width: 100%;">
  12.                     <tr>
  13.                         <td colspan="2" style="background-color: #f00; color: white; font-weight: bold; font-size: 12pt; text-align: center; font-family: Verdana;">Export multiple Data Tables to Multiple worksheets inside a single Excel File</td>
  14.                     </tr>
  15.                     <tr>
  16.                         <td style="text-align: center;">
  17.                             <asp:Button ID="Button1" runat="server" Text="Click To Export Data " OnClick="btn_Export_Click" />
  18.                         </td>
  19.                     </tr>
  20.                 </table>
  21.             </div>
  22.         </form>
  23.     </body>
  24. </html>

.aspx.cs code

  1. using ClosedXML.Excel;
  2. using System;
  3. using System.Collections.Generic;
  4. using System.Configuration;
  5. using System.Data;
  6. using System.Data.SqlClient;
  7. using System.IO;
  8. using System.Linq;
  9. using System.Web;
  10. using System.Web.UI;
  11. using System.Web.UI.WebControls;
  12. namespace ExportDataTableToExcel {
  13.     public partial class Default: System.Web.UI.Page {
  14.         protected void Page_Load(object sender, EventArgs e) {
  15.         }
  16.         private DataTable getAllEmployeesList() {
  17.             string constr = ConfigurationManager.ConnectionStrings["RConnection"].ConnectionString;
  18.             using(SqlConnection con = new SqlConnection(constr)) {
  19.                 using(SqlCommand cmd = new SqlCommand("SELECT * FROM Employee ORDER BY ID")) {
  20.                     using(SqlDataAdapter da = new SqlDataAdapter()) {
  21.                         DataTable dt = new DataTable();
  22.                         cmd.CommandType = CommandType.Text;
  23.                         cmd.Connection = con;
  24.                         da.SelectCommand = cmd;
  25.                         da.Fill(dt);
  26.                         return dt;
  27.                     }
  28.                 }
  29.             }
  30.         }
  31.         private DataTable getAllEmployeesOrderList() {
  32.             string constr = ConfigurationManager.ConnectionStrings["RConnection"].ConnectionString;
  33.             using(SqlConnection con = new SqlConnection(constr)) {
  34.                 using(SqlCommand cmd = new SqlCommand("SELECT * FROM OrderDetails ORDER BY Order_ID")) {
  35.                     using(SqlDataAdapter da = new SqlDataAdapter()) {
  36.                         DataTable dt = new DataTable();
  37.                         cmd.CommandType = CommandType.Text;
  38.                         cmd.Connection = con;
  39.                         da.SelectCommand = cmd;
  40.                         da.Fill(dt);
  41.                         return dt;
  42.                     }
  43.                 }
  44.             }
  45.         }
  46.         public DataSet getDataSetExportToExcel() {
  47.             DataSet ds = new DataSet();
  48.             DataTable dtEmp = new DataTable("Employee");
  49.             dtEmp = getAllEmployeesList();
  50.
  51.             DataTable dtEmpOrder = new DataTable("Order List");
  52.             dtEmpOrder = getAllEmployeesOrderList();
  53.             ds.Tables.Add(dtEmp);
  54.             ds.Tables.Add(dtEmpOrder);
  55.             return ds;
  56.         }
  57.         protected void btn_Export_Click(object sender, EventArgs e) {
  58.             DataSet ds = getDataSetExportToExcel();
  59.             using(XLWorkbook wb = new XLWorkbook()) {
  60.                 wb.Worksheets.Add(ds);
  61.                 wb.Style.Alignment.Horizontal = XLAlignmentHorizontalValues.Center;
  62.                 wb.Style.Font.Bold = true;
  63.                 Response.Clear();
  64.                 Response.Buffer = true;
  65.                 Response.Charset = "";
  66.                 Response.ContentType = "application/vnd.openxmlformats-officedocument.spreadsheetml.sheet";
  67.                 Response.AddHeader("content-disposition""attachment;filename= EmployeeAndOrderReport.xlsx");
  68.                 using(MemoryStream MyMemoryStream = new MemoryStream()) {
  69.                     wb.SaveAs(MyMemoryStream);
  70.                     MyMemoryStream.WriteTo(Response.OutputStream);
  71.                     Response.Flush();
  72.                     Response.End();
  73.                 }
  74.             }
  75.         }
  76.     }
  77. }
As shown in the following code, I have declared the connection string in web.config file.
  1. <?xml version="1.0"?>
  2.
  3. <!--
  4. For more information on how to configure your ASP.NET application, please visit
  5. http://go.microsoft.com/fwlink/?LinkId=169433
  6. -->
  7.
  8. <configuration>
  9. <system.web>
  10. <compilation debug="true" targetFramework="4.5" />
  11. <httpRuntime targetFramework="4.5" />
  12. </system.web>
  13. <connectionStrings>
  14. <add name="RConnection" connectionString="Server=INDIA\MSSQLServer2k8;database=TestDB;UID=sa; pwd=india;"/>
  15. </connectionStrings>
  16. </configuration>

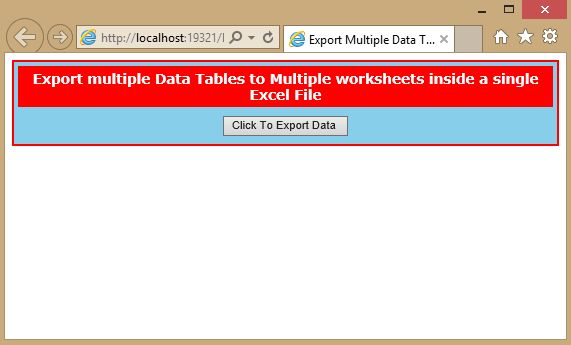

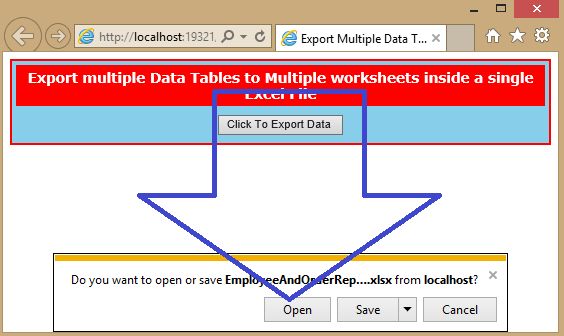

Next, run your application.

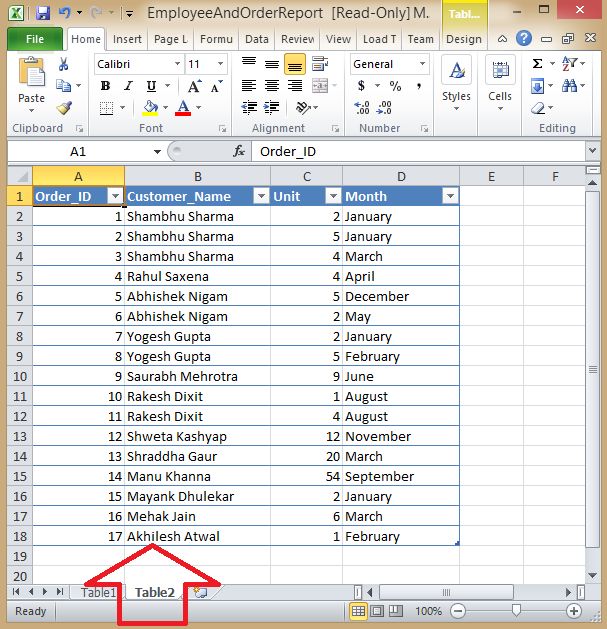

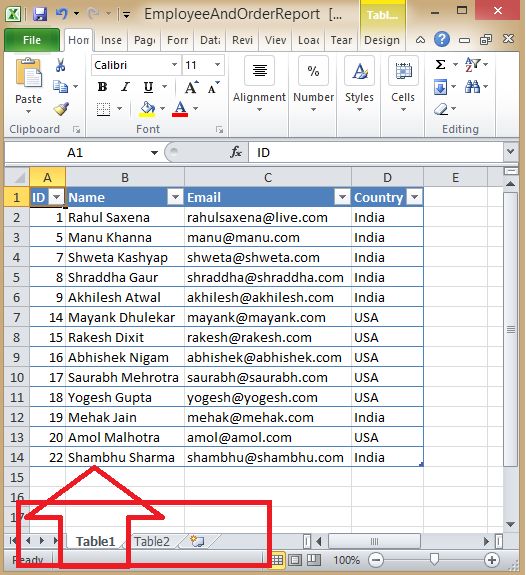

Now you can see both tables in separate worksheets in a single Excel sheet.
