jqGrid in ASP.Net C#

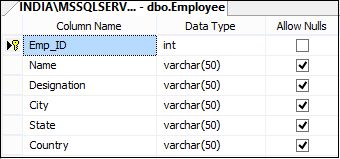

The following is my Data Table in Design Mode from which I will show data in a jqGrid:

table design
                                       Image 1.

The following is the script of my Data Table:

  1. CREATE TABLE [dbo].[Employee](
  2.     [Emp_ID] [int] IDENTITY(1,1) NOT NULL,
  3.     [Name] [varchar](50) NULL,
  4.     [Designation] [varchar](50) NULL,
  5.     [City] [varchar](50) NULL,
  6.     [State] [varchar](50) NULL,
  7.     [Country] [varchar](50) NULL,
  8.  CONSTRAINT [PK_Employee] PRIMARY KEY CLUSTERED
  9. (
  10.     [Emp_ID] ASC
  11. )WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]
  12. ) ON [PRIMARY]
  13. GO

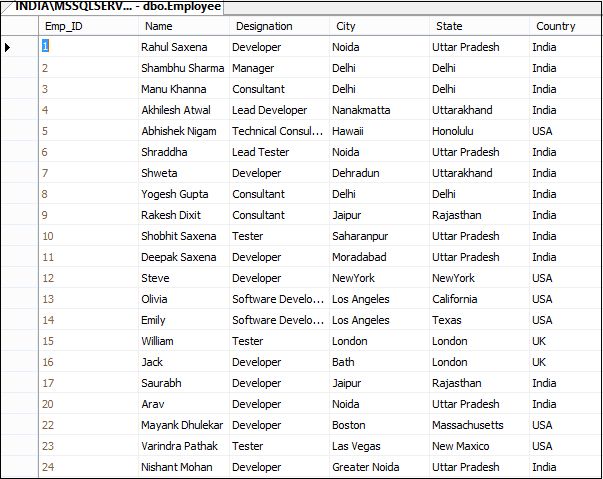

The data in My Table is:

table
                                                                    Image 2.

The following is my aspx code:

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="jQGridExample.Default" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8.     <link type="text/css" href="http://jqueryrock.googlecode.com/svn/trunk/css/jquery-ui-1.9.2.custom.css" rel="stylesheet" />
  9.     <link type="text/css" href="http://jqueryrock.googlecode.com/svn/trunk/jqgrid/css/ui.jqgrid.css" rel="stylesheet" />
  10.     <script type="text/javascript" src="http://jqueryrock.googlecode.com/svn/trunk/js/jquery-1.8.3.js"></script>
  11.     <script type="text/javascript" src="http://jqueryrock.googlecode.com/svn/trunk/js/jquery-ui-1.9.2.custom.js"></script>
  12.     <script src="http://jqueryrock.googlecode.com/svn/trunk/jqgrid/js/grid.locale-en.js" type="text/javascript"></script>
  13.     <script src="http://jqueryrock.googlecode.com/svn/trunk/jqgrid/js/jquery.jqGrid.min.js" type="text/javascript"></script>
  14.
  15.
  16.     <script type="text/javascript">
  17.
  18.         $(function () {
  19.             $("#dataGrid").jqGrid({
  20.                 url: 'Default.aspx/GetDataFromDB',
  21.                 datatype: 'json',
  22.                 mtype: 'POST',
  23.
  24.                 serializeGridData: function (postData) {
  25.                     return JSON.stringify(postData);
  26.                 },
  27.
  28.                 ajaxGridOptions: { contentType: "application/json" },
  29.                 loadonce: true,
  30.                 colNames: ['Employee ID', 'Name', 'Designation', 'City', 'State', 'Country'],
  31.                 colModel: [
  32.                                 { name: 'Emp_ID', index: 'Employee ID', width: 80 },
  33.                                 { name: 'Name', index: 'Name', width: 140 },
  34.                                 { name: 'Designation', index: 'Designation', width: 160 },
  35.                                 { name: 'City', index: 'City', width: 180 },
  36.                                 { name: 'State', index: 'State', width: 180 },
  37.                                 { name: 'Country', index: 'Country', width: 180 }
  38.                 ],
  39.                 pager: '#pagingGrid',
  40.                 rowNum: 5,
  41.                 rowList: [10, 20, 30],
  42.                 viewrecords: true,
  43.                 gridview: true,
  44.                 jsonReader: {
  45.                     page: function (obj) { return 1; },
  46.                     total: function (obj) { return 1; },
  47.                     records: function (obj) { return obj.d.length; },
  48.                     root: function (obj) { return obj.d; },
  49.                     repeatitems: false,
  50.                     id: "0"
  51.                 },
  52.                 caption: 'jQ Grid Example'
  53.             });
  54.         }).pagingGrid("#pager", { edit: true, add: true, del: false });
  55.
  56.
  57.     </script>
  58. </head>
  59. <body style="font-family: Arial; font-size: 10pt">
  60.     <table style="border: solid 15px red; width: 100%; vertical-align: central;">
  61.         <tr>
  62.             <td style="padding-left: 20px; padding-top: 20px; padding-bottom: 20px; background-color: skyblue; font-family: 'Times New Roman'; font-weight: bold; font-size: 20pt; color: chocolate;">jQ Grid Example In  ASP.NET C#
  63.             </td>
  64.         </tr>
  65.         <tr>
  66.             <td style="text-align: center; vertical-align: central; padding: 50px;">
  67.                 <table id="dataGrid" style="text-align: center;"></table>
  68.                 <div id="pagingGrid"></div>
  69.             </td>
  70.         </tr>
  71.     </table>
  72.
  73. </body>
  74. </html>

The following is my aspx.cs code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data.SqlClient;
  8. using System.Configuration;
  9. using System.Data;
  10. using System.Web.Script.Serialization;
  11. using System.Web.Services;
  12.
  13. namespace jQGridExample
  14. {
  15.     public partial class Default : System.Web.UI.Page
  16.     {
  17.
  18.         protected void Page_Load(object sender, EventArgs e)
  19.         {
  20.
  21.         }
  22.
  23.         [WebMethod]
  24.         public static List<Dictionary<string, object>> GetDataFromDB()
  25.         {
  26.             DataTable dt = new DataTable();
  27.             using (SqlConnection con = new SqlConnection(@"Data Source=INDIA\MSSQLServer2k8; Initial Catalog=EmployeeManagement; Uid=sa; pwd=india;"))
  28.             {
  29.                 using (SqlCommand cmd = new SqlCommand("SELECT Emp_ID, Name, Designation, City, State,Country FROM Employee ORDER BY Emp_ID,Country,State, City", con))
  30.                 {
  31.                     con.Open();
  32.                     SqlDataAdapter da = new SqlDataAdapter(cmd);
  33.                     da.Fill(dt);
  34.                     System.Web.Script.Serialization.JavaScriptSerializer serializer = new System.Web.Script.Serialization.JavaScriptSerializer();
  35.                     List<Dictionary<string, object>> rows = new List<Dictionary<string, object>>();
  36.                     Dictionary<string, object> row;
  37.                     foreach (DataRow dr in dt.Rows)
  38.                     {
  39.                         row = new Dictionary<string, object>();
  40.                         foreach (DataColumn col in dt.Columns)
  41.                         {
  42.                             row.Add(col.ColumnName, dr[col]);
  43.                         }
  44.                         rows.Add(row);
  45.                     }
  46.                     return rows;
  47.                 }
  48.             }
  49.         }
  50.     }
  51. }

Now run the application.

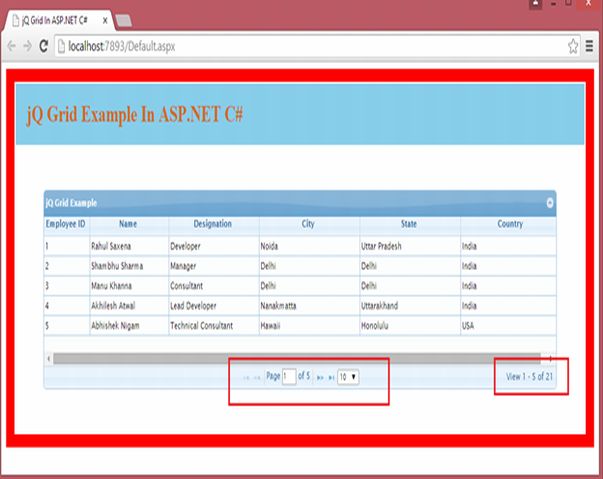

All the records are in the jqGrid. Here I set the Page Size to 5.

jQGrid
                                                                        Image 3.

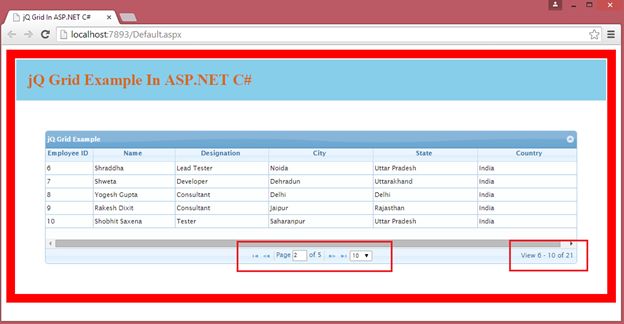

Now do paging as in the following:

jQGrid example
                                                                        Image 4.

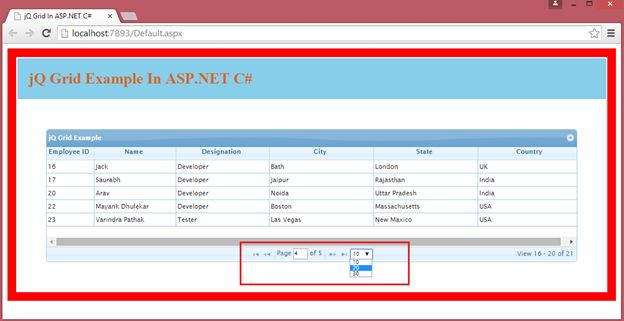

paging
                                                                     Image 5.

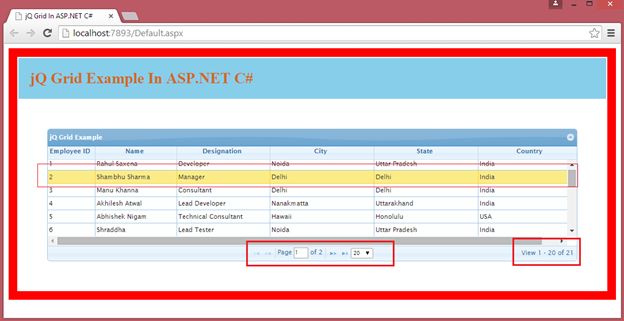

Now do paging
                                                                        Image 6.

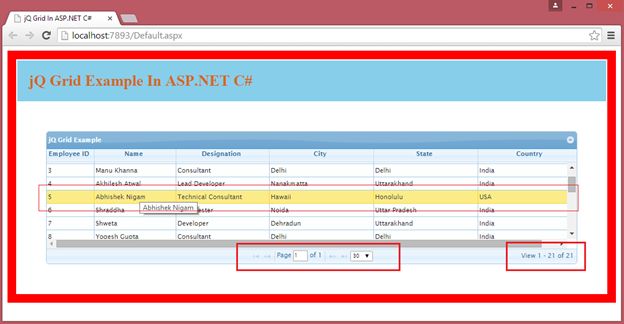

jQGrid image
                                                                              Image 7.
