Resizable GridView Using jQuery

In this article I will explain how to make a resizable Grid View in ASP.NET using jQuery.

The following is my aspx code.

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2.
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4. <html xmlns="http://www.w3.org/1999/xhtml">
  5. <head runat="server">
  6.     <title>Resizable Gridview in ASP.NET using jQuery</title>
  7.
  8.     <script src="jquery-1.8.2.js" type="text/javascript"></script>
  9.
  10.     <link href="jquery-ui.css" rel="stylesheet" type="text/css" />
  11.
  12.     <script src="jquery-ui.js" type="text/javascript"></script>
  13.
  14.     <script type="text/javascript">
  15.         $(function() {
  16.             $("#gridDivResize").resizable();
  17.         })
  18.     </script>
  19.
  20. </head>
  21. <body>
  22.     <form id="form1" runat="server">
  23.     <div id="gridDivResize" class="ui-widget-content" style="width: 550px; padding: 2px">
  24.         <asp:GridView ID="GridView1" CellPadding="4" runat="server" Width="100%" ForeColor="#333333"
  25.             GridLines="None">
  26.             <RowStyle BackColor="#F7F6F3" ForeColor="#333333" />
  27.             <FooterStyle BackColor="#5D7B9D" Font-Bold="True" ForeColor="White" />
  28.             <PagerStyle BackColor="#284775" ForeColor="White" HorizontalAlign="Center" />
  29.             <SelectedRowStyle BackColor="#E2DED6" Font-Bold="True" ForeColor="#333333" />
  30.             <HeaderStyle BackColor="#5D7B9D" Font-Bold="True" ForeColor="White" />
  31.             <EditRowStyle BackColor="#999999" />
  32.             <AlternatingRowStyle BackColor="White" ForeColor="#284775" />
  33.         </asp:GridView>
  34.     </div>
  35.     </form>
  36. </body>
  37. </html>
Here I am binding this grid view from one of my SQL Server data tables.

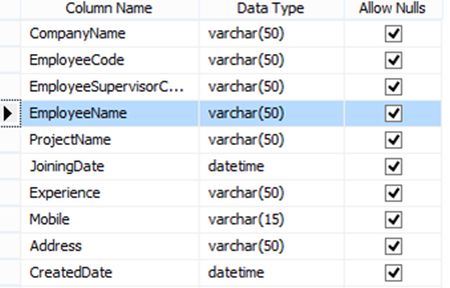

The following is my Data Table design.

table design view
Image 1

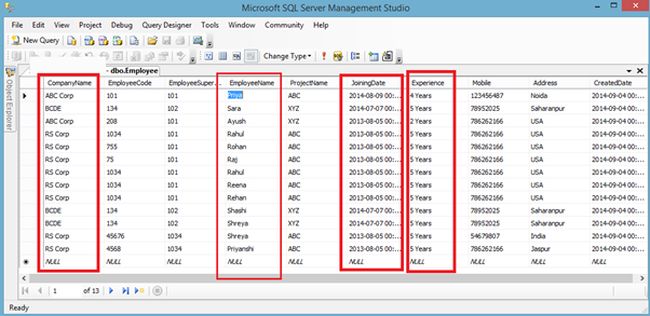

The data in my data table is: I am showing only CompanyName, Employee Name, Joining Date and Experience columns in GridView.

show data
Image 2

My aspx.cs code is:
  1. using System;
  2. using System.Configuration;
  3. using System.Data;
  4. using System.Linq;
  5. using System.Web;
  6. using System.Web.Security;
  7. using System.Web.UI;
  8. using System.Web.UI.HtmlControls;
  9. using System.Web.UI.WebControls;
  10. using System.Web.UI.WebControls.WebParts;
  11. using System.Xml.Linq;
  12. using System.Data.SqlClient;
  13.
  14. public partial class _Default : System.Web.UI.Page
  15. {
  16.     SqlDataAdapter da;
  17.     DataSet ds = new DataSet();
  18.
  19.     protected void Page_Load(object sender, EventArgs e)
  20.     {
  21.         if (!IsPostBack)
  22.         {
  23.             BindGridviewData();
  24.         }
  25.     }
  26.
  27.     protected void BindGridviewData()
  28.     {
  29.         SqlConnection con = new SqlConnection();
  30.         con.ConnectionString = @"Data Source=MyPC\SqlServer2k8;Integrated Security=true;Initial Catalog=Test";
  31.         SqlCommand cmd = new SqlCommand("SELECT CompanyName,EmployeeName,JoiningDate,Experience FROM EMPLOYEE", con);
  32.         da = new SqlDataAdapter(cmd);
  33.         da.Fill(ds);
  34.         con.Open();
  35.         cmd.ExecuteNonQuery();
  36.         con.Close();
  37.
  38.         if (!object.Equals(ds.Tables[0], null))
  39.         {
  40.             if (ds.Tables[0].Rows.Count > 0)
  41.             {
  42.                 GridView1.DataSource = ds;
  43.                 GridView1.DataBind();
  44.             }
  45.             else
  46.             {
  47.                 GridView1.DataSource = null;
  48.                 GridView1.DataBind();
  49.             }
  50.         }
  51.     }
  52. }

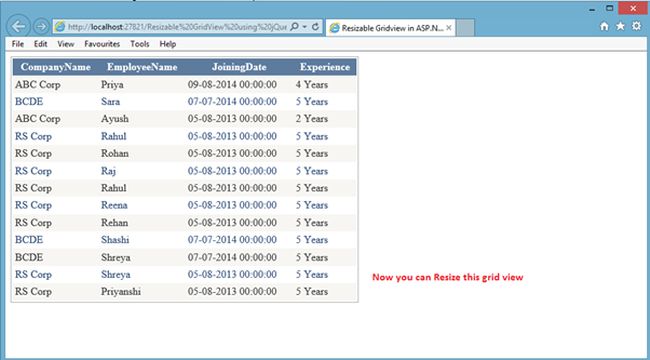

Now run the application:

show record
Image 3

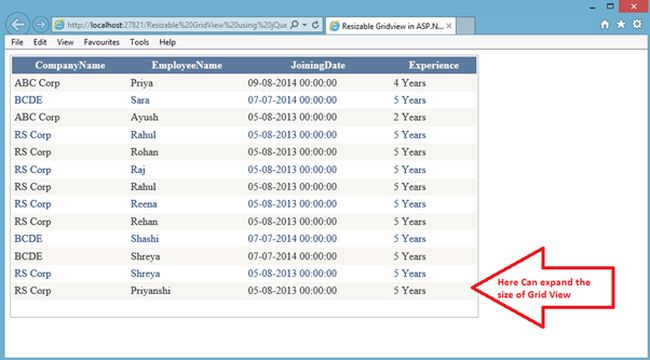

Now resize the Grid View.

expend the size of grid view
Image 4

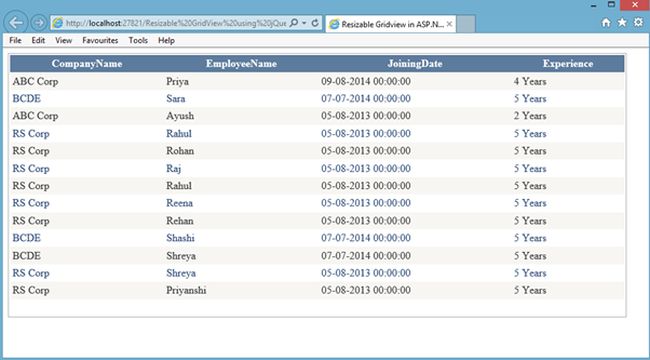

show data record
Image 5
