Print Receipt and Save Data Using Windows Forms in C#

This article shows how to print from a Windows Forms form. Here in this example I am using a Patient Detail form. I am inserting data into a SQL Server Data Table and printing the slip.

The following is my Form1.cs.


                                                                     Image 1

On the Submit button click I am opening another form and inserting this form data into SQL Server.

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Data.SqlClient;

namespace PatientsAdmitReport
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }

        SqlDataAdapter da;
        DataSet ds;
        SqlConnection con;

        private void button1_Click(object sender, EventArgs e)
        {
            con = new SqlConnection(@"DATA SOURCE=MyPC\SQLSERVER2K8;INTEGRATED SECURITY=TRUE;DATABASE=TEST");
            da = new SqlDataAdapter("INSERT INTO Patient(PatientName,Age, Address,ContactNo, EmergencyContactNo, Sex) VALUES('" + txtPatientName.Text + "','" + txtAge.Text + "','" + txtAddress.Text + "','" + txtContactNo.Text + "','" + txtEmergencyContactNo.Text + "','" + cmbSex.SelectedItem.ToString() + "')", con);
            ds = new DataSet();
            da.Fill(ds);

            Form2 frm2 = new Form2();
            this.Hide();
            frm2.lblPatientName.Text = txtPatientName.Text.ToString();
            frm2.lblAge.Text = txtAge.Text.ToString();
            frm2.lblAddress.Text = txtAddress.Text.ToString();
            frm2.lblContactNo.Text = txtContactNo.Text.ToString();
            frm2.lblEmergencyContactNo.Text = txtEmergencyContactNo.Text.ToString();
            frm2.lblSex.Text = cmbSex.SelectedItem.ToString();
            frm2.Show();
        }
    }
}

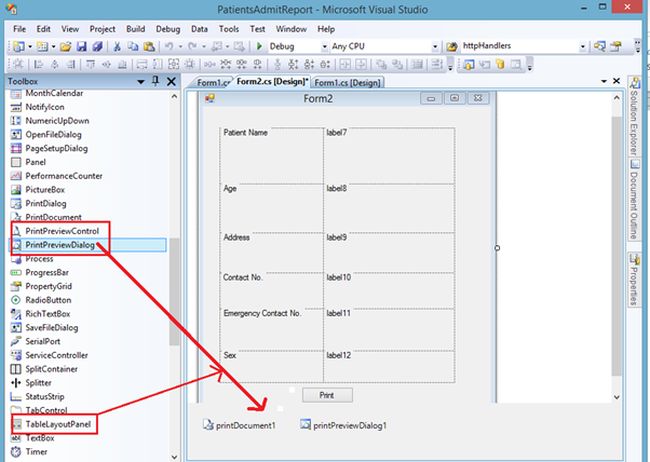

The following is my form2. Here you can design this form as you want for your receipt. Here I am using a TableLayOut Panel and some label. I also add a PrintPreviewControl and PrintPreviewDialog on this form2.


                                                                     Image 2

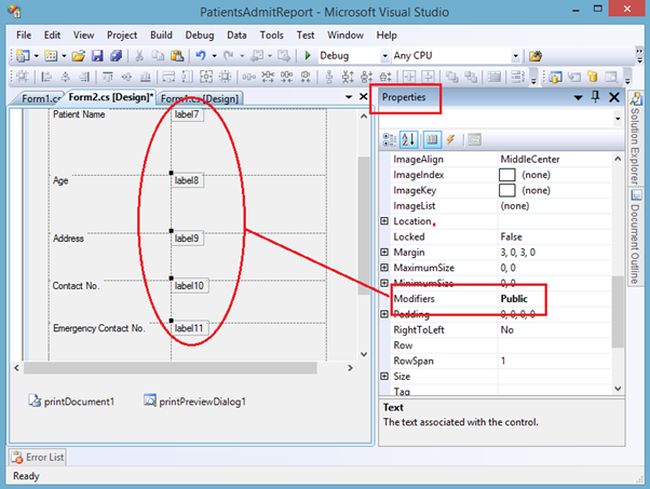

Now, I am showing my data in label7, label8, label9 …… label12. As you can see I am using these labels on form1. So I need to change the Modifier property of these labels like the following.


                                                                           Image 3

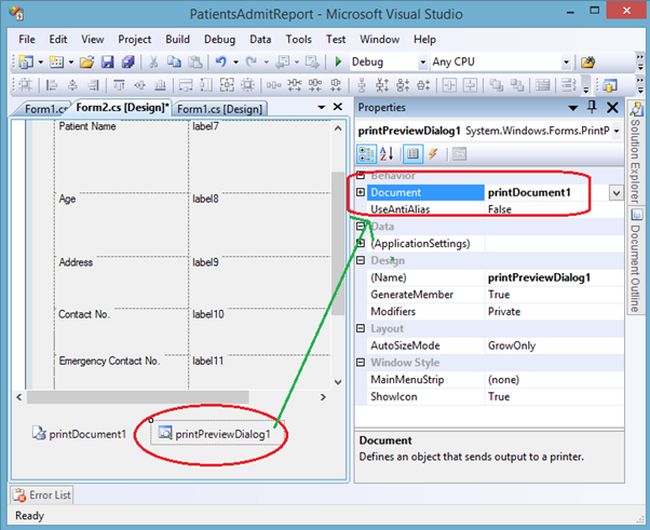

Now, right-click on printPreviewDialog1 and select Properties and set the Document Properties to printDocument1 like the following.


                                                                        Image 4

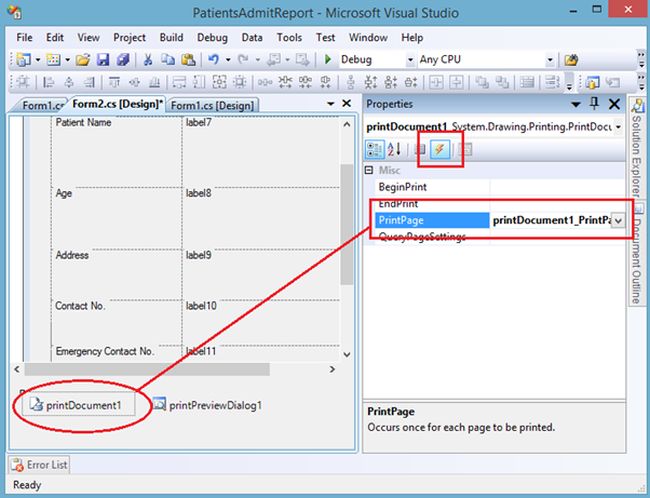

Now, right-click on printDocument1 and select Properties in the set PrintPage event like the following.


                                                                        Image 5

Now, the code of form 2 is:

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Drawing.Printing;

namespace PatientsAdmitReport
{
    public partial class Form2 : Form
    {
        public Form2()
        {
            InitializeComponent();
        }

        private void print_Click(object sender, EventArgs e)
        {
            PrintScreen();
            printPreviewDialog1.ShowDialog();
        }

        [System.Runtime.InteropServices.DllImport("gdi32.dll")]
        public static extern long BitBlt(IntPtr hdcDest, int nXDest, int nYDest, int nWidth, int nHeight, IntPtr hdcSrc, int nXSrc, int nYSrc, int dwRop);
        private Bitmap memoryImage;

        private void PrintScreen()
        {
            Graphics mygraphics = this.CreateGraphics();
            Size s = this.Size;
            memoryImage = new Bitmap(s.Width, s.Height, mygraphics);
            Graphics memoryGraphics = Graphics.FromImage(memoryImage);
            IntPtr dc1 = mygraphics.GetHdc();
            IntPtr dc2 = memoryGraphics.GetHdc();
            BitBlt(dc2, 0, 0, this.ClientRectangle.Width, this.ClientRectangle.Height, dc1, 0, 0, 13369376);
            mygraphics.ReleaseHdc(dc1);
            memoryGraphics.ReleaseHdc(dc2);
        }

        private void printDocument1_PrintPage(object sender, PrintPageEventArgs e)
        {
            e.Graphics.DrawImage(memoryImage, 0, 0);
        }
    }
}

Now, run the application:


                                                                           Image 6

Here fill in the patient details and click on Submit.


                                                      Image 7

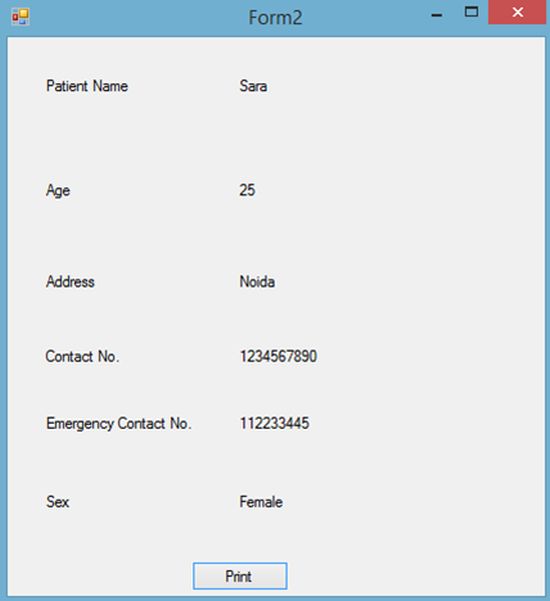

This is the slip here. Click on the Print button.


                                                                        Image 8

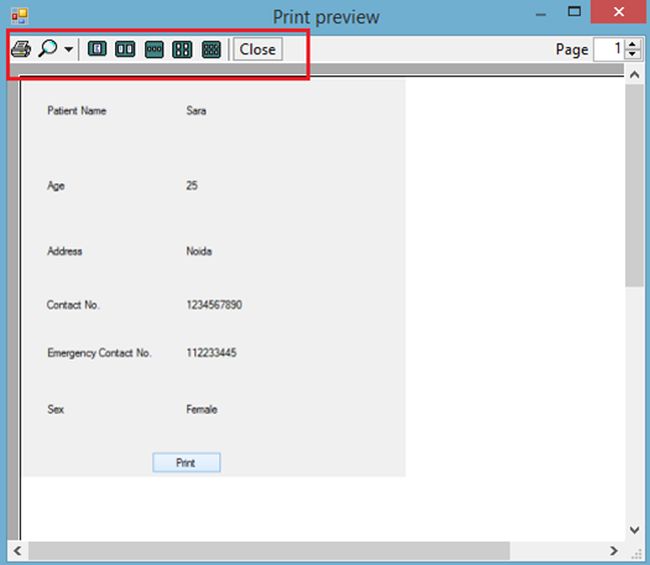

From here by clicking on the Print option you can print the slip. You can also increase the size of the slip.

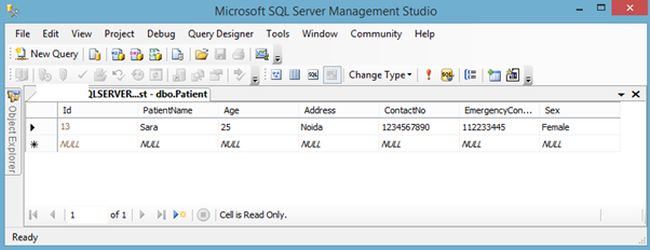

Now, see the following in the database:


                                                                     Image 9

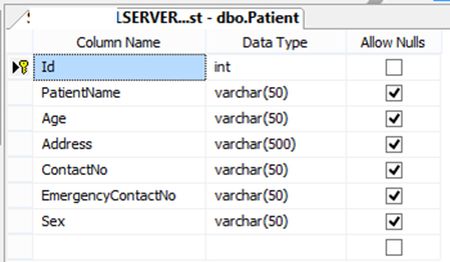

The following is my table design.


                                          Image 10
