Show and Paging in ASP.Net Gridview Using jQuery

The following is my data table structure from which I am fetching data:

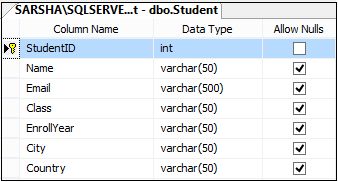

table design
Image 1.

Data in my table:

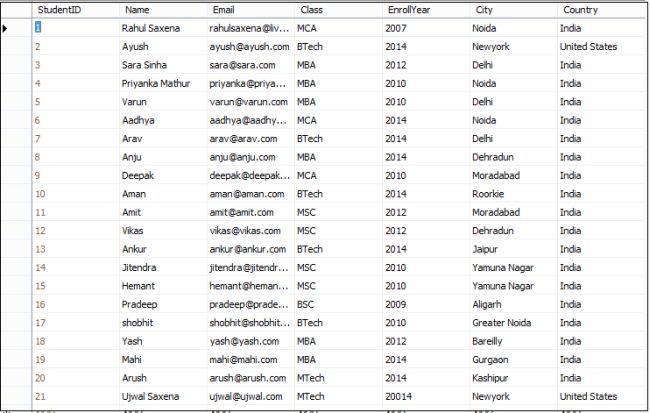

table
Image 2.

To do this I created the following Stored Procedure:

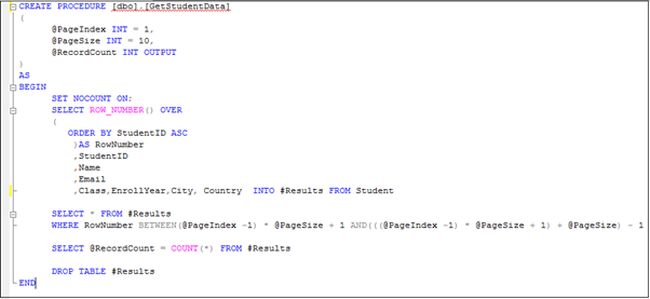

store procedure
Image 3.

My Stored Procedure is:

  1. CREATEPROCEDURE [dbo].[GetStudentData]
  2. (
  3.       @PageIndex INT= 1,
  4.       @PageSize INT= 10,
  5.       @RecordCount INTOUTPUT
  6. )
  7. AS
  8. BEGIN
  9. SETNOCOUNTON;
  10. SELECTROW_NUMBER()OVER
  11. (
  12. ORDERBY StudentID ASC
  13.         )AS RowNumber
  14.         ,StudentID
  15.         ,Name
  16.         ,Email
  17.         ,Class,EnrollYear,City, Country  INTO #Results FROM Student
  18.
  19. SELECT*FROM #Results
  20. WHERE RowNumber BETWEEN(@PageIndex -1)* @PageSize + 1 AND(((@PageIndex -1)* @PageSize + 1)+ @PageSize)- 1
  21.
  22. SELECT @RecordCount =COUNT(*)FROM #Results
  23.
  24. DROPTABLE #Results
  25. END
The following is my aspx code:
  1. <%@PageLanguage="C#"AutoEventWireup="true"CodeBehind="Default.aspx.cs"Inherits="jQueryPagination.Default"%>
  2. <!DOCTYPEhtml>
  3. <htmlxmlns="http://www.w3.org/1999/xhtml">
  4. <headrunat="server">
  5. <title></title>
  6. <scripttype="text/javascript"src="http://ajax.googleapis.com/ajax/libs/jquery/1.8.3/jquery.min.js"></script>
  7. <scriptsrc="jquery.pagination.min.js"type="text/javascript"></script>
  8. <scripttype="text/javascript">
  9.         $(document).ready(function () {
  10.             GetStudents(1);
  11.         });
  12.         $("[id*=txtSearch]").live("keyup", function () {
  13.             GetStudents(parseInt(1));
  14.         });
  15.         $(".Pagination .page").live("click", function () {
  16.             GetStudents(parseInt($(this).attr('page')));
  17.         });
  18.
  19.         functionGetStudents(pageIndex) {
  20.
  21.             $.ajax({
  22.                 type: "POST",
  23.                 url: "Default.aspx/GetStudents",
  24.                 data: '{pageIndex: ' + pageIndex + '}',
  25.                 contentType: "application/json; charset=utf-8",
  26.              dataType: "json",
  27.                 success: OnSuccess,
  28.                 failure: function (response) {
  29.                     alert(response.d);
  30.                 },
  31.                 error: function (response) {
  32.                     alert(response.d);
  33.                 }
  34.             });
  35.         }
  36.         var row;
  37.         functionOnSuccess(response) {
  38.             varxmlDoc = $.parseXML(response.d);
  39.             var xml = $(xmlDoc);
  40.             var students = xml.find("Student");
  41.             if (row == null) {
  42.                 row = $("[id*=GridViewStudent] tr:last-child").clone(true);
  43.             }
  44.             $("[id*=GridViewStudent] tr").not($("[id*=GridViewStudent] tr:first-child")).remove();
  45.             if (students.length> 0) {
  46.                 $.each(students, function () {
  47.                     var student = $(this);
  48.                     $("td", row).eq(0).html($(this).find("Name").text());
  49.                     $("td", row).eq(1).html($(this).find("Email").text());
  50.                     $("td", row).eq(2).html($(this).find("Class").text());
  51.                     $("td", row).eq(3).html($(this).find("EnrollYear").text());
  52.                     $("td", row).eq(4).html($(this).find("City").text());
  53.                     $("td", row).eq(5).html($(this).find("Country").text());
  54.                     $("[id*=GridViewStudent]").append(row);
  55.                     row = $("[id*=GridViewStudent] tr:last-child").clone(true);
  56.                 });
  57.                 var pager = xml.find("dtForPaging");
  58.                 $(".Pagination").jQ_Pager({
  59.                     ActiveCssClass: "current",
  60.                     PagerCssClass: "pager",
  61.                     PageIndex: parseInt(pager.find("PageIndex").text()),
  62.                     PageSize: parseInt(pager.find("PageSize").text()),
  63.                     RecordCount: parseInt(pager.find("RecordCount").text())
  64.                 });
  65.
  66.                 $(".Name").each(function () {
  67.                     varsearchPattern = newRegExp('(' + SearchTerm() + ')', 'ig');
  68.                     $(this).html($(this).text().replace(searchPattern, "<span class = 'highlight'>" + SearchTerm() + "</span>"));
  69.                 });
  70.             }
  71.             else {
  72.                 varempty_row = row.clone(true);
  73.                 $("td:first-child", empty_row).attr("colspan", $("td", row).length);
  74.                 $("td:first-child", empty_row).attr("align", "center");
  75.                 $("td:first-child", empty_row).html("No records found for the search criteria.");
  76.                 $("td", empty_row).not($("td:first-child", empty_row)).remove();
  77.                 $("[id*=GridViewStudent]").append(empty_row);
  78.             }
  79.         };
  80. </script>
  81.
  82. </head>
  83. <body>
  84.     <formid="form1"runat="server">
  85.         <div>
  86.             <tablestyle="border: solid15pxblue; width: 100%; vertical-align: central;">
  87.                 <tr>
  88.                     <tdstyle="padding-left: 20px; padding-top: 20px; padding-bottom: 20px; background-color: skyblue; text-align: center; font-family: Verdana; font-size: 20pt; color: red;">jQuery: Display Records With Paging in ASP.NET Grid View using jQuery</td>
  89.                 </tr>
  90.                 <tr>
  91.                 <td>
  92.                     <tablestyle="width: 80%; text-align: center; vertical-align: central;">
  93.                         <tr>
  94.                             <tdstyle="text-align: left;">
  95.                                 <asp:GridViewID="GridViewStudent"runat="server"AutoGenerateColumns="False"Width="100%"
  96.                                      BackColor="#DEBA84"BorderColor="#DEBA84"BorderStyle="None"BorderWidth="1px"CellPadding="3"CellSpacing="2">
  97.                                          <Columns>
  98.                                             <asp:BoundFieldDataField="Name"HeaderText="Student Name"HeaderStyle-HorizontalAlign="Left"></asp:BoundField>
  99.                                             <asp:BoundFieldDataField="Email"HeaderText="Email"HeaderStyle-HorizontalAlign="Left"/>
  100.                                             <asp:BoundFieldDataField="Class"HeaderText="Class"HeaderStyle-HorizontalAlign="Left"/>
  101.                                             <asp:BoundFieldDataField="EnrollYear"HeaderText="Enroll Year"HeaderStyle-HorizontalAlign="Left"/>
  102.                                             <asp:BoundFieldDataField="City"HeaderText="City"HeaderStyle-HorizontalAlign="Left"/>
  103.                                             <asp:BoundFieldDataField="Country"HeaderText="Country"HeaderStyle-HorizontalAlign="Left"/>
  104.                                          </Columns>
  105.                                             <FooterStyleBackColor="#F7DFB5"ForeColor="#8C4510"/>
  106.                                             <HeaderStyleBackColor="#A55129"Font-Bold="True"ForeColor="White"/>
  107.                                             <PagerStyleForeColor="#8C4510"HorizontalAlign="Center"/>
  108.                                             <RowStyleBackColor="#FFF7E7"ForeColor="#8C4510"/>
  109.                                             <SelectedRowStyleBackColor="#738A9C"Font-Bold="True"ForeColor="White"/>
  110.                                             <SortedAscendingCellStyleBackColor="#FFF1D4"/>
  111.                                             <SortedAscendingHeaderStyleBackColor="#B95C30"/>
  112.                                             <SortedDescendingCellStyleBackColor="#F1E5CE"/>
  113.                                             <SortedDescendingHeaderStyleBackColor="#93451F"/>
  114.                                     </asp:GridView>
  115.                                  </td>
  116.                                 </tr>
  117.                                  <tr>
  118.                                     <td>
  119.                                      <divclass="Pagination"style="background-color: orange; font-family: Verdana; font-size: 10pt; height: 30px; text-align: center; vertical-align: central; padding-top: 20px; padding-bottom: 10px;">
  120.                                  </div>
  121.                              </td>
  122.                           </tr>
  123.                       </table>
  124.                    </td>
  125.                </tr>
  126.             </table>
  127.          </div>
  128.         </form>
  129.     </body>
  130. </html>
Now My aspx.cs code is:
  1. using System;
  2. usingSystem.Collections.Generic;
  3. usingSystem.Data;
  4. usingSystem.Data.SqlClient;
  5. usingSystem.Linq;
  6. usingSystem.Web;
  7. usingSystem.Web.Services;
  8. usingSystem.Web.UI;
  9. usingSystem.Web.UI.WebControls;
  10.
  11. namespacejQueryPagination
  12. {
  13.     publicpartialclassDefault : System.Web.UI.Page
  14.     {
  15.         privatestaticintPageSize = 5;
  16.
  17.         protectedvoidPage_Load(object sender, EventArgs e)
  18.         {
  19.             if (!IsPostBack)
  20.             {
  21.                 BindGridViewHeader();
  22.             }
  23.         }
  24.
  25.         privatevoidBindGridViewHeader()
  26.         {
  27.             DataTabledtHeader = newDataTable();
  28.             dtHeader.Columns.Add("Name");
  29.             dtHeader.Columns.Add("Email");
  30.             dtHeader.Columns.Add("Class");
  31.             dtHeader.Columns.Add("EnrollYear");
  32.             dtHeader.Columns.Add("City");
  33.             dtHeader.Columns.Add("Country");
  34.             dtHeader.Rows.Add();
  35.             GridViewStudent.DataSource = dtHeader;
  36.             GridViewStudent.DataBind();
  37.         }
  38.
  39.         [WebMethod]
  40.         publicstaticstringGetStudents(intpageIndex)
  41.         {
  42.             stringSP_Name = "[GetStudentData]";
  43.             SqlCommandcmd = newSqlCommand(SP_Name);
  44.             cmd.CommandType = CommandType.StoredProcedure;
  45.             cmd.Parameters.AddWithValue("@PageIndex", pageIndex);
  46.             cmd.Parameters.AddWithValue("@PageSize", PageSize);
  47.             cmd.Parameters.Add("@RecordCount", SqlDbType.Int, 4).Direction = ParameterDirection.Output;
  48.             returnGetStudentData(cmd, pageIndex).GetXml();
  49.         }
  50.
  51.
  52.         privatestaticDataSetGetStudentData(SqlCommandcmd, intpageIndex)
  53.         {
  54.             SqlDataAdapter da;
  55.             DataSet ds = newDataSet();
  56.
  57.             SqlConnection con = newSqlConnection();
  58.             ds = newDataSet();
  59.             con.ConnectionString = @"Data Source=MyPC\SqlServer2k8; Initial Catalog=SchoolManagement; Integrated Security=true;";
  60.             cmd.Connection = con;
  61.             da = newSqlDataAdapter(cmd);
  62.             da.Fill(ds, "Student");
  63.             con.Open();
  64.             cmd.ExecuteNonQuery();
  65.             con.Close();
  66.
  67.             //Addning Table For Paging Data
  68.             DataTabledt = newDataTable("dtForPaging");
  69.             dt.Columns.Add("PageIndex");
  70.             dt.Columns.Add("PageSize");
  71.             dt.Columns.Add("RecordCount");
  72.             dt.Rows.Add();
  73.             dt.Rows[0]["PageIndex"] = pageIndex;
  74.             dt.Rows[0]["PageSize"] = PageSize;
  75.             dt.Rows[0]["RecordCount"] = cmd.Parameters["@RecordCount"].Value;
  76.             ds.Tables.Add(dt);
  77.             return ds;
  78.         }
  79.     }
  80. }
Now run the application:

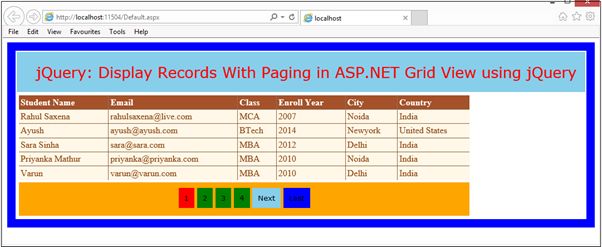

display record
Image 4.

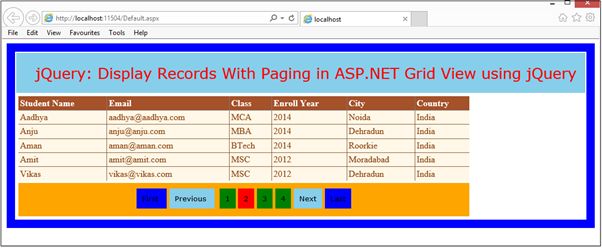

paging
Image 5.

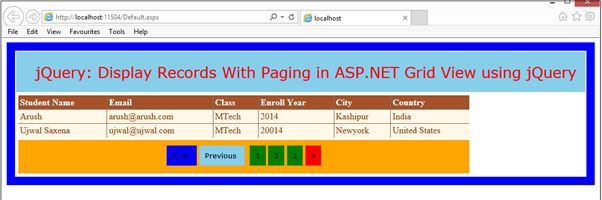

run the application
Image 6.
