Show Search Data and Paging in ASP.Net Grid View Using jQuery

Rahul Saxena
9y
38.1k
0
3

Article

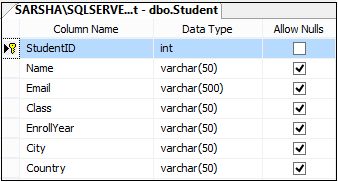

The following is my Data Table structure from which I am fetching data:

table design
Image 1.

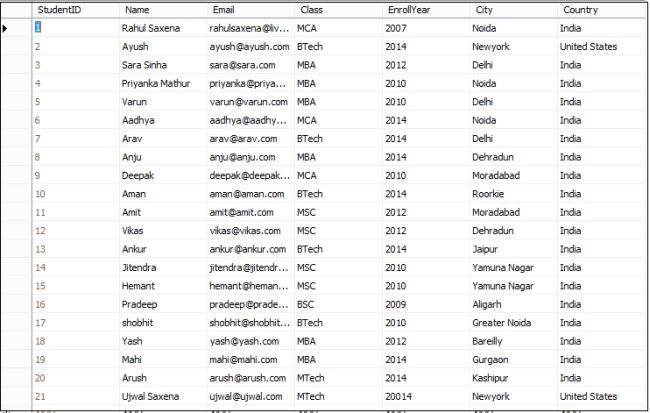

Data in my table:

table
Image 2.

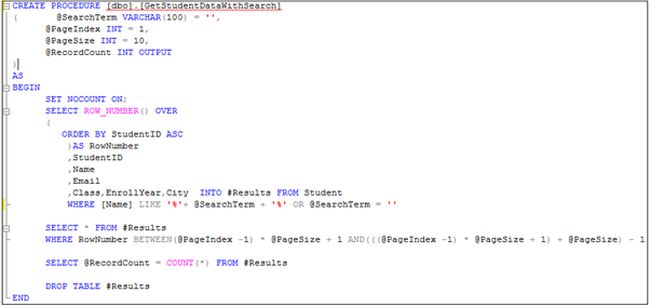

To do this I created the following Stored Procedure:

store procedure
Image 3.

My Stored Procedure is:

CREATEPROCEDURE [dbo].[GetStudentDataWithSearch]
( @SearchTerm VARCHAR(100)='',
@PageIndex INT= 1,
@PageSize INT= 10,
@RecordCount INTOUTPUT
)
AS
BEGIN
SETNOCOUNTON;
SELECTROW_NUMBER()OVER
(
ORDERBY StudentID ASC
)AS RowNumber
,StudentID
,Name
,Email
,Class,EnrollYear,City INTO #Results FROM Student
WHERE [Name] LIKE'%'+ @SearchTerm +'%'OR @SearchTerm =''
SELECT*FROM #Results
WHERE RowNumber BETWEEN(@PageIndex -1)* @PageSize + 1 AND(((@PageIndex -1)* @PageSize + 1)+ @PageSize)- 1
SELECT @RecordCount =COUNT(*)FROM #Results
DROPTABLE #Results
END

The following is my aspx code:

<%@PageLanguage="C#"AutoEventWireup="true"CodeBehind="ShowSearchPaging.aspx.cs"Inherits="ShowSearchAndPagingUsing_jQuery.ShowSearchPaging"%>
<!DOCTYPEhtml>
<htmlxmlns="http://www.w3.org/1999/xhtml">
<headrunat="server">
<title>jQuery: Show Data and Paging in ASP.NET Grid View using jQuery</title>
<scripttype="text/javascript"src="http://ajax.googleapis.com/ajax/libs/jquery/1.8.3/jquery.min.js"></script>
<scriptsrc="jquery.pagination.min.js"type="text/javascript"></script>
<scripttype="text/javascript">
$(function () {
GetStudents(1);
});
$("[id*=txtSearch]").live("keyup", function () {
GetStudents(parseInt(1));
});
$(".Pagination .page").live("click", function () {
GetStudents(parseInt($(this).attr('page')));
});
function SearchTerm() {
return jQuery.trim($("[id*=txtSearch]").val());
};
function GetStudents(pageIndex) {
$.ajax({
type: "POST",
url: "ShowSearchPaging.aspx/GetStudents",
data: '{searchTerm: "' + SearchTerm() + '", pageIndex: ' + pageIndex + '}',
contentType: "application/json; charset=utf-8",
dataType: "json",
success: OnSuccess,
failure: function (response) {
alert(response.d);
},
error: function (response) {
alert(response.d);
}
});
}
var row;
function OnSuccess(response) {
var xmlDoc = $.parseXML(response.d);
var xml = $(xmlDoc);
var customers = xml.find("Student");
if (row == null) {
row = $("[id*=GridViewStudent] tr:last-child").clone(true);
}
$("[id*=GridViewStudent] tr").not($("[id*=GridViewStudent] tr:first-child")).remove();
if (customers.length > 0) {
$.each(customers, function () {
var customer = $(this);
$("td", row).eq(0).html($(this).find("Name").text());
$("td", row).eq(1).html($(this).find("Email").text());
$("td", row).eq(2).html($(this).find("Class").text());
$("td", row).eq(3).html($(this).find("EnrollYear").text());
$("td", row).eq(4).html($(this).find("City").text());
$("td", row).eq(5).html($(this).find("Country").text());
$("[id*=GridViewStudent]").append(row);
row = $("[id*=GridViewStudent] tr:last-child").clone(true);
});
var pager = xml.find("dtForPaging");
$(".Pagination").jQ_Pager({
ActiveCssClass: "current",
PagerCssClass: "pager",
PageIndex: parseInt(pager.find("PageIndex").text()),
PageSize: parseInt(pager.find("PageSize").text()),
RecordCount: parseInt(pager.find("RecordCount").text())
});
$(".Name").each(function () {
var searchPattern = new RegExp('(' + SearchTerm() + ')', 'ig');
$(this).html($(this).text().replace(searchPattern, "<span style='background-color:red;color:white;'>" + SearchTerm() + "</span>"));
});
} else {
var empty_row = row.clone(true);
$("td:first-child", empty_row).attr("colspan", $("td", row).length);
$("td:first-child", empty_row).attr("align", "center");
$("td:first-child", empty_row).html("No records found for the search criteria.");
$("td", empty_row).not($("td:first-child", empty_row)).remove();
$("[id*=GridViewStudent]").append(empty_row);
}
};
</script>
</head>
<body>
<formid="form1"runat="server">
<div>
<tablestyle="border: solid15pxblue; width: 100%; vertical-align: central;">
<tr>
<tdstyle="padding-left: 20px; padding-top: 20px; padding-bottom: 20px; background-color: skyblue; text-align: center; font-family: Verdana; font-size: 20pt; color: red;">jQuery: Show Data and Paging in ASP.NET Grid View using jQuery</td>
</tr>
<tr>
<tdstyle="padding-left: 100px; padding-top: 20px; padding-bottom: 20px; background-color: #EE9A4D; font-family: Arial; font-size: 15pt; color: #E41B17">Enter Name To Search #:
<asp:TextBoxID="txtSearch"runat="server"/>
</td>
</tr>
<tr>
<td>
<tablestyle="width: 80%; text-align: center; vertical-align: central;">
<tr>
<tdstyle="text-align: left;">
<asp:GridViewID="GridViewStudent"runat="server"AutoGenerateColumns="False"Width="100%"
BackColor="White"BorderColor="#3366CC"BorderStyle="None"BorderWidth="1px"CellPadding="4"GridLines="Both">
<Columns>
<asp:BoundFieldDataField="Name"HeaderText="Student Name"HeaderStyle-HorizontalAlign="Left"ItemStyle-CssClass="Name"></asp:BoundField>
<asp:BoundFieldDataField="Email"HeaderText="Email"HeaderStyle-HorizontalAlign="Left"/>
<asp:BoundFieldDataField="Class"HeaderText="Class"HeaderStyle-HorizontalAlign="Left"/>
<asp:BoundFieldDataField="EnrollYear"HeaderText="Enroll Year"HeaderStyle-HorizontalAlign="Left"/>
<asp:BoundFieldDataField="City"HeaderText="City"HeaderStyle-HorizontalAlign="Left"/>
<asp:BoundFieldDataField="Country"HeaderText="Country"HeaderStyle-HorizontalAlign="Left"/>
</Columns>
<FooterStyleBackColor="#99CCCC"ForeColor="#003399"/>
<HeaderStyleBackColor="#003399"Font-Bold="True"ForeColor="#CCCCFF"/>
<PagerStyleBackColor="#99CCCC"ForeColor="#003399"HorizontalAlign="Left"/>
<RowStyleBackColor="White"ForeColor="#003399"/>
<SelectedRowStyleBackColor="#009999"Font-Bold="True"ForeColor="#CCFF99"/>
<SortedAscendingCellStyleBackColor="#EDF6F6"/>
<SortedAscendingHeaderStyleBackColor="#0D4AC4"/>
<SortedDescendingCellStyleBackColor="#D6DFDF"/>
<SortedDescendingHeaderStyleBackColor="#002876"/>
</asp:GridView>
</td>
</tr>
<tr>
<td>
<divclass="Pagination"style="background-color: orange; font-family: Verdana; font-size: 10pt; height: 30px; text-align: center; vertical-align: central; padding-top: 20px; padding-bottom: 10px;">
</div>
</td>
</tr>
</table>
</td>
</tr>
</table>
</div>
</form>
</body>
</html>

Now my aspx.cs code is:

using System;
using System.Collections.Generic;
using System.Configuration;
using System.Data;
using System.Data.SqlClient;
using System.Linq;
using System.Web;
using System.Web.Services;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace ShowSearchAndPagingUsing_jQuery
{
publicpartialclassShowSearchPaging : System.Web.UI.Page
{
privatestaticint PageSize = 5;
protectedvoid Page_Load(object sender, EventArgs e)
{
if (!IsPostBack)
{
BindGridViewHeader();
}
}
privatevoid BindGridViewHeader()
{
DataTable dtHeader = newDataTable();
dtHeader.Columns.Add("Name");
dtHeader.Columns.Add("Email");
dtHeader.Columns.Add("Class");
dtHeader.Columns.Add("EnrollYear");
dtHeader.Columns.Add("City");
dtHeader.Columns.Add("Country");
dtHeader.Rows.Add();
GridViewStudent.DataSource = dtHeader;
GridViewStudent.DataBind();
}
[WebMethod]
publicstaticstring GetStudents(string searchTerm, int pageIndex)
{
string query = "[GetStudentDataWithSearch]";
SqlCommand cmd = newSqlCommand(query);
cmd.CommandType = CommandType.StoredProcedure;
cmd.Parameters.AddWithValue("@SearchTerm", searchTerm);
cmd.Parameters.AddWithValue("@PageIndex", pageIndex);
cmd.Parameters.AddWithValue("@PageSize", PageSize);
cmd.Parameters.Add("@RecordCount", SqlDbType.Int, 4).Direction = ParameterDirection.Output;
return GetData(cmd, pageIndex).GetXml();
}
privatestaticDataSet GetData(SqlCommand cmd, int pageIndex)
{
SqlDataAdapter da;
DataSet ds = newDataSet();
SqlConnection con = newSqlConnection();
ds = newDataSet();
con.ConnectionString = @"Data Source=MYPC\SqlServer2k8; Initial Catalog=SchoolManagement; Integrated Security=true;";
cmd.Connection = con;
da = newSqlDataAdapter(cmd);
da.Fill(ds, "Student");
con.Open();
cmd.ExecuteNonQuery();
con.Close();
DataTable dt = newDataTable("dtForPaging");
dt.Columns.Add("PageIndex");
dt.Columns.Add("PageSize");
dt.Columns.Add("RecordCount");
dt.Rows.Add();
dt.Rows[0]["PageIndex"] = pageIndex;
dt.Rows[0]["PageSize"] = PageSize;
dt.Rows[0]["RecordCount"] = cmd.Parameters["@RecordCount"].Value;
ds.Tables.Add(dt);
return ds;
}
}
}
