This article explains how to use the TextBox AutoComplete feature in MVC 4 using the Web API and jQuery.
Getting Started
Use the following procedure to get started:
- Create a new project in Visual Studio 2012
- Select the "Web" tab and "ASP.NET MVC 4 Web Application"
- Supply the project name and the Save location and click "Ok" button
- Now select Web API project template and Razor view engine
- Check "Unit test project" if you want to create a unit test project
- Click the "OK" button

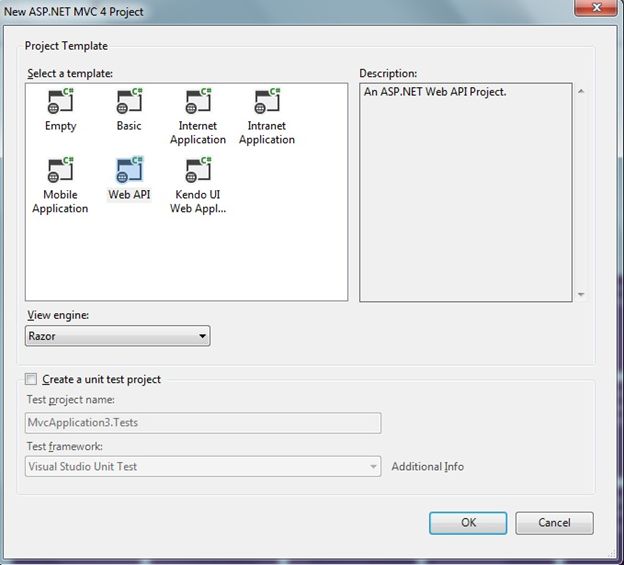

![New Project in Visual Studio 2012]()
Image 1.
This is my Portal database script.
USE [Portal]
GO
/****** Object: Table [dbo].[Portal_Contacts] Script Date: 11/14/2013 09:13:44 ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
CREATE TABLE [dbo].[Portal_Contacts](
[ItemID] [int] IDENTITY(0,1) NOT NULL,
[ModuleID] [int] NOT NULL,
[CreatedByUser] [nvarchar](100) NULL,
[CreatedDate] [datetime] NULL,
[Name] [nvarchar](50) NULL,
[Role] [nvarchar](100) NULL,
[Email] [nvarchar](100) NULL,
[Contact1] [nvarchar](250) NULL,
[Contact2] [nvarchar](250) NULL,
CONSTRAINT [PK_Contacts] PRIMARY KEY NONCLUSTERED
(
[ItemID] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]
GO
Now add a connection string in the web.config fle as in the following:
<connectionStrings>
<add name="PortalConnectionString" connectionString="Data Source=.;Initial Catalog=Portal;Integrated Security=True" providerName="System.Data.SqlClient" />
</connectionStrings>
Now add model classes as in the following:
public class PortalContacts
{
public int ItemId { get; set; }
// public string Name { get; set; }
public string Role { get; set; }
//public string Email { get; set; }
//public string Contact1 { get; set; }
//public string Contact2 { get; set; }
}
The following is my repository class:
public class PortalContactsRepository
{
public IEnumerable<PortalContacts> GetContacts()
{
using (var connection = new SqlConnection(ConfigurationManager.ConnectionStrings["PortalConnectionString"].ConnectionString))
{
connection.Open();
using (SqlCommand command = new SqlCommand(@"SELECT [ItemID]
,[Name]
,[Role]
,[Email]
,[Contact1]
,[Contact2]
FROM [Portal].[dbo].[Portal_Contacts]", connection))
{
// Make sure the command object does not already have
// a notification object associated with it.
command.Notification = null;
if (connection.State == ConnectionState.Closed)
connection.Open();
using (var reader = command.ExecuteReader())
return reader.Cast<IDataRecord>()
.Select(x => new PortalContacts()
{
ItemId = x.GetInt32(0),
// Name = x.GetString(1),
Role = x.GetString(2),
//Email = x.GetString(3),
//Contact1 = x.GetString(4),
//Contact2 = x.GetString(5)
}).ToList();
}
}
}
}
Call the repository in the controller as in the following:
using MvcApplication2.Models;
public class ValuesController : ApiController
{
PortalContactsRepository objContacts = new PortalContactsRepository();
// GET api/values
public IEnumerable<PortalContacts> Get()
{
List<PortalContacts> plist = new List<PortalContacts>();
plist = objContacts.GetContacts().ToList();
return plist;
}
// GET api/values/5
public string Get(int id)
{
return "value";
}
// POST api/values
public void Post([FromBody]string value)
{
}
// PUT api/values/5
public void Put(int id, [FromBody]string value)
{
}
// DELETE api/values/5
public void Delete(int id)
{
}
}
We are done with the models and controller part; now for the view as in the following:
<header>
<div class="content-wrapper">
<div class="float-left">
<p class="site-title">
<a href="~/">Text Box Auto Complete Sample</a></p>
</div>
</div>
</header>
<script src="~/Scripts/jquery-1.7.1.min.js"></script>
<script src="~/Scripts/jquery-ui-1.8.20.min.js"></script>
<div id="body">
<input type="text" id="search" placeholder="Search for a Contact" required />
<input type="submit" value="Go" id="submit" />
</div>
<script type="text/javascript">
$('#search').autocomplete({
source: function (request, response) {
var autocompleteUrl = '/api/values';
$.ajax({
url: autocompleteUrl,
type: 'GET',
cache: false,
dataType: 'json',
success: function (json) {
// call autocomplete callback method with results
response($.map(json, function (data, id) {
return {
label: data.Role,
value: data.ItemId
};
}));
},
error: function (xmlHttpRequest, textStatus, errorThrown) {
console.log('some error occured', textStatus, errorThrown);
}
});
},
minLength: 2,
select: function (event, ui) {
alert('you have selected ' + ui.item.label + ' ID: ' + ui.item.value);
$('#search').val(ui.item.label);
return false;
}
});
</script>
Hit F5 to see the result.

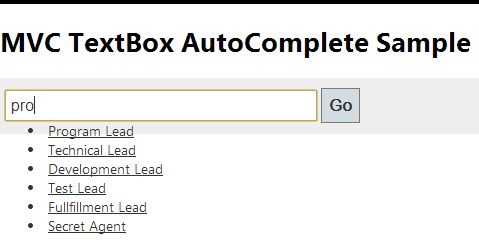

![AutoComplete Textbox in MVC]()
Image 2.

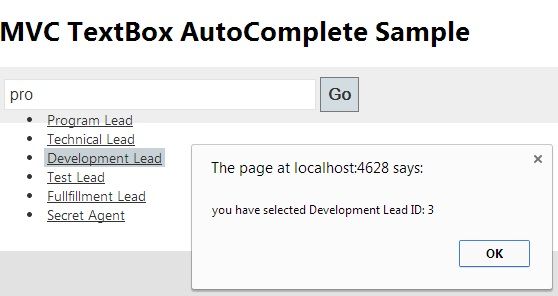

![Select from AutoComplete Textbox in MVC]()
Image 3.
