ControlTemplate in WPF

The ControlTemplate contains the tree of elements that define the desired look. After you define a ControlTemplate you can attach it to any Control or Page by setting it's TemplateProperty.

In this example I am also showing you how to use Triggers with ControlTemplate. I am using Triggers on ButtonClick and MouseOver.

<Window x:Class="WpfApplication4.Window1"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    Title="Window1" Height="300" Width="300">

    <Grid>

        <Grid.Resources>

            <ControlTemplate x:Key="buttonTemplate">

                <Grid>

                    <Ellipse Width="160" Height="160" x:Name="outerCircle">

                        <Ellipse.Fill>

                            <LinearGradientBrush StartPoint="0,0" EndPoint="0,1">

                                <GradientStop Offset="0" Color="Green"></GradientStop>

                                <GradientStop Offset="1" Color="Purple"></GradientStop>

                            </LinearGradientBrush>

                        </Ellipse.Fill>

                    </Ellipse>

                    <Ellipse Width="120" Height="120">

                        <Ellipse.Fill>

                            <LinearGradientBrush StartPoint="0,0" EndPoint="0,1">

                                <GradientStop Offset="0" Color="Gray"></GradientStop>

                                <GradientStop Offset="1" Color="Blue"></GradientStop>

                            </LinearGradientBrush>

                        </Ellipse.Fill>

                    </Ellipse>

                </Grid>

                <ControlTemplate.Triggers>

                    <Trigger Property="Button.IsMouseOver" Value="True">

                        <Setter TargetName="outerCircle" Property="Fill" Value="Black"></Setter>

                    </Trigger>

                    <Trigger Property="Button.IsPressed" Value="True">

                        <Setter Property="RenderTransform">

                            <Setter.Value>

                                <ScaleTransform ScaleX=".8" ScaleY=".8"></ScaleTransform>

                            </Setter.Value>

                        </Setter>

                        <Setter Property="RenderTransformOrigin" Value=".6,.6"></Setter>

                    </Trigger>

                </ControlTemplate.Triggers>

            </ControlTemplate>

        </Grid.Resources>

        <Button Template="{StaticResource buttonTemplate}">Click Me</Button>

    </Grid>

</Window>

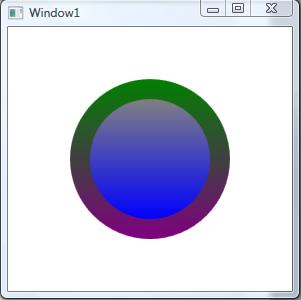

Result looks like this :


Figure 1.

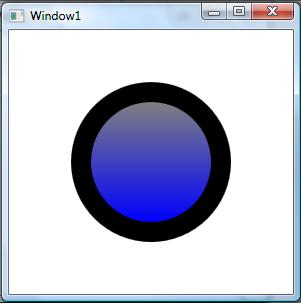

After MouseOver:


Figure 2.

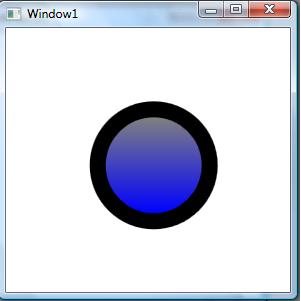

After KeyPressed:


This is it.
