Here, we will see how to create select, insert, update, delete statements using stored procedure. Let's take a look at a practical example. We create a table.
Creating Table
- CREATE TABLE employee(
-
- id INTEGER NOT NULL PRIMARY KEY,
-
- first_name VARCHAR(10),
-
- last_name VARCHAR(10),
-
- salary DECIMAL(10,2),
-
- city VARCHAR(20),
-
- )
Now insert some values in the table and using select statement to select a table.
- INSERT INTO employee VALUES (2, 'Monu', 'Rathor',4789,'Agra');
-
- GO
-
- INSERT INTO employee VALUES (4, 'Rahul' , 'Saxena', 5567,'London');
-
- GO
-
- INSERT INTO employee VALUES (5, 'prabhat', 'kumar', 4467,'Bombay');
-
- go
-
- INSERT INTO employee VALUES (6, 'ramu', 'kksingh', 3456, 'jk');
-
- go
-
- select * from employee

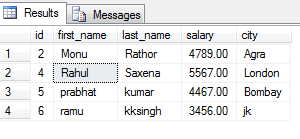

Table looks like this.
Figure 1
Stored procedure for Select, insert, update, delete
Here, we create a stored procedure for select,insert,update,delete statements to select the data from the table.
- Alter PROCEDURE MasterInsertUpdateDelete
- (
- @id INTEGER,
- @first_name VARCHAR(10),
- @last_name VARCHAR(10),
- @salary DECIMAL(10,2),
- @city VARCHAR(20),
- @StatementType nvarchar(20) = ''
- )
- AS
- BEGIN
- IF @StatementType = 'Insert'
- BEGIN
- insert into employee (id,first_name,last_name,salary,city) values( @id, @first_name, @last_name, @salary, @city)
- END
- IF @StatementType = 'Select'
- BEGIN
- select * from employee
- END
- IF @StatementType = 'Update'
- BEGIN
- UPDATE employee SET
- First_name = @first_name, last_name = @last_name, salary = @salary,
- city = @city
- WHERE id = @id
- END
- else IF @StatementType = 'Delete'
- BEGIN
- DELETE FROM employee WHERE id = @id
- END
- end
Now press F5 to execute the stored procedure.
Now open object explorer and select storeprocedure MasterInsertUpdateDelete.
Stored Procedure to Check Insert
StatementType = 'Insert'

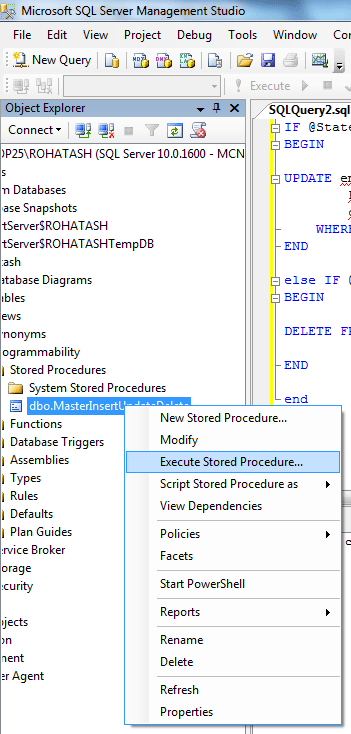

MasterInsertUpdateDelete -> right click select execute stored procedure...
Figure2

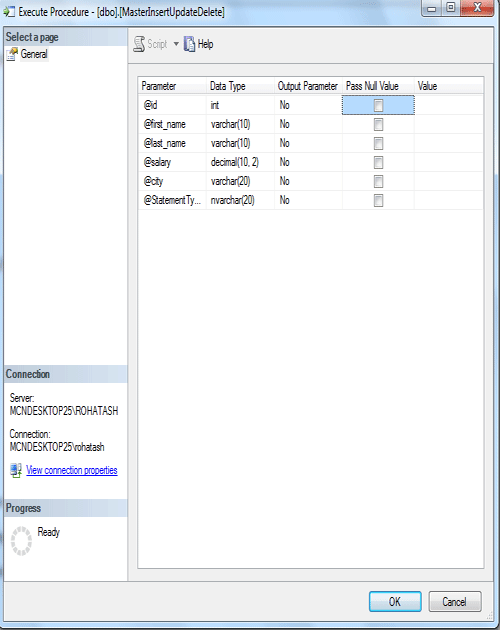

Execute procedure window will be open.
Figure3

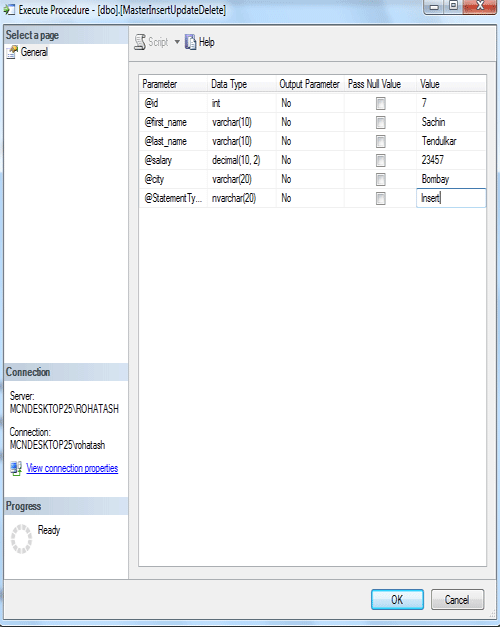

Now for insert we fill the data in required field.
StatementType=insert
Figure4

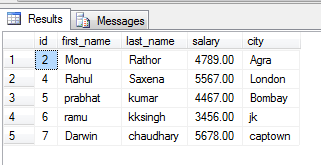

Click on the ok Button. and check in the employee table with following inserted data.
Figure5
Stored Procedure to Check update
MasterInsertUpdateDelete -> right click select execute stored procedure...
Execute procedure window will be open.

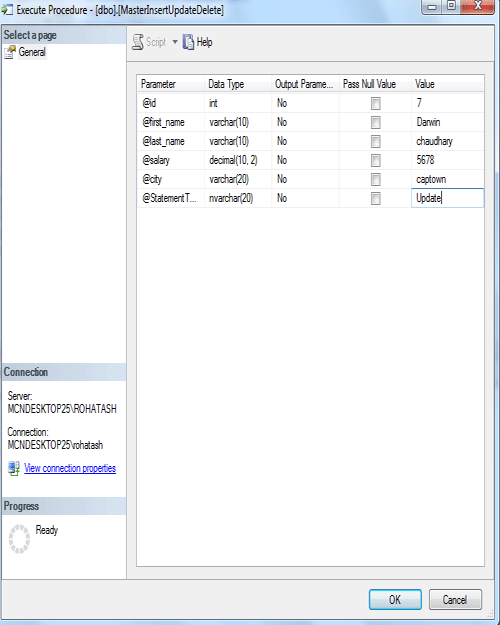

StatementType = 'Update'
Figure6
Click on the ok Button. and check in the employee table with following updated data where id is 7.
Figure7
Stored Procedure to Check Delete
MasterInsertUpdateDelete -> right click select execute stored procedure...
Execute procedure window will be open.

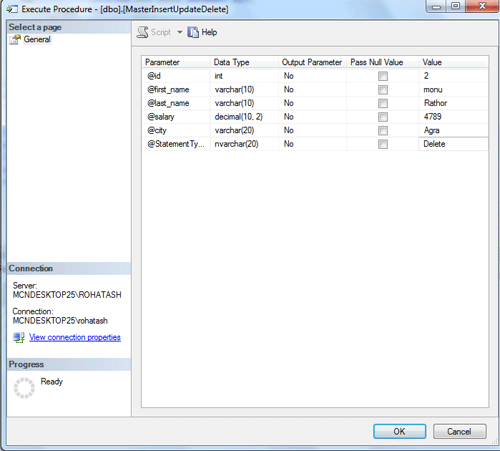

StatementType = 'Delete'
Figure8
we delete record from table which has id=2
Click on the ok Button. and check in the employee table with following deleted data where id is 2.
Figure9
