Animated Menu Control using jQuery

Introduction: In this article we are going to explore how we use jQuery in an ASP.NET menu control. Further in this article we will see that how it is possible to create a flexible menu in ASP.NET menu control by using jQuery in which we are taking some menu items and also we will add their children items in the menu control. Both the parent item and the children items will animate whenever we plac the mouse over an item. Here in this article we are going to implement the animate as well as hover attributes to build to get such type of effects using jQuery. The functionality of that attributes is whenever we hover on the item of the menu control it will animate or extend their size at the given width and will get back to their position, and their sub items as well. Let's see how we will produce such type of effects inside the ASP.NET control.

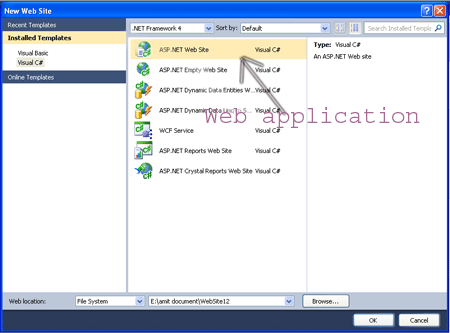

Step 1: Firstly we have to create a Web Application

  • Go to Visual Studio 2010
  • Create the web Application
  • Click OK

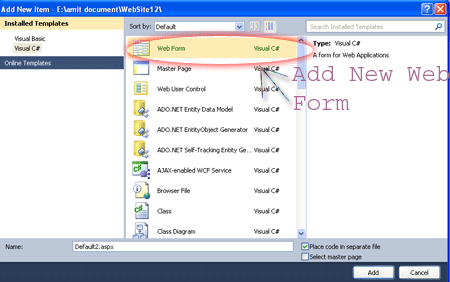

Step 2: Secondly you have to add a new page to the website

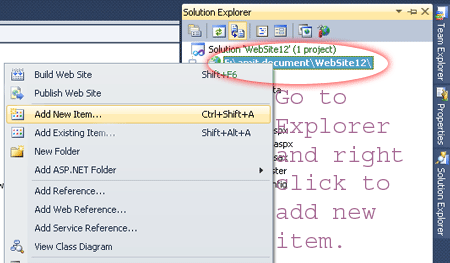

  • Go to the Solution Explorer
  • Right Click on Project name
  • Select add new item
  • Add new web page and give it a name
  • Click OK



Step 3: In this step we have to placed a menu item to the page with adding some items and with their sub items let see the code given below:

Code:

<
asp:Menu ID="m1" runat="server" Orientation="Horizontal" RenderingMode="List">
     <Items>
         <asp:MenuItem NavigateUrl="~/Default2.aspx" ImageUrl="~/img/home5.gif" Text="Home" Value="Home"  />
         <asp:MenuItem NavigateUrl="~/About.aspx" ImageUrl="~/img/friend.gif" Text="About Us" Value="AboutUs" />
         <asp:MenuItem NavigateUrl="~/P.aspx" ImageUrl="~/img/boximg.gif"
             Text="Products" Value="Products" >
             <asp:MenuItem Text="iPhone" Value="iPhone"></asp:MenuItem>
             <asp:MenuItem Text="Smartphones" Value="Smartphones"></asp:MenuItem>
             <asp:MenuItem Text="iPod" Value="iPod"></asp:MenuItem>
         </asp:MenuItem>
         <asp:MenuItem NavigateUrl="~/C.aspx" ImageUrl="~/img/chatimg.gif" Text="Contact Us" Value="ContactUs" />
         <asp:MenuItem Text="Articles" Value="Articles" ImageUrl="~/img/article.gif">
             <asp:MenuItem Text="ASP.NET" Value="ASP.NET"></asp:MenuItem>
             <asp:MenuItem Text="JAVA" Value="JAVA"></asp:MenuItem>
             <asp:MenuItem Text="PHP" Value="PHP"></asp:MenuItem>
         </asp:MenuItem>
     </Items>
</
asp:Menu
>

Step 4: Further the above code which is the code for the ASP.NET menu control having items and sub items also have the navigate url and the imageurl.

Let see what will the HTML code generated by the browser for the this ASP.NET menu control which is given below:


Browser Code:

<ul class="level1">
      <li><a class="level1" href="Default2.aspx"><img src="img/home5.gif" alt="" title="" class="icon" />Home</a></li>
      <li><a class="level1" href="About.aspx"><img src="img/friend.gif" alt="" title="" class="icon" />About Us</a></li>
      <li><a class="popout level1" href="P.aspx"><img src="img/boximg.gif" alt="" title="" class="icon" />Products</a>
         <ul class="level2">
             <li><a class="level2" href="#" onclick="__doPostBack(&#39;Menu1&#39;,&#39;Products\\iPhone&#39;)">iPhone</a></li>
             <li><a class="level2" href="#" onclick="__doPostBack(&#39;Menu1&#39;,&#39;Products\\Smartphones&#39;)">Smartphones</a></li>
             <li><a class="level2" href="#" onclick="__doPostBack(&#39;Menu1&#39;,&#39;Products\\iPod&#39;)">iPod</a></li>

       </ul>
      </li>
     <li><a class="level1" href="C.aspx"><img src="img/chatimg.gif" alt="" title="" class="icon" />Contact Us</a></li>
     <li><a class="popout level1" href="#" onclick="__doPostBack(&#39;Menu1&#39;,&#39;Articles&#39;)"><img src="img/article.gif" alt="" title="" class="icon" />Articles</a>
         <ul class="level2">
             <li><a class="level2" href="#" onclick="__doPostBack(&#39;Menu1&#39;,&#39;Articles\\ASP.NET&#39;)">ASP.NET</a></li>
             <li><a class="level2" href="#" onclick="__doPostBack(&#39;Menu1&#39;,&#39;Articles\\JAVA&#39;)">JAVA</a></li>
             <li><a class="level2" href="#" onclick="__doPostBack(&#39;Menu1&#39;,&#39;Articles\\PHP&#39;)">PHP</a></li>
        </ul>
     </li
>
</ul>

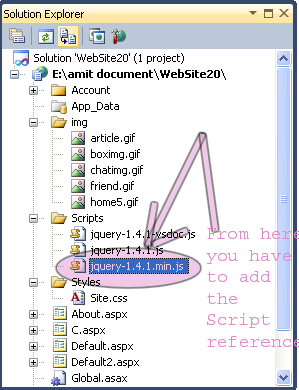

Step 5: In this step we are going to see that see from where the js reference will be added to the source page of the default2.aspx page.


Step 6: Now we are going to write the script code which will be inside either on the head section or in the body section it will depend upon you which way you like most to placed it.

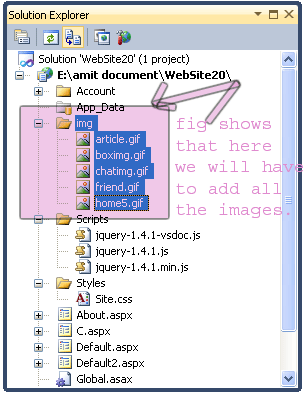

Step 7: In this step we have to add some images to application for which you have to make a folder named as img and add the images in it. Let see from where you have to add the images.

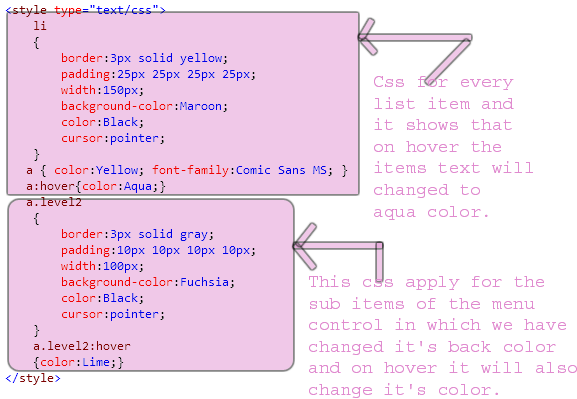

Step 8: In this step we will write the style sheet code for the ASP.NET menu control which is given below:

StyleSheet Code:

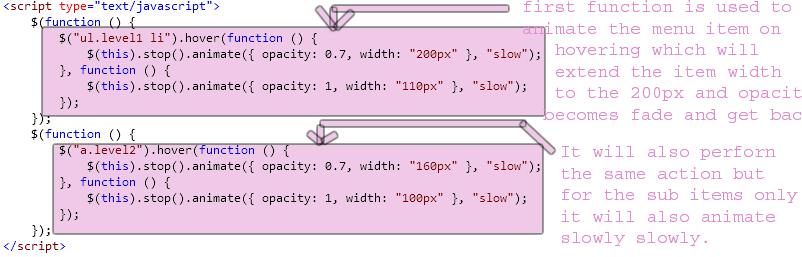

Step 9: In this step we have to write the jQuery code for animating on hover at the item of menu control let see the code given below:

jQuery Code:


Code Description: We have seen the HTML code given above which have created the unordered list. $("ul.level1 li").hover(function () {  If we want to access the list element only from our menu (not other list element sin the page), we need to use the following jQuery selector: "ul.level1 li", which will find all li elements which have parent element ul with class level1. Further the code $(this).stop().animate({ opacity: 0.7, width: "160px" }, "slow"); I'm using hover, so that the animation will occur once we go over the menu item. The two different functions are one for the over, the other for the out effect.

Step 10: In this step we will write the complete code for the default2.aspx page which is given below:

Code:

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default2.aspx.cs" Inherits="Default2" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
    <html xmlns
="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <title>jQuery in ASP.NET menu</title>
    <style type="text/css">
        li
        {
            border:3px solid yellow;
            padding:25px 25px 25px 25px;
            width:150px;
            background-color:Maroon;
            color:Black;
            cursor:pointer;
        }
       a { color:Yellow; font-family:Comic Sans MS; }
       a:hover{color:Aqua;}
       a.level2
        {
            border:3px solid gray;
            padding:10px 10px 10px 10px;
            width:100px;
            background-color:Fuchsia;
            color:Black;
            cursor:pointer;
        }
        a.level2:hover
        {color:Lime;}
    </style>
    <script type="text/javascript" src="Scripts/jquery-1.4.1.min.js"></script>
    <script type="text/javascript">
        $(function () {
            $("ul.level1 li").hover(function () {
                $(this).stop().animate({ opacity: 0.7, width: "200px" }, "slow");
            }, function () {
                $(this).stop().animate({ opacity: 1, width: "110px" }, "slow");
            });
        });
        $(function () {
            $("a.level2").hover(function () {
                $(this).stop().animate({ opacity: 0.7, width: "160px" }, "slow");
            }, function () {
                $(this).stop().animate({ opacity: 1, width: "100px" }, "slow");
            });
        });
    </script
>
</head>
<
body>
    <form id="form1" runat="server">
    <div id="menu">
        <asp:Menu ID="m1" runat="server" Orientation="Horizontal" RenderingMode="List">
            <Items>
                <asp:MenuItem NavigateUrl="~/Default2.aspx" ImageUrl="~/img/home5.gif" Text="Home" Value="Home"  />
                <asp:MenuItem NavigateUrl="~/About.aspx" ImageUrl="~/img/friend.gif" Text="About Us" Value="AboutUs" />
                <asp:MenuItem NavigateUrl="~/P.aspx" ImageUrl="~/img/boximg.gif"
                    Text="Products" Value="Products" >
                    <asp:MenuItem Text="iPhone" Value="iPhone"></asp:MenuItem>
                    <asp:MenuItem Text="Smartphones" Value="Smartphones"></asp:MenuItem>
                    <asp:MenuItem Text="iPod" Value="iPod"></asp:MenuItem>
                </asp:MenuItem>
                <asp:MenuItem NavigateUrl="~/C.aspx" ImageUrl="~/img/chatimg.gif" Text="Contact Us" Value="ContactUs" />
                <asp:MenuItem Text="Articles" Value="Articles" ImageUrl="~/img/article.gif">
                    <asp:MenuItem Text="ASP.NET" Value="ASP.NET"></asp:MenuItem>
                    <asp:MenuItem Text="JAVA" Value="JAVA"></asp:MenuItem>
                    <asp:MenuItem Text="PHP" Value="PHP"></asp:MenuItem>
                </asp:MenuItem>
            </Items>
        </asp:Menu>
    </div>
    </form
>
</body>
</
html>

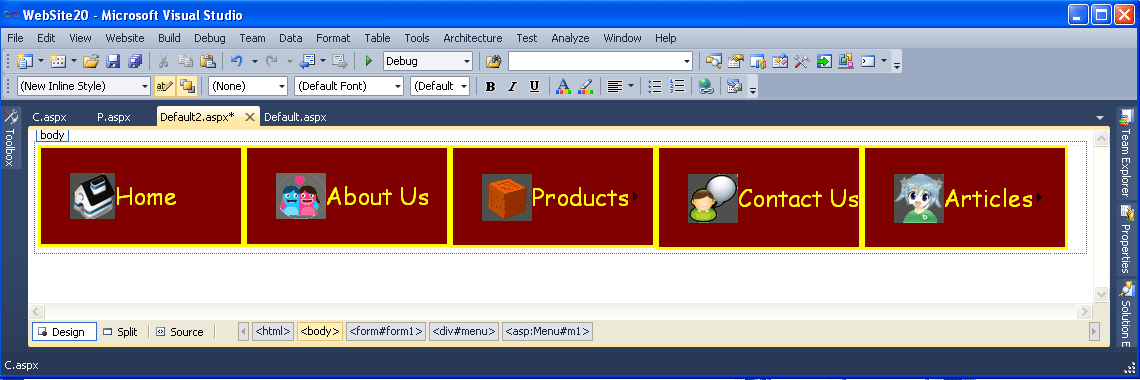

Step 11: In this step we will see the design page of the Default2.aspx page which is given below:


Step 12: In this step you will have to run the Default2.aspx page by pressing F5 and the output is given below:

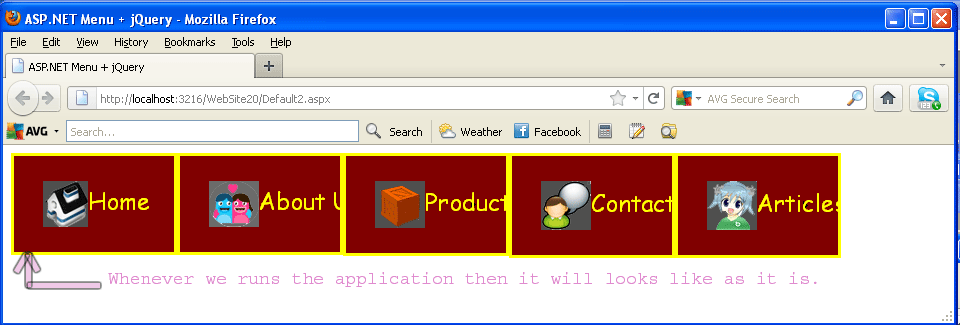

Output1:

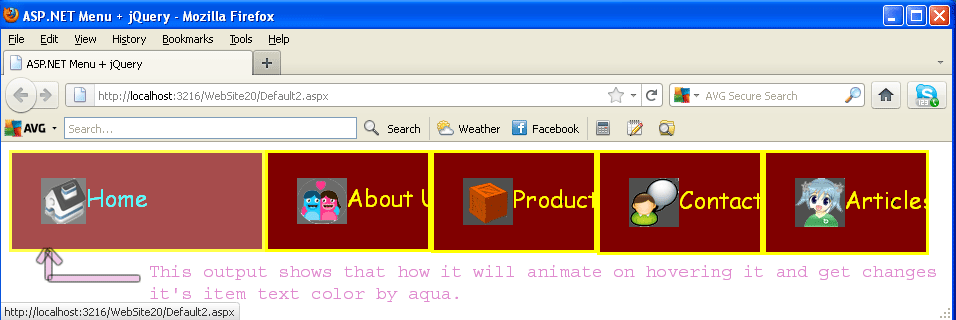

Output2:

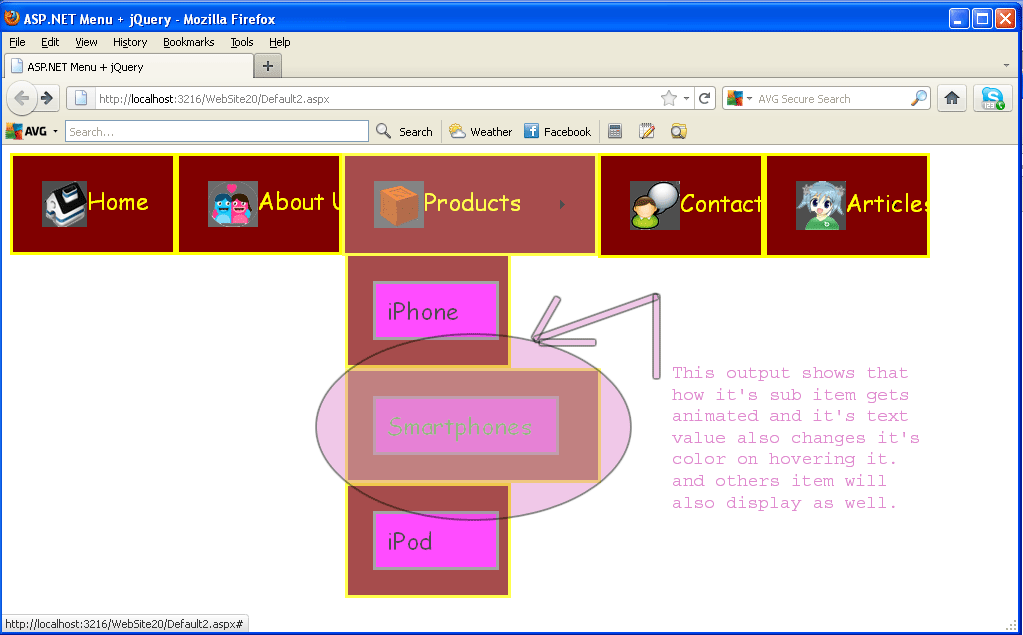

Output3:
