Embed PDFs into a Web Page with a VB Built Custom Control in VB.NET

Introduction

This article describes a simple approach to embedding and displaying PDF documents in a web page through the use of a simple ASP.NET 2.0 VB built custom server control. The approach indicated herein allows the developer the opportunity to control the web page content surrounding the embedded PDF; this is in contrast to linking directly to a PDF which uses the entire web page to display the PDF but does not otherwise permit the developer to control the appearance of the page.

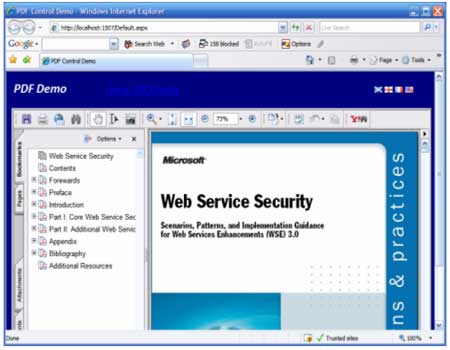

Figure 1: Embedding and Displaying PDF Documents in a Web Page.


Figure 2: Linking directly to a PDF.

Getting Started

There are two solutions included with this download, one is web custom control library containing a single custom control used to render out the PDF, and the other is a test web site used to display a PDF through the use of the control.

Figure 3 (below) shows the solution explorer for the project. The project appearing at the bottom of the solution is the test web site, it contains only a single web page (default) and it includes a PDF file included for testing purposes. The bottom project is the web custom control library with the single control included ("ShowPdf ").

The references in the test web site are per the default configuration; the custom control library references include the default references but also include an added reference to System.Design which is necessary to support design time usage of the control.


Figure 3: Solution Explorer with Both Projects Visible.

The Web Custom Control Project

Code: ShowPdf.vb.

Within the web custom control project, there is a single custom control provided in this example. The example is entitled, "ShowPdf.vb". The code for the project is very simple and should take very little time to implement. The control code starts out with the default imports and class declaration:

Imports System

Imports System.Collections.Generic

Imports System.ComponentModel

Imports System.Text

Imports System.Web

Imports System.Web.UI

Imports System.Web.UI.WebControls



<DefaultProperty("FilePath"), ToolboxData("<{0}:PdfViewVB runat=server></{0}:PdfViewVB>")> _

Public Class PdfViewVB

Inherits WebControl

The class contains a single property called FilePath, and the attributes for the class assign the default property attribute to point to the single added property. What this accomplishes is simple, when the control is dropped into a web page or selected by the developer at design time, the property editor will default to select this property. The toolbox data attribute is setup for a custom server control (runat=server).

After the class declaration, a declarations region was added and a single local member variable was defined and included within that region. The local member variable is used to retain the path to the PDF document loaded into the control.

#Region "Declarations"



Dim mFilePath As String



#End Region

The next bit of code in the class is contained in a new region called "Properties". Within this region is a single property entitled, "FilePath". The property is used to provide public member access to the file path member variable. The attributes associated with this property indicate that the property is visible (Browsable) in the property editor, defines the property editor category under which to show the property in the editor, and provides the text used to describe the property which viewed in the property editor (Description). The editor defined specifies an association between this property and the URL Editor; when the developer using the control edits the property at design time, the URL editor will be displayed to allow the developer to navigate to and select a target file based using this editor. The System.Design reference is needed to support this portion of the design.

#Region "Properties"



<Category("Source File")> _

<Browsable(True)> _

<Description("Set path to source file.")> _

<Editor(GetType(System.Web.UI.Design.UrlEditor),

GetType(System.Drawing.Design.UITypeEditor))> _

Public Property FilePath() As String

Get

Return mFilePath

End Get

Set(ByVal value As String)

Dim tilde As Integer = -1

tilde = value.IndexOf("~")



If (tilde <> -1) Then

mFilePath = value.Substring((tilde + 2)).Trim()

Else

mFilePath = value

End If

End Set

End Property



#End Region

Notice that in the set side of the property, the code is written to remove the tilde from in front of the file path if the tilde is present. If the tilde is left intact after setting the property to point to a file using the URL Editor, the tilde would otherwise be included in the HTML rendered to the page and the file would not be found. It is necessary to strip this character from the file path in order to use the URL Editor to set this property at design time.

The last bit of code needed to finish the control is contained in a region called "Rendering". This region contains a single method used to override the RenderContents method. Within RenderContents, a string builder is created and then populated with the HTML needed to render the control on a page. In this instance, the simplest way to display the PDF is through the use of an IFrame. Looking at the string builder, note that the IFrame contains the source property which points to the file path property added earlier in this project. Further, the width and height of the IFrame is set to equal the height and width of the control itself. After the string builder is populated, the content is dumped into a div. The entire control is constructed within a try catch block, if the try fails, the catch block will render out "Display PDF Control" into a box on the page in lieu of showing the control. When the control is first added to the page, it does not point to a file and so the try will fail, this prevents an error from occurring during that initial placement of the control.

#Region "Rendering"



Protected Overrides Sub RenderContents(ByVal writer As HtmlTextWriter)



Try

Dim sb As New StringBuilder()

sb.Append("<iframe src=" & FilePath.ToString() & " ")

sb.Append("width=" & Width.ToString() & " height=" &

Height.ToString() + " ")

sb.Append("<View PDF: <a href=" & FilePath.ToString() & "</a></p> ")

sb.Append("</iframe>")



writer.RenderBeginTag(HtmlTextWriterTag.Div)

writer.Write(sb.ToString())

writer.RenderEndTag()



Catch ex As Exception



' with no properties set, this will render "Display PDF Control"

in a

' a box on the page

writer.RenderBeginTag(HtmlTextWriterTag.Div)

writer.Write("Display PDF Control")

writer.RenderEndTag()



End Try



End Sub



#End Region

The Test Web Project

Code: Default Page

The default page included in the web project is provided to serve as a test bed for the control. The page contains only a label used as a banner, a link button pointing directly to a PDF file, a few images for eyewash, and the custom control with its file path property also pointing to the PDF. The PDF added to the web site content is also included in the web project. When this site is viewed, the control will display the PDF document in the defined area, selection of the hyperlink will open the same PDF into a separate window; I merely included the hyperlink for comparison purposes.

Summary.

This article demonstrates an approach that may be used to develop a custom control through which PDFs may be embedded into a web page. The purpose of the control is to allow the PDF to be included within a web page as opposed to the alternative of opening the PDF into a separate page where the PDF consumes the entire available display area and where the user cannot control the appearance of that page. Naturally, the code included in the custom control could be added directly into any page and the same effect could be achieved, however, by adding the code once into a custom control, the developer need only drop the control into the form and set the file path and dimensions to display PDFs without repeating the manual addition of the code each time it is needed.
