Finding and Listing Processes in VB.NET

 Introduction:



This article shall describe a very simple approach to finding out information regarding the processes currently running on a machine. The demonstration application includes a collection a methods that may be used to search for specific processes using different criteria or to list out running processes.



Such information may be useful for a variety of reason, for example, if an application is dependent upon another application and that primary application must be up and running as a precursor to launching the dependent application, the methods contained in this demonstration will permit the code to test for the presence of the primary application prior to loading the dependent application. If, for example, an application were dependent upon a running copy of calc.exe, the code contained in the demonstration could be used to determine whether or not calc.exe was running prior to allowing the dependent application to run.



Alternatively, if an application launches other applications, the methods described herein could be used to determine whether or not that application successfully launched.



Everything contained in this demonstration is based upon the use of the framework System.Management library. Aside from what is described in this demonstration, there are many other useful things that may be accomplished through the use of this library, for example one may start or kill processes using elements from System.Management.



This demonstration includes a class containing several methods used to either generate a list of applications or processes running on a machine, or to search for specific processes by means of different search criteria such as the application name, the process name, the process ID, or the process image name. The list related methods also provide information regarding other details about the process such as the memory size or caption bar title. What is demonstrated is only a small subset of the information available.

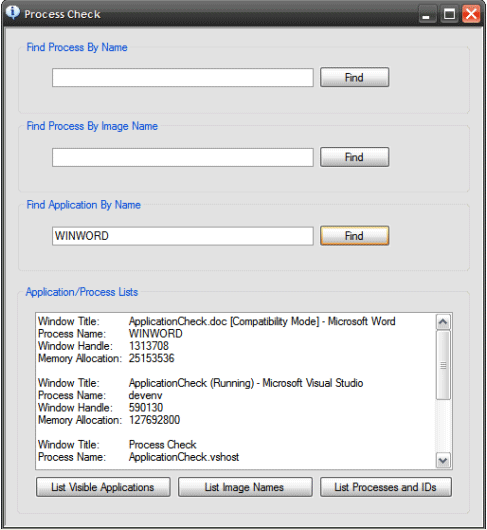

Figure 1: Getting a List of Running Applications



Getting Started:



The solution contains a single Windows Forms project called "ApplicationCheck.vb" which was written in VISUAL BASIC 2005; the application contains a form (Form1.vb) and a class (ProcessValidation.vb).

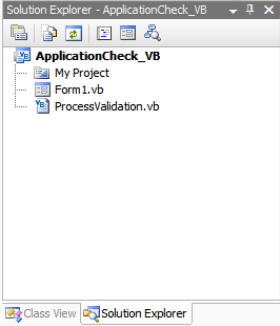

Figure 2:  Solution Explorer with the Project Visible



Code:  ProcessValidation (ProcessValidation.vb)



All of the code used to list processes or search for running processes is contained in the ProcessValidation class.



The code for this class begins with the following:



Imports System.Text

Imports System.Management



Public Class ProcessValidation



Note that the System.Management library as been added to the imports for this class. Following the imports, the declaration of the class, the remainder of the class is used to provide the methods used to list process information or to search for the presence of a





current process:



The class and all contained methods were declared as shared and are therefore immediately available to the application.



The first method available in the class is the List All Processes method. This method creates an instance of the Management Class, passing in the argument "Win32_Process". This is then used to populate a management object will a collection of all instances of the class. The list is then built by iterating through the collection and adding the process name and ID to the stringbuilder. The method returns the string to the calling method which is, in this case used to print the list of processes and IDs to a textbox contained in the demonstration application. Note that you can pass other optional arguments to the management class aside from "Win32_Process"; for example, to get a list of services, you can pass in the argument "Win32_Services".



''' <summary>

''' Returns a string containing information on running processes

''' </summary>

''' <returns></returns>

''' <remarks></remarks>

 Public Shared Function ListAllProcesses() As String



    Dim sb As New StringBuilder()



    ' list out all processes and write them into a stringbuilder

    Dim MgmtClass As New ManagementClass("Win32_Process")

    Dim mo As New ManagementObject()



    For Each mo In MgmtClass.GetInstances



    sb.Append("Name:  " & mo("Name") & Environment.NewLine)

    sb.Append("ID:  " & mo("ProcessId") & Environment.NewLine)

    sb.Append(Environment.NewLine)

    Next

    Return sb.ToString()

 End Function



Using a slightly different approach, the next method lists all running applications by first getting a list of all local processes and then checking to see if the process has a visible Main Window Title (by checking to see if the caption bar contains text). If the process contains a window with a caption showing some text, this method will regard it as an open and visible application and will then list out the title, process name, window handle, and memory allocation for that particular process.



''' <summary>

''' Returns a string containing information on running processes

''' </summary>

''' <returns></returns>

''' <remarks></remarks>

Public Shared Function ListAllApplications() As String



    Dim sb As New StringBuilder()

    Dim p As New Process()



    For Each p In Process.GetProcesses(".")

        Try

            If p.MainWindowTitle.Length > 0 Then

                sb.Append("Window Title:  " +

                p.MainWindowTitle.ToString() + Environment.NewLine)

                sb.Append("Process Name:  " + p.ProcessName.ToString() +

                Environment.NewLine)

                sb.Append("Window Handle:  " +

                p.MainWindowHandle.ToString() + Environment.NewLine)

                sb.Append("Memory Allocation: " +

                p.PrivateMemorySize64.ToString() + Environment.NewLine)

                sb.Append(Environment.NewLine)

            End If



        Catch

        End Try

        next



    Return sb.ToString()

End Function



The next method is used to list all processes by image name. This method works in a manner consistent with the previous example but obtains the module information associated with the process and then returns a string containing module level information to include the image name, file path, memory size, and software version.



''' <summary>

''' List all processes by image name

''' </summary>

''' <returns></returns>

''' <remarks></remarks>

Public Shared Function ListAllByImageName() As String

    Dim sb As New StringBuilder()

    Dim p As New Process()

    For Each p In Process.GetProcesses(".")

        Try

            Dim pm As ProcessModule



            For Each pm In p.Modules

                sb.Append("Image Name:  " + pm.ModuleName.ToString() +

                Environment.NewLine)

                sb.Append("File Path:  " + pm.FileName.ToString() +

                Environment.NewLine)

                sb.Append("Memory Size:  " +

                pm.ModuleMemorySize.ToString() + Environment.NewLine)

                sb.Append("Version:  " +

                pm.FileVersionInfo.FileVersion.ToString() +

                Environment.NewLine)

                sb.Append(Environment.NewLine)

            Next

        Catch

        End Try

    Next

    Return sb.ToString()

End Function



The next method is used to search for a running instance of a process on the local machine by process name. If the method is able to locate the process, it will return a true; if the process is not found, the method will return a false.





''' <summary>

''' Determine if a process is running by name

''' </summary>

''' <param name="processName"></param>

''' <returns></returns>

''' <remarks></remarks>

Public Shared Function CheckForProcessByName(ByVal processName As String)

As Boolean



    Dim MgmtClass As New ManagementClass("Win32_Process")

    Dim rtnVal As Boolean = False

    Dim mo As New ManagementObject()



    For Each mo In MgmtClass.GetInstances()



        If mo("Name").ToString().ToLower() = processName.ToLower() Then

            rtnVal = True

        End If

    Next

    Return rtnVal

End Function



The next method is used to search for a running instance of a process on the local machine by image name. If the method is able to locate the process, it will return a true; if the process is not found, the method will return a false.



''' <summary>

''' Determine if a process is running by image name

''' </summary>

''' <param name="processImageName"></param>

''' <returns></returns>

''' <remarks></remarks>

Public Shared Function CheckForProcessByImageName(ByVal processImageName As StringAsBoolean



    Dim rtnVal As Boolean = False

    Dim p As New Process()



    For Each p In Process.GetProcesses(".")

        Dim pm As ProcessModule

        Try

            For Each pm In p.Modules

                If pm.ModuleName.ToLower() = processImageName.ToLower() Then

                    rtnVal = True

                End If



            Next



        Catch

            ' do nothing

        End Try

    Next

    Return rtnVal

End Function



The next method is used to search for a running instance of a process on the local machine by application name. If the method is able to locate the process, it will return a true; if the process is not found, the method will return a false.



''' <summary>

''' Determine if an application is running by name

''' </summary>

''' <param name="AppName"></param>

''' <returns></returns>

''' <remarks></remarks>

Public Shared Function CheckForApplicationByName(ByVal AppName As String)

As Boolean

    Dim rtnVal As Boolean = False

    Dim p As New Process()

    For Each p In Process.GetProcesses(".")

        Try

            If p.ProcessName.ToLower() = AppName.ToLower() Then

                rtnVal = True

            End If

        Catch

            ' do nothing

        End Try

    Next

    Return rtnVal

End Function



Code:  Main Form (Form1.vb):



This form class is used to demonstrate the use of the methods exposed in theProcessValidation.vb class. The form class is pretty simple and the annotation describes the purpose of each part of the class.



Public Class Form1

''' <summary>

''' List all running processes and their IDs

''' </summary>

''' <param name="sender"></param>

''' <param name="e"></param>

''' <remarks></remarks>

Private Sub btnListAll_Click(ByVal sender As System.Object, _

ByVal e As System.EventArgs) Handles btnListAll.Click



    ' clear the textbox of any content

    txtAllProcesses.Text = String.Empty



    ' populate it with a list of all running processes

    ' with name and process ID shown

    txtAllProcesses.Text = ProcessValidation.ListAllProcesses()



End Sub



''' <summary>

''' Display a list of all running visible applications

''' </summary>

''' <param name="sender"></param>

''' <param name="e"></param>

''' <remarks></remarks>

Private Sub btnListAllApps_Click(ByVal sender As System.Object, _

ByVal e As System.EventArgs) Handles btnListAllApps.Click



    ' clear the textbox of any content

    txtAllProcesses.Text = String.Empty



    ' populate it with a list of all running processes

    ' with name and process ID shown

    txtAllProcesses.Text = ProcessValidation.ListAllApplications()



End Sub



''' <summary>

''' Display a list of all running processes by image name

''' </summary>

''' <param name="sender"></param>

''' <param name="e"></param>

''' <remarks></remarks>

Private Sub btnListImages_Click(ByVal sender As System.Object,

ByVal e As System.EventArgs) Handles btnListImages.Click



    ' clear the textbox of any content

    txtAllProcesses.Text = String.Empty



    ' populate it with a list of all running processes

    ' with name and process ID shown

    txtAllProcesses.Text = ProcessValidation.ListAllByImageName()



End Sub



''' <summary>

''' Look for a running process by name

''' </summary>

''' <param name="sender"></param>

''' <param name="e"></param>

''' <remarks></remarks>

Private Sub btnSearch_Click(ByVal sender As System.Object, _

ByVal e As System.EventArgs) Handles btnSearch.Click



Dim bTest As Boolean = _ProcessValidation.CheckForProcessByName

(txtSearchProcess.Text.ToString())



    Select Case (bTest)

        Case True

            MessageBox.Show(txtSearchProcess.Text + " process name found.")

        Case False

            MessageBox.Show(txtSearchProcess.Text + " process name not found.")

        Case Else

            ' do nothing

    End Select

End Sub



''' <summary>

''' Look for a running process by image name

''' </summary>

''' <param name="sender"></param>

''' <param name="e"></param>

''' <remarks></remarks>

Private Sub btnSearchImgname_Click(ByVal sender As System.Object, _

ByVal e As System.EventArgs) Handles btnSearchImgname.Click



    Dim bTest As Boolean = _ProcessValidation.CheckForProcessByImageName

(txtImageName.Text.ToString())



    Select Case (bTest)

        Case True

            MessageBox.Show(txtImageName.Text + " process name found.")

        Case False

            MessageBox.Show(txtImageName.Text + " process name not found.")

        Case Else

            ' do nothing

    End Select



    End Sub



''' <summary>

''' Find an application by name

''' </summary>

''' <param name="sender"></param>

''' <param name="e"></param>

''' <remarks></remarks>

Private Sub btnFindApp_Click(ByVal sender As System.Object, _

ByVal e As System.EventArgs) Handles btnFindApp.Click



    Dim bTest As Boolean = _ProcessValidation.CheckForApplicationByName

  (txtApplicationName.Text.ToString())



        Select Case (bTest)

            Case True

                MessageBox.Show(txtApplicationName.Text + " process name found.")

            Case False

                MessageBox.Show(txtApplicationName.Text + " process name not found.")

            Case Else

            ' do nothing

        End Select

    End Sub

End Class



Summary:



This article was intended to demonstrate a simple approach to obtaining information about the processes running on a machine. The methods contained in the demonstration application show several approaches for how to list out information regarding running processes as well as how to search for a specific process.
