Introduction
The purpose of this article is to discuss the construction of a couple of simple
custom controls that extend both the Combobox and the Listbox controls to allow
them to be associated with both a text and a value property for each item in the
control's list. Both
controls will normally allow the developer to assign a value property and a text
property to each item in the list but only if the control is bound to a data
source. If the control is not bound, the
option to immediately assign a value to an item in the list is not available.
If one requires that both text and a value be assigned to each item in the list,
it is easy enough define a class containing a text and value property of some
type and to then create a collection of objects of that type and bind that
collection to the control. In
this approach, the developer may need also to need to write handlers to get the
value associated with a selected item, to remove items form the list, and to add
items to the list (along with a value). If there are a large number controls,
writing these additional functions to handle each specific control can be
somewhat tedious.
There are a number of reasons why it could be beneficial to supply both a text
and value property to an unbound list based control item. In
general, if it is not productive,
expedient, or even possible to bind a list based control to a data source and
the value property is meaningless to the user but essential to the application,
having the means to supply the value property along with the user friendly text
can be pretty handy.
This demo includes a
project with two extended, list based controls capable of holding both a text
and a value property without binding, and it contains a demonstration project in
which the two controls are used.

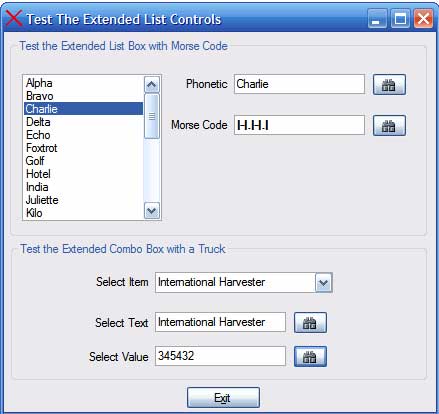

Figure 1: Demo Project with Extended
Combobox and Listbox in Use.
The demo application shown if figure 1 uses both the extended Combobox and
Listbox controls; the extended Listbox contains the alphabet in phonetic format;
the text property contains the phonetic alphabet whilst the value property
contains a not to user friendly pipe delimited string of dots and dashes used to
define the Morse code equivalent for the letter. I
picked on the Morse code to supply the value because whilst most people would
easily recognize that Alpha stands for 'A' and Bravo stands for 'B'; they would
not so easily recognize that |...|---|...| means "SOS" or that |...|-.-.|.|-|-|
represents "Scott" in Morse code.
Just for fun, when the user selects one of the options from the extended
Listbox, the application displays both the phonetic (text) property and Morse
code (value) property in the two textboxes below the extended Combobox. Also,
when an item is selected, the application will decipher the Morse code (value)
and play it aloud so the user can hear the Morse code whilst seeing the phonetic
alphabet character and string representation of the Morse code. The
two buttons located adjacent to each text box are used to retrieve the value
property from the text property or the text property from the value property. The
only purpose of either is to demonstrate that it can be done.
The extended Combobox control is used in a manner similar to the extended
Listbox but it does not play any Morse code through the speakers. It
displays the names of different truck manufacturers along with a number used to
identify that manufacturer. As with the
Listbox, the Combobox contains two text boxes beneath it which are used to
display the text and value properties for the selected item. It
also uses two button controls to either pull up the value from the text or the
text from the value.
Getting Started
The solution contains
two projects; one is a class library project containing two custom controls and
the other is a demonstration Windows application that contains a single
form. The two controls contained in the class library project are an extended
version of each the ComboBox and the ListBox control. The form in the
demonstration application contains both types of custom control along with some
additional controls used to exercise the custom controls.
Figure 2: Solution Explorer.
Project: Extended
List Controls
The extended list controls project is a class library project that contains two
custom controls: ExComboBox.cs and ExListBox.cs. The
controls are extended versions of the standard toolbox controls; the purpose of
the extension of each control was to add in a collection (a SortedList) and to
provide the additional code necessary to give access to the collection and to
display the members of the collections is the control's standard list. Since
both controls are essentially the same except for the type of control extended,
I will only describe one of the two control's code; the code for the
ExComboBox.cs control is as follows:
The class contains the following references, namespace and class declaration;
note the addition of System.Collections and System.Windows.Forms:
Imports System.Windows.Forms
Imports System.Runtime.InteropServices
Imports System.Collections
Public Class ExComboBox
Inherits System.Windows.Forms.ComboBox
The class declaration shows that the class is based upon and extends the
standard Combobox control. By inheriting
the combobox control, we pick up all of the functionality associated with that
control. Following the class
declaration, a sorted list is declared, and in the constructor, a new instance
of the sorted list is created:
''' <summary>
''' sorted list used to retain
''' text and value pairs for the unbound
''' extended combobox control
''' </summary>
''' <remarks></remarks>
Private mListCollection As SortedList
''' <summary>
''' Constructor
''' </summary>
''' <remarks></remarks>
Public Sub New()
'Instance
the collection in
'the
constructor
mListCollection = New SortedList()
End Sub
The sorted list, "mListCollection" will be used to contain the text and value
pairs assigned to each item in the control's list. Following
the constructor, the first method is defined:
''' <summary>
''' Provides public method to both add items to private
''' collection of text-value pairs and to reload the
''' combobox list with the items from the key side of the
''' sortedlist items
''' </summary>
''' <param
name="sText"></param>
''' <param
name="sValue"></param>
''' <remarks></remarks>
Public Sub AddListItem(ByVal sText As String, ByVal sValue As String)
Try
mListCollection.Add(sText,
sValue)
Catch
Return
End Try
Me.Items.Clear()
Dim de As DictionaryEntry
For Each de In mListCollection
Me.Items.Add(de.Key.ToString())
Next
End Sub
The AddListItem method defined above is used to add key-value pairs to the
sorted list. The attempt to add an item
is wrapped in a try catch block; this will prevent attempts to load duplicate
keys from interfering with the application; if the user does attempt to enter
duplicate keys, the attempt will fail the application will return from the
method call without changing the sorted list.One could rig this method to return
Boolean value indicating the success of the operation. After
the item has been added to the sorted list, the combobox is cleared of all items
and each item from the newly updated sorted list is then added back into the
list.
The next method defined is used to remove an item from the sorted list; this
method works very much the same as the code used to add an item:
''' <summary>
''' Remove the key item from the private sortedlist if
''' the item matches the text passed into this
''' public subroutine
''' </summary>
''' <param
name="sText"></param>
''' <remarks></remarks>
Public Sub RemoveListItem(ByVal sText As String)
Try
mListCollection.Remove(sText)
Catch
Return
End Try
Me.Items.Clear()
Dim de As DictionaryEntry
For Each de In mListCollection
Me.Items.Add(de.Key.ToString())
Next
End Sub
The next bit of code in the control is used to get the value associated with an
item contained in the list. Selection of the returned item is based upon the
current selected index value from the control's standard list:
''' <summary>
''' Get the value associated with a control list item
''' based upon the selected index value
''' </summary>
''' <returns></returns>
''' <remarks></remarks>
Public Function GetValue() As String
Try
Return Convert.ToString(mListCollection.GetByIndex
_(Me.SelectedIndex))
Catch
Return String.Empty
End Try
End Function
If the item is not found in the list, the method returns an empty string.
The next method in the class is used to return the value associated with a list
item's text. The value is obtained by
examining the contents of the list until the value text is found and then, per
the found text, the value is obtained and returned as a string. If the value is
not located, an empty string is returned:
''' <summary>
''' A public method to return the value associated with the
''' text (key) from the private sorted list based upon a
''' match of the string passed to this method against the
''' key values in the sorted list; if nothing matches, an
''' emptry string will be returned.
''' </summary>
''' <param
name="sText"></param>
''' <returns></returns>
''' <remarks></remarks>
Public Function GetValueByText(ByVal sText As String) As String
Dim tmp As String = String.Empty
Try
Dim de As DictionaryEntry
For Each de In mListCollection
If de.Key.ToString
= sText Then
tmp
= de.Value.ToString()
End If
Next
Return tmp
Catch
Return tmp
End Try
End Function
The last method in the control's code is used to obtain the text for a list item
based upon its value:
''' <summary>
''' Return the text of an item based upon its value; if the
''' items is not found, return an empty string.
''' </summary>
''' <param
name="sValue"></param>
''' <returns></returns>
''' <remarks></remarks>
Public Function GetTextByValue(ByVal sValue As String) As String
Dim tmp As String = String.Empty
Try
Dim de As DictionaryEntry
For Each de In mListCollection
If de.Value.ToString
= sValue Then
tmp = de.Key.ToString()
End If
Next
Return tmp
Catch
Return tmp
End Try
End Function
Note that since only the text side is guaranteed to be unique, if the collection
contained multiple values of the same content, this method will return the first
item found that meets the criteria. The
important method is therefore one that retrieves the value associated with the
unique key (text) property. The value of
this last function will be limited unless the user of the control limits the
list to items unque as both text and value.
That wraps up the code in the custom control. As
mention previously, the extended ListBox control works in exactly the same
manner with the same methods and properties available.
Project: Test
Collection Controls (Demonstration Project)
This project contains a single form and one of each of the two custom controls
(along with some other controls used in conjunction with those custom controls.
The form contains two group boxes; in the top box is an extended ListBox control
along with two text boxes and two buttons. When
a user makes a selection from the custom control, the event handler for that
control will be used to place the related text and value properties into each of
the two text boxes. The two buttons are
used along with text boxes to pull up the value from the text or the text from
the value. In this case, the custom
control is populated with all of the letters defined in the phonetic alphabet on
the text side and the Morse code representation of the letter in the value side. Morse
code values are displayed in the form of a pipe delimited string made up of dots
and dashes. Further, when the item is
selected, the value is sent to a method that deciphers the Morse code and plays
it aloud through the speakers.
The second group box contains an extended ComboBox control; this control is
populated with a list comprised of the names of truck manufacturers along with
an arbitrary six digit identifier. This
group box also contains two text boxes and two buttons that are also used to
display the value and text properties associated with items contained in the
control's sorted list. The buttons here
are used to display the value associated with the selected text and the text
associated with selected value.
The form class code starts out with the following references, namespace, and
class declaration:
Imports System
Imports System.Collections.Generic
Imports System.ComponentModel
Imports System.Data
Imports System.Drawing
Imports System.Text
Imports System.Windows.Forms
Imports System.Runtime.InteropServices
''' <summary>
''' Demo application used to test the extended listbox
''' and combobox controls
''' </summary>
''' <remarks></remarks>
Public Class Form1
Note the addition of a reference to System.Runtime.InteropServices; this is used
to support the DLL Import of the Beep method which is used to play the Morse
code sounds.
After the class declaration, the following code is inserted to import the beep
method from the kernel32 DLL:
''' <summary>
''' Import a kernel32.dll function to play beeps;
''' used with the morse code player function
''' </summary>
''' <param
name="frequency"></param>
''' <param
name="duration"></param>
''' <returns></returns>
''' <remarks></remarks>
Private Declare Function Beep Lib "kernel32.DLL" _
(ByVal frequency As Integer, ByVal duration As Integer) As Boolean
The next bit of code is used to manage the form load event; the constructor is
in the default configuration whilst in the form load event, the custom controls
are manually populated with text and values using each control's public "AddListItem"
method; this method accepts two arguments, the key and the value, which are
loaded into the control's internal sorted list. When
the sorted list is updated, the contents of the controls visible list is updated
to display text added through the method:
Private Sub Form1_Load(ByVal sender As System.Object,
_
ByVal e As System.EventArgs) Handles MyBase.Load
'
manually populate the list with the key and
'
value pairs - This loads the extended
'
combobox with the phonetic alphabet and
'
the Morse code equivalent represented
'
by a pipe delimited string containing
'
dots and dashes
ExListBox1.AddListItem("Alpha", "|.|-|")
ExListBox1.AddListItem("Bravo", "|-|.|.|.|")
ExListBox1.AddListItem("Charlie", "|-|.|-|.|")
ExListBox1.AddListItem("Delta", "|-|.|.|")
ExListBox1.AddListItem("Echo", "|.|")
ExListBox1.AddListItem("Foxtrot", "|.|.|-|.|")
ExListBox1.AddListItem("Golf", "|-|-|.|")
ExListBox1.AddListItem("Hotel", "|.|.|.|.|")
ExListBox1.AddListItem("India", "|.|.|")
ExListBox1.AddListItem("Juliette", "|.|-|-|-|")
ExListBox1.AddListItem("Kilo", "|-|.|-|")
ExListBox1.AddListItem("Lima", "|.|-|.|.|")
ExListBox1.AddListItem("Mike", "|-|-|")
ExListBox1.AddListItem("November", "|-|.|")
ExListBox1.AddListItem("Oscar", "|-|-|-|")
ExListBox1.AddListItem("Papa", "|.|-|-|.|")
ExListBox1.AddListItem("Quebec", "|-|-|.|-|")
ExListBox1.AddListItem("Romeo", "|.|-|.|")
ExListBox1.AddListItem("Sierra", "|.|.|.|")
ExListBox1.AddListItem("Tango", "|-|")
ExListBox1.AddListItem("Uniform", "|.|.|-|")
ExListBox1.AddListItem("Victor", "|.|.|.|-|")
ExListBox1.AddListItem("Whiskey", "|.|-|-|")
ExListBox1.AddListItem("Xray", "|-|.|.|-|")
ExListBox1.AddListItem("Yankee", "|-|.|-|-|")
ExListBox1.AddListItem("Zulu", "|-|-|.|.|")
'
Populate the extended listbox control with
'
the names of some trucks along with some otherwise
'
meaningless values
ExComboBox1.AddListItem("Mack", "012393")
ExComboBox1.AddListItem("Peterbuilt", "234234")
ExComboBox1.AddListItem("International
Harvester", "345432")
ExComboBox1.AddListItem("White
Freightliner", "213453")
ExComboBox1.AddListItem("Kenworth", "856745")
ExComboBox1.AddListItem("GMC
General", "234865")
ExComboBox1.AddListItem("Ford", "328975")
ExComboBox1.AddListItem("Ivenco", "675474")
ExComboBox1.AddListItem("Magirus", "666873")
ExComboBox1.AddListItem("Isuzu", "343445")
ExComboBox1.AddListItem("Volvo", "648857")
ExComboBox1.AddListItem("Dodge", "111349")
End Sub
The next item up in the form code is the selected index changed event handler
for the custom control; this handler sets the text showing the selected text and
the associatd value for the selected item. It
further sends the value to a separate method that is used to play the Morse code
version of the selected item.
''' <summary>
''' Using the custom listbox control to retrieve
''' text-value pairs
''' </summary>
''' <param
name="sender"></param>
''' <param
name="e"></param>
''' <remarks></remarks>
Private Sub ExListBox1_SelectedIndexChanged(ByVal sender As _
System.Object, ByVal e As System.EventArgs) Handles _ExListBox1.SelectedIndexChanged
txtSelectText.Text
= ExListBox1.SelectedItem.ToString()
txtSelectValue.Text
= ExListBox1.GetValue()
Refresh()
PlayMorseCode(txtSelectValue.ToString())
End Sub
The two button handlers for the custom Listbox control are next, the first is
used to get the value associated with the text contained in the text box whilst
the second does the opposite and gets the text associated with the value. Both
are displayed in a message box once they have been retrieved from the custom
control's internal sorted list through the appropriate method call.
''' <summary>
''' Get the value associated with the key
''' </summary>
''' <param
name="sender"></param>
''' <param
name="e"></param>
''' <remarks></remarks>
Private Sub btnGetValue_Click(ByVal sender As System.Object,
_
ByVal e As System.EventArgs) Handles btnGetValue.Click
Dim tmp As String = String.Empty
If txtSelectText.Text
<> String.Empty Then
tmp
= ExListBox1.GetValueByText(txtSelectText.Text.ToString())
End If
MessageBox.Show("'" +
tmp + "'
is the matching value.", _"Get
Value from Text")
End Sub
''' <summary>
''' Get the key associated with the value
''' </summary>
''' <param
name="sender"></param>
''' <param
name="e"></param>
''' <remarks></remarks>
Private Sub btnGetKey_Click(ByVal sender As System.Object,
_
ByVal e As System.EventArgs) Handles btnGetKey.Click
Dim tmp As String = String.Empty
If txtSelectValue.Text
<> String.Empty Then
tmp
= ExListBox1.GetTextByValue(txtSelectValue.Text.ToString())
End If
MessageBox.Show("'" +
tmp + "'
is the matching value.", _"Get
Text from Value")
End Sub
The next item up is the selected index changed event handler for the custom
ComboBox control.
''' <summary>
''' Using the custom combobox control to retrieve
''' text-value pairs
''' </summary>
''' <param
name="sender"></param>
''' <param
name="e"></param>
''' <remarks></remarks>
Private Sub ExComboBox1_SelectedIndexChanged(ByVal sender As _
System.Object, ByVal e As System.EventArgs) Handles _ExComboBox1.SelectedIndexChanged
'
put the combobox text and value into a couple
'
of textboxes for display
txtSelectText2.Text
= ExComboBox1.SelectedItem.ToString()
txtSelectValue2.Text
= ExComboBox1.GetValue()
End Sub
After that, the next two items handle the button click events for the two
buttons used with the custom ComboBox control and its associated text boxes.
''' <summary>
''' Retrieve the value from the key
''' </summary>
''' <param
name="sender"></param>
''' <param
name="e"></param>
''' <remarks></remarks>
Private Sub btnGetValue2_Click(ByVal sender As System.Object, ByVal e
_
As System.EventArgs) Handles btnGetValue2.Click
Dim tmp As String = String.Empty
If txtSelectText2.Text
<> String.Empty Then
tmp
= ExComboBox1.GetValueByText(txtSelectText2.Text.ToString())
End If
MessageBox.Show("'" +
tmp + "'
is the matching value.", _"Get
Value from Text")
End Sub
''' <summary>
''' Retrieve the key from the value
''' </summary>
''' <param
name="sender"></param>
''' <param
name="e"></param>
''' <remarks></remarks>
Private Sub btnGetKey2_Click(ByVal sender As System.Object, ByVal e As _
System.EventArgs) Handles btnGetKey2.Click
Dim tmp As String = String.Empty
If txtSelectValue2.Text
<> String.Empty Then
tmp
= ExComboBox1.GetTextByValue(txtSelectValue2.Text.ToString())
End If
MessageBox.Show("'" +
tmp + "'
is the matching value.", _"Get
Text from Value")
End Sub
After the event handlers, the next bit of code is a method used to play the
Morse code equivalent of letter selected from the alphabet. The
method parses the contents of the Morse code string passed to it and plays the
appropriate sequence of dits an and da's aloud.
''' <summary>
''' Use the passed in value string containing the dots and
''' dashes defining the Morse code representation of the
''' character and play the Morse code version of the letter
''' aloud through the speakers.
''' </summary>
''' <param
name="sMorseCode"></param>
''' <remarks></remarks>
Private Sub PlayMorseCode(ByVal sMorseCode As String)
Dim ditAndDa As String()
= sMorseCode.Split("|")
Dim s As String
For Each s In ditAndDa
Select Case (s)
Case "."
Beep(900,
100)
System.Threading.Thread.Sleep(50)
Case "-"
Beep(900, 300)
System.Threading.Thread.Sleep(50)
Case Else
'do
nothing
End Select
Next
'
maintain a little separation between letters
System.Threading.Thread.Sleep(50)
End Sub
The last in the form class is merely used to handle the exit button click event.
''' <summary>
''' Exit the application
''' </summary>
''' <param
name="sender"></param>
''' <param
name="e"></param>
''' <remarks></remarks>
Private Sub btnExit_Click(ByVal sender As System.Object, ByVal e As _
System.EventArgs) Handles btnExit.Click
Application.Exit()
End Sub
Summary.
This article was intended to demonstrate one approach to building a custom
control that would permit the user to associate a value property with the items
contained in the list of an unbound list based control such as ComboBox or
ListBox. The method demonstrated
consisted of constructing a simple custom control that maintains a sorted list
associated with the control's standard list. The
custom control also provides a nominal number of methods used to obtain the
value or text associated with an item selected from the list. Since
the standard list based controls do not support a value property for the control
unless the control is bound, the approach demonstrated offers a simple work
around that can be used if it is considered desirable to apply a value to each
list item contained in an unbound control.
The control presented is quite simple and could be improved upon greatly; for
example if one were to modify the control to permit the user of the control to
edit the collection through a collection editor at design time that may be more
appealing to some than manually keying in the collection.
