Introduction
Lightbox 2 is a free download made available by Lokesh Dhakar on this website:
http://www.huddletogether.com/projects/lightbox2/
The site describes Lightbox as, "... a simple, unobtrusive script used to
overlay images on the current page." It delivers a nice, professional looking
method for displaying images as overlays through the use of hyperlinks.
Implementation of Lightbox is quite simple involving nothing more that adding
some JavaScript and a style sheet to the page and then adding some simple
attributes to each link where the effect is to be used. The download includes
all of the images, style sheets, and JavaScript necessary to implement Lightbox.
Lightbox allows the developer the option of displaying images singly or in
sequence. Images grouped into sequences may be viewed by the user in a slideshow
like presentation that the user can control with either the mouse or the left
and right arrow keys. All in all, it is a nice way to present a image gallery of
thumbnails. As each image is displayed, the control is resized to fit the image
and the image is centered on the page. If the image is too large, it will
overrun the page so it is important to resize the images so that they will fit
within the space available. Once the image is displayed, the user may click off
the image or hit the Escape key in order to return to the page.

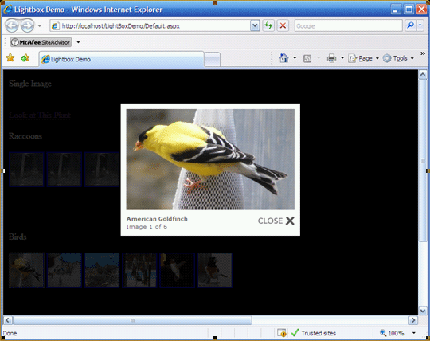

Figure 1: Lightbox in Use within an ASP.NET Web Application

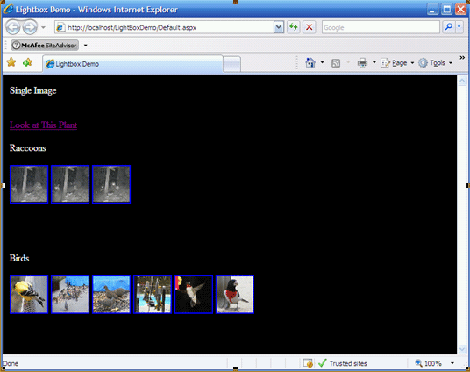

Figure 2: Lightbox at Rest within an ASP.NET Web Application
(Clicking a link or an image will launch the image into Lightbox)
Getting Started:
In order to get started, unzip the included project and save it to your hard
drive. Open the web application and examine the contents in the solution
explorer.

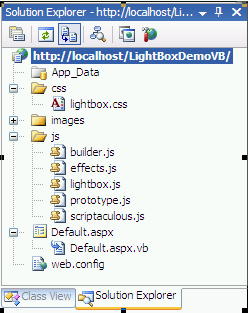

Figure 3: Solution Explorer
The solution contains a single web application entitled, "LightBoxDemoVB". The
solution contains three added folders: css, images, and js. These folders
contain the style sheet, images, and JavaScript provided with the Lightbox
download. Additional images were added to the images folder to support the
demonstration project. If starting a new project, just create the three folders
using these folder names and then copy the contents over into each of the
folders from the Lightbox 2 download.
Code: Default.aspx.vb
No additional code was provided to the default page's code behind file. It is in
its default condition and is shown here to illustrate that no coding is required
to make use of Lightbox 2.
Partial
Class _Default
Inherits System.Web.UI.Page
End
Class
Code: Default.aspx
What little work is required to implement Lightbox 2 is contained in the
Default.aspx file itself.
The markup starts with the following unmodified, default code:
<%@
Page Language="VB"
AutoEventWireup="true"
CodeFile="Default.aspx.vb"
Inherits="_Default"
%>
<!DOCTYPE
html PUBLIC
"-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html
xmlns="http://www.w3.org/1999/xhtml">
The first bit of actual work
is contained in the head section of the markup; here the JavaScript is
references as is the style sheet:
<head
id="Head1"
runat="server">
<%--javascript
references for lightbox--%>
<script
type="text/javascript"
src="js/prototype.js"></script>
<script
type="text/javascript"
src="js/scriptaculous.js?load=effects,builder"></script>
<script
type="text/javascript"
src="js/lightbox.js"></script>
<%--stylesheet
for lightbox--%>
<link
rel="stylesheet"
href="css/lightbox.css"
type="text/css"
media="screen"
/>
<%--page
title--%>
<title>Lightbox
Demo</title>
</head>
Next up, within the form, the first example
shows using a simple link to an image; the "rel" tag defines the relationship to
the Lightbox style sheet and that is pretty much all that you need to do to
evoke the effect.
<body
bgcolor="Black">
<form
id="form1"
runat="server"
style="background-color:
#000000; color:
#FFFFFF">
<%--single
image hyperlink--%>
<div>Single
Image<br
/><br
/>
<br
/>
<a
href="images/image-1.jpg"
rel="lightbox"
title="Plant
Life">Look at This
Plant</a>
<br
/><br
/>
</div>
The next example shows how
to setup a sequence of images. The defined sequence may be controlled by the
user with either the mouse or the left and right arrow keys (to move back and
forth through the images). Note the passing of "roadtrip1" to Lightbox; all
links using 'roadtrip1' will be treated as a group of images. In this case,
there are three images using that name and so those three images are treated as
a single series; other images on the page that do not use 'roadtrip1' are
ignored. This example as well as the next both display thumbnail versions of the
image.
<%--using
multiple images in a sequence, link is thumbnail of image--%>
<div>Raccoons<br
/><br
/>
<a
href="images/bottletree1.JPG"
rel="lightbox[roadtrip1]"
title="Raccoons
and Baby Bottles">
<img
src="images/bottletree1.JPG"
width="60"
height="60"
alt=""
/></a>
<a
href="images/bottletree2.JPG"
rel="lightbox[roadtrip1]"
title="Sugar
Water Bottles">
<img
src="images/bottletree2.JPG"
width="60"
height="60"
alt=""
/></a>
<a
href="images/bottletree3.JPG"
rel="lightbox[roadtrip1]"
title="More
Sugar Water">
<img
src="images/bottletree3.JPG"
width="60"
height="60"
alt=""
/></a>
</div><br
/><br
/><br
/><br
/>
The last example shows how
to setup a second sequence of images; note that these images are banded together
as 'roadtrip2' and as such they will be kept separate from the other images on
this page when viewed using Lightbox:
<%--using
multiple images in a sequence, link is thumbnail of image--%>
<div>Birds<br
/><br
/>
<a
href="images/AmericanGoldfinch_male.jpg"
rel="lightbox[roadtrip2]"
title="American
Goldfinch">
<img
src="images/AmericanGoldfinch_male.JPG"
width="60"
height="60"
alt=""
/></a>
<a
href="images/birdgroup1.jpg"
rel="lightbox[roadtrip2]"
title="Mixed
Birds">
<img
src="images/birdgroup1.JPG"
width="60"
height="60"
alt=""
/></a>
<a
href="images/doves.jpg"
rel="lightbox[roadtrip2]"
title="Mourning
Doves">
<img
src="images/doves.JPG"
width="60"
height="60"
alt=""
/></a>
<a
href="images/goldfinch_fiesta.jpg"
rel="lightbox[roadtrip2]"
title="American
Goldfinches">
<img
src="images/goldfinch_fiesta.JPG"
width="60"
height="60"
alt=""
/></a>
<a
href="images/hummingbird.jpg"
rel="lightbox[roadtrip2]"
title="Ruby
Throated Hummingbird">
<img
src="images/hummingbird.JPG"
width="60"
height="60"
alt=""
/></a>
<a
href="images/RoseBreastedGrosbeak_male.jpg"
rel="lightbox[roadtrip2]"
title="Rose
Breasted Grosbeak">
<img
src="images/RoseBreastedGrosbeak_male.JPG"
width="60"
height="60"
alt=""
/></a>
</div>
</form>
</body>
</html>
Summary
Lightbox 2 is sort of a fun little tool that is very useful if one wants to
display images from either links or thumbnail versions of an image. I thought it
was a good find that simplified the process of displaying a large or small
number of images in an interesting way and of course the price is perfect.
