Cascading DropDownList in ASP.Net MVC

In a Web Form, a DropDownList is common and time to time we need to provide the functionality of cascading between dropdownlists. Today in this article we will learn how to populate a dropdownlist and cascade between those dropdownlists.

How to populate a Dropdownlist in ASP.Net MVC

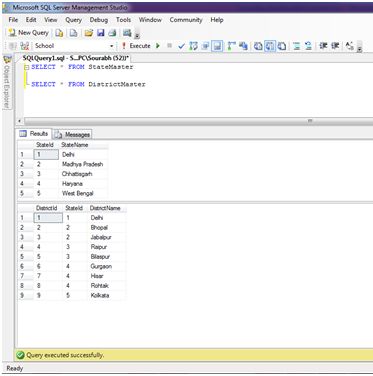

In this article we have a School database with the following 2 tables.

1. StateMaster
2. DistrictMaster

Step 1

Open Visual Studio then select File >> New >> Project then select ASP.Net MVC 4 Web Application.

Step 2

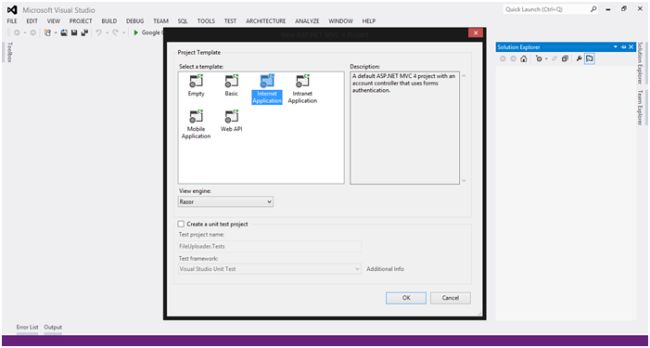

Select Internet Application then click OK.

Step 3

Select the Model folder then create a new Model class.

StudentModel.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;

namespace MvcDemoApplication.Models
{
    public class StudentModel
    {
        public IList<SelectListItem> StateNames { get; set; }
        public IList<SelectListItem> DistrictNames { get; set; }
    }
}

Step 4

Create a .edmx file and connect with the database.

Step 5

Create a new Controller. In this article I create DropDownListController.cs.

DropDownListController.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using MvcDemoApplication.Models;

namespace MvcDemoApplication.Controllers
{
    public class DropDownListController : Controller
    {
        //
        // GET: /DropDownList/
        SchoolEntities schoolEntity = new SchoolEntities();
        public ActionResult Index()
        {
            List<SelectListItem> stateNames = new List<SelectListItem>();
            StudentModel stuModel=new StudentModel();

            List<StateMaster> states = schoolEntity.StateMasters.ToList();
            states.ForEach(x =>
                {
          stateNames.Add(new SelectListItem { Text = x.StateName , Value = x.StateId.ToString() });
                });
            stuModel.StateNames = stateNames;
            return View(stuModel);
        }
          }
}

Index.cshtml

@model MvcDemoApplication.Models.StudentModel
@{
    ViewBag.Title = "Index";
}

<script src="~/Scripts/jquery-1.7.1.min.js"></script>

<h2>Cascading Dropdownlist</h2>
<table>
    <tr>
        <td>
            <label>State</label>
        </td>
        <td>
@Html.DropDownListFor(x => x.StateNames, Model.StateNames, "--Select--", new { @id="ddlState"});
        </td>
    </tr>
</table>

Understand the Code

In Studentmodel we have the following 2 properties:



1. public IList<SelectListItem> StateNames { get; set; }

2. public IList<SelectListItem> DistrictNames { get; set; }

Here we are using the SelectListItem class, this class has the following 3 properties:

1. Selected: This is a bool type to show in a dropdown (as selected) true or false by default.


2. Text: This is a string type, for the dropdown text.


3. Value: This is string type for the value of the dropdown


If you notice in the dropdownlist, we also need the same properties. For this reason we are using SelectListItem in a Ilist.

DropdownlistController.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using MvcDemoApplication.Models;

namespace MvcDemoApplication.Controllers
{
    public class DropDownListController : Controller
    {
        //
        // GET: /DropDownList/
        SchoolEntities schoolEntity = new SchoolEntities();
        public ActionResult Index()
        {
            List<SelectListItem> stateNames = new List<SelectListItem>();
            StudentModel stuModel=new StudentModel();

            List<StateMaster> states = schoolEntity.StateMasters.ToList();
            states.ForEach(x =>
                {
                    stateNames.Add(new SelectListItem { Text = x.StateName , Value = x.StateId.ToString() });
                });
            stuModel.StateNames = stateNames;
            return View(stuModel);
        }
    }
}

In the preceding code we create the SchoolEntities object, in this object all the related tables exist.

SchoolEntities schoolEntity = new SchoolEntities();

List<StateMaster> states = schoolEntity.StateMasters.ToList();

In the preceding line of code, all the related data of the StateMasters tables comes into the StateMaster list object.

states.ForEach(x =>
{
   stateNames.Add(new SelectListItem { Text = x.StateName , Value = x.StateId.ToString() });
});

Now it is time to add entity data into the Text and value properties, the all collection will be stored into the stateNames object.

Index.cshtml

@model MvcDemoApplication.Models.StudentModel
@{
    ViewBag.Title = "Index";
}

<script src="~/Scripts/jquery-1.7.1.min.js"></script>

<h2>Cascading Dropdownlist</h2>
<table>
    <tr>
        <td>
            <label>State</label>
        </td>
        <td>
  @Html.DropDownListFor(x => x.StateNames, Model.StateNames, "--Select--", new { @id="ddlState"});
        </td>
    </tr>
</table>

The preceding code shows the model data in View. Now to understand how it works.

@Html.DropDownListFor(x => x.StateNames, Model.StateNames, "--Select--", new { @id="ddlState"});

Look at the preceding code, we used here, @Html helper classes for creating a DropDownList. In the DropDownListFor helper class we used 4 parameters.

1. x=>x.StateNames: For getting the values of the collection from the entity.


2. Model.StateNames: Collections of states.


3. “—Select--”: Default value, when the dropdown list will be populated.


4. new {@id=”ddlState”}: In this part we can define an id, class and name for the control.

How to do cascading between two dropdownlists.

DropdownlistController.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using MvcDemoApplication.Models;

namespace MvcDemoApplication.Controllers
{
    public class DropDownListController : Controller
    {
        //
        // GET: /DropDownList/
        SchoolEntities1 schoolEntity = new SchoolEntities1();
        public ActionResult Index()
        {
            List<SelectListItem> stateNames = new List<SelectListItem>();
            StudentModel stuModel=new StudentModel();

            List<StateMaster> states = schoolEntity.StateMasters.ToList();
            states.ForEach(x =>
                {
stateNames.Add(new SelectListItem { Text = x.StateName , Value = x.StateId.ToString() });
                });
            stuModel.StateNames = stateNames;
            return View(stuModel);
        }

        [HttpPost]
        public ActionResult GetDistrict(string stateId)
        {
            int statId;
            List<SelectListItem> districtNames = new List<SelectListItem>();
            if (!string.IsNullOrEmpty(stateId))
            {
                statId = Convert.ToInt32(stateId);
List<DistrictMaster> districts = schoolEntity.DistrictMasters.Where(x => x.StateId == statId).ToList();
                districts.ForEach(x =>
                {
districtNames.Add(new SelectListItem { Text = x.DistrictName, Value = x.DistrictId.ToString() });
                });
            }
            return Json(districtNames, JsonRequestBehavior.AllowGet);
        }

    }
}

Index.cshtml

@model MvcDemoApplication.Models.StudentModel
@{
    ViewBag.Title = "Index";
}

<script src="~/Scripts/jquery-1.7.1.min.js"></script>

<h2>Cascading Dropdownlist</h2>
<table>
    <tr>
        <td>
            <label>State</label>
        </td>
        <td>
@Html.DropDownListFor(x => x.StateNames, Model.StateNames, "--Select--", new { @id="ddlState"});
        </td>
    </tr>
    <tr>
        <td>
            <label>District</label>
        </td>
        <td id="District">
@Html.DropDownListFor(x => x.DistrictNames, new List<SelectListItem>(), "--Select--", new { @id="ddlDistrict"});
        </td>
    </tr>
</table>

<script type="text/javascript">
    $(document).ready(function () {
        $('#ddlState').change(function () {
            $.ajax({
                type: "post",
                url: "/DropDownList/GetDistrict",
                data: { stateId: $('#ddlState').val() },
                datatype: "json",
                traditional: true,
                success: function (data) {
                    var district = "<select id='ddlDistrict'>";
                    district = district + '<option value="">--Select--</option>';
                    for (var i = 0; i < data.length; i++)
                    {
                        district = district + '<option value=' + data[i].Value + '>' + data[i].Text + '</option>';
                    }
                    district = district + '</select>';
                    $('#District').html(district);
                }
            });
        });
    });
</script>

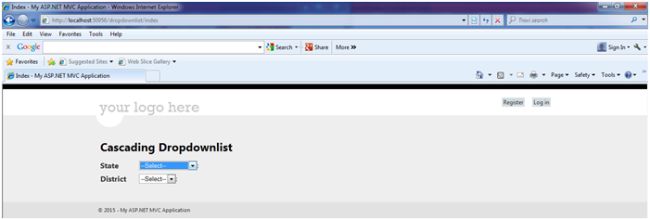

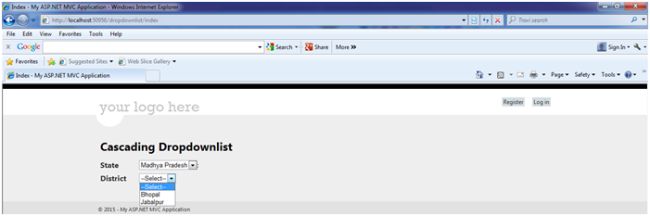

That's it. Press F5 and run your code. For any query please send your comments here.
