jQuery Tooltip in ASP.Net MVC

Every control has a tooltip property but sometimes we need some special CSS or some kind of functionality for whenever we hover the mouse the tooltip tracks. For this kind of feature we have a jQuery tootip. The jQuery tooltip is part of the jQuery UI. In this article I will show you how to implement a jQuery tooltip in your ASP.Net application.

So let’s start the implementation of the tooltip in our website.

  • Open Visual Studio
  • "File" -> "New" -> "Project..."
  • Choose "Visual C#" -> "Web" then select "ASP.NET MVC4 Web Application"
  • Add a new Internet Application then click "OK"

Step 1: Create a new ActionResult Method in the Controller

HomeController.cs

public ActionResult ToolTipDemo()
{
    return View();
}


Step 2: Right-click in this method area and click on "Add View" then click "Add".

TooTipDemo.cshtml

<link rel="stylesheet" href="http://code.jquery.com/ui/1.10.3/themes/smoothness/jquery-ui.css">
<script src="http://code.jquery.com/jquery-1.9.1.js"></script>
<script src="http://code.jquery.com/ui/1.10.3/jquery-ui.js"></script>
<style type="text/css">

.ui-tooltip {

font-size: small;

font-family: Arial;
    }
</style>

@{

    ViewBag.Title = "ToolTipDemo";
}
<h2>ToolTipDemo</h2>

<style>

label {

display: inline-block;

width: 5em;
    }
</style>
<script>
    $(document).ready(
function () {
        $(document).tooltip({
            track:
true
        });
    });
</script>
<table>

<tr>

<td>
            Name

</td>

<td>

<input type="text" id="txtName" title="Your Full Name Please."

</td>

</tr>

<tr>

<td>
           Phone

</td>

<td>

<input type="text" id="txtPhone" title="Your phone no. (+CountryCode)-(Std Code)-(Phone no.)."

</td>

</tr>

<tr>

<td>
            Age

</td>

<td>

<input type="text" id="txtAge" title="Fill your age."

</td>

</tr>

<tr>

<td>
            Date of Birth

</td>

<td>

<input type="text" id="txtDob" title="Fill DOB in MM/dd/yyyy Format"

</td>

</tr>
</table>


That’s it, Press F5 , run your code.

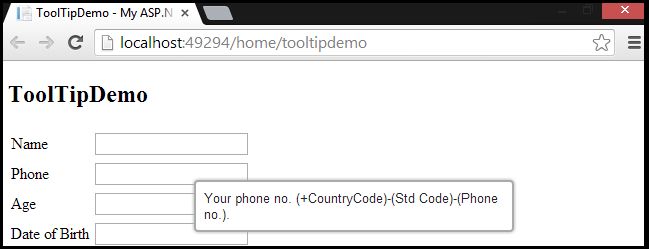

Jquery tooltip

Understanding the code

As I said before the jQuery tooltip is part of the jQuery UI, so we add here these file links.

<link rel="stylesheet" href="http://code.jquery.com/ui/1.10.3/themes/smoothness/jquery-ui.css">

<script src="http://code.jquery.com/jquery-1.9.1.js"></script>
<
script src="http://code.jquery.com/ui/1.10.3/jquery-ui.js"></script>

For the jQuery UI, we need these files.

Now look at the following code.

<script>
    $(document).ready(
function () {
        $(document).tooltip({
            track:
true
        });
    });
</script>

We use here:

$(document).tooltip({

When we write like this, the jQuery tooltip will start automatically in all of the controls where we use the title property(<input type=”text” id=”txtName” title=”Fill your Name”) . Here I use another property under the tooltip section, it is track: true. I hope you say, what is this. When you run this programme and hover your mouse in the area of your textboxes your tooltip tracks with your mouse pointer.

track: true is for that kind of stuff, if you don’t want to use this kind of functionality then you can remove the following lines:

$(document).tooltip({
});

Sometimes we do not need this kind of features for all controls, for example you just want this kind of feature only in your txtDob TextBox control. So just write:

<script>
    $(document).ready(
function () {
        $(‘#txtDob’).tooltip({
            track:
true
        });
    });
</script>


Now when you run the program, you can only see the jQuery ToolTip in your txtDob TextBox.
