WCF Service For Inserting Data Into Database Using ASP.NET

WCF example for inserting and displaying data from a SQL Server Database Using WCF Service in ASP.NET.

Introduction

In this article I will show you a practical example of a WCF service for inserting data into a database using ASP.NET.

Using the Code

For inserting data into a database using a WCF service in ASP.Net, we have to do the following steps:

  • Create a WCF service
  • Create a Web-based application

Part 1: Create a WCF Service

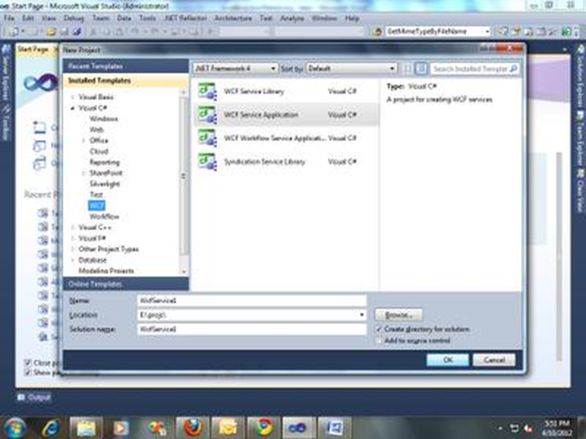

  1. Open Visual Studio 2010
  2. New WCF Service Application
  3. Give the name for service Customer Service
  4. Press ok


After that a new project is created, the CustomerService project.

Then you will get 3 files:

  • IService.cs
  • Service.svc
  • Service.svc.cs

IService.cs Page

using System;

using System.Collections.Generic;

using System.Linq;

using System.Runtime.Serialization;

using System.ServiceModel;

using System.ServiceModel.Web;

using System.Text;

using System.Collections.Generic;

using System.Runtime.Serialization;

using System.ServiceModel;



[ServiceContract]

public interface IService

{



    [OperationContract]

    List<CustomerDetails> GetCustomerDetails(string CutomerName);



    [OperationContract]

    string InsertCustomerDetails(CustomerDetails customerInfo);

}



[DataContract]

public class CustomerDetails

{

    string CutomerName = string.Empty;

    string firstname = string.Empty;

    string lastname = string.Empty;

    string address = string.Empty;



    [DataMember]

    public string CutomerName

    {

        get { return CutomerName; }

        set { CutomerName = value; }

    }

    [DataMember]

    public string FirstName

    {

        get { return firstname; }

        set { firstname = value; }

    }

    [DataMember]

    public string LastName

    {

        get { return lastname; }

        set { lastname = value; }

    }

    [DataMember]

    public string Address

    {

        get { return address; }

        set { address = value; }

    }

}

And write the following code in the Service.cs file:

Service.cs Page


using System;

using System.Collections.Generic;

using System.Linq;

using System.Runtime.Serialization;

using System.ServiceModel;

using System.ServiceModel.Web;

using System.Text;

using System.Collections.Generic;

using System.Configuration;

using System.Data;

using System.Data.SqlClient;





public class Service : IService

{

    SqlConnection con = new SqlConnection("Data Source=Sujeet;Initial Catalog=Register;User ID=sa;Password=123");



    public List<CustomerDetails> GetCustomerDetails(string CutomerName)

    {

        List<CustomerDetails> CustomerDetails = new List<CustomerDetails>();

        {

            con.Open();

            SqlCommand cmd = new SqlCommand("select * from CustomerInfo where CutomerName Like '%'+@Name+'%'", con);

            cmd.Parameters.AddWithValue("@Name", CutomerName);

            SqlDataAdapter da = new SqlDataAdapter(cmd);

            DataTable dt = new DataTable();

            da.Fill(dt);

            if (dt.Rows.Count > 0)

            {

                for (int i = 0; i < dt.Rows.Count; i++)

                {

                    CustomerDetails customerInfo = new CustomerDetails();

                    customerInfo.CutomerName = dt.Rows[i]["CutomerName"].ToString();

                    customerInfo.FirstName = dt.Rows[i]["FirstName"].ToString();

                    customerInfo.LastName = dt.Rows[i]["LastName"].ToString();

                    customerInfo.Address = dt.Rows[i]["Address"].ToString();

                    CustomerDetails.Add(customerInfo);

                }

            }

            con.Close();

        }

        return CustomerDetails;

    }



    public string InsertCustomerDetails(CustomerDetails customerInfo)

    {

        string strMessage = string.Empty;

        con.Open();

        SqlCommand cmd = new SqlCommand("insert into CustomerInfo(CutomerName,FirstName,LastName,Address) values(@Name,@FName,@LName,@Address)", con);

        cmd.Parameters.AddWithValue("@Name", customerInfo.CutomerName);

        cmd.Parameters.AddWithValue("@FName", customerInfo.FirstName);

        cmd.Parameters.AddWithValue("@LName", customerInfo.LastName);

        cmd.Parameters.AddWithValue("@Address", customerInfo.Address);

        int result = cmd.ExecuteNonQuery();

        if (result == 1)

        {

            strMessage = customerInfo.CutomerName + " inserted successfully";

        }

        else

        {

            strMessage = customerInfo.CutomerName + " not inserted successfully";

        }

        con.Close();

        return strMessage;

    }

}

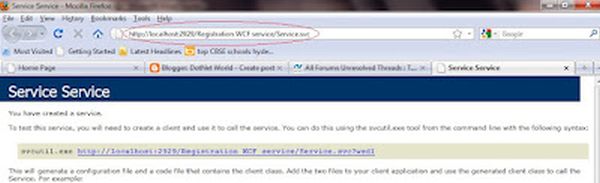

Build your service successfully first, then run your service in your browser, then you will get one URL link as in the following (copy that URL):


In this way your WCF service builds successfully.

Part 2: Create a Web Based Application (Client)

Now create your Client Application in your system in the following way:

  1. Create one Website

  2. Add a Service Reference to the Web Application

  3. Select Your Website

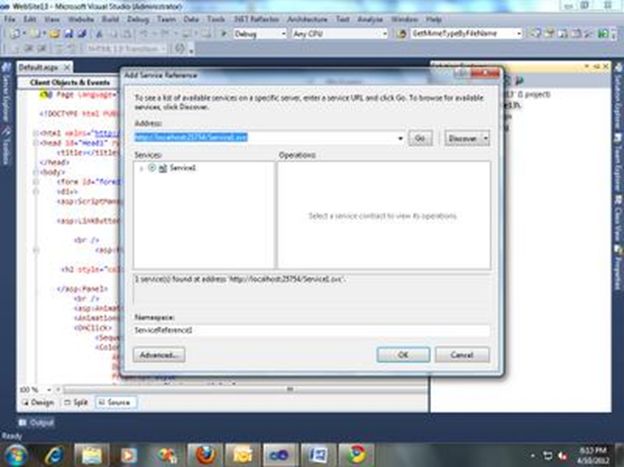

  4. Right-click on it, add a Service Reference, then enter your Service URL and click Go

  5. Give the name for your service then click the OK buton



  6. Then a Proxy will be created automatically in your client system.

  7. Write the following code in your source code:

Source Code



<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <title></title>

</head>

<body>

    <form id="form1" runat="server">

    <div>

        <h2>

            <strong>Cutomer Form</strong></h2>

    </div>

    <table align="center" class="style1">

        <tr>

            <td>

                CutomerName

            </td>

            <td>

                <asp:TextBox ID="txtCutomerName" runat="server"></asp:TextBox>

                <asp:RequiredFieldValidator ID="RequiredFieldValidator1" runat="server" ControlToValidate="txtCutomerName"

                    ToolTip="CutomerName Required"><imgsrc="delete.png" /></asp:RequiredFieldValidator>

            </td>

        </tr>

        <tr>

            <td>

                First Name

            </td>

            <td>

                <asp:TextBox ID="txtfname" runat="server"></asp:TextBox>

                <asp:RequiredFieldValidator ID="RequiredFieldValidator2" runat="server" ControlToValidate="txtfname"

                    ToolTip="Firstname Required"><imgsrc="delete.png" /></asp:RequiredFieldValidator>

            </td>

        </tr>

        <tr>

            <td>

                Last Name

            </td>

            <td>

                <asp:TextBox ID="txtlname" runat="server"></asp:TextBox>

                <asp:RequiredFieldValidator ID="RequiredFieldValidator3" runat="server" ControlToValidate="txtlname"

                    ToolTip="Lastname Required"><imgsrc="delete.png" /></asp:RequiredFieldValidator>

            </td>

        </tr>

        <tr>

            <td>

                Address

            </td>

            <td>

                <asp:TextBox ID="txtAddress" runat="server"></asp:TextBox>

                <asp:RequiredFieldValidator ID="RequiredFieldValidator4" runat="server" ControlToValidate="txtAddress"

                    ToolTip="Address Required"><imgsrc="delete.png" /></asp:RequiredFieldValidator>

            </td>

        </tr>

        <tr>

            <td>

            </td>

            <td>

                <asp:Button ID="btnSubmit" runat="server" Text="Submit" OnClick="btnSubmit_Click" />

            </td>

        </tr>

    </table>

    <table align="center" class="style3">

        <tr>

            <td>

                <asp:Label ID="lblResult" runat="server" />

                <br />

                <br />

                <asp:GridView ID="GridView1" runat="server" BackColor="LightGoldenrodYellow" BorderColor="Tan"

                    BorderWidth="1px" CellPadding="2" ForeColor="Black" GridLines="None" Style="text-align: left"

                    Width="304px">

                    <AlternatingRowStyle BackColor="PaleGoldenrod" />

                    <FooterStyle BackColor="Tan" />

                    <HeaderStyle BackColor="Tan" Font-Bold="True" />

                    <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />

                    <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />

                    <SortedAscendingCellStyle BackColor="#FAFAE7" />

                    <SortedAscendingHeaderStyle BackColor="#DAC09E" />

                    <SortedDescendingCellStyle BackColor="#E1DB9C" />

                    <SortedDescendingHeaderStyle BackColor="#C2A47B" />

                </asp:GridView>

            </td>

        </tr>

    </table>

    </form>

</body>

</html>

<usercontrol x:class="SilverlightRIAInsert.MainPage" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:ignorable="d"

    d:designheight="300" d:designwidth="543"><Grid x:Name="LayoutRoot" ><TextBlock Height="23" HorizontalAlignment="Left" Margin="152,29,0,0" Name="textBlock1" Text="FirsName" FontFamily="Verdana" FontSize="15" VerticalAlignment="Top" /><TextBox Height="23" HorizontalAlignment="Left" Margin="252,25,0,0" Name="textBox1" VerticalAlignment="Top" Width="120" /><TextBlock Height="23" HorizontalAlignment="Left" Margin="150,72,0,0" Name="textBlock2" Text="LastName" FontFamily="Verdana" FontSize="15" VerticalAlignment="Top" /><TextBox Height="23" HorizontalAlignment="Left" Margin="252,68,0,0" Name="textBox2" VerticalAlignment="Top" Width="120" /><TextBlock Height="23" HorizontalAlignment="Left" Margin="150,113,0,0" Name="textBlock3" Text="Age" FontFamily="Verdana" FontSize="15" VerticalAlignment="Top" /><TextBox Height="23" HorizontalAlignment="Left" Margin="252,113,0,0" Name="textBox3" VerticalAlignment="Top" Width="120" /><Button Content="Insert" FontFamily="Verdana" FontSize="19" Background="DeepSkyBlue" Height="44" HorizontalAlignment="Left" Margin="252,156,0,0" Name="button1" VerticalAlignment="Top" Width="120" Click="button1_Click" /></Grid>

</usercontrol>


8. Add your service reference on the top:

using ServiceReference1;

9. Then create one Object for Service Reference and use that object to call methods from your service.

10. Write the following code in your aspx.cs file:

Default.aspx.cs page

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

using System.Collections.Generic;

using ServiceReference1;



public partial class _Default : System.Web.UI.Page

{

    ServiceReference1.ServiceClient objService = new ServiceReference1.ServiceClient();



    protected void Page_Load(object sender, EventArgs e)

    {

        if (!IsPostBack)

        {

            BindUserDetails();

        }

    }



    protected void BindUserDetails()

    {

        IList<CustomerDetails> objUserDetails = new List<CustomerDetails>();

        objUserDetails = objService.GetCustomerDetails("");



        GridView1.DataSource = objUserDetails;

        GridView1.DataBind();

    }



    protected void btnSubmit_Click(object sender, EventArgs e)

    {

        CustomerDetails customerInfo = new CustomerDetails();

        customerInfo.CutomerName = txtCutomerName.Text;

        customerInfo.FirstName = txtfname.Text;

        customerInfo.LastName = txtlname.Text;

        customerInfo.Address = txtlocation.Text;

        string result = objService.InsertCustomerDetails(customerInfo);

        lblResult.Text = result;

        BindUserDetails();

        txtCutomerName.Text = string.Empty;

        txtfname.Text = string.Empty;

        txtlname.Text = string.Empty;

        txtAddress.Text = string.Empty;

    }

}


By using this you have successfully inserted data in the database and you are also shown this in a grid view.

Happy Programming!
