MSChart - How to create a column chart or graph

This article will help you in creating a column chart or graph using MSChart and how to use MSChart extensions with 3.5 framework.

Note: MSChart will work with ASP.NET 3.5 and above only.

Download and install: Microsoft Chart Controls for Microsoft .NET Framework 3.5.

http://www.microsoft.com/downloads/details.aspx?FamilyID=130f7986-bf49-4fe5-9ca8-910ae6ea442c&displaylang=en

Adding Chart Control to your toolbox:- Right-click > Choose Items > Program Files > Microsoft Chart Controls > System.Web.DataVisualization.dll.

Adding Reference-: Program Files > Microsoft Chart Controls > System.Web.DataVisualization.dll.

Following entries will get updated in web.config.



<system.web>     <httpHandlers>       <add path="ChartImg.axd" verb="GET,HEAD" type="System.Web.UI.DataVisualization.Charting.ChartHttpHandler, System.Web.DataVisualization, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" validate="false"/>     </httpHandlers>   </system.web>   <system.webServer>     <handlers>       <add name="ChartImageHandler" preCondition="integratedMode" verb="GET,HEAD" path="ChartImg.axd" type="System.Web.UI.DataVisualization.Charting.ChartHttpHandler, System.Web.DataVisualization, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" />     </handlers>   </system.webServer>

Following sample article using

  MVS used: 2008/2010
  DB used: Northwind

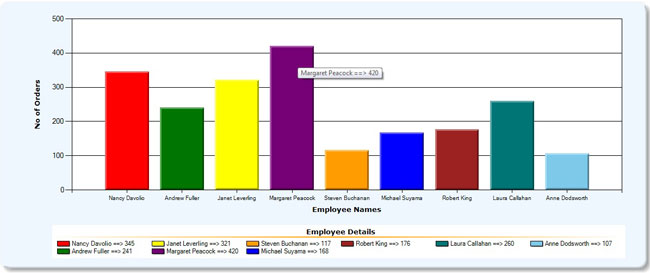

Now drag and drop asp:Chart control from toolbox to your web form.

<asp:Chart ID="Chart1" runat="server" Width="1200px" Height="500px"></asp:Chart>

Two Methods using in sample.

BindRecords() used to fetch records from DB and plotting the graph, which called on Page_Load.

SetChartAreaFeatures() used to set ChartArea properties.

Sample Codes uploaded, please download and comment.
