Styles in WPF

Apply Styles to a control

Let's say you have created some button controls on a Form. It may be difficult to set styles to every control. To rescue this type of problem, we can set Styles to all controls by setting <styles> element.

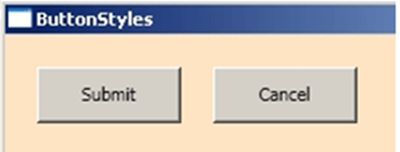

Let's create buttons as follows:

Button Styles

Style attribute:

TargetType:

This is used to set Styles to a WPF controls as follows:

TagetType="Button" TargetType="Label" TargetType="ListBoxItem"

e.g.:

  1. <Style TargetType="Button">
  2. </Style>
Setting Style Properties to a control: This can be done by using property and value attributes.

e.g.:
  1. <Setter Property="FontWeight" Value="Bold"></Setter> Styles have to set in
  2. <Window.Resources> </Window.Resources> Element.
  3. <Window x:Class="WpfComboBox.ButtonStyles" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Title="ButtonStyles" Height="300" Width="500">
  4.     <Window.Resources>
  5.         <Style TargetType="Button">
  6.         <Setter Property="FontWeight" Value="Bold"></Setter> <Setter Property="Foreground" Value="Red"></Setter> <Setter Property="Background" Value="LightSteelBlue"></Setter> <Setter Property="BorderBrush" Value="Pink"></Setter>
  7.         </Style>
  8.     </Window.Resources>
  9.     <Grid>
  10.         <StackPanel>
  11.             <StackPanel Orientation="Horizontal" Background="Bisque">
  12.                 <Button Content="Submit" Width="90" Height="35" Margin="20"></Button>
  13.                 <ButtonContent="Cancel" Width="90" Height="35">
  14.                     </Button>
  15.             </StackPanel>
  16.         </StackPanel>
  17.     </Grid>
  18. </Window>

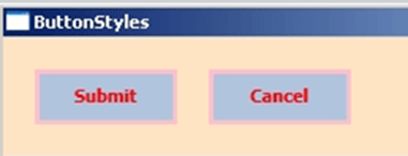

When you run the Program the Applied styles to a Button control looks as in the following image:

Button Styles

Thanks for reading my article.
