Remote Desktop Using C#.Net

Overview:

Remote Desktop Services is one of Microsoft Windows components to access a remote computer through network. Only the user interface of the application is presented at the client. Any input is redirected over to the remote computer over the network.

At work we use Remote Desktop a great deal.  It allows us to login to a remote server to perform health checks, deploy applications, troubleshoot problems, etc. We also use remote desktop often when we do WFH (work from homeJ).

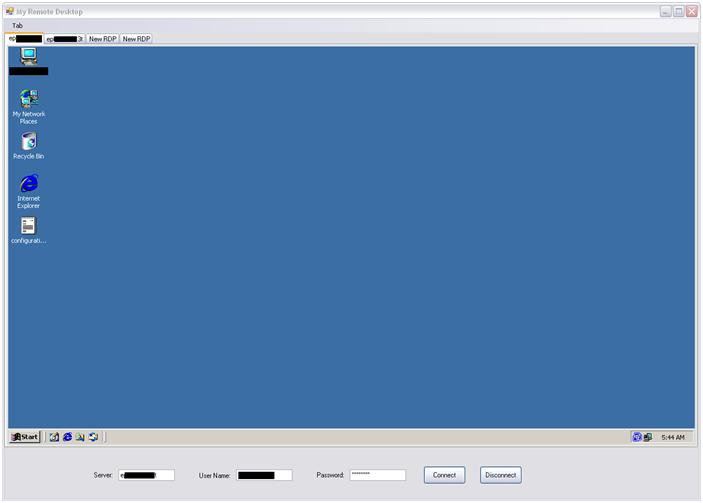

Why do we want to write a .Net application to do this when you have the MS Terminal Services client available from OS? Well, consider if you want to work on 3 different application servers at the same time and want to toggle between these 3 servers quite often. With the MSTSC, we will be running 3 different clients for the 3 servers and it is difficult to manage the working environment. In .Net you can develop an application with tab control to load remote desktop sessions in different tabs in one window.

However, tab control is not in scope of this article. That gives me an idea for my next article :)

Microsoft Terminal Services Control

We will be using AxMSTSCLib an ActiveX component in our program to connect to the remote computer. It's not that hard to build a remote desktop application in .Net.

Microsoft has a "Microsoft RDP client control" ActiveX control that we will be using in our application.

This is how we do it

We will start by creating a windows application in the Visual Studio IDE.

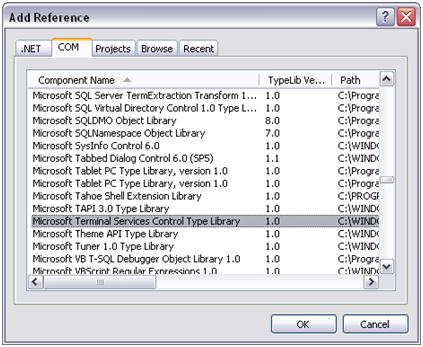

Add reference to "Microsoft Terminal Services Control Type Library" from the COM tab. This will add MSTSCLib.dll to the project.

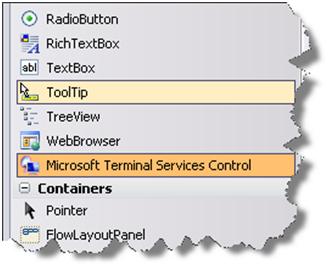

To add MSTSC to the toolbox, right click the toolbox and select "Choose Items…". Now add "Microsoft Terminal Services control from the COM tab.



Drag the newly added control from toolbox to the form.

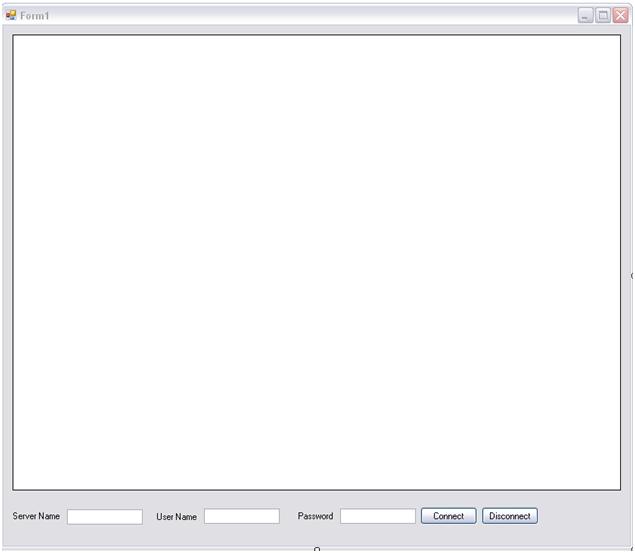

Add 3 textbox and 2 button controls to the form.


Connect Button - Click Event:


Here is how we write the Connect button click event.




rdp.Server = txtServer.Text;

rdp.UserName = txtUserName.Text;



IMsTscNonScriptable secured = (IMsTscNonScriptable)rdp.GetOcx();

secured.ClearTextPassword = txtPassword.Text;

rdp.Connect();


Now assign the properties (Server, UserName) of RDP control with the textbox values.

Here's how easy to login to remote machine. However there is one catch, there is no direct method in RDP control through which you can pass the username and password to login to the remote desktop.

 Due to security reasons you have to implement an interface (IMsTscNonScriptable) to cast it separately.


IMsTscNonScriptable secured = IMsTscNonScriptable)rdp.GetOcx();
secured.ClearTextPassword = txtPassword.Text;


Disconnect Button - Click Event:

To disconnect from the remote desktop session, we just need to call the Disconnect() method.

Before disconnecting, we want to ensure that the connection is still available. We don't want to disconnect if it is already disconnected (very clever huhJ)



if (rdp.Connected.ToString() == "1")

   rdp.Disconnect();


Check the full source code in the attachment. Please leave your valuable comments and questions.

That's all folks! Happy Coding!
