ASP.NET MVC 5: Role Based Accessibility

Role based accessibility is another integral part of web development because it provides encapsulation for designated information accessibility to designated credentials. Microsoft MVC paradigm provides a very simple and effective mechanism to achieve role based accessibility. So, for today's discussion, I will be demonstrating role based accessibility using ASP.NET MVC 5 technology.

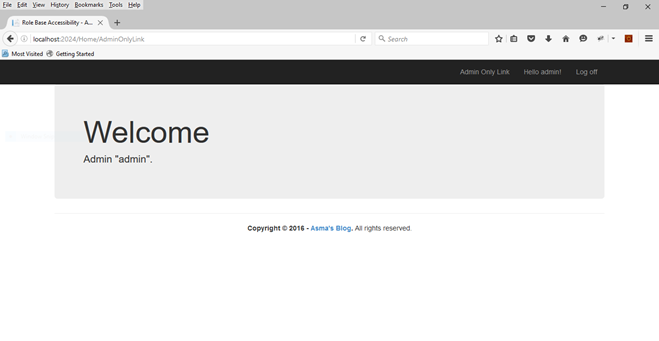

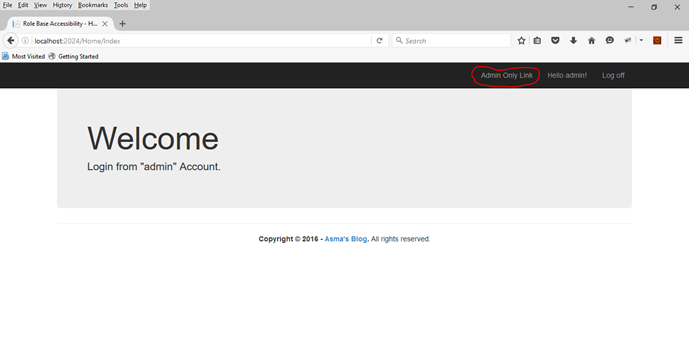

login
The following are some prerequisites before you proceed any further in this tutorial:

Prerequisites:

Before moving further, you should have knowledge of the following technologies:
  1. ASP.NET MVC 5.
  2. ADO.NET.
  3. Entity Framework.
  4. OWIN.
  5. Claim Base Identity Model.
  6. C# programming.
  7. C# LINQ.

You can download the complete source code for this tutorial from here or you can follow the step by step discussion below. The sample code is developed in Microsoft Visual Studio 2013 Ultimate. I am using SQL Server 2008 as database.

Let's Begin now.

1. Firstly, you need to create a sample database with "Login" & "Role" tables, I am using the following scripts to generate my sample database. My database name is "RoleBaseAccessibility", below is the snippet for it:

  1. USE [RoleBaseAccessibility]
  2.  GO
  3.  /****** Object: ForeignKey [R_10]  Script Date: 04/30/2016 16:32:55 ******/
  4.  IF EXISTS (SELECT * FROM sys.foreign_keys WHERE object_id = OBJECT_ID(N'[dbo].[R_10]') AND parent_object_id = OBJECT_ID(N'[dbo].[Login]'))
  5.  ALTER TABLE [dbo].[Login] DROP CONSTRAINT [R_10]
  6.  GO
  7.  /****** Object: StoredProcedure [dbo].[LoginByUsernamePassword]  Script Date: 04/30/2016 16:32:59 ******/
  8.  IF EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[LoginByUsernamePassword]') AND type in (N'P', N'PC'))
  9.  DROP PROCEDURE [dbo].[LoginByUsernamePassword]
  10.  GO
  11.  /****** Object: Table [dbo].[Login]  Script Date: 04/30/2016 16:32:55 ******/
  12.  IF EXISTS (SELECT * FROM sys.foreign_keys WHERE object_id = OBJECT_ID(N'[dbo].[R_10]') AND parent_object_id = OBJECT_ID(N'[dbo].[Login]'))
  13.  ALTER TABLE [dbo].[Login] DROP CONSTRAINT [R_10]
  14.  GO
  15.  IF EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[Login]') AND type in (N'U'))
  16.  DROP TABLE [dbo].[Login]
  17.  GO
  18.  /****** Object: Table [dbo].[Role]  Script Date: 04/30/2016 16:32:55 ******/
  19.  IF EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[Role]') AND type in (N'U'))
  20.  DROP TABLE [dbo].[Role]
  21.  GO
  22.  /****** Object: Table [dbo].[Role]  Script Date: 04/30/2016 16:32:55 ******/
  23.  SET ANSI_NULLS ON
  24.  GO
  25.  SET QUOTED_IDENTIFIER ON
  26.  GO
  27.  IF NOT EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[Role]') AND type in (N'U'))
  28.  BEGIN
  29.  CREATE TABLE [dbo].[Role](
  30.       [role_id] [int] IDENTITY(1,1) NOT NULL,
  31.       [role] [nvarchar](max) NOT NULL,
  32.   CONSTRAINT [PK_Role] PRIMARY KEY CLUSTERED
  33.  (
  34.       [role_id] ASC
  35.  )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
  36.  ) ON [PRIMARY]
  37.  END
  38.  GO
  39.  SET IDENTITY_INSERT [dbo].[Role] ON
  40.  INSERT [dbo].[Role] ([role_id], [role]) VALUES (1, N'Admin')
  41.  INSERT [dbo].[Role] ([role_id], [role]) VALUES (2, N'User')
  42.  SET IDENTITY_INSERT [dbo].[Role] OFF
  43.  /****** Object: Table [dbo].[Login]  Script Date: 04/30/2016 16:32:55 ******/
  44.  SET ANSI_NULLS ON
  45.  GO
  46.  SET QUOTED_IDENTIFIER ON
  47.  GO
  48.  SET ANSI_PADDING ON
  49.  GO
  50.  IF NOT EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[Login]') AND type in (N'U'))
  51.  BEGIN
  52.  CREATE TABLE [dbo].[Login](
  53.       [id] [int] IDENTITY(1,1) NOT NULL,
  54.       [username] [varchar](50) NOT NULL,
  55.       [password] [varchar](50) NOT NULL,
  56.       [role_id] [int] NOT NULL,
  57.   CONSTRAINT [PK_Login] PRIMARY KEY CLUSTERED
  58.  (
  59.       [id] ASC
  60.  )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
  61.  ) ON [PRIMARY]
  62.  END
  63.  GO
  64.  SET ANSI_PADDING OFF
  65.  GO
  66.  SET IDENTITY_INSERT [dbo].[Login] ON
  67.  INSERT [dbo].[Login] ([id], [username], [password], [role_id]) VALUES (1, N'admin', N'admin', 1)
  68.  INSERT [dbo].[Login] ([id], [username], [password], [role_id]) VALUES (2, N'user', N'user', 2)
  69.  SET IDENTITY_INSERT [dbo].[Login] OFF
  70.  /****** Object: StoredProcedure [dbo].[LoginByUsernamePassword]  Script Date: 04/30/2016 16:32:59 ******/
  71.  SET ANSI_NULLS ON
  72.  GO
  73.  SET QUOTED_IDENTIFIER ON
  74.  GO
  75.  IF NOT EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[LoginByUsernamePassword]') AND type in (N'P', N'PC'))
  76.  BEGIN
  77.  EXEC dbo.sp_executesql @statement = N'-- =============================================
  78.  -- Author:          <Author,,Name>
  79.  -- Create date: <Create Date,,>
  80.  -- Description:     <Description,,>
  81.  -- =============================================
  82.  CREATE PROCEDURE [dbo].[LoginByUsernamePassword]
  83.       @username varchar(50),
  84.       @password varchar(50)
  85.  AS
  86.  BEGIN
  87.       SELECT id, username, password, role_id
  88.       FROM Login
  89.       WHERE username = @username
  90.       AND password = @password
  91.  END
  92.  '
  93.  END
  94.  GO
  95.  /****** Object: ForeignKey [R_10]  Script Date: 04/30/2016 16:32:55 ******/
  96.  IF NOT EXISTS (SELECT * FROM sys.foreign_keys WHERE object_id = OBJECT_ID(N'[dbo].[R_10]') AND parent_object_id = OBJECT_ID(N'[dbo].[Login]'))
  97.  ALTER TABLE [dbo].[Login] WITH CHECK ADD CONSTRAINT [R_10] FOREIGN KEY([role_id])
  98.  REFERENCES [dbo].[Role] ([role_id])
  99.  ON UPDATE CASCADE
  100.  ON DELETE CASCADE
  101.  GO
  102.  IF EXISTS (SELECT * FROM sys.foreign_keys WHERE object_id = OBJECT_ID(N'[dbo].[R_10]') AND parent_object_id = OBJECT_ID(N'[dbo].[Login]'))
  103.  ALTER TABLE [dbo].[Login] CHECK CONSTRAINT [R_10]
  104.  GO

Here I have created a simple login & role tables with sample data and a store procedure to retrieve the data.

2. Create new visual studio web MVC project and name it "RoleBaseAccessibility".

3. You need to create "ADO.NET" database connectivity. You can visit here for details.

4. You also need to create basic "Login" interface, I am not going to show you how you can create a basic login application by using Claim Base Identity Model. You can either download source code for this tutorial or you can go through detail tutorial here for better understanding.

5. Now, open "App_Start->Startup.Auth.cs" file and replace it with following code:

  1. using Microsoft.AspNet.Identity;
  2.  using Microsoft.AspNet.Identity.EntityFramework;
  3.  using Microsoft.AspNet.Identity.Owin;
  4.  using Microsoft.Owin;
  5.  using Microsoft.Owin.Security.Cookies;
  6.  using Microsoft.Owin.Security.DataProtection;
  7.  using Microsoft.Owin.Security.Google;
  8.  using Owin;
  9.  using System;
  10.  using RoleBaseAccessibility.Models;
  11.  namespace RoleBaseAccessibility
  12.  {
  13.    public partial class Startup
  14.    {
  15.      // For more information on configuring authentication, please visit http://go.microsoft.com/fwlink/?LinkId=301864
  16.      public void ConfigureAuth(IAppBuilder app)
  17.      {
  18.        // Enable the application to use a cookie to store information for the signed in user
  19.        // and to use a cookie to temporarily store information about a user logging in with a third party login provider
  20.        // Configure the sign in cookie
  21.        app.UseCookieAuthentication(new CookieAuthenticationOptions
  22.        {
  23.          AuthenticationType = DefaultAuthenticationTypes.ApplicationCookie,
  24.          LoginPath = new PathString("/Account/Login"),
  25.          LogoutPath = new PathString("/Account/LogOff"),
  26.          ExpireTimeSpan = TimeSpan.FromMinutes(5.0),
  27.          ReturnUrlParameter = "/Home/Index"
  28.        });
  29.        app.UseExternalSignInCookie(DefaultAuthenticationTypes.ExternalCookie);
  30.        // Uncomment the following lines to enable logging in with third party login providers
  31.        //app.UseMicrosoftAccountAuthentication(
  32.        //  clientId: "",
  33.        //  clientSecret: "");
  34.        //app.UseTwitterAuthentication(
  35.        //  consumerKey: "",
  36.        //  consumerSecret: "");
  37.        //app.UseFacebookAuthentication(
  38.        //  appId: "",
  39.        //  appSecret: "");
  40.        //app.UseGoogleAuthentication(new GoogleOAuth2AuthenticationOptions()
  41.        //{
  42.        //  ClientId = "",
  43.        //  ClientSecret = ""
  44.        //});
  45.      }
  46.    }
  47.  }

In above code following line of code will redirect the user to home page if he/she tries to access a link which is not authorized to him/her:

  1. ReturnUrlParameter = "/Home/Index"

6. Create new controller, name it "AccountController.cs" under "Controller" folder and replace it with the following code:

  1. //-----------------------------------------------------------------------
  2.  // <copyright file="AccountController.cs" company="None">
  3.  //   Copyright (c) Allow to distribute this code.
  4.  // </copyright>
  5.  // <author>Asma Khalid</author>
  6.  //-----------------------------------------------------------------------
  7.  namespace RoleBaseAccessibility.Controllers
  8.  {
  9.    using System;
  10.    using System.Collections.Generic;
  11.    using System.Linq;
  12.    using System.Security.Claims;
  13.    using System.Web;
  14.    using System.Web.Mvc;
  15.    using Microsoft.AspNet.Identity;
  16.    using Microsoft.Owin.Security;
  17.    using RoleBaseAccessibility.Models;
  18.    /// <summary>
  19.    /// Account controller class.
  20.    /// </summary>
  21.    public class AccountController : Controller
  22.    {
  23.      #region Private Properties
  24.      /// <summary>
  25.      /// Database Store property.
  26.      /// </summary>
  27.      private RoleBaseAccessibilityEntities databaseManager = new RoleBaseAccessibilityEntities();
  28.      #endregion
  29.      #region Default Constructor
  30.      /// <summary>
  31.      /// Initializes a new instance of the <see cref="AccountController" /> class.
  32.      /// </summary>
  33.      public AccountController()
  34.      {
  35.      }
  36.      #endregion
  37.      #region Login methods
  38.      /// <summary>
  39.      /// GET: /Account/Login
  40.      /// </summary>
  41.      /// <param name="returnUrl">Return URL parameter</param>
  42.      /// <returns>Return login view</returns>
  43.      [AllowAnonymous]
  44.      public ActionResult Login(string returnUrl)
  45.      {
  46.        try
  47.        {
  48.          // Verification.
  49.          if (this.Request.IsAuthenticated)
  50.          {
  51.            // Info.
  52.            return this.RedirectToLocal(returnUrl);
  53.          }
  54.        }
  55.        catch (Exception ex)
  56.        {
  57.          // Info
  58.          Console.Write(ex);
  59.        }
  60.        // Info.
  61.        return this.View();
  62.      }
  63.      /// <summary>
  64.      /// POST: /Account/Login
  65.      /// </summary>
  66.      /// <param name="model">Model parameter</param>
  67.      /// <param name="returnUrl">Return URL parameter</param>
  68.      /// <returns>Return login view</returns>
  69.      [HttpPost]
  70.      [AllowAnonymous]
  71.      [ValidateAntiForgeryToken]
  72.      public ActionResult Login(LoginViewModel model, string returnUrl)
  73.      {
  74.        try
  75.        {
  76.          // Verification.
  77.          if (ModelState.IsValid)
  78.          {
  79.            // Initialization.
  80.            var loginInfo = this.databaseManager.LoginByUsernamePassword(model.Username, model.Password).ToList();
  81.            // Verification.
  82.            if (loginInfo != null && loginInfo.Count() > 0)
  83.            {
  84.              // Initialization.
  85.              var logindetails = loginInfo.First();
  86.              // Login In.
  87.              this.SignInUser(logindetails.username, logindetails.role_id, false);
  88.              // setting.
  89.              this.Session["role_id"] = logindetails.role_id;
  90.              // Info.
  91.              return this.RedirectToLocal(returnUrl);
  92.            }
  93.            else
  94.            {
  95.              // Setting.
  96.              ModelState.AddModelError(string.Empty, "Invalid username or password.");
  97.            }
  98.          }
  99.        }
  100.        catch (Exception ex)
  101.        {
  102.          // Info
  103.          Console.Write(ex);
  104.        }
  105.        // If we got this far, something failed, redisplay form
  106.        return this.View(model);
  107.      }
  108.      #endregion
  109.      #region Log Out method.
  110.      /// <summary>
  111.      /// POST: /Account/LogOff
  112.      /// </summary>
  113.      /// <returns>Return log off action</returns>
  114.      [HttpPost]
  115.      [ValidateAntiForgeryToken]
  116.      public ActionResult LogOff()
  117.      {
  118.        try
  119.        {
  120.          // Setting.
  121.          var ctx = Request.GetOwinContext();
  122.          var authenticationManager = ctx.Authentication;
  123.          // Sign Out.
  124.          authenticationManager.SignOut();
  125.        }
  126.        catch (Exception ex)
  127.        {
  128.          // Info
  129.          throw ex;
  130.        }
  131.        // Info.
  132.        return this.RedirectToAction("Login", "Account");
  133.      }
  134.      #endregion
  135.      #region Helpers
  136.      #region Sign In method.
  137.      /// <summary>
  138.      /// Sign In User method.
  139.      /// </summary>
  140.      /// <param name="username">Username parameter.</param>
  141.      /// <param name="role_id">Role ID parameter</param>
  142.      /// <param name="isPersistent">Is persistent parameter.</param>
  143.      private void SignInUser(string username, int role_id, bool isPersistent)
  144.      {
  145.        // Initialization.
  146.        var claims = new List<Claim>();
  147.        try
  148.        {
  149.          // Setting
  150.          claims.Add(new Claim(ClaimTypes.Name, username));
  151.          claims.Add(new Claim(ClaimTypes.Role, role_id.ToString()));
  152.          var claimIdenties = new ClaimsIdentity(claims, DefaultAuthenticationTypes.ApplicationCookie);
  153.          var ctx = Request.GetOwinContext();
  154.          var authenticationManager = ctx.Authentication;
  155.          // Sign In.
  156.          authenticationManager.SignIn(new AuthenticationProperties() { IsPersistent = isPersistent }, claimIdenties);
  157.        }
  158.        catch (Exception ex)
  159.        {
  160.          // Info
  161.          throw ex;
  162.        }
  163.      }
  164.      #endregion
  165.      #region Redirect to local method.
  166.      /// <summary>
  167.      /// Redirect to local method.
  168.      /// </summary>
  169.      /// <param name="returnUrl">Return URL parameter.</param>
  170.      /// <returns>Return redirection action</returns>
  171.      private ActionResult RedirectToLocal(string returnUrl)
  172.      {
  173.        try
  174.        {
  175.          // Verification.
  176.          if (Url.IsLocalUrl(returnUrl))
  177.          {
  178.            // Info.
  179.            return this.Redirect(returnUrl);
  180.          }
  181.        }
  182.        catch (Exception ex)
  183.        {
  184.          // Info
  185.          throw ex;
  186.        }
  187.        // Info.
  188.        return this.RedirectToAction("Index", "Home");
  189.      }
  190.      #endregion
  191.      #endregion
  192.    }
  193.  }

In above code, the following piece of code is important i.e.

  1. #region Sign In method.
  2.      /// <summary>
  3.      /// Sign In User method.
  4.      /// </summary>
  5.      /// <param name="username">Username parameter.</param>
  6.      /// <param name="role_id">Role ID parameter</param>
  7.      /// <param name="isPersistent">Is persistent parameter.</param>
  8.      private void SignInUser(string username, int role_id, bool isPersistent)
  9.      {
  10.        // Initialization.
  11.        var claims = new List<Claim>();
  12.        try
  13.        {
  14.          // Setting
  15.          claims.Add(new Claim(ClaimTypes.Name, username));
  16.          claims.Add(new Claim(ClaimTypes.Role, role_id.ToString()));
  17.          var claimIdenties = new ClaimsIdentity(claims, DefaultAuthenticationTypes.ApplicationCookie);
  18.          var ctx = Request.GetOwinContext();
  19.          var authenticationManager = ctx.Authentication;
  20.          // Sign In.
  21.          authenticationManager.SignIn(new AuthenticationProperties() { IsPersistent = isPersistent }, claimIdenties);
  22.        }
  23.        catch (Exception ex)
  24.        {
  25.          // Info
  26.          throw ex;
  27.        }
  28.      }
  29.      #endregion

Here, along with claiming "Username" in OWIN security layer, we are also claiming "role_id" to provide role base accessibility:

  1. claims.Add(new Claim(ClaimTypes.Role, role_id.ToString()));

7. Now, create new controller under "Controller" folder, name it "HomeController.cs" and replace it with the following code i.e.

  1. // <copyright file="HomeController.cs" company="None">
  2.  //   Copyright (c) Allow to distribute this code.
  3.  // </copyright>
  4.  // <author>Asma Khalid</author>
  5.  //-----------------------------------------------------------------------
  6.  namespace RoleBaseAccessibility.Controllers
  7.  {
  8.    using System;
  9.    using System.Collections.Generic;
  10.    using System.Linq;
  11.    using System.Web;
  12.    using System.Web.Mvc;
  13.    /// <summary>
  14.    /// Home controller class.
  15.    /// </summary>
  16.    [Authorize]
  17.    public class HomeController : Controller
  18.    {
  19.      #region Index method.
  20.      /// <summary>
  21.      /// Index method.
  22.      /// </summary>
  23.      /// <returns>Returns - Index view</returns>
  24.      public ActionResult Index()
  25.      {
  26.        return this.View();
  27.      }
  28.      #endregion
  29.      #region Admin Only Link
  30.      /// <summary>
  31.      /// Admin only link method.
  32.      /// </summary>
  33.      /// <returns>Returns - Admin only link view</returns>
  34.      [Authorize(Roles = "1")]
  35.      public ActionResult AdminOnlyLink()
  36.      {
  37.        return this.View();
  38.      }
  39.      #endregion
  40.    }
  41.  }

In above code, we have simply created two views, one is accessible to all the user which is "Index" view and second method is accessible to only "Admin" role user with role_id = 1. Following piece of code will translate the role base accessibility in OWIN security layer i.e.

  1. [Authorize(Roles = "1")]

If you want to define role accessibility for multiple roles you can achieve it like following:

  1. [Authorize(Roles = "1, 2, 3")]

where, 2, 3 are role id(s).

8. Replace the following code in "_LoginPartial.cshtml" file:

  1. @*@using Microsoft.AspNet.Identity*@
  2.  @if (Request.IsAuthenticated)
  3.  {
  4.    using (Html.BeginForm("LogOff", "Account", FormMethod.Post, new { id = "logoutForm", @class = "navbar-right" }))
  5.    {
  6.      @Html.AntiForgeryToken()
  7.      <ul class="nav navbar-nav navbar-right">
  8.        @if (Convert.ToInt32(this.Session["role_id"]) == 1)
  9.        {
  10.          <li>
  11.            @Html.ActionLink("Admin Only Link", "AdminOnlyLink", "Home")
  12.          </li>
  13.        }
  14.        <li>
  15.          @Html.ActionLink("Hello " + User.Identity.Name + "!", "Index", "Home", routeValues: null, htmlAttributes: new { title = "Manage" })
  16.        </li>
  17.        <li><a href="javascript:document.getElementById('logoutForm').submit()">Log off</a></li>
  18.      </ul>
  19.    }
  20.  }
  21.  else
  22.  {
  23.    <ul class="nav navbar-nav navbar-right">
  24.      <li>@Html.ActionLink("Log in", "Login", "Account", routeValues: null, htmlAttributes: new { id = "loginLink" })</li>
  25.    </ul>
  26.  }

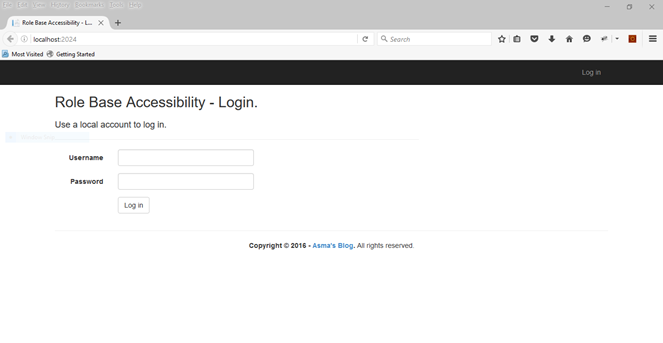

9. Execute the project and you will see the following:

Execute
10. When you login as admin account you will able to see a link that only admin can see as follow:

login
login

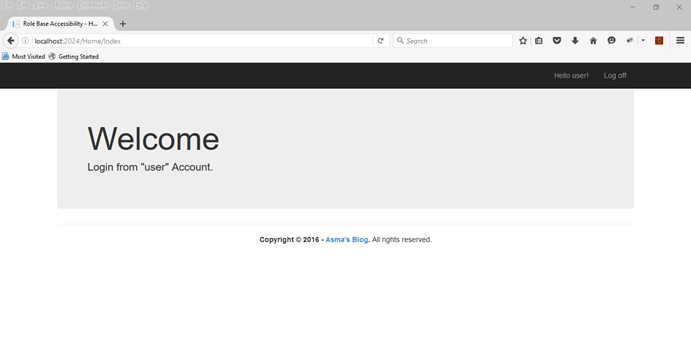

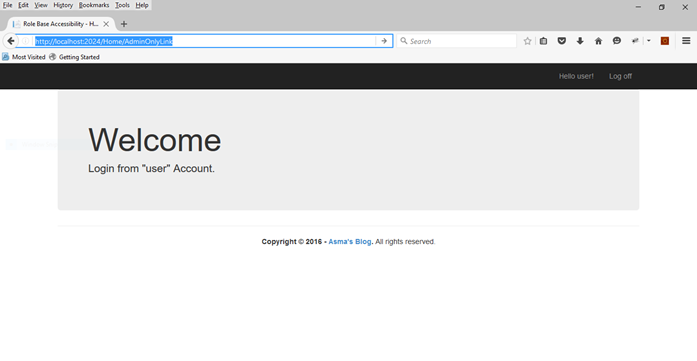

11. When you login as non-admin account you won't see the link that admin can see but, if you try to open the link which supposedly you do not have access of, you will be redirected to your home page as follow:

output
output
Conclusion

In this tutorial you learned how to use create role based accessibility. You also learned how you can encapsulate role based accessibility for multiple roles.

Read more articles on ASP.NET:

Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
