A Beginner's Guide To Windows Server Setup

All developers must be familiar with how to interact with a server for various project requirements. This server interaction varies depending on the project requirements. Some of us may just want to connect to a SQL Server database server through an application, some of us may be hosting our application to an IIS Server.

But, the number of developers who get a chance to setup and manage a server will be much less. That is the reason I thought of writing a step by step guide on this topic, especially for those who are not familiar with Server Management and Server Setup. When you are asked to set up a development server for hosting your application, it may sound scary if you have no experience in that area.

Before setting up a server as your development server, we should know our requirements first. A few things we may consider before a server setup include -

  • Whether you need an on-premise server which runs on your organization’s network or you are OK with a cloud server.
  • Which are the applications, you are going to install on this? what is the purpose of the server?
  • How many users are going to connect to it concurrently?
  • The size of the server required.

In my case, I wanted a server that runs an SQL Server 2016 with SQL Server Data Tools (SSDT) and IIS. I was fine with a cloud server, so went for Azure Server.

You may need to figure out the hardware requirements needed. For this, you can think of a few things.

  • OS to be used
  • Applications to be used
  • Number of concurrent users

So, the next step is to identify the Operating System you may need. In my case, it was Windows Server 2012 R2.

In most cases, your IT team will install the OS and the necessary network settings are done for you.

You can go to Azure site and choose the configuration you want. It will calculate and show you the amount you will be charged based on your selection.

Go here.

  • Choose Virtual Machines.
  • Choose the region, OS, CPU/Memory configuration etc.
  • The amount will be shown for each item you choose.

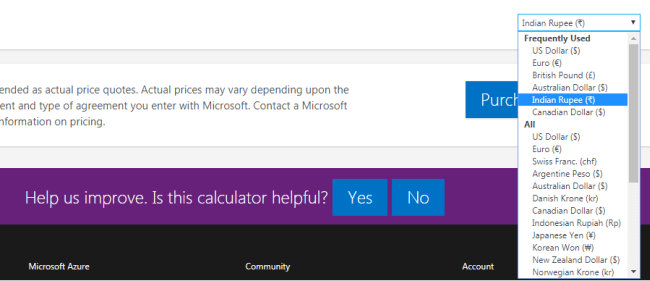

  • By default, the amount will be in dollars. You can change it to the currency of your choice.
     Windows Server

In my case, for running an SQL Server and an IIS server, a 4 cores processor with 7 GB RAM was fine. You will get a certain amount of hard disk space for free for the configuration. You can scale up later and it will be charged accordingly.

Increasing the hard disk space is easier than adding more cores and RAM.

Connecting to the server

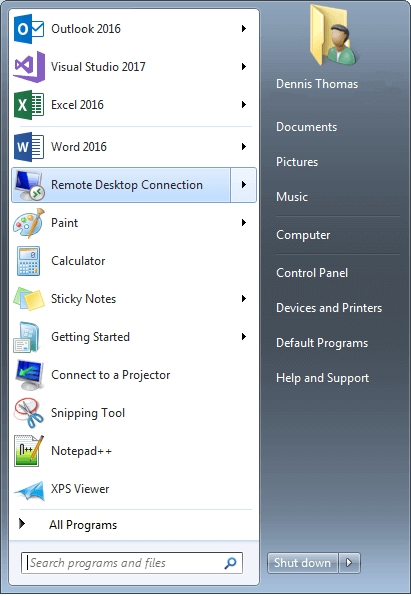

If your server has RDP enabled, you will be able to connect to it using Remote Desktop Connection from your local machine. Open the Remote Desktop Connection wizard from the Start menu.

Windows Server

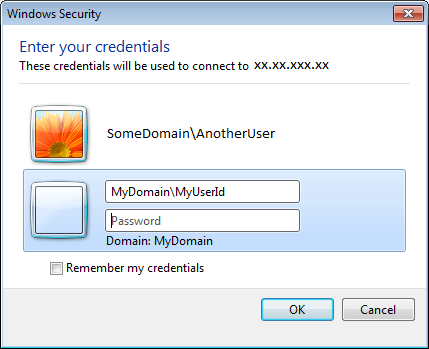

Type your server's IP for the Computer field.

Give your username prefixed with your domain. For eg: DOMAIN\{USERID}

Give your password in the password field.

Windows Server

For Security reasons, some organizations will not allow direct access to your server. Instead, they may ask you to connect to a terminal server and from there, you will have to start another remote desktop connection session to connect to your actual server.

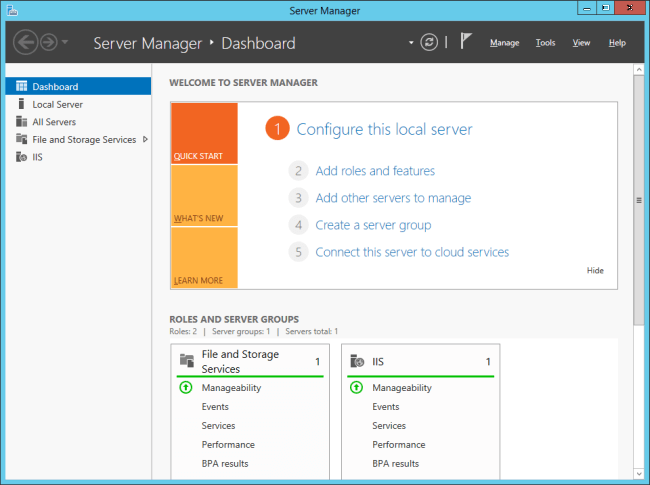

Once you have connected to your server, you will be welcomed by Server Manager page.

Windows Server

It displays the server roles and you can manage them and many things like installing new Windows features etc.

For installing IIS, you can follow the below steps.

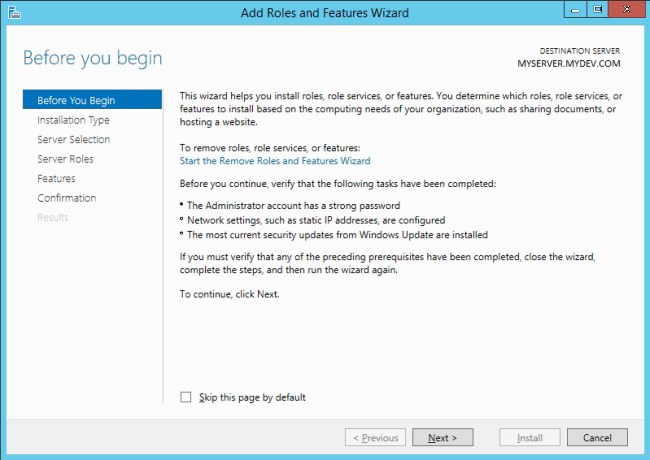

On the Server Manager welcome screen, click on the "Add roles and features"; you will get a new "Add Roles and Features" Wizard.

Windows Server

Click "Next".

Windows Server

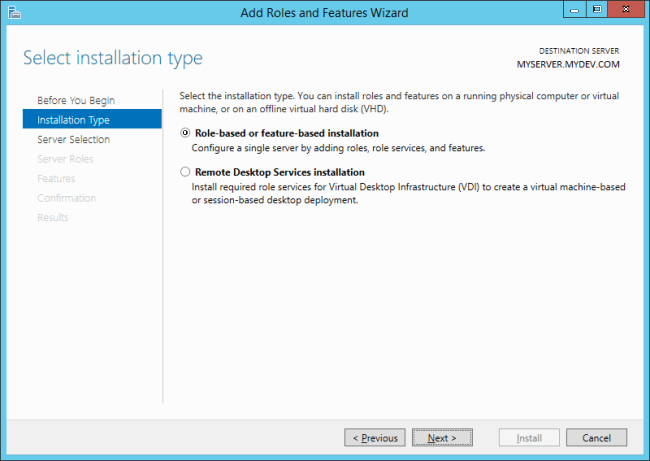

The role-based or feature-based installation will be selected by default, otherwise, select it and click "Next".

Windows Server

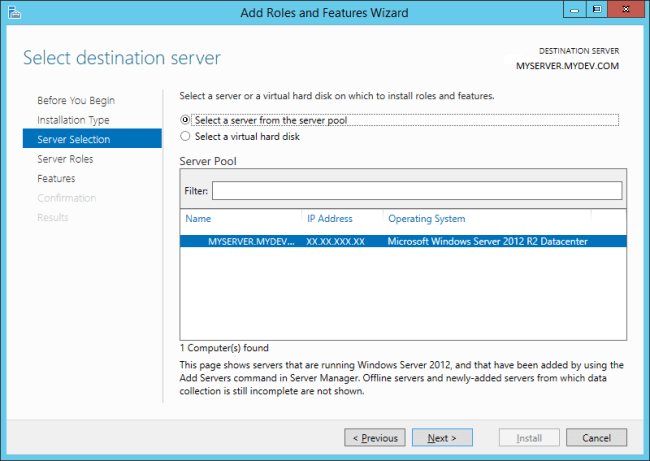

If you have multiple servers, choose the one you want, otherwise, you server will be selected by default. Click "Next".

Windows Server

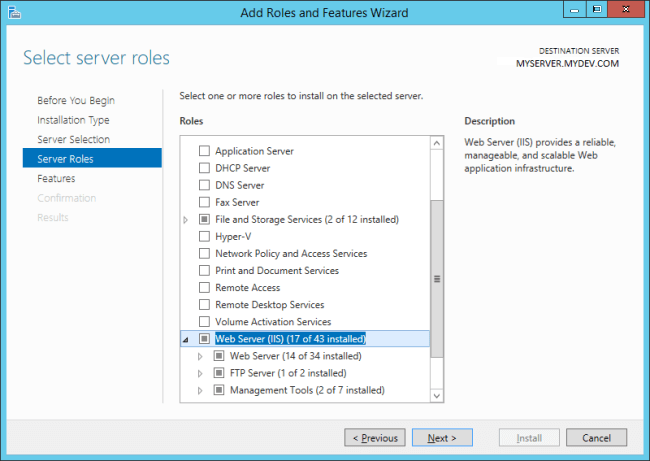

Select Web Server (IIS) from the list. You can choose one or more server roles from the list and click "Next".

Windows Server

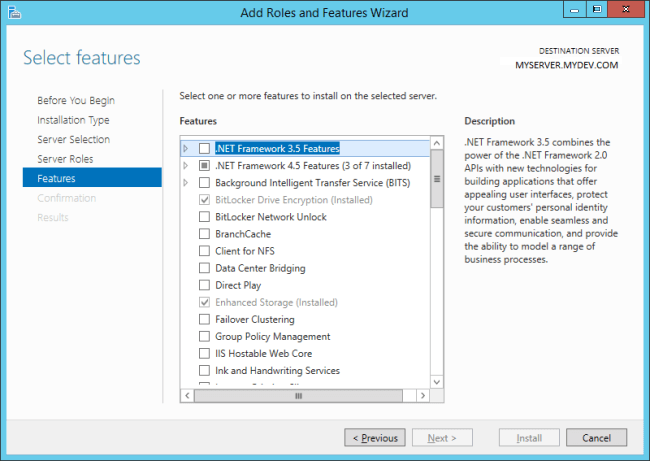

Choose the required Windows features from the list and click "Next".

 Windows Server

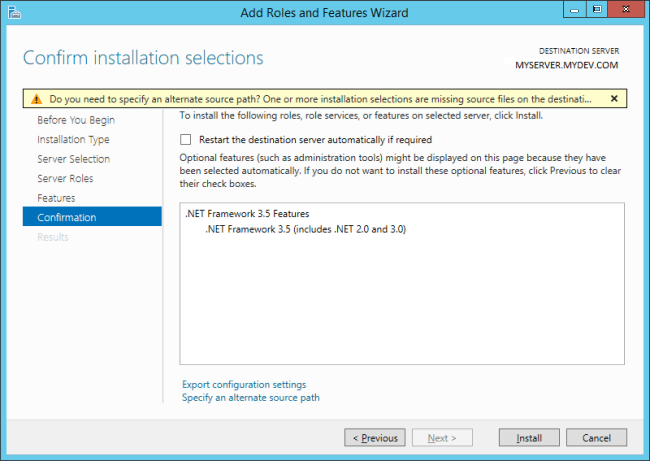

Click Install. The IIS and the required features will be installed on your server.

Installing SQL Server is like installing an application on a desktop using a setup wizard. Since I wanted SQL Server Reporting Services, I also selected the SQL Server Data Tools (SSDT) from the checklist available while installing. You can choose SSRS, SSIS, SSAS etc. and the installer will install the selected packages for you. Installing SSRS will install Reporting Manager on the server which will help you host reports on the server where you Database is running. Report Manager works like kind of a website that can run on the server where the SQL Server database is running. So, from version 2008 onwards, SSRS can run independently without having an Internet Information Services (IIS).

Once you have installed IIS, if you are missing any components, you can get it installed using Web Platform Installer.

First, you need to download the Web Platform Installer (WPI) and install it on the server.

I installed Web Platform Installer (WPI) 5.0 as it was the latest.

After installing, open the WPI.

Type the name of the feature you want to install in the search box.

I wanted to install Web Deploy on my IIS.

Web Deploy is mainly used in two scenarios,

  1. It helps developers to publish a compiled web application from Visual Studio to IIS.
  2. To migrate a website from an Operating System (OS) running an older version of IIS, say 6.0, to an OS running the latest IIS say 8.5.

Web deployment is faster than FTP and secure than XCOPY as it supports transfer over HTTPS.

You can either search Web Deploy in the search box and install it.

But if you choose to install Web Deploy, the dependencies required for Web Deploy may not be installed.

So, the better option is to install the Recommended Server Configuration for Web Hosting Providers.

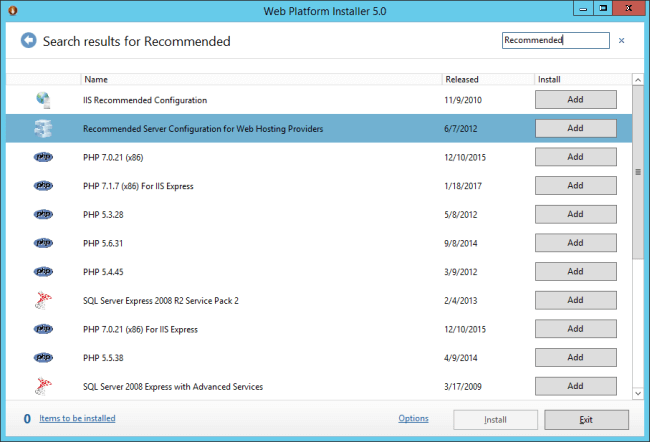

In WPI, type "Recommended" in the search bar in the upper-right hand corner and press Enter.

Choose Recommended Server Configuration for Web Hosting Providers from the search results

Windows Server

Click Add

Then click Install.

Windows Server

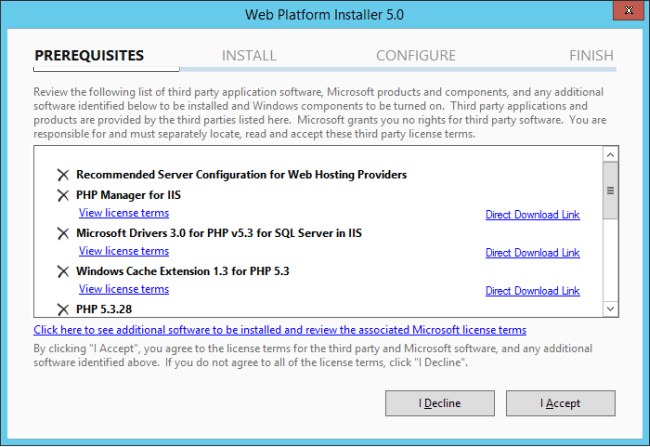

Click on I Accept

The feature will be installed.

You can use WPI to install various development tools and their dependencies that are part of Microsoft Web Platform.

If you host an application and you want to browse it from your local machine, URL browsing should be enabled on the server.

Your network team should help you on this.

Moreover, if you want to open new ports on the server for an application, you will have to get the help of Network or the concerned team’s help.

Thank you!
