Azure Load Balancer: Create An Internal Load Balancer - Part One

An Azure internal load balancer (ILB) offers a network load balancing between the virtual machines that reside inside a Cloud Service or a virtual network with a regional scope.

Prerequisites

  • Azure account.

Now, let's get started with the following steps:

Sign in to the online Microsoft Azure Portal.

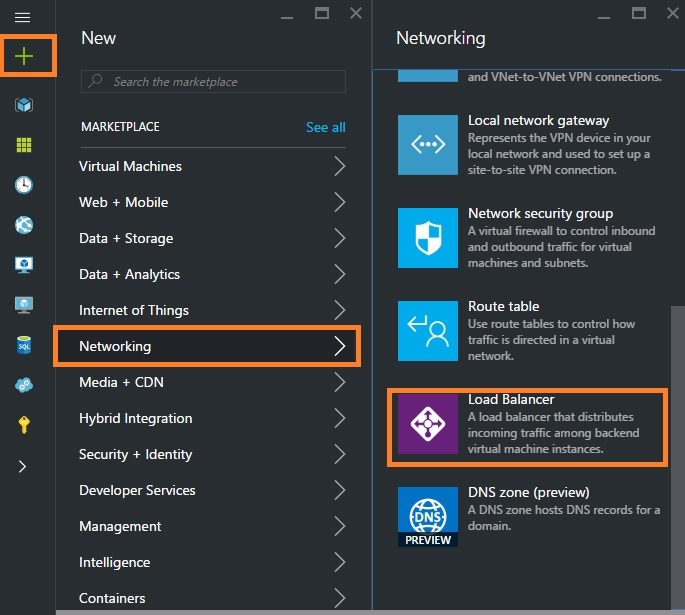

Click New > Networking > Load balancer.

New

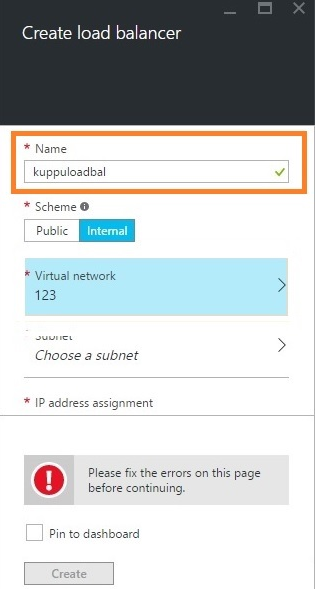

In the Create load balancer blade, type a Name for your load balancer account.

balancer

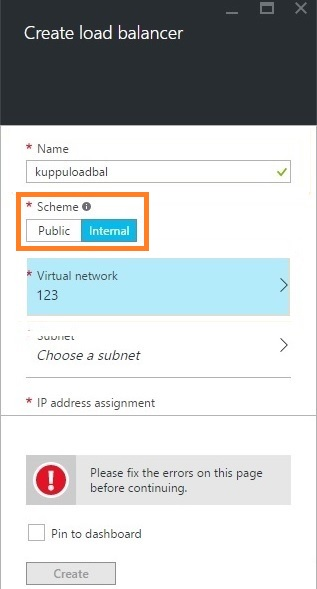

Under Scheme, select Internal.

Internal

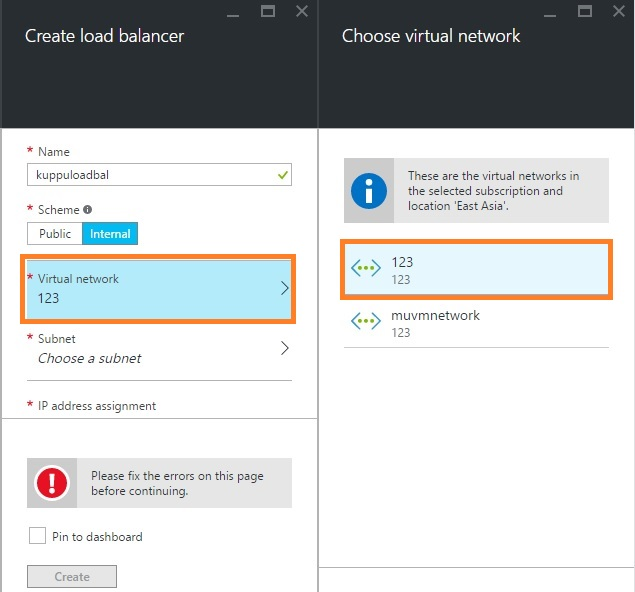

Click Virtual network and then select the virtual network where we want to create the load balancer.

virtual network

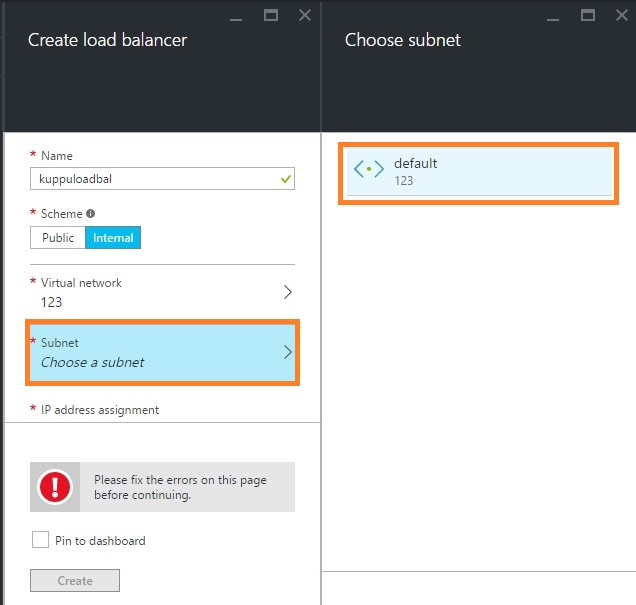

Click Subnet and then select the subnet where we want to create the load balancer.

create

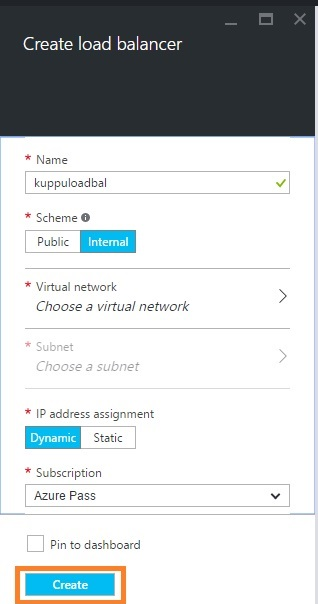

Under Resource group, either specify the name of a new resource group for the load balancer or click select existing and select an existing resource group and click Create.

create

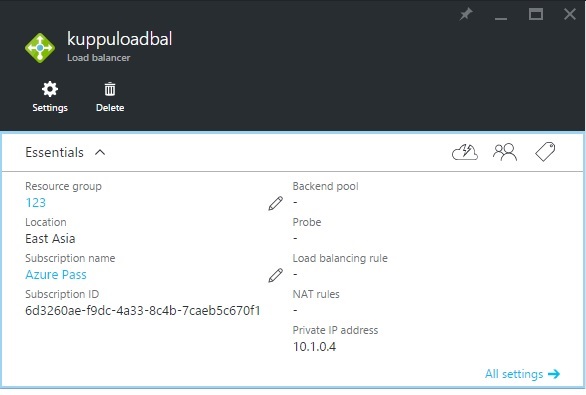

After some time, we will get Load Balancing Service in Azure Dashboard.

Dashboard
