Bundling Using Kendo UI In ASP.NET MVC 5: Part 18

Before reading this article, I highly recommend reading the previous parts of the series on ASP.NET:

What is Bundling?

A bundle may consist of multiple CSS and JavaScript files. A bundle is a logical group of files that is loaded with a single HTTP request. You can create style and script bundle for CSS and JavaScript’s respectively by calling BundleCollection class Add() method with in BundleConfig.cs file.

What is the mean of Bundling?

  • In Asp.net MVC, Bundling means combining multiple files into a single file.
  • Mainly Bundling is done for CSS, JS files.

What are the benefits of Bundling?

  • With the help of Bundling, there will be having less HTTP request to the server.
  • This would definitely reduce the page load time.

Why we use Bundling?

  • Bundles can be used for run-time swapping of css or jss file.

An Example of Bundled CSS-

  1. html, body
  2. {
  3.     font - size: 2e m;
  4.     font - family: ‘Arial’;
  5.     margin: 10 px;
  6. }
  7. html, body
  8. {
  9.     background - color: red;
  10.     color: green;
  11. }

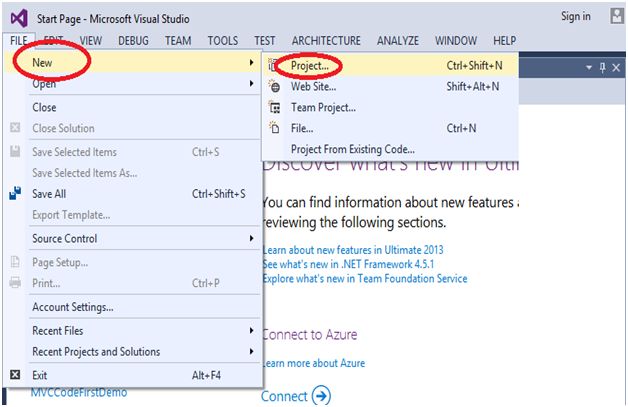

Open Visual Studio 2013, click on to “File” menu select “New” and choose “Project”.

Project

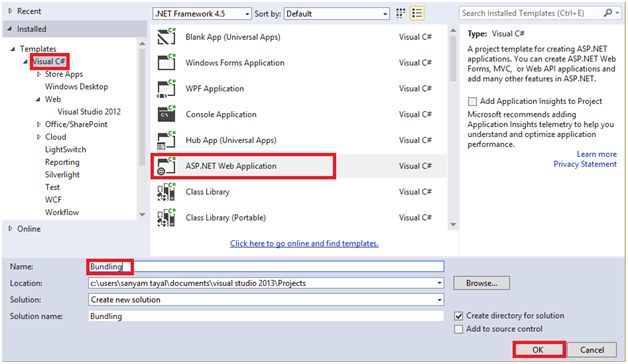

In the below figure Select Visual C# in the left side of the page and choose ASP.NET Web Application from the menu, and here I give the name of project “Bundling”. You can give the project name as you wish. Click on to “OK” button to create your project.

create your project

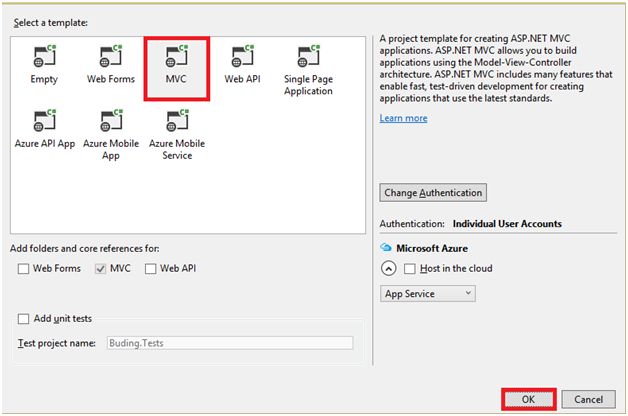

You can see the default MVC will be selected, select MVC and then click “OK” button.

default MVC

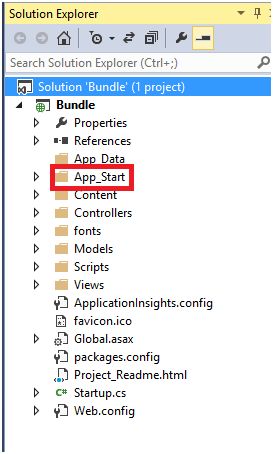

Here, my project is created and is ready for use. First I want to make some changes in BundleConfig.cs, so click on to App_Start folder.

click on to App

Now we are using Kendo UI

What is Kendo UI?

Kendo UI is a JavaScript tool set which is an HTML5 user interface framework for building interactive and high-performance modern web applications, websites. After installing the Kendo UI, you’ll get lots of JavaScript files, images and style sheets. The framework comes with a library of 70+ UI widgets and features. Kendo UI provides AngularJS and Bootstrap integration.Kendo UI is very easy to use.

Kendo UI provides AngularJS

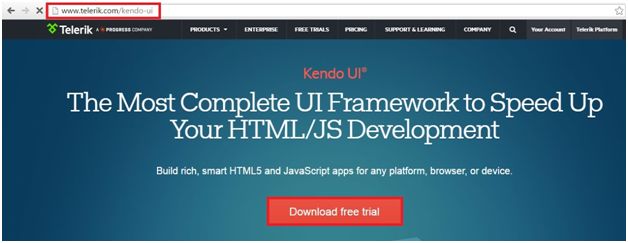

So download the free trial of Kendo UI . Now Click on to the Download free trial.

download the free trial

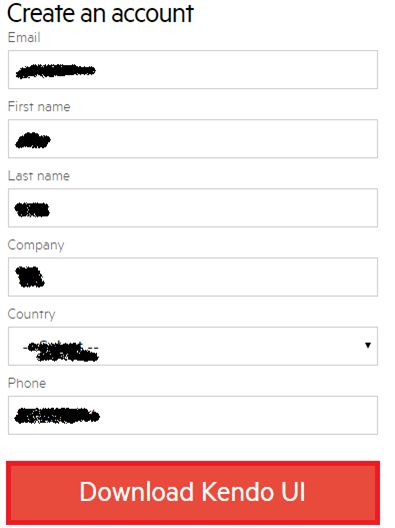

You need to create a account for this. After filling all the required details click on to Download.

create a account

Now file will be downloaded in to your local PC. Select the downloaded file and open it.

downloaded file

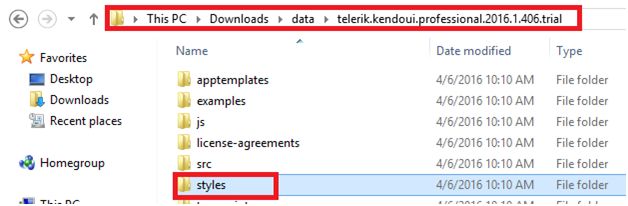

Open this file and click on to styles folder.

styles folder

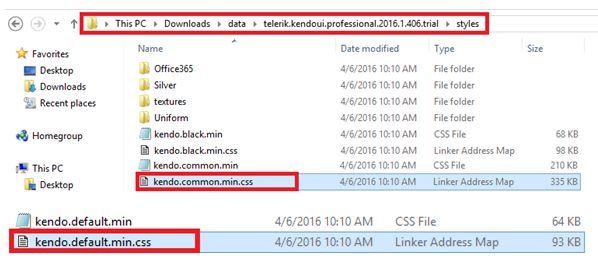

In Styles folder you’ll find CSS files, copy these 2 files:



  1. Kendo.common.min.css
  2. Kendo.default .min.css

CSS files

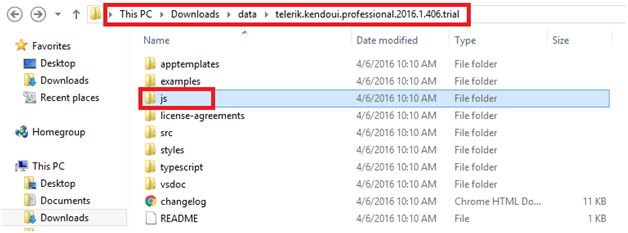

Including CSS file there would be a JavaScript folder withjs extension. Open this folder, and select below two js files.

js folder copy

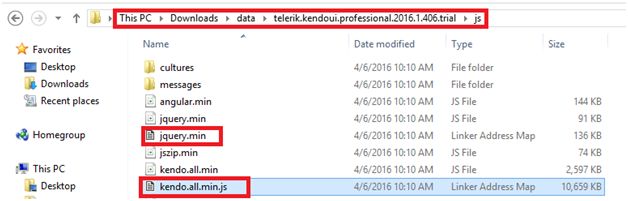

In js folder copy these 2 files:

  1. .jquery.min
  2. Kendo.all.min.js

js folder

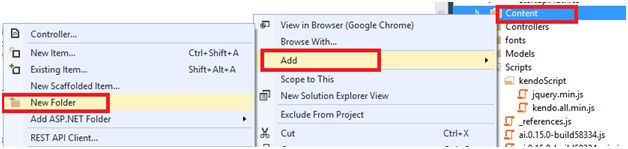

First I need to create a New Folder in to our solution, so right click on to content folder and click on “ADD” and then click on to new folder.

New Folder

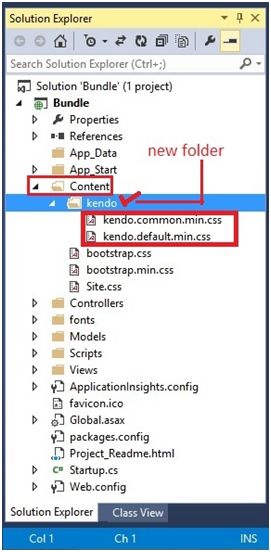

Now Rename your New Folder AS “Kendo”. In Kendo folder paste these two CSS files.

  1. Kendo.common.min.css
  2. Kendo.default .min.css

Kendo

Now again I need to create a New Folder in our solution, so right click on to Scripts folder and click on “ADD” and then click on to new folder.

Scripts folder

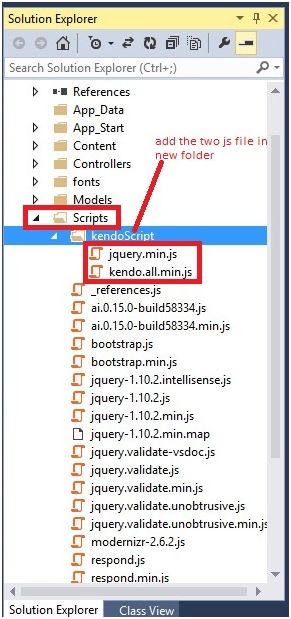

Now Rename your New Folder AS “KendoScript”. In KendoScript folder paste these two CSS files. As shown in below screenshot,

  1. .jquery.min.js
  2. Kendo.all.min.js

KendoScript

Creating Style Bundle

Now Click on to BundleConfig.cs file And add the Bundles.Add Files as shown in following screenshot.

BundleConfig

Now I’m going to add these two files in to our layout page.

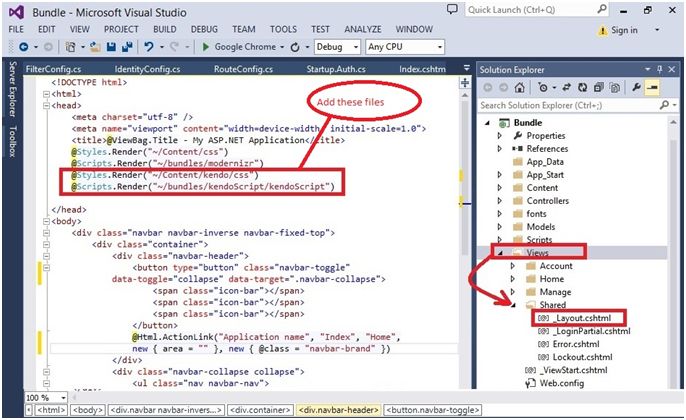

Under “View” Folder, click on “Shared” and then click on “Layout.cs.html”, to add these 2 files. Add these files into the head section of the page.

section

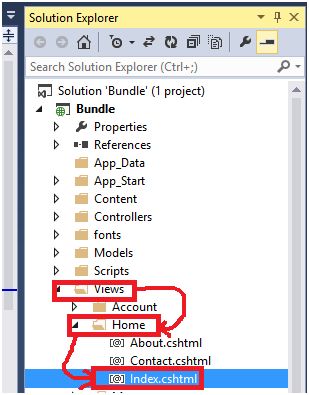

Now Again click on to “Views” Folder, then select “Home” folder and then open “Index.cs.html”.

Views

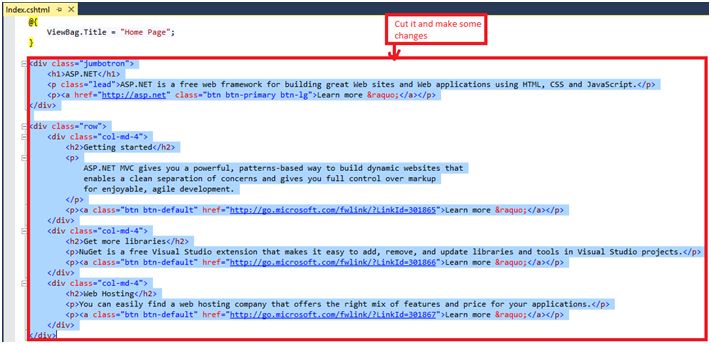

Cut the following section in the “Index.cs.html” view page and write some scripts over here.

Index.cs.html

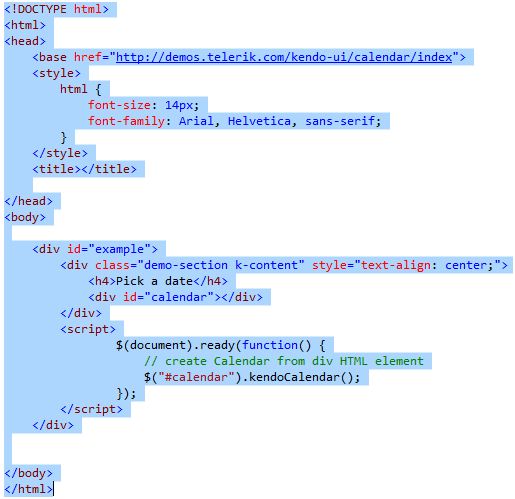

Write the following code in “Index.cs.html"view page.

In this code you have to write script function. With the help of Script function you have to show a KendoCalendar.

I’ve pass a link in the head section for the calendar.

Initialize the Calendar by using a jQuery selector:

  1. <div id="calendar"></div>
  2. <script>
  3.     $(document).ready(function()
  4.     {
  5.         $("#calendar").kendoCalendar();
  6.     });
  7. </script>
Code

Now Build the Application.

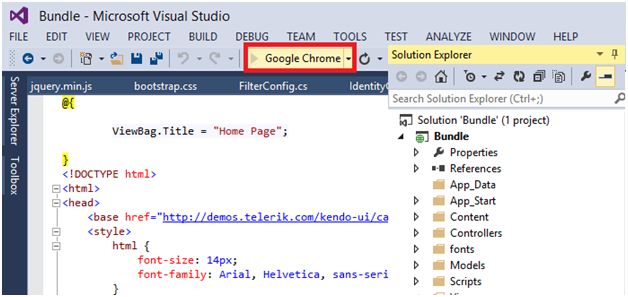

Click on to the Google chrome, or press F5 to run your application.

Google chrome

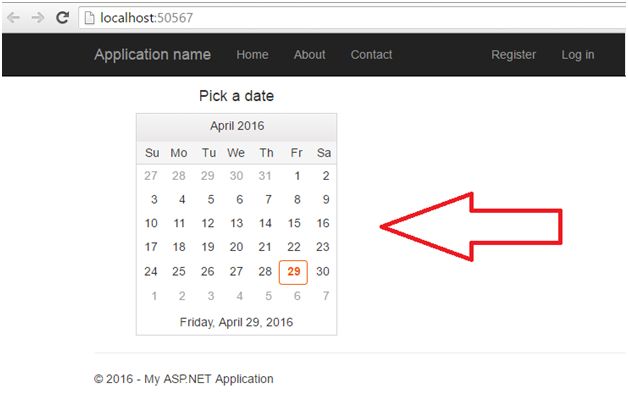

Output:

Output

Now finally I get my output that is the current date.

Here, in this article, we learned about how we can use the scripts of the bundles in my project.

I hope you enjoyed this article. Stay tuned with me for more articles on all other Microsoft technologies.
