Check Atmosphere Pressure Using Arduino Mega 2560

Introduction
  • In this article I will explain about the checking the atmosphere pressure by using Arduino Mega 2560.
  • It can correctly give the range of pressure in the serial monitor.
Parts Of List
  • Arduino mega2560
  • MPX4115A
  • Dual power supply
  • LM741
  • Bread Board
  • potentiometer
MPx4115A
  • It can correctly give the air pressure in the atmosphere.
  • It can be a bamometer application.

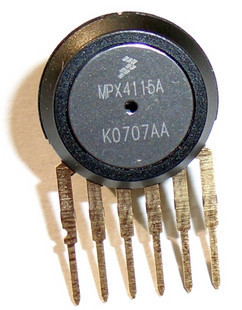

                  Figure 1: MPX4115A

LM741 Operation Amplifier
  • Very commpn type of OP-AMP, It provide overload production on the input and output
  • It can be easy to use.

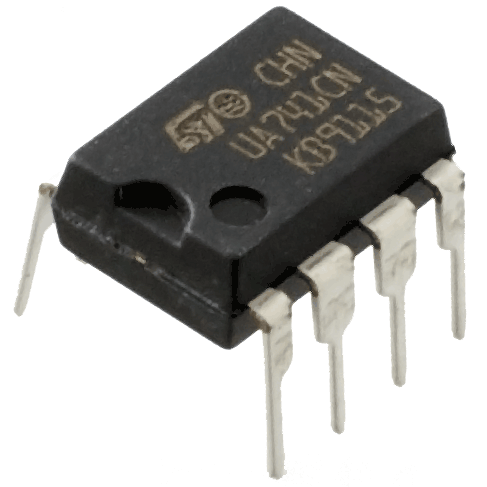

                  Figure 2: LM741

Connection

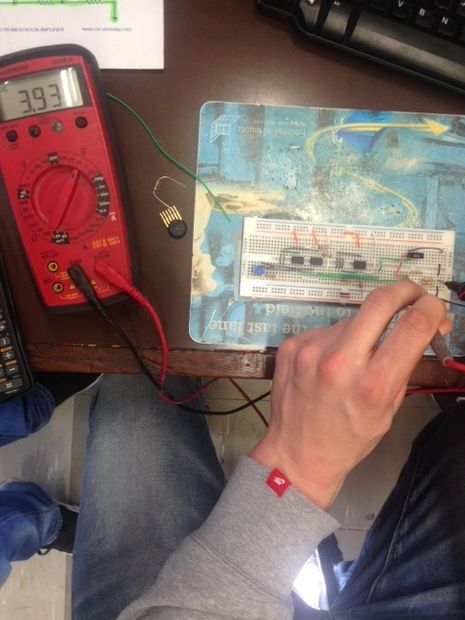

                                          Figure 3: Connection

Programming
  1. void setup()
  2. {
  3.    serial. begin(9600);
  4. }
  5. void loop()
  6. {
  7.    int sensorvalue = analogread(A0);
  8.    float voltage = sensorvalue * (5.0 / 1023.0);
  9.    serial.println(KPa)
Explanation
  • In this article I explained about the checking the atmosphere temperature in the arduinomega2560
  • It can be connected in the digital meter and displayed in the serial monitor.
Output

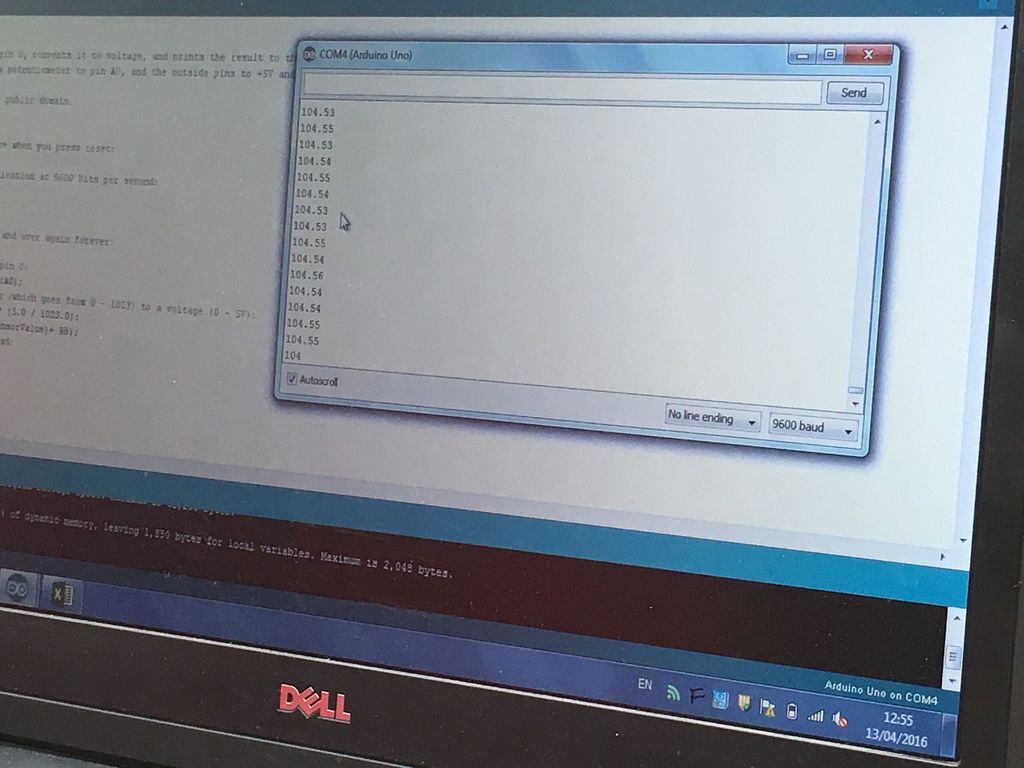

                                       Figure 4: Output
