Content Type Hub In SharePoint Server 2013

Content type

  • Content type is a reusable piece metadata for list columns,
  • Content type defines the attribute of list, list item document.

Content type hub

  • Content type hub is central location for manage and publish content type in a web applications
  • It will be available for all the site collections under web applications.

Content type syndication

  • Helps to syndicate the content types across the farm, web application using MMS service (Managed metadata service).

Let’s go and create a web application in your SharePoint server

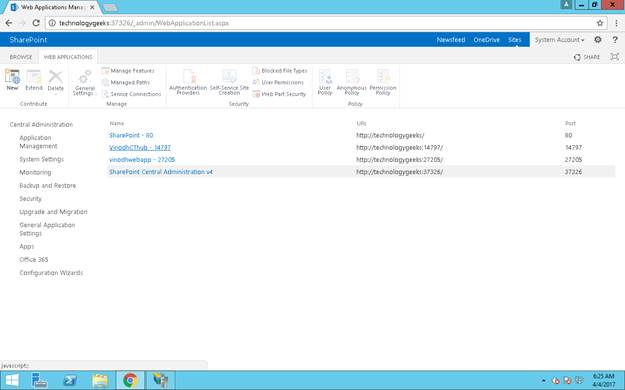

Open central administration -> click application management -> click manage web application -> click new.

Provide the name of the web application “VinodhCThub”

SharePoint

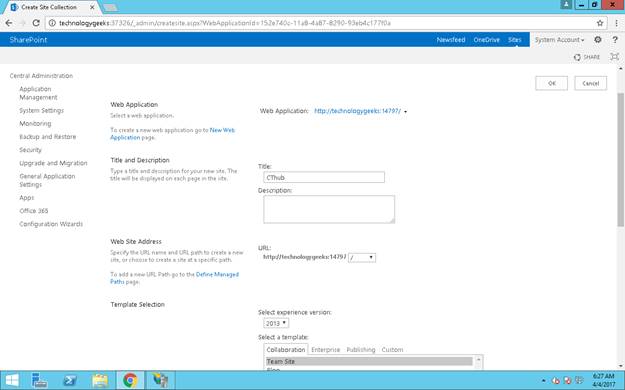

Let’s go and create a root site collection under newly created web application.

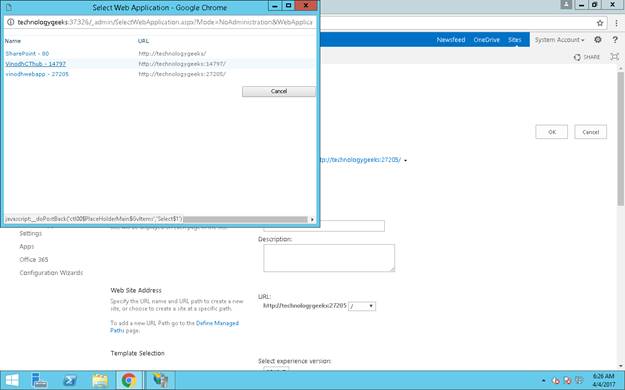

Navigate to create site collection -> pick your web application

SharePoint

SharePoint

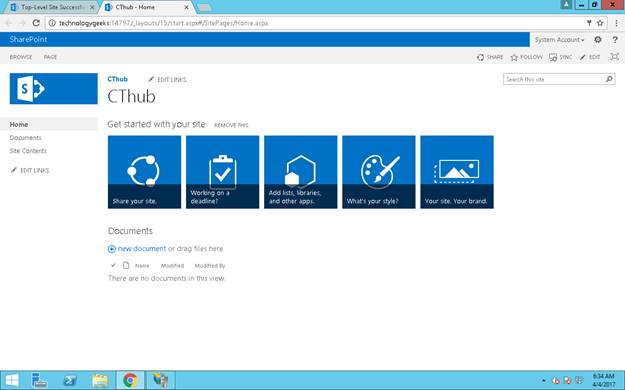

So as now the site has been created successfully.

SharePoint

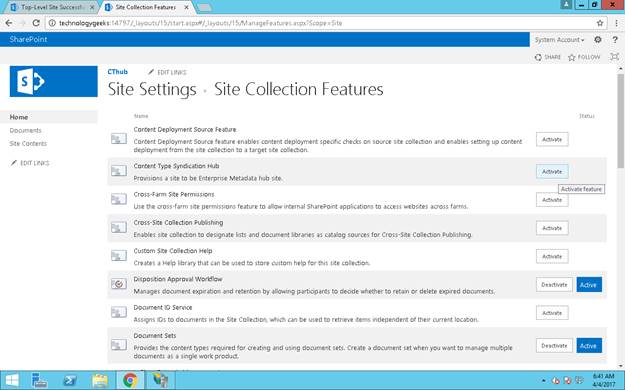

Now activate the sharepoint server publishing features and “content type syndication hub“

under site collection.

SharePoint

Let’s go and set up the managed metadata service application

Open central administration -> Under application management -> open manage service application

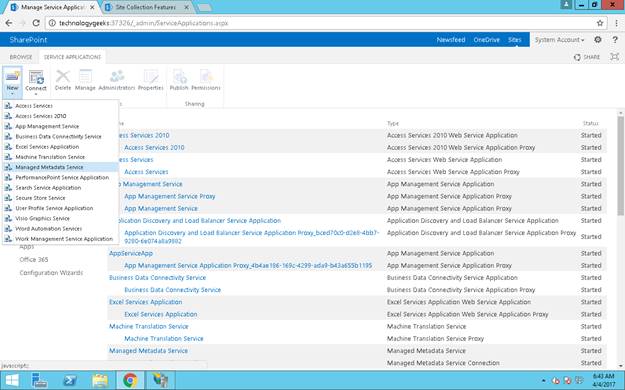

Click New -> Pick managed metadata service

SharePoint

Provide the name of “Metadata service CTHub”

Enter the database server

Provide the database name for “Metadata service CTHub service application”

In the content type hub section provide the root site collection URL “http://technologygeeks:14797/”

SharePoint

Provide the “Application pool name” and click ok

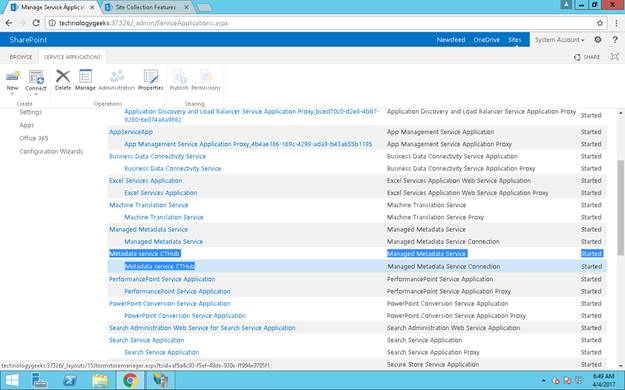

So now the managed metadata service application has been created successfully.

SharePoint

Click on the properties of service application

Enable the following option to consume the content types, store keywords and update the publishing content types into subsite, list using content type.

SharePoint

Click ok

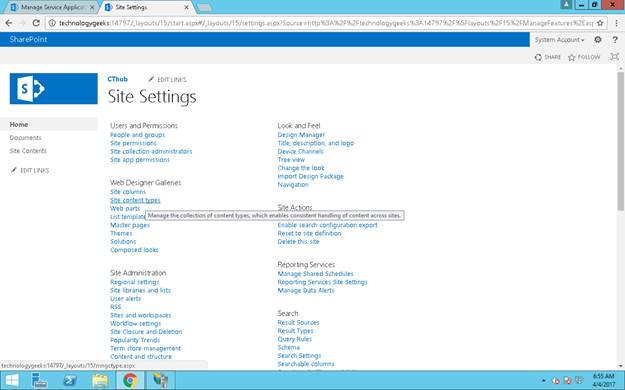

Open sharepoint root site collection -> site actions -> site settings ->under web designer and galleries -> Click site content types

SharePoint

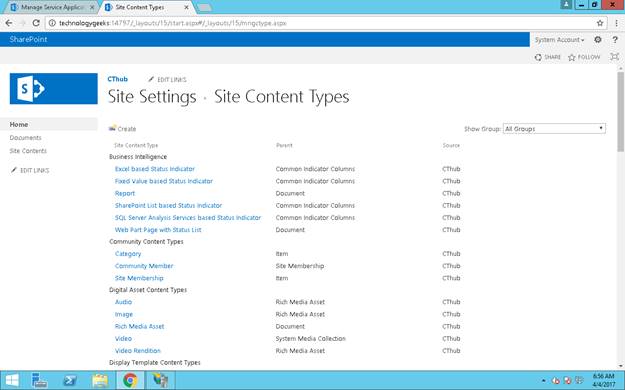

Click create for adding a new custom content type

SharePoint

SharePoint

Please follow the below article to discussed about creating content type briefly

Click here to create Content type

Click ok to complete the new content type creation

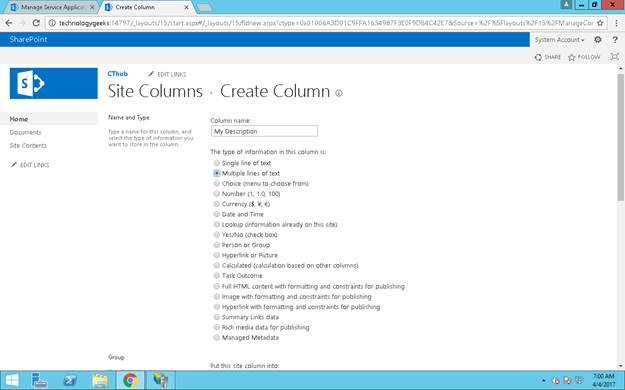

Add a new site column for the newly created content type

SharePoint

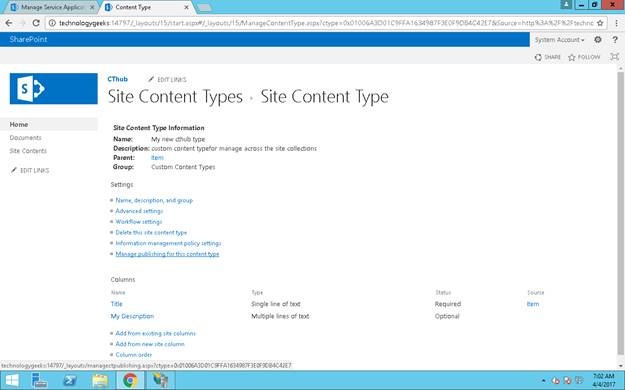

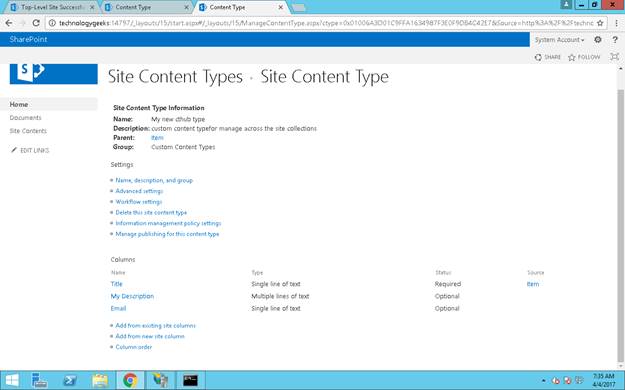

Now click on “Manage publishing for this content type”

SharePoint

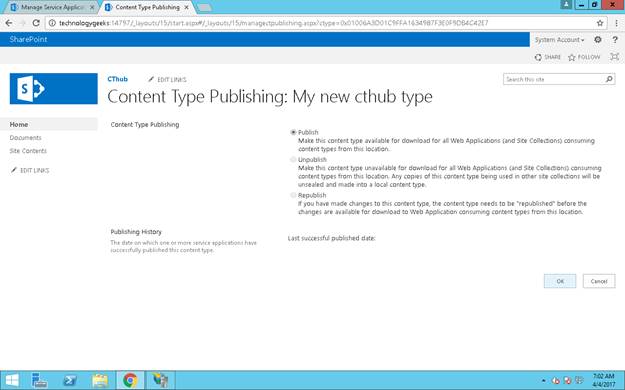

Pick “Publish” -> Click “Ok”

SharePoint

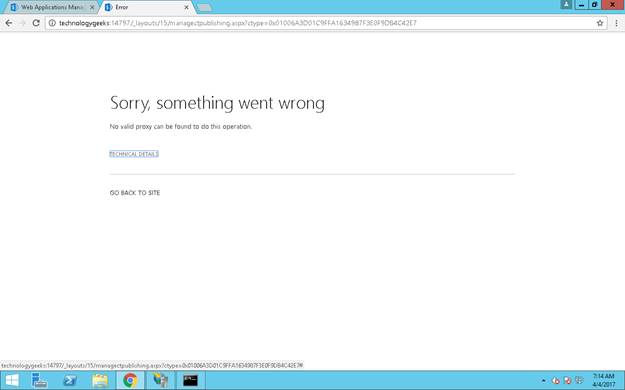

When I click “Ok” have this error “No valid proxy can be found to this operation”

SharePoint

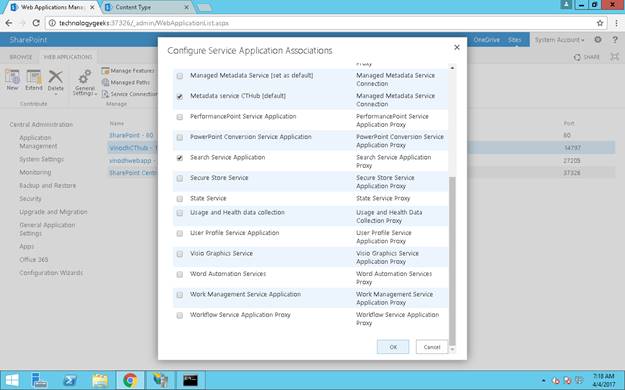

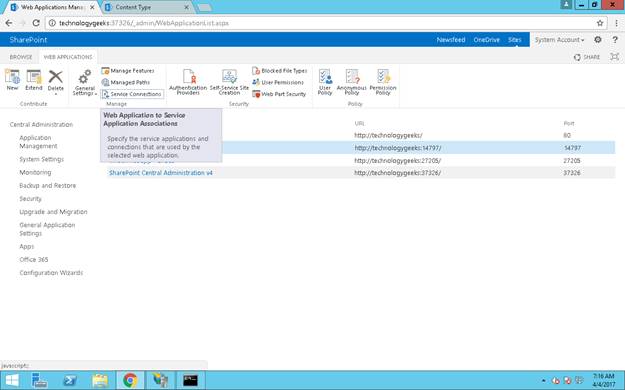

Open CA -> Application management -> Click on the CT hub web application -> Click on service connections

SharePoint

Pick the “Metadata service CTHub [default]”-> Click ok

SharePoint

Now let’s go and publish

After successful publish, let’s go and run the timer job for content type will be applicable to all the subscribers,

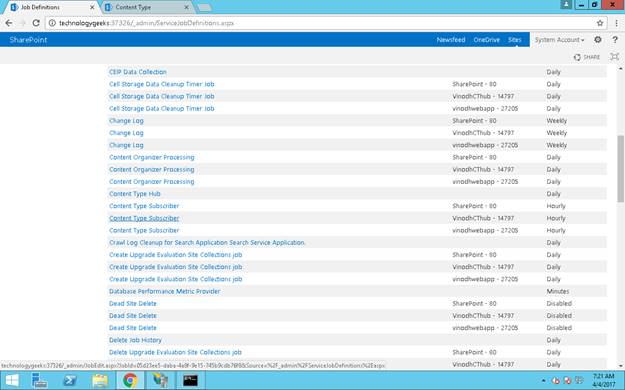

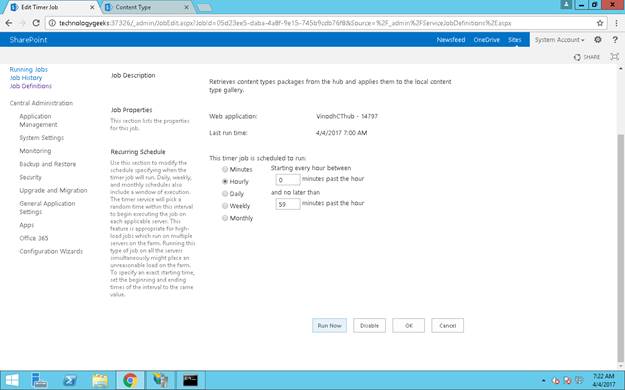

“Content type subscriber” timer job for the selected web application -> Click run now

SharePoint

SharePoint

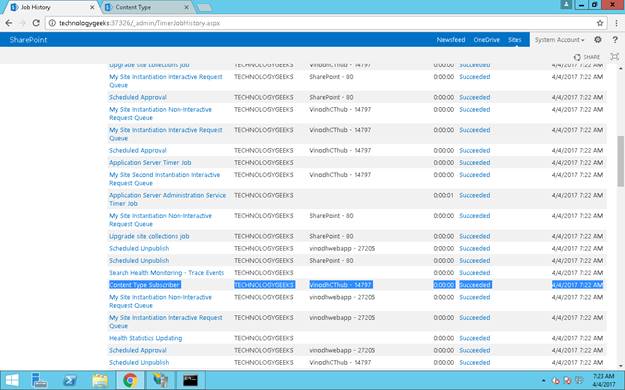

Now check the timer job history under -> Job history

SharePoint

Its run succeeded.

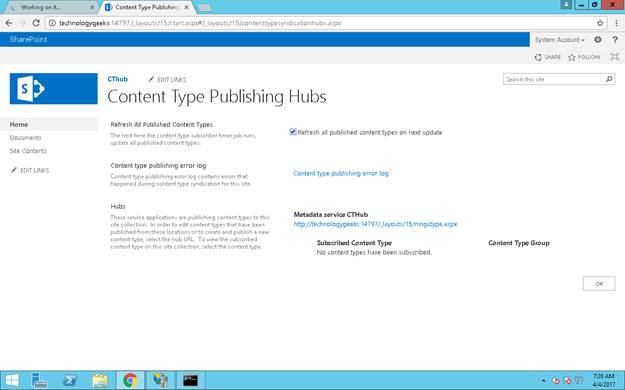

Now open the root site collection -> under site settings -> site collection administration -> click content type publish -> Enable “refresh the published content type on next update” click ok

Note

It will help you to update the content types after successful run of “Content type subscriber” timer job.

SharePoint

Now let’s go and create a site collection from the same or different site collection,

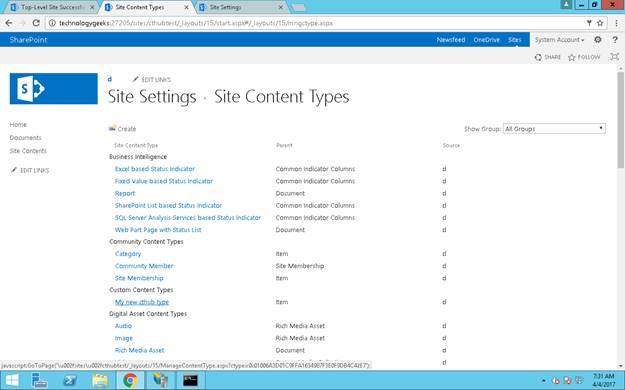

Navigate to site actions - > site settings -> web designer galleries -> site content types

You are now able to see the “Published content type from the hub”

SharePoint

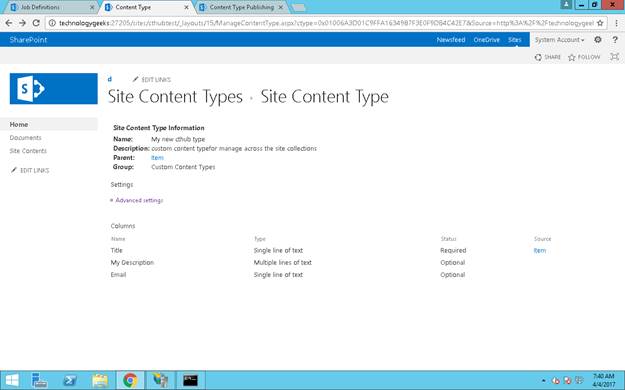

So, the content type is only in “read only mode” you are not able to edit or add such things.

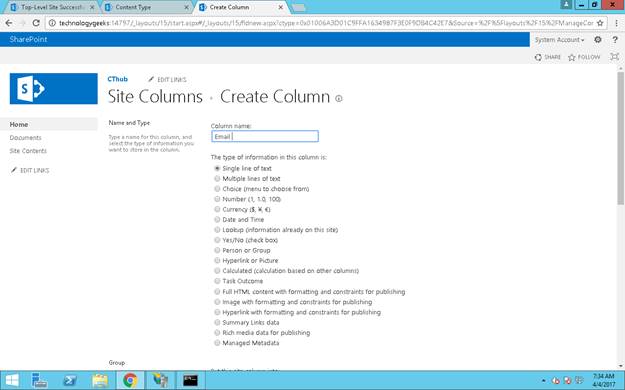

Now let’s go and add a column in “root site collection” for content type.

SharePoint

After successful creation of site column

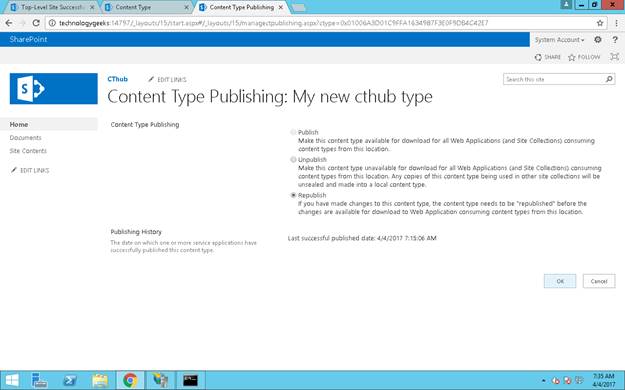

Again, republish it

SharePoint

SharePoint

Run the timer job ”Content type subscriber” set it for run every “5 mins”

SharePoint

So it has been updated successfully

Happy learning!
