Continuous Integration Using Visual Studio Team Service

Introduction

We can configure our Visual Studio Team Service project, which can automatically build and deploy to Azure app Services. This article tells you how to configure a basic ASP.NET WEB API application in Visual Studio Team service with automatic build and release to Azure app service.

Prerequisites

  • Visual Studio 2015+
  • Azure subscription

This article flows, as per the following,

  1. Create a new project in VSTS with GIT version control
  2. Add a existing project to the newly created GIT repo from visual studio
  3. Configure a build in VSTS
  4. Configure a release in VSTS with continues deployment in Azure App Service

Create a new project in VSTS with GIT version control

Sign in to your Visual Studio Team Service account

Click on new project from the home page



Name your team project, in my case I named it KendoGrid, I have selected a GIT from the version control with agile work process, we can choose either  GIT or Team Foundation Version control based on project need,
Add an existing project to the newly created GIT repo from visual studio

I have an existing project in my local machine which I’m going to publish to VSTS GIT, open the existing project in visual studio, File->open

Once the project is opened, in the right bottom of visual studio you can find Add to source control, click it, as shown in the below figure,



The team explorer window will be opened, you can find two options 1. Push to Visual Studio Team Service.

and 2. Push to Remote Repository We already created a GIT repo in TFS so we can do push to remote repository.

Click on publish Git Repo



Give your remote git url and click on publish

After successfully publishing it you can find the publisehd files in repective project page of VSTS



Configure a build in VSTS

Open the repository in VSTS you can find set up a build in right top corner, just click on it to configure a build,



The create new build definition window will be opened as shown in the below figure,


A new create build definition window will be opened with some list of templates, as we are working on an ASP.NET site I’m going to select ASP.NET(Preview) Template, click on next to change the settings,
In the settings window check Continue Integration as shown in the above figure and click create. Now all the packages which we need for the build will be automatically loaded up as shown in the below figure.



Once all changes are done just click on save, from my side I haven't done any changes I'm just left with default settings

Create a Web App in Azure for deployment

Login to your azure portal

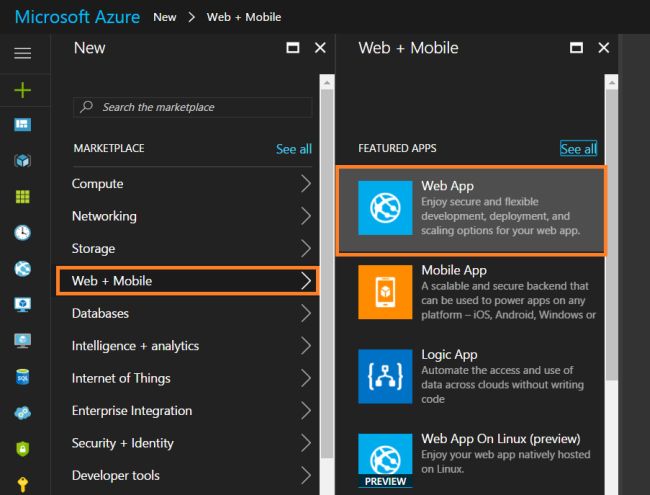

Quickly create a new web app new->Web+Mobile-> Web app  as shown in below figure

To learn more about azure app services click here,



Overview of our WEB APP ,



The URL(http://multicheckgrid.azurewebsites.net ) which is generated from the newly created web app

Configure a Release in VSTS

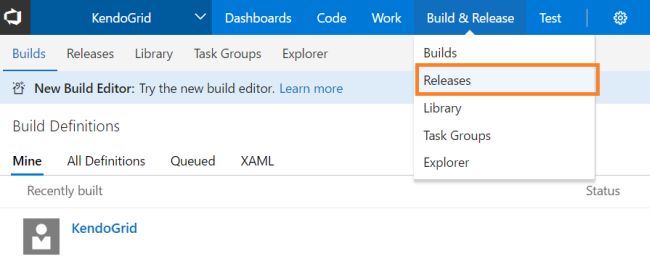

Go to newly created GIT repo page, select release from build & release menu,



The release page will be opened as shown in the below figure,


Click on new definition

The created release definition window will be opened with a list of deployment templates, let's select Azure App service Deployment and click next,




Choose the respective project and build definition then check on continous deployment, Click on create to open the release definition page as shown in below figure,



VSTS will bring your Azure subscriptions automatically based on login, we just need to select the respective subscription, click on authorize and it will do an authorization process to get app service name

I have not created any deployment slot so I will skip it in settings, finally give your URL in APP service URL and click on Save

Make Change and commit

Just go to the build definition page, you can notice as of now there won’t be any status, as shown in the below figure



Let’s make some change in application and commit to it, you can notice that the build and deployment will happen automatically once the commit is done

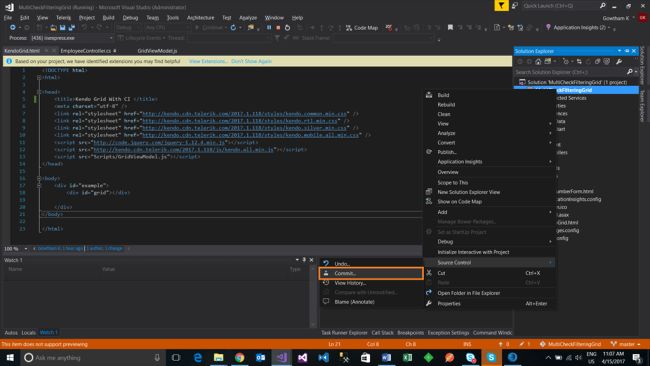

I’m going to change the title in the HTML page, once the changes are done I’m going to commit it,




Once the commit is done, sync it.

You can notice there is a change in build status once the commit is done, after build you will get the build status mail as shown in below figure

Build in Progress


Build succeeded



Once the build is successfully done, it will automatically deploy your application in azure web app, we can get the deployment status in release page of repective project in VSTS, as shown in below figure



Yes, the deployment is sucessfully completed, let's open the site

http://multicheckgrid.azurewebsites.net/KendoGrid.html

Output



Summary
  1. We started with creating a project in VSTS
  2. Added the existing project to our GIT repo which is created in VSTS from Visual Studio 2017
  3. Created a web app in azure to deploy our application
  4. Configured a Build and release in VSTS with continous integration
Reference

https://www.visualstudio.com/team-services/continuous-integration/

I hope you have enjoyed this article. Your valuable feedback, questions or comments about this article are always welcome.
