Create Custom List View In Your Android Application

Introduction

Android is one of the most popular operating systems for the mobile. The maximum number of Applications contains the Custom List View module. It shows our information or the data with the images in the List View. I will show you how to create Custom List View in an Android Application, using Android Studio. Android is the kernel based operating system. It allows the user to modify the GUI components and the source code.

Requirements

Steps to be followed are given below.

Follow the steps given below to create Custom List View in your Android Application, using an Android Studio.

Step 1

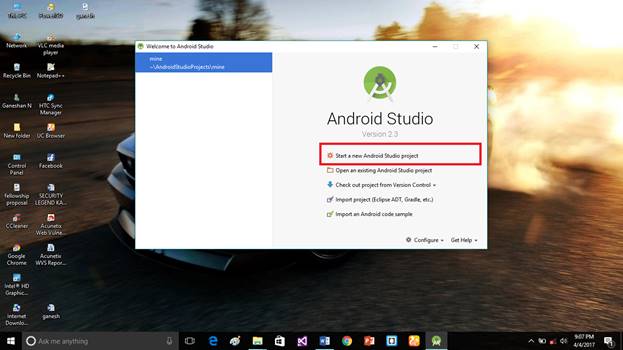

Open Android Studio and start the new project.

Android

Step 2

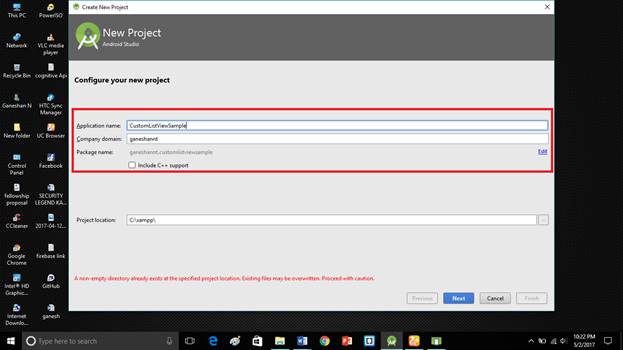

Put the Application name and the company domain. If you wish to use C++ to code the project, include C++ support, followed by clicking Next.

Android

Step 3

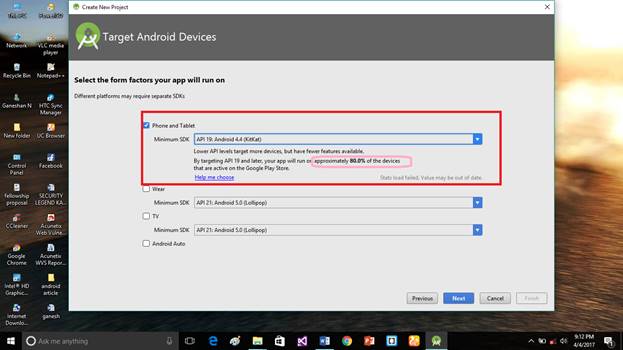

Select the Android minimum SDK. Afterwards, you need to chose the minimum SDK. It will show an approximate percentage of the people using the SDK, followed by clicking Next.

Android

Step 4

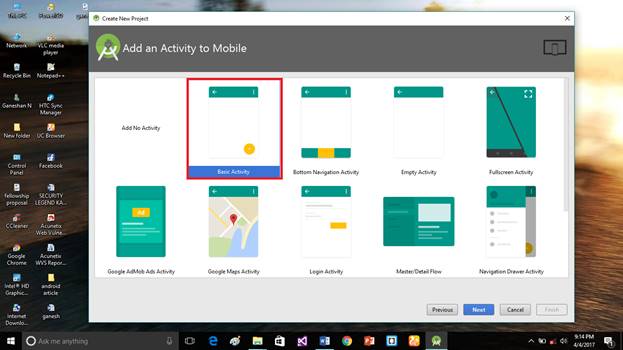

Choose the basic activity, followed by clicking Next.

Android

Step 5

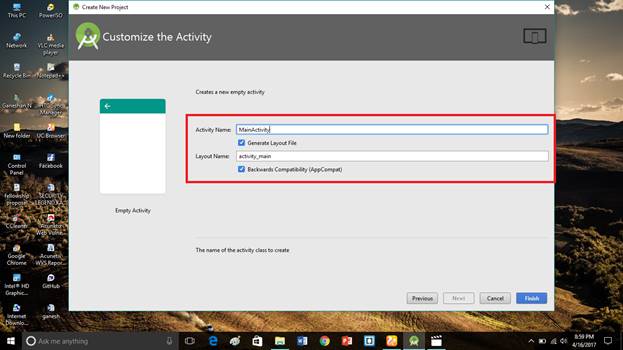

Put the activity name and the layout name. Android Studio basically takes the Java class name, which you provided in the activity name and click Finish.

Android

Step 6

First, you need to design the Application. Thus, go to activity_main.xml, followed by clicking the text bottom. This XML file contains designing the code for an Android app. In the activity_main.xml, copy and paste the code given below.

Activity_main.xml code

  1. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent"
  3.     android:layout_height="match_parent" android:paddingLeft="@dimen/activity_horizontal_margin"
  4.     android:paddingRight="@dimen/activity_horizontal_margin"
  5.     android:orientation="vertical"
  6.     android:paddingTop="@dimen/activity_vertical_margin"
  7.     android:paddingBottom="@dimen/activity_vertical_margin" tools:context=".MainActivity">
  8.
  9.     <ListView
  10.         android:layout_width="match_parent"
  11.         android:layout_height="wrap_content"
  12.         android:id="@+id/listView" />
  13.
  14. </LinearLayout>

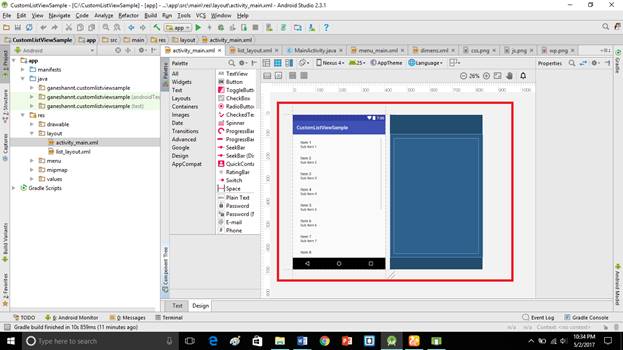

The code given above is to create the List View in Activity_main.xml page.

Android

Step 7

Create new list_layout.xml file (File ⇒ New ⇒Activity⇒Empty_activity).

Go to list_layout.xml, followed by clicking the text bottom. This XML file contains the designing code for an Android app. In the list_layout.xml, copy and paste the code given below.

list_layout.xml code

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <GridLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="match_parent" >
  5.
  6.
  7.     <ImageView
  8.         android:layout_width="wrap_content"
  9.         android:layout_height="wrap_content"
  10.         android:layout_rowSpan="2"
  11.         android:id="@+id/imageView"
  12.         android:layout_row="0"
  13.         android:layout_column="0" />
  14.
  15.     <TextView
  16.         android:layout_width="wrap_content"
  17.         android:layout_height="wrap_content"
  18.         android:text="New Text"
  19.         android:layout_columnWeight="1"
  20.         android:id="@+id/textViewName"
  21.         android:layout_row="0"
  22.         android:layout_column="1" />
  23.
  24.
  25.     <TextView
  26.         android:layout_width="wrap_content"
  27.         android:layout_height="wrap_content"
  28.         android:text="New Text"
  29.         android:layout_columnWeight="1"
  30.         android:id="@+id/textViewDesc"
  31.         android:layout_row="1"
  32.         android:layout_column="1" />
  33.
  34.
  35. </GridLayout>

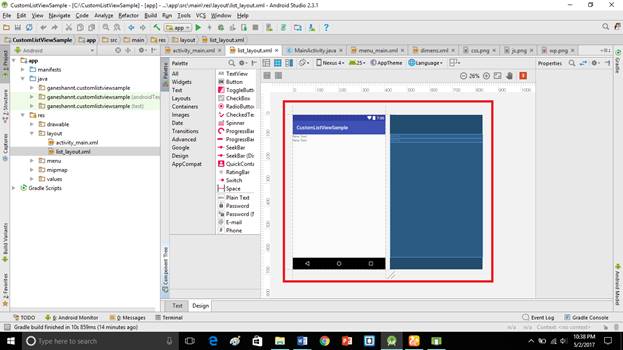

The code given above is used to assign List View text messages and the images. Add your images into the drawable folder.

Android

Step 8

In MainActivity.java, copy and paste the code given below. Java programming is the backend language for an Android. Do not replace your package name, else an app will not run.

MainActivity.java code

  1. package ganeshannt.customlistviewsample;
  2. import android.os.Bundle;
  3. import android.support.v7.app.AppCompatActivity;
  4. import android.view.Menu;
  5. import android.view.MenuItem;
  6. import android.view.View;
  7. import android.widget.AdapterView;
  8. import android.widget.ListView;
  9. import android.widget.Toast;
  10.
  11.
  12. public class MainActivity extends AppCompatActivity {
  13.
  14.     private ListView listView;
  15.     private String names[] = {
  16.             "HTML",
  17.             "CSS",
  18.             "Java Script",
  19.             "Wordpress"
  20.     };
  21.
  22.     private String desc[] = {
  23.             "The Powerful Hypter Text Markup Language 5",
  24.             "Cascading Style Sheets",
  25.             "Code with Java Script",
  26.             "Manage your content with Wordpress"
  27.     };
  28.
  29.
  30.     private Integer imageid[] = {
  31.             R.drawable.html,
  32.             R.drawable.css,
  33.             R.drawable.js,
  34.             R.drawable.wp
  35.     };
  36.
  37.
  38.     @Override
  39.     protected void onCreate(Bundle savedInstanceState) {
  40.         super.onCreate(savedInstanceState);
  41.         setContentView(R.layout.activity_main);
  42.
  43.         CustomList customList = new CustomList(this, names, desc, imageid);
  44.
  45.         listView = (ListView) findViewById(R.id.listView);
  46.         listView.setAdapter(customList);
  47.
  48.         listView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
  49.             @Override
  50.             public void onItemClick(AdapterView<?> adapterView, View view, int i, long l) {
  51.                 Toast.makeText(getApplicationContext(),"You Clicked "+names[i],Toast.LENGTH_SHORT).show();
  52.             }
  53.         });
  54.     }
  55.
  56.     @Override
  57.     public boolean onCreateOptionsMenu(Menu menu) {
  58.         // Inflate the menu; this adds items to the action bar if it is present.
  59.         getMenuInflater().inflate(R.menu.menu_main, menu);
  60.         return true;
  61.     }
  62.
  63.     @Override
  64.     public boolean onOptionsItemSelected(MenuItem item) {
  65.         // Handle action bar item clicks here. The action bar will
  66.         // automatically handle clicks on the Home/Up button, so long
  67.         // as you specify a parent activity in AndroidManifest.xml.
  68.         int id = item.getItemId();
  69.
  70.         //noinspection SimplifiableIfStatement
  71.         if (id == R.id.action_settings) {
  72.             return true;
  73.         }
  74.
  75.         return super.onOptionsItemSelected(item);
  76.     }
  77. }
Step 9

Create new CustomList.java file (File ⇒ New ⇒Java class).

In the CustomList.java, copy and paste the code given below. Java programming is the backend language for an Android. Do not replace your package name, else an app will not run.

CustomList.java code

  1. package ganeshannt.customlistviewsample;
  2.
  3. import android.app.Activity;
  4. import android.view.LayoutInflater;
  5. import android.view.View;
  6. import android.view.ViewGroup;
  7. import android.widget.ArrayAdapter;
  8. import android.widget.ImageView;
  9. import android.widget.TextView;
  10.
  11. public class CustomList extends ArrayAdapter<String> {
  12.     private String[] names;
  13.     private String[] desc;
  14.     private Integer[] imageid;
  15.     private Activity context;
  16.
  17.     public CustomList(Activity context, String[] names, String[] desc, Integer[] imageid) {
  18.         super(context, R.layout.list_layout, names);
  19.         this.context = context;
  20.         this.names = names;
  21.         this.desc = desc;
  22.         this.imageid = imageid;
  23.
  24.     }
  25.
  26.     @Override
  27.     public View getView(int position, View convertView, ViewGroup parent) {
  28.         LayoutInflater inflater = context.getLayoutInflater();
  29.         View listViewItem = inflater.inflate(R.layout.list_layout, nulltrue);
  30.         TextView textViewName = (TextView) listViewItem.findViewById(R.id.textViewName);
  31.         TextView textViewDesc = (TextView) listViewItem.findViewById(R.id.textViewDesc);
  32.         ImageView image = (ImageView) listViewItem.findViewById(R.id.imageView);
  33.
  34.         textViewName.setText(names[position]);
  35.         textViewDesc.setText(desc[position]);
  36.         image.setImageResource(imageid[position]);
  37.         return  listViewItem;
  38.     }
  39. }
Step 10

In Strings.xml, add the code given below. In this string, provide app settings bar.

Strings.xml code

  1. <resources>
  2.     <string name="app_name">CustomListViewSample</string>
  3.     <string name="hello_world">Hello world!</string>
  4.     <string name="action_settings">Settings</string>
  5. </resources>

Step 11

Create new dimens.xml file into the values folder (File ⇒ New ⇒Activity⇒values resource file).

Go to dimens.xml, followed by clicking the text bottom. This XML file contains the designing code for an Android app. In the dimens.xml , copy and paste the code given below.

dimens.xml code

  1. <resources>
  2.     <!-- Default screen margins, per the Android Design guidelines. -->
  3.     <dimen name="activity_horizontal_margin">16dp</dimen>
  4.     <dimen name="activity_vertical_margin">16dp</dimen>
  5. </resources>



Step 12

Create the menu folder into the resource folder.

Create new menu_main.xml file into the values folder (File ⇒ New ⇒Activity⇒values resource file).

Go to menu_main.xml, followed by clicking the text bottom. This XML file contains the designing code for an android app. In the menu_main.xml, copy and paste the code given below.

menu_main.xml

  1. <menu xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:app="http://schemas.android.com/apk/res-auto"
  3.     xmlns:tools="http://schemas.android.com/tools" tools:context=".MainActivity">
  4.     <item android:id="@+id/action_settings" android:title="@string/action_settings"
  5.         android:orderInCategory="100" app:showAsAction="never" />
  6. </menu>

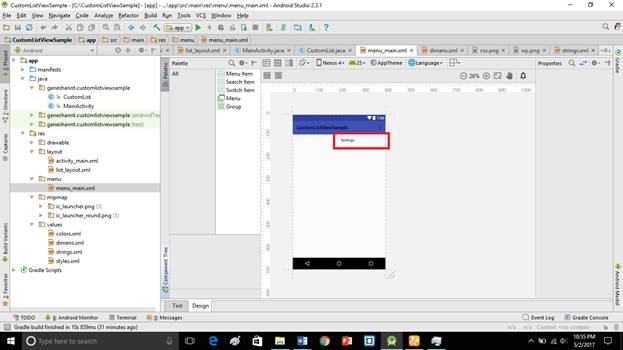

The code given above provides the settings functionality to our Application.

Android

Step 13

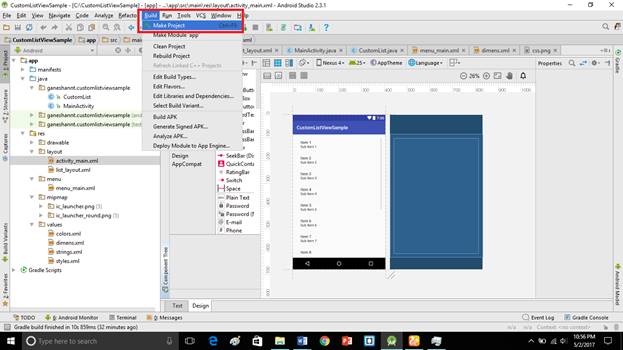

This is our user interface of the Application. Click Make project option.

Android

Step 14

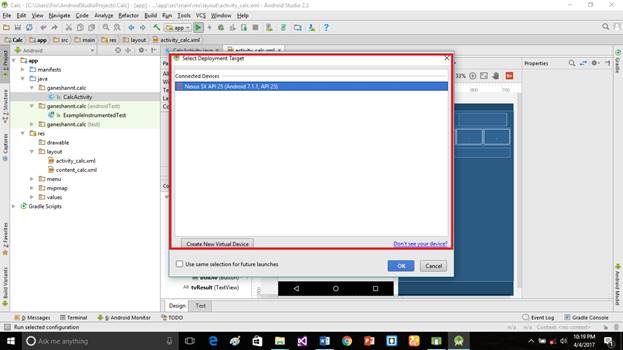

Run the Application, followed by choosing the virtual machine. Click OK.

Android

Deliverables

Here, we successfully created Custom List View in an Android Application and is executed.

Android

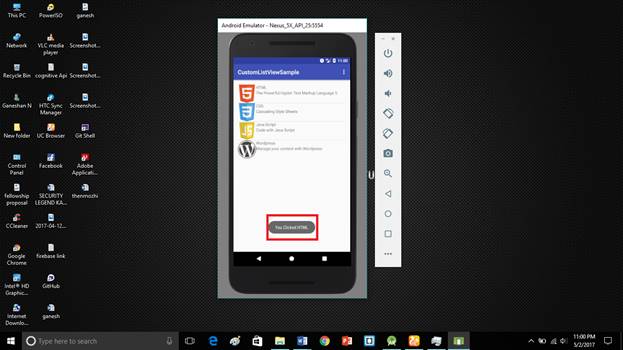

If you click the any one of the List View, I will show you the toast notification in the Application given below.

Android

If you have any doubts, just comment below.
