Create Native Calculator Android Application

Introduction

Android is one of the most popular operating systems for mobile. In this article, I will show you how to create a Native Calculator Android application using Android Studio.

Requirements

• Android Studio version 2.3.3
• Little bit XML and JAVA knowledge.
• Android Emulator (or) Android mobile
• Download link (Android Studio)

Steps to be followed

The following steps are required to create a native Calculator Android application using Android Studio and I have included the source code below.

Step 1

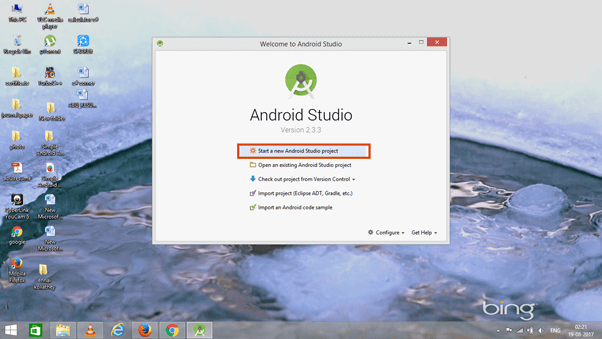

Open Android Studio and start a new Android Studio Project.



Step 2

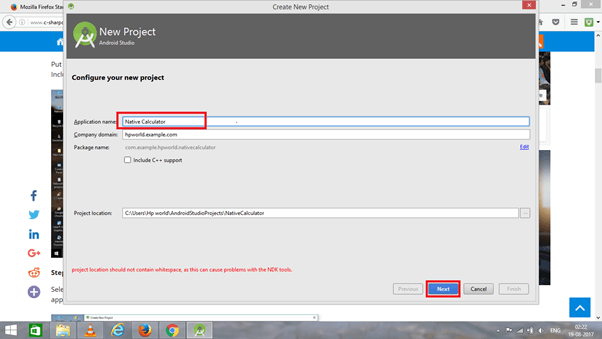

You can choose your application name and choose where your project is stored on the location. If you wish to use C++ for coding the project, mark the "Include C++ support", and click "Next" button.

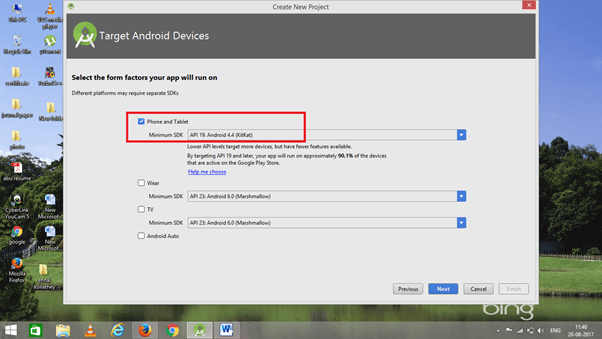

Now, select the version of Android and select the target Android devices.

Step 3

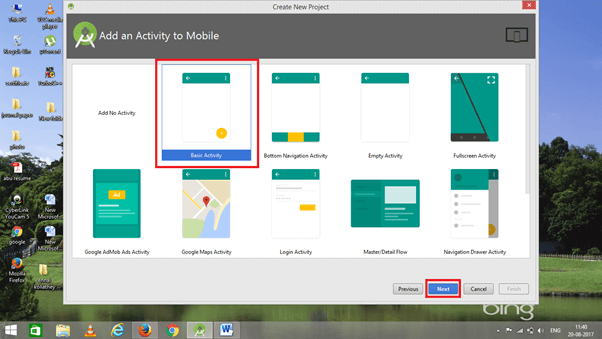

Now, add the activity and click "Next" button.

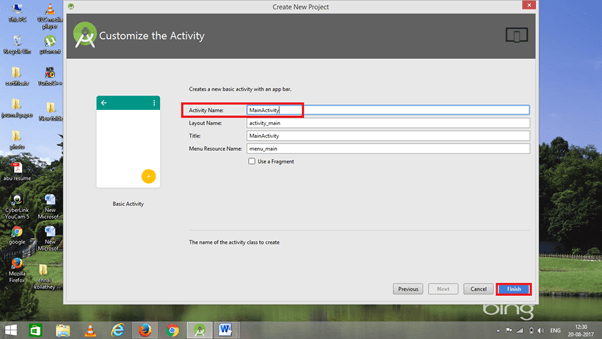

Add Activity name and click "Finish"Button.



Step 4

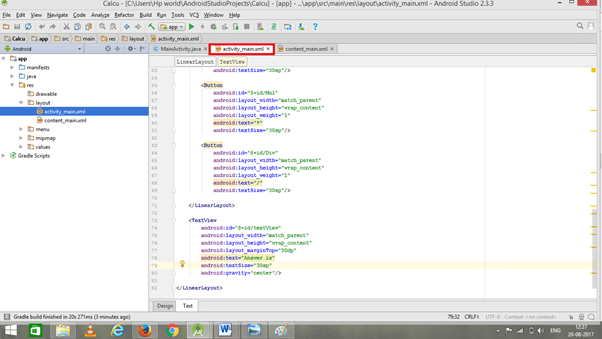

Go to activity_main.xml, This XML file contains the designing code for an Android app in the activity_main.xml.



The XML code is given below.

<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:layout_margin="20dp">

    <LinearLayout
        android:id="@+id/linearLayout1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="20dp">

        <EditText
            android:id="@+id/editText1"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:inputType="numberDecimal"
            android:textSize="20sp" />

        <EditText
            android:id="@+id/editText2"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:inputType="numberDecimal"
            android:textSize="20sp" />

    </LinearLayout>

    <LinearLayout
        android:id="@+id/linearLayout2"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="20dp">

        <Button
            android:id="@+id/Add"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:text="+"
            android:textSize="30sp"/>

        <Button
            android:id="@+id/Sub"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:text="-"
            android:textSize="30sp"/>

        <Button
            android:id="@+id/Mul"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:text="*"
            android:textSize="30sp"/>

        <Button
            android:id="@+id/Div"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:text="/"
            android:textSize="30sp"/>

    </LinearLayout>


   <TextView
        android:id="@+id/textView"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginTop="50dp"
        android:text="The Answer is"
        android:textSize="30sp"
        android:gravity="center"/>

</LinearLayout>

Step 5

Go to Main Activity.java, This Java program is the back-end language for Android. Add the following code.

package com.example.hpworld.nativecalculator;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.text.TextUtils;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;

public class MainActivity extends AppCompatActivity implements OnClickListener
{
    //Defining the Views
    EditText Num1;
    EditText Num2;
    Button Add;
    Button Sub;
    Button Mul;
    Button Div;
    TextView Result;

    @Override
    public void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        //Referring the Views
        Num1 = (EditText) findViewById(R.id.editText1);
        Num2 = (EditText) findViewById(R.id.editText2);
        Add = (Button) findViewById(R.id.Add);
        Sub = (Button) findViewById(R.id.Sub);
        Mul = (Button) findViewById(R.id.Mul);
        Div = (Button) findViewById(R.id.Div);
        Result = (TextView) findViewById(R.id.textView);

        // set a listener
        Add.setOnClickListener(this);
        Sub.setOnClickListener(this);
        Mul.setOnClickListener(this);
        Div.setOnClickListener(this);
    }

    @Override
    public void onClick (View v)
    {

        float num1 = 0;
        float num2 = 0;
        float result = 0;
        String oper = "";

        // check if the fields are empty
        if (TextUtils.isEmpty(Num1.getText().toString()) || TextUtils.isEmpty(Num2.getText().toString()))
                return;

        // read EditText and fill variables with numbers
        num1 = Float.parseFloat(Num1.getText().toString());
        num2 = Float.parseFloat(Num2.getText().toString());

        // defines the button that has been clicked and performs the corresponding operation
        // write operation into oper, we will use it later for output
        switch (v.getId())
        {
            case R.id.Add:
                oper = "+";
                result = num1 + num2;
                break;
            case R.id.Sub:
                oper = "-";
                result = num1 - num2;
                break;
            case R.id.Mul:
                oper = "*";
                result = num1 * num2;
                break;
            case R.id.Div:
                oper = "/";
                result = num1 / num2;
                break;
            default:
                break;
        }
        // form the output line
        Result.setText(num1 + " " + oper + " " + num2 + " = " + result);
    }
}

Step 6

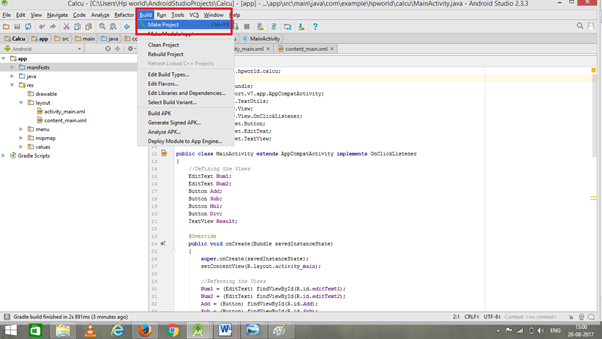

Now, either go to menu bar and click "Make project" or press ctrl+f9 to debug the error.

Step 7

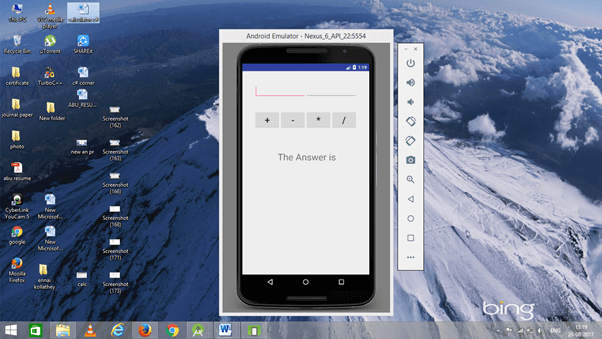

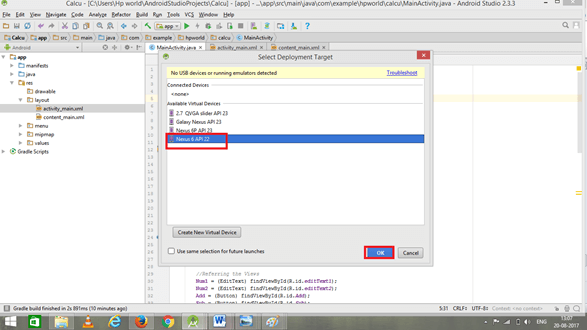

Then, click Run button or press shift+f10 to run the project. Select the "virtual machine" option and click OK.

Conclusion

We have successfully created Calculator app for Android using Android Studio.

Result

Addition Operation

Subtraction Operation

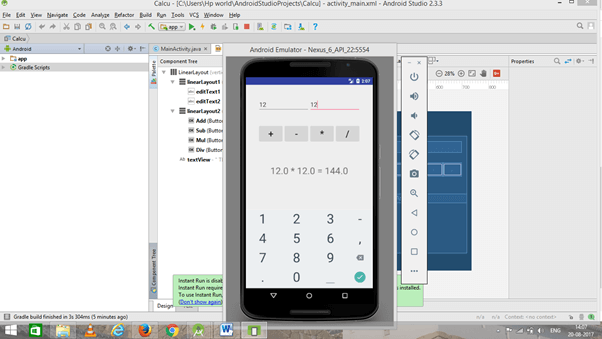

Multiplication Operation

Division Operation
