Create TimePicker Android App Using Android Studio

Introduction

Android is one of the most popular operating systems for mobile. In this article, I will show you how to create a TimePicker Android application using Android Studio.

Requirements

Steps to be followed

Follow these steps to create a Native TimePicker Android application using Android Studio. I have included the source code in attachment.

Step 1

Open Android Studio and start a new Android Studio Project.

Android

Step 2

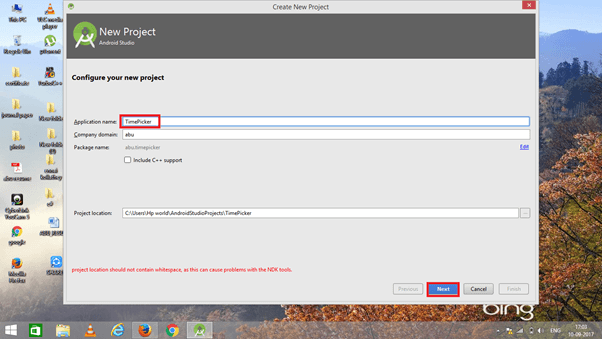

You can choose your application name and choose where your project is stored on the location. If you wish to use C++ for coding the project, mark the "Include C++ support", and click "Next" button.

Android

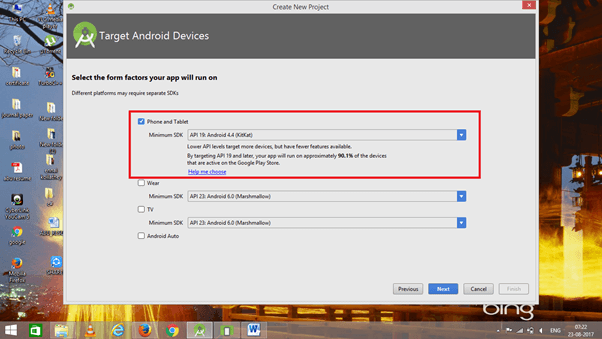

Now, select the version of Android and select the target Android devices.

Android

Step 3

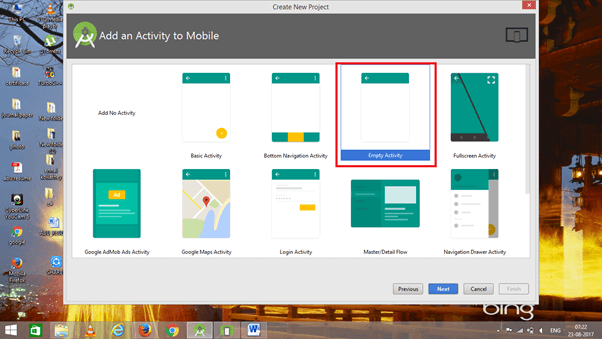

Now, add the activity and click "Next" button.

Android

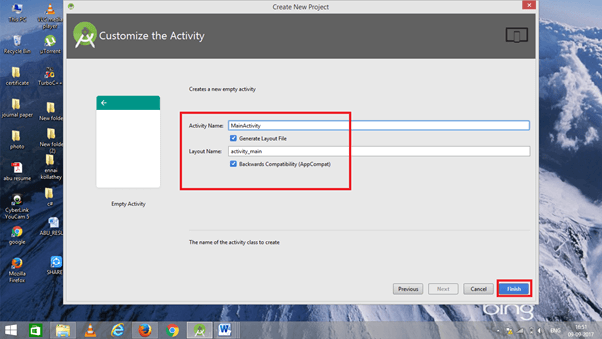

Add the activity name and click "Finish".

Android

Step 4

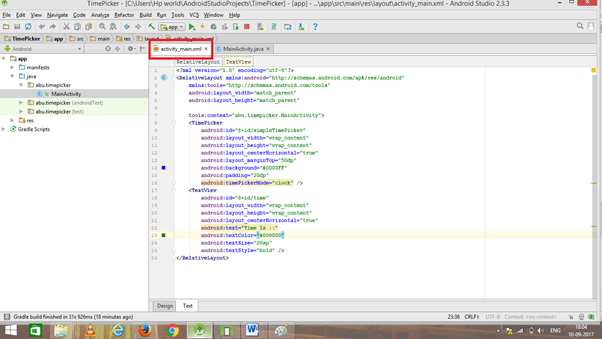

Go to activity_main.xml. This XML file contains the designing code for an Android app in the activity_main.xml.

Android

The XML code is given below.

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:tools="http://schemas.android.com/tools"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent"
  6.
  7.     tools:context="abu.timepicker.MainActivity">
  8.     <TimePicker
  9.         android:id="@+id/simpleTimePicker"
  10.         android:layout_width="wrap_content"
  11.         android:layout_height="wrap_content"
  12.         android:layout_centerHorizontal="true"
  13.         android:layout_marginTop="50dp"
  14.         android:background="#0000FF"
  15.         android:padding="20dp"
  16.         android:timePickerMode="clock" />
  17.     <TextView
  18.         android:id="@+id/time"
  19.         android:layout_width="wrap_content"
  20.         android:layout_height="wrap_content"
  21.         android:layout_centerHorizontal="true"
  22.         android:text="Time Is ::"
  23.         android:textColor="#008000"
  24.         android:textSize="20sp"
  25.         android:textStyle="bold" />
  26. </RelativeLayout>

Step 5

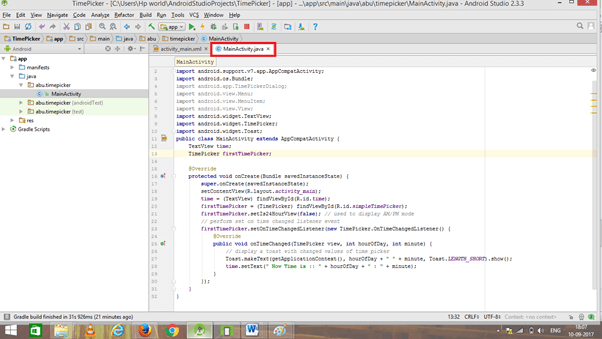

Go to MainActivity.java. This Java program is the back-end language for Android.

Android

The Java code is given below.

  1. package abu.timepicker;
  2. import android.support.v7.app.AppCompatActivity;
  3. import android.os.Bundle;
  4. import android.app.TimePickerDialog;
  5. import android.view.Menu;
  6. import android.view.MenuItem;
  7. import android.view.View;
  8. import android.widget.TextView;
  9. import android.widget.TimePicker;
  10. import android.widget.Toast;
  11. public class MainActivity extends AppCompatActivity {
  12.     TextView time;
  13.     TimePicker firstTimePicker;
  14.
  15.     @Override
  16.     protected void onCreate(Bundle savedInstanceState) {
  17.         super.onCreate(savedInstanceState);
  18.         setContentView(R.layout.activity_main);
  19.         time = (TextView) findViewById(R.id.time);
  20.         firstTimePicker = (TimePicker) findViewById(R.id.simpleTimePicker);
  21.         firstTimePicker.setIs24HourView(false); // used to display AM/PM mode
  22.         // perform set on time changed listener event
  23.         firstTimePicker.setOnTimeChangedListener(new TimePicker.OnTimeChangedListener() {
  24.             @Override
  25.             public void onTimeChanged(TimePicker view, int hourOfDay, int minute) {
  26.                 // display a toast with changed values of time picker
  27.                 Toast.makeText(getApplicationContext(), hourOfDay + " " + minute, Toast.LENGTH_SHORT).show();
  28.                 time.setText(" Now Time is :: " + hourOfDay + " : " + minute);
  29.             }
  30.         });
  31.     }
  32. }

Step 6

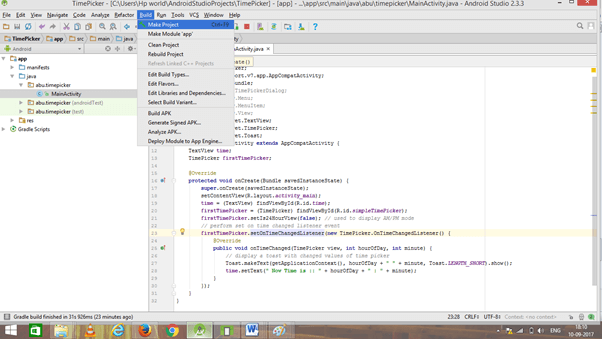

Now, go to menu bar and click "Make project" or press ctrl+f9 to debug the app from errors.

Android

Step 7

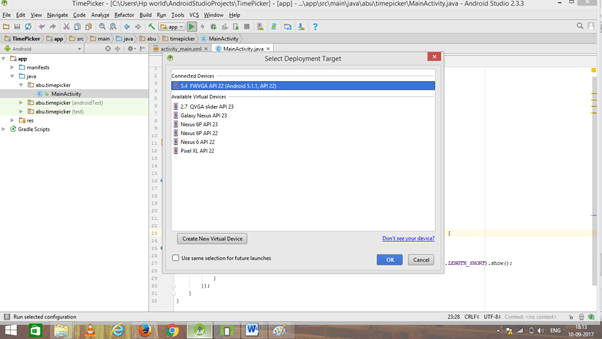

Then, click "Run" button or press shift+f10 to run the project. Choose "virtual machine" and click OK.

Android

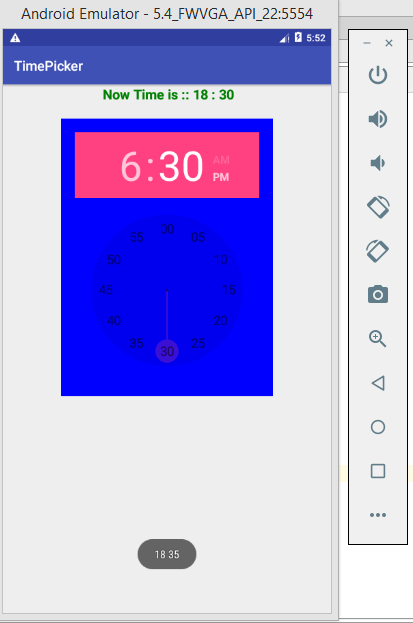

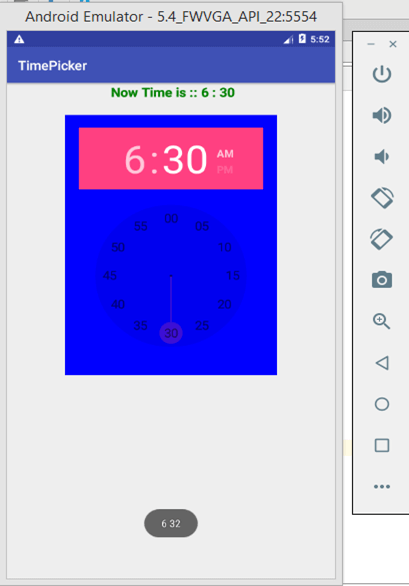

Conclusion

We have successfully created a TimePicker Android application using Android Studio.

Android

Android
