Create Web Browser Android Application Using Android Studio

Introduction

Android is one of the most popular operating systems for mobiles. In this article, I will show you how to create a Web Browser Android application using Android Studio.

Requirements

Steps to be followed

Follow these steps to create a web Browser Android application using Android Studio. I have included the source code above.

Step 1

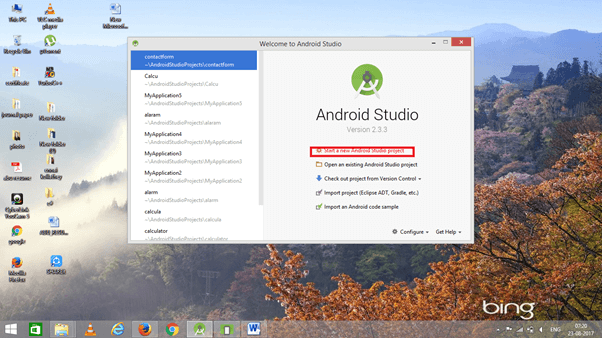

Open Android Studio and start a New Android Studio Project.

Android Studio

Step 2

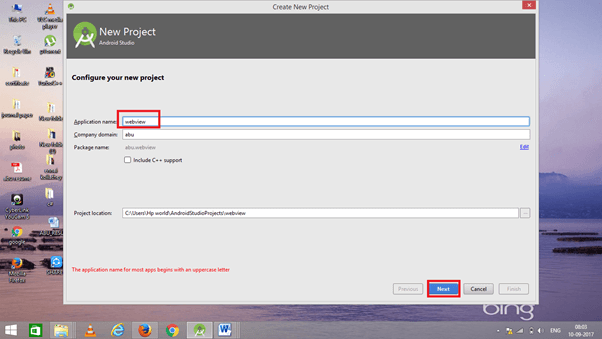

You can choose your application name and choose where your project is stored. If you wish to use C++ for coding the project, mark the "Include C++ support", and click "Next" button.

Android Studio

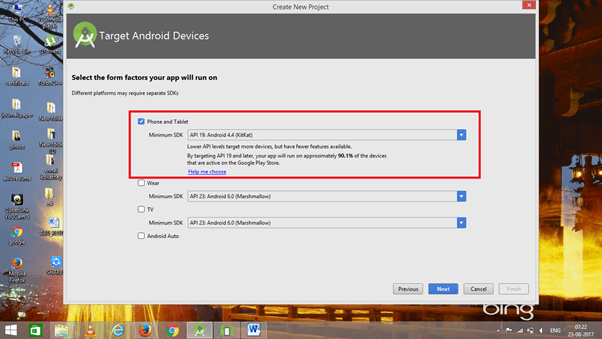

Now, select the version of Android and select the target Android devices.

Android Studio

Step 3

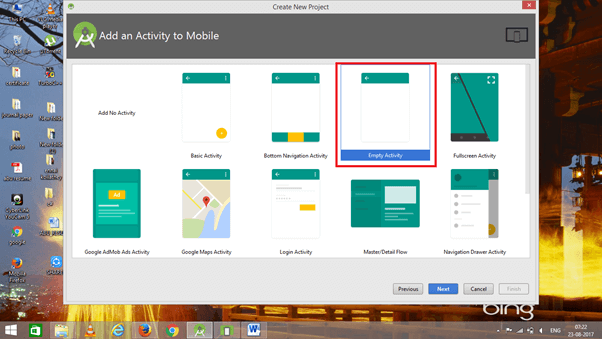

Now, add the activity and click "Next" button.

Android Studio

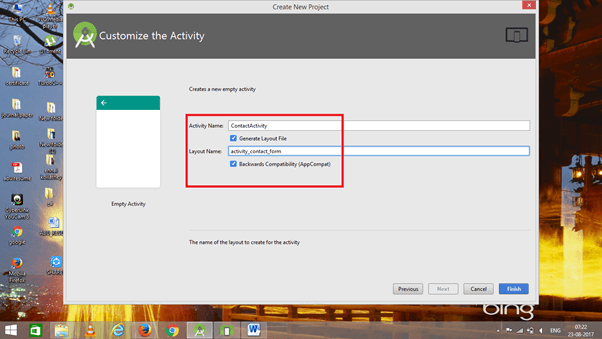

Add activity name and click "Finish".

Android Studio

Step 4

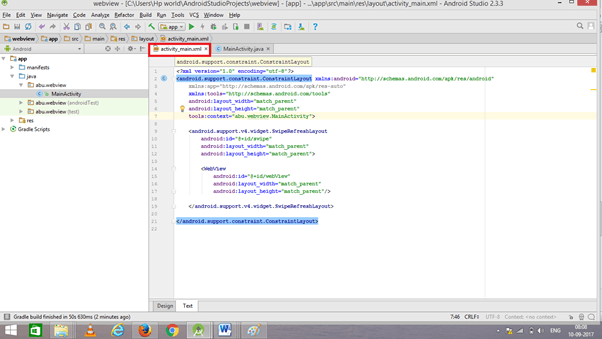

Go to activity_main.xml, This XML file contains the designing code for the app.

Android Studio

The XML code is given below.

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:app="http://schemas.android.com/apk/res-auto"
  4.     xmlns:tools="http://schemas.android.com/tools"
  5.     android:layout_width="match_parent"
  6.     android:layout_height="match_parent"
  7.     tools:context="abu.webview.MainActivity">
  8.
  9.     <android.support.v4.widget.SwipeRefreshLayout
  10.         android:id="@+id/swipe"
  11.         android:layout_width="match_parent"
  12.         android:layout_height="match_parent">
  13.
  14.         <WebView
  15.             android:id="@+id/webView"
  16.             android:layout_width="match_parent"
  17.             android:layout_height="match_parent"/>
  18.
  19.     </android.support.v4.widget.SwipeRefreshLayout>
  20.
  21. </android.support.constraint.ConstraintLayout>

Step 5

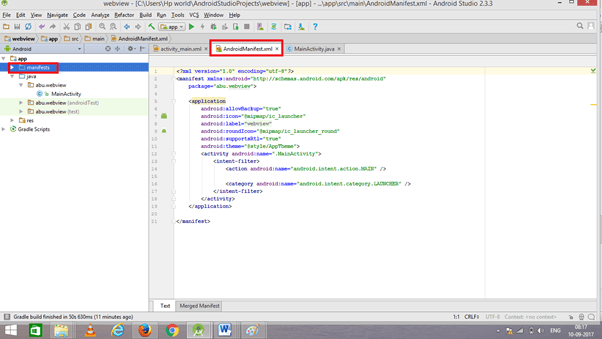

We need to make network requests. So, add internet permissions in AndroidManifest.xml file.

Android Studio

The AndroidManifest.xml code is given below.

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  3.     package="abu.webview">
  4.     <uses-permission android:name="android.permission.INTERNET"/>
  5.     <application
  6.         android:allowBackup="true"
  7.         android:icon="@mipmap/ic_launcher"
  8.         android:label="@string/app_name"
  9.         android:roundIcon="@mipmap/ic_launcher_round"
  10.         android:supportsRtl="true"
  11.         android:theme="@style/AppTheme">
  12.         <activity android:name=".MainActivity">
  13.             <intent-filter>
  14.                 <action android:name="android.intent.action.MAIN" />
  15.
  16.                 <category android:name="android.intent.category.LAUNCHER" />
  17.             </intent-filter>
  18.         </activity>
  19.     </application>

Step 6

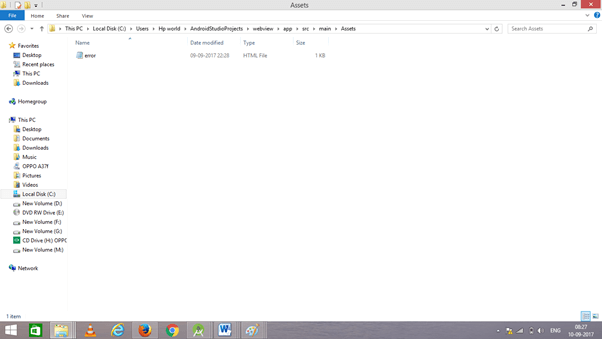

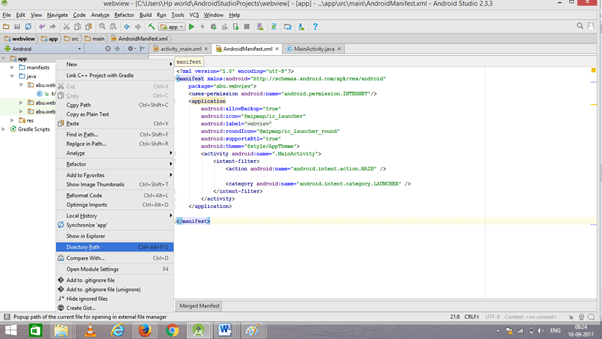

Go to app, right click “Directory path”, then click on the path and add a new folder named Assets in the main folder. The below template shows how to add errorfile. I have attached an error file.

Android Studio

Android Studio

Step 7

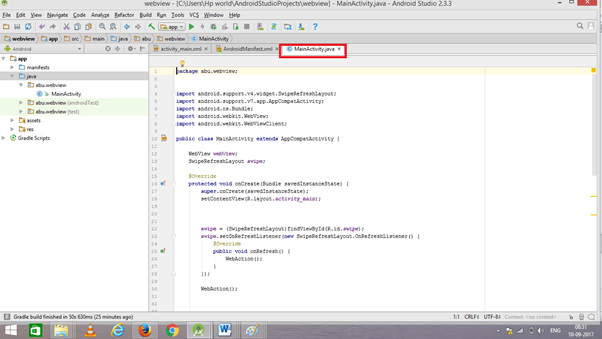

Go to Main Activity.java. This Java program is the back-end language for Android.

Android Studio

The Java code is given below.

  1. package abu.webview;
  2.
  3. import android.support.v4.widget.SwipeRefreshLayout;
  4. import android.support.v7.app.AppCompatActivity;
  5. import android.os.Bundle;
  6. import android.webkit.WebView;
  7. import android.webkit.WebViewClient;
  8.
  9. public class MainActivity extends AppCompatActivity {
  10.
  11.     WebView webView;
  12.     SwipeRefreshLayout swipe;
  13.
  14.     @Override
  15.     protected void onCreate(Bundle savedInstanceState) {
  16.         super.onCreate(savedInstanceState);
  17.         setContentView(R.layout.activity_main);
  18.
  19.         swipe = (SwipeRefreshLayout)findViewById(R.id.swipe);
  20.         swipe.setOnRefreshListener(new SwipeRefreshLayout.OnRefreshListener() {
  21.             @Override
  22.             public void onRefresh() {
  23.                 WebAction();
  24.             }
  25.         });
  26.
  27.         WebAction();
  28.
  29.     }
  30.
  31.
  32.     public void WebAction(){
  33.
  34.         webView = (WebView) findViewById(R.id.webView);
  35.         webView.getSettings().setJavaScriptEnabled(true);
  36.         webView.getSettings().setAppCacheEnabled(true);
  37.         webView.loadUrl("https://www.google.com/");
  38.         swipe.setRefreshing(true);
  39.         webView.setWebViewClient(new WebViewClient(){
  40.
  41.             public void onReceivedError(WebView view, int errorCode, String description, String failingUrl) {
  42.
  43.                 webView.loadUrl("file:///android_assets/error.html");
  44.
  45.             }
  46.
  47.             public void onPageFinished(WebView view, String url) {
  48.                 // do your stuff here
  49.                 swipe.setRefreshing(false);
  50.             }
  51.
  52.         });
  53.
  54.     }
  55.
  56.
  57.     @Override
  58.     public void onBackPressed(){
  59.
  60.         if (webView.canGoBack()){
  61.             webView.goBack();
  62.         }else {
  63.             finish();
  64.         }
  65.     }
  66. }

Step 8

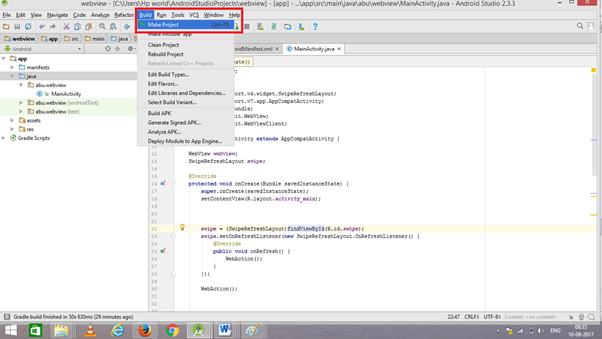

Now, either go to menu bar and click "Make project" or press ctrl+f9 to debug the error.

Android Studio

Step 9

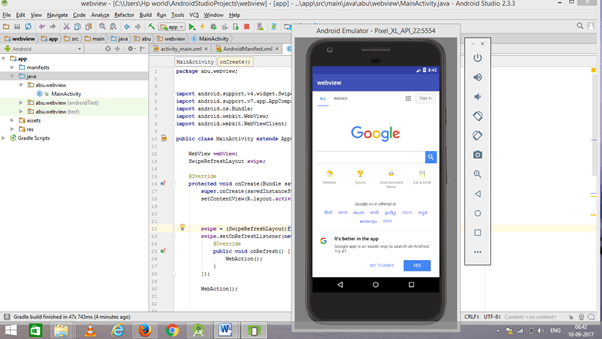

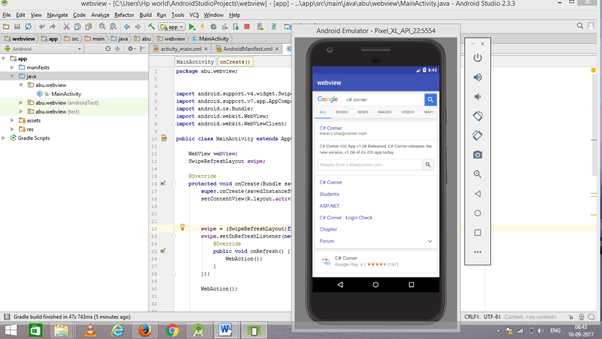

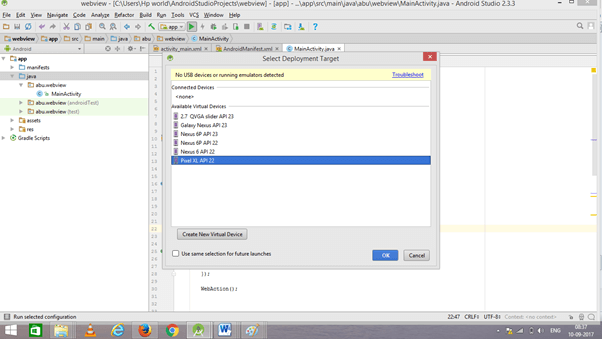

Then, click "Run" button or press shift+f10 to run the project. Select the "virtual machine" option and click OK.

Android Studio

Conclusion

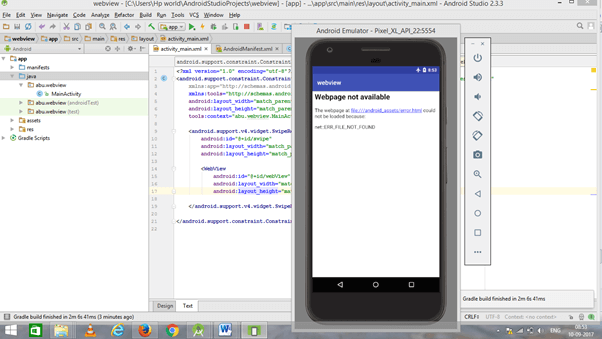

We have successfully created a Web Browser Android application using Android Studio.

Android Studio

Android Studio

Android Studio
